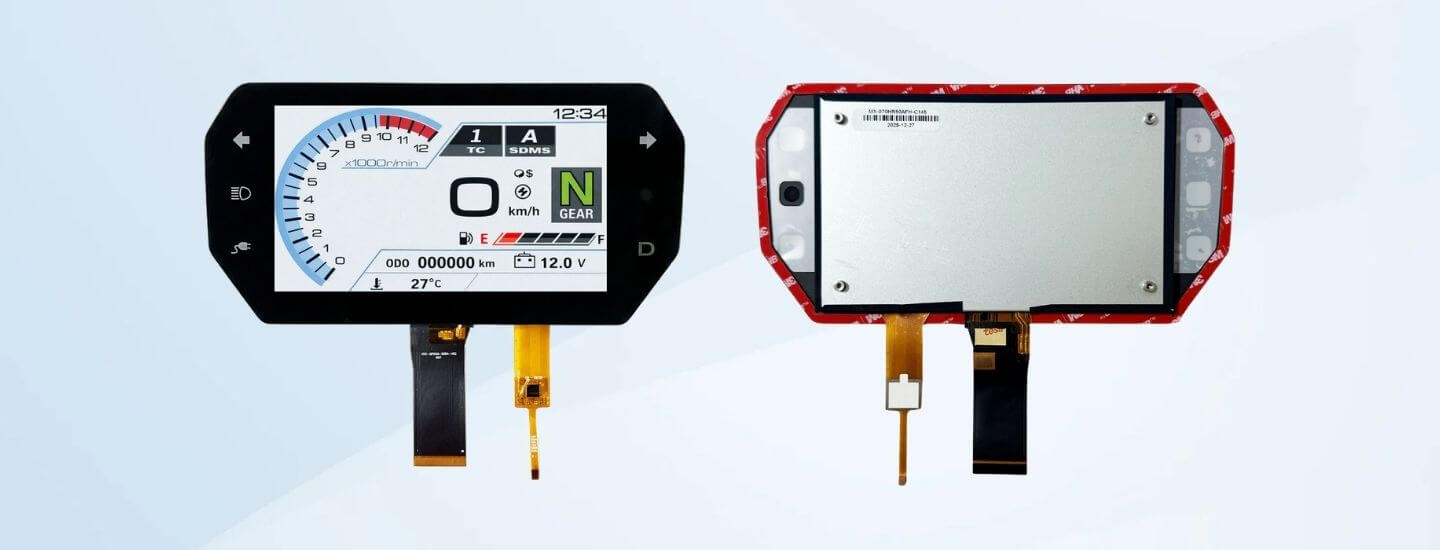

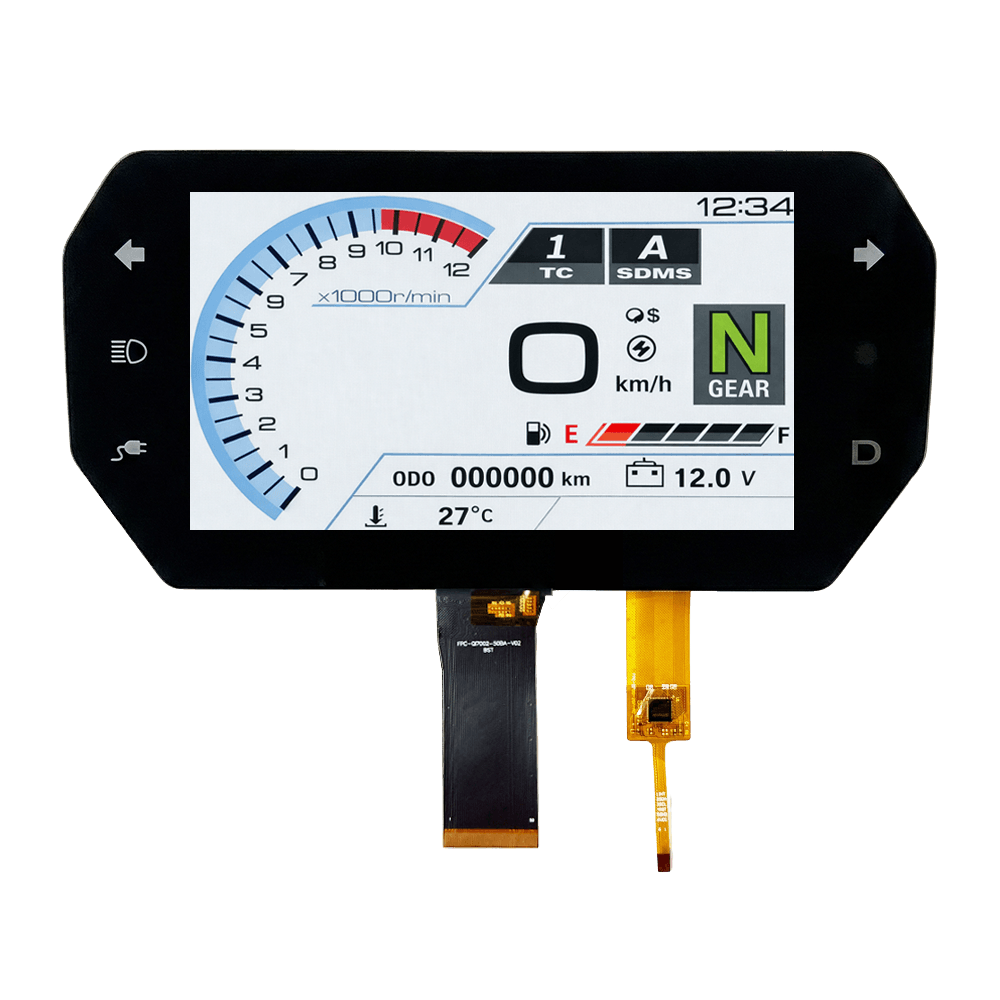

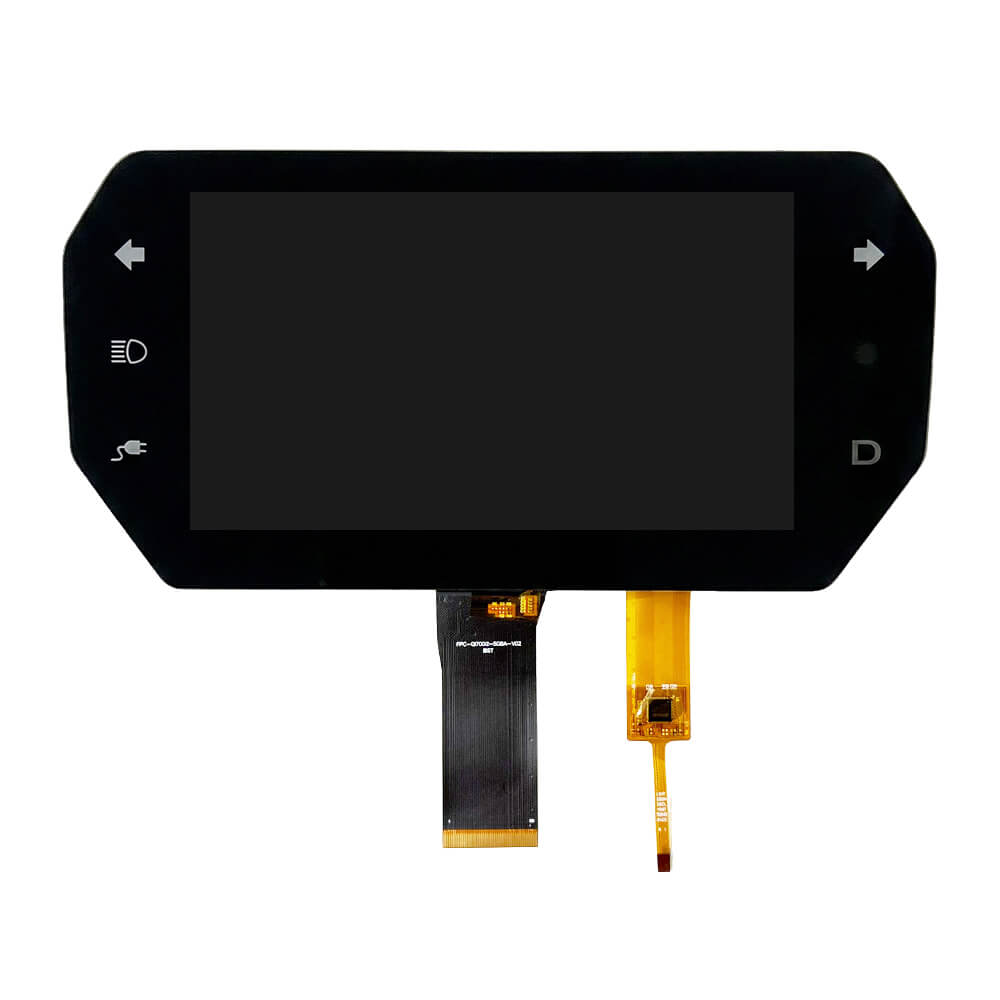

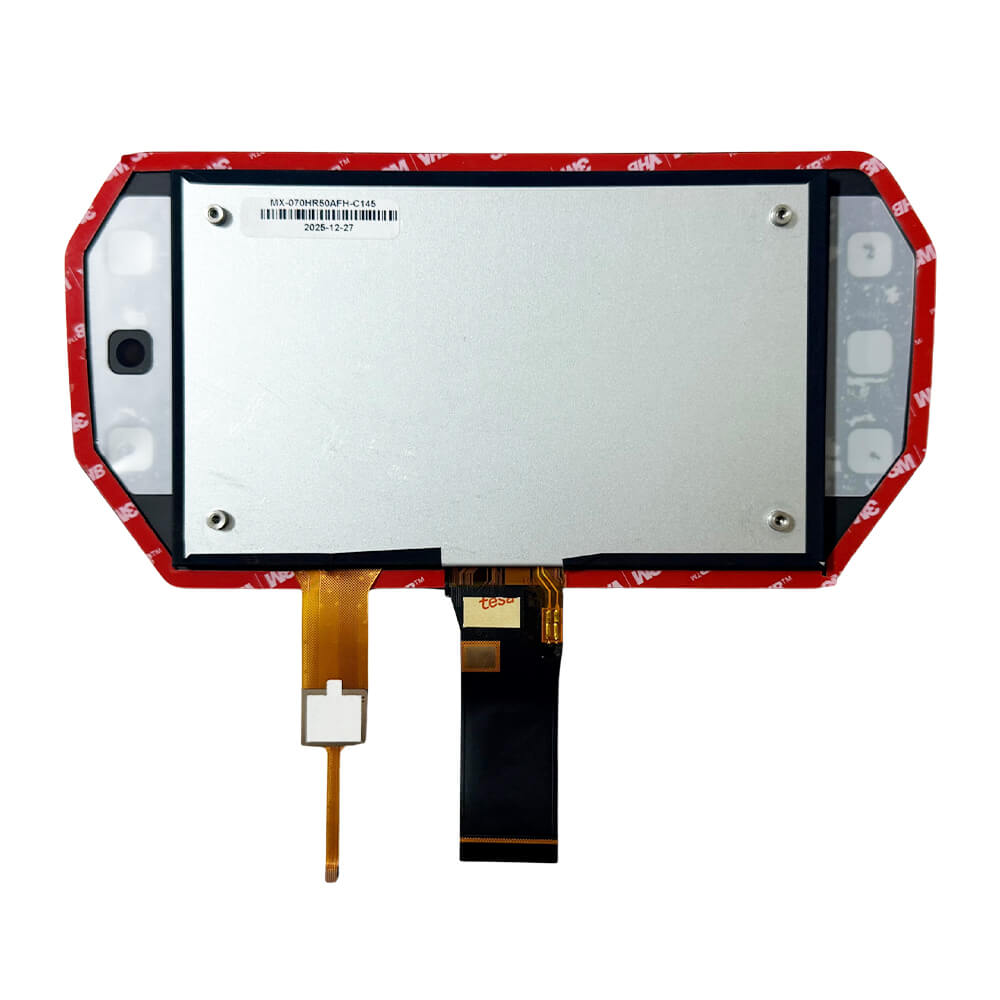

LCM Pin Definition (50-pin RGB)
| Pin No. | Symbol | Function |
| 1-2 | LED+ | Power for LED backlight(anode) |
| 3-4 | LED- | Power for LED backlight(Cathode) |
| 5 | GND | Power Ground |
| 6 | VCOM | Common Voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data input enable |
| 10 | VSYNC | Vertical Sync input |
| 11 | HSYNC | Horizontal Sync input |
| 12~19 | B7~B0 | Blue data |
| 20~37 | G7~G0 | Green data |
| 28~35 | R7~RO | Red data |
| 36 | GND | Power Ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power ground |
| 39 | SHLR | Left/right selection |
| 40 | UPDN | Up/Down selection |
| 41 | VGH | Gate On Voltage |
| 42 | VGL | Gate Off Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin |
| 45 | NC | No connection |
| 46 | VCOM | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power ground |
| 49-50 | NC | No connection |
I²C-TP Interface
| PIN NO. | Assignment |
| 1 | INT |
| 2 | SDA |
| 3 | SCL |
| 4 | RST |
| 5 | GND |
| 6 | VDD(3.3V) |
