Custom LCD Touch Screen Display Solution

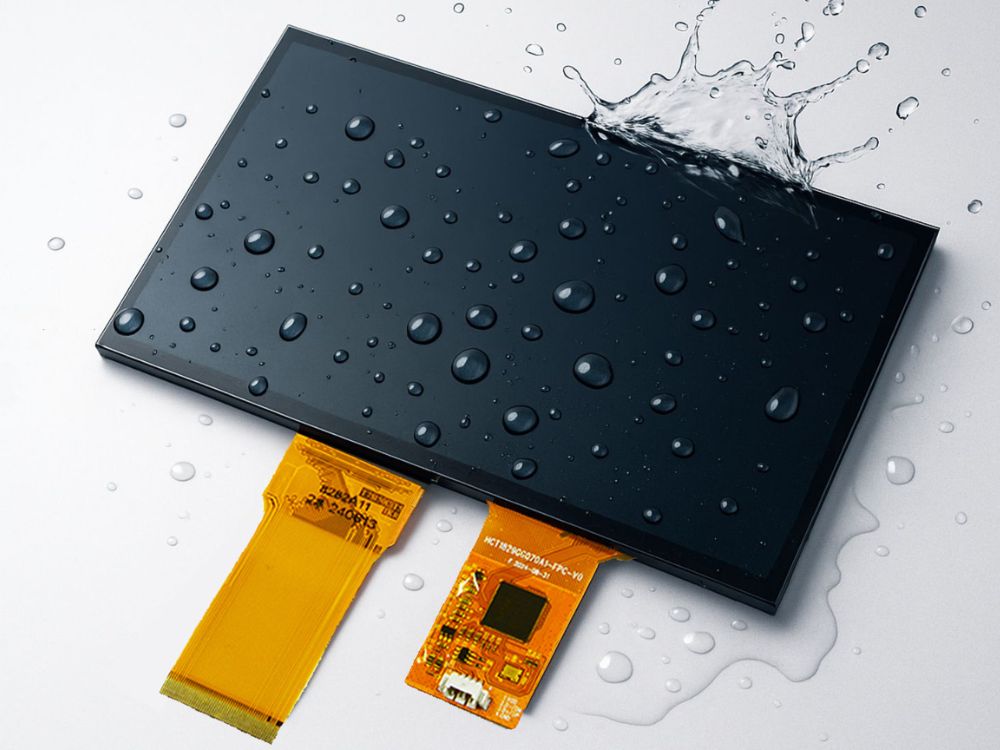

Custom LCD Touch Screen

MAXEN offers custom medium-size LCD touch screen solutions designed for outdoor high-brightness, high-temperature, and high-humidity environments.

Our TFT LCD panels feature brightness ranging from 500cd/m² to 1500cd/m² and wide temperature range (-30°C to 85°C), ensuring stable performance in extreme outdoor conditions.

Custom services include touch screen cover glass irregular cutting, multi-color printing, AG/AR/AF coatings, and optical bonding, ensuring excellent display performance and durability in high-temperature, bright-light, and humid environments.

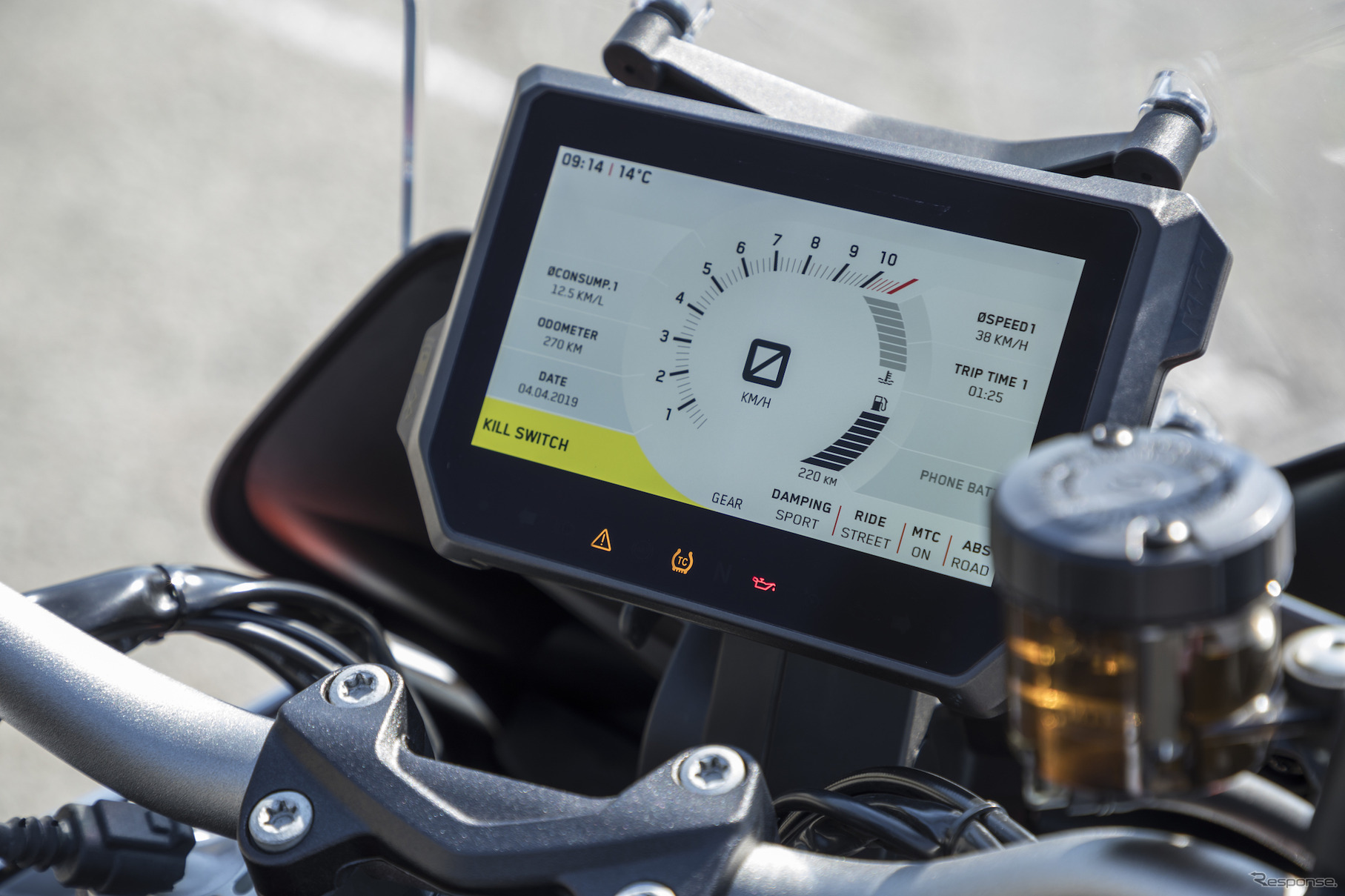

Specializing in industrial HMIs, medical devices, and outdoor applications such as two-wheeled vehicle dashboards, we provide tailored display solutions for clients in demanding and challenging fields.

High Brightness & Wide Temperature

As an experienced custom TFT LCD display manufacturer, we design our LCD screens from glass to backlight specifically for harsh environments such as outdoor applications and industrial automation.

High Brightness – We have flexible in-house backlight production capabilities, with engineers designing the LED light bars and experienced workers handling the assembly. This allows us to offer high-brightness LCD Screen, with brightness ranging from 500cd/m² to 2000cd/m².

Wide temperature – We select and utilize specialized materials and components to ensure wide-temperature compatibility, enabling our wide-temperature LCD displays to operate reliably from -30°C to 85°C, with all models fully validated in high-temperature and high-humidity test chambers.

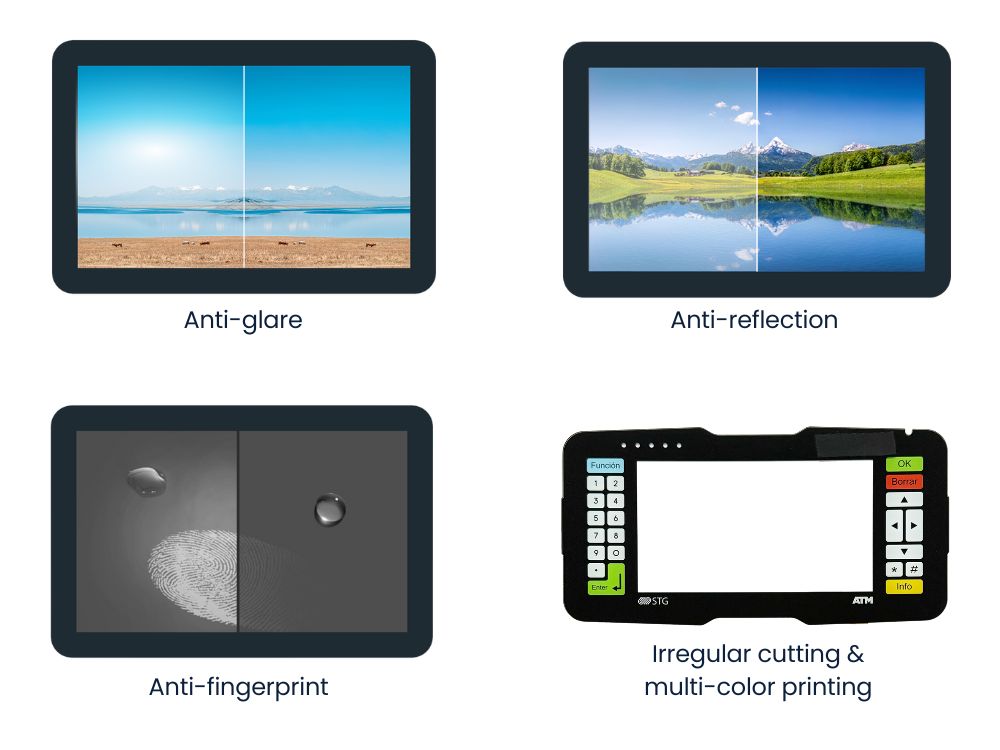

AG/AR/AF Coatings & Multi-Color Printing

Our custom touch screen cover glass is designed and produced in-house to meet specific environmental and performance requirements.

AG (Anti-Glare) – Etched directly onto the glass to ensure a smooth, even surface and effective glare.

AR (Anti-Reflective) – Applied via multi-layer techniques like sputtering or CVD to reduce reflections and increase light transmission.

AF (Anti-Fingerprint) – Vacuum-deposited coating that resists fingerprints and smudges.

Multi-color printing – 3-7 color printing for custom logos, patterns, and designs.

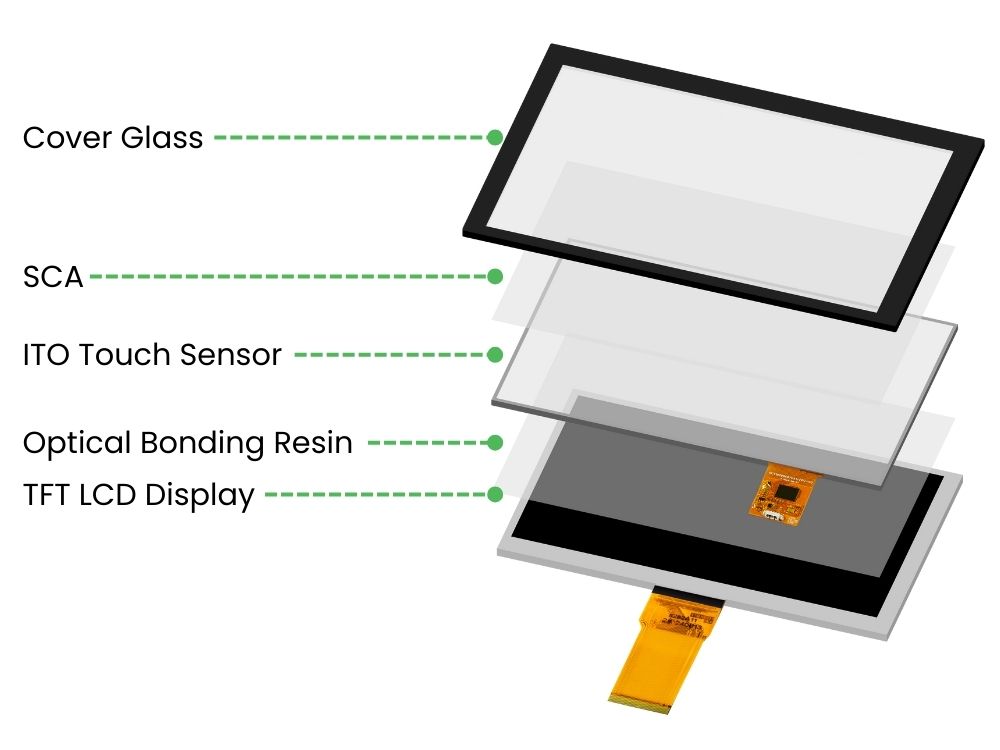

Optical Bonding – LOCA & Anti-UV OCA

We offer two advanced optical bonding solutions for enhanced display performance:

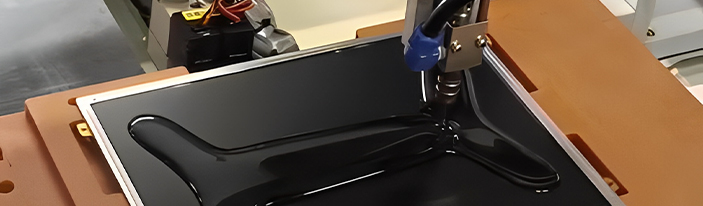

LOCA (Liquid Optical Clear Adhesive) – Liquid adhesive bonding for reduced internal reflections and enhanced readability in high ambient light conditions.

Anti-UV OCA – Solid adhesive with improved UV stability, preventing yellowing and maintaining optical performance in outdoor environments, particularly suited for outdoor handheld terminals, automotive displays and marine instrument panels.

FAQs

Custom LCD display, touch screen customization and engineering support information for industrial display projects.

1. What customization options are available for custom LCD display projects?

MAXEN supports display customization including LCD size, resolution, brightness, backlight, interface, FPC length and shape, pin definition, operating temperature and mechanical dimensions. Touch screen, cover glass, optical bonding and housing integration can also be developed based on project requirements.

2. What customization options are available for custom touch screen display projects?

Custom touch screen display options include PCAP or RTP, sensor size, touch FPC, controller, I²C or USB interface, cover glass size and shape, printing, holes, AG/AR/AF treatment and optical bonding. Touch structure can be matched with existing LCD, enclosure or mechanical design.

3. Which interface and FPC modifications are supported for custom display screen projects?

Interface, FPC layout, connector position, FPC length and pin definition can be reviewed according to PCB design and system architecture. RGB, LVDS, MIPI, SPI and other interfaces are supported depending on LCD platform and project specifications.

4. What information is required for custom display screen development?

Recommended project information includes target size, resolution, outline dimensions, brightness, interface, operating temperature, touch requirement and annual demand. LCD datasheet, mechanical drawing, PCB information or cover glass drawing can help accelerate engineering evaluation.

5. What is typical development cycle for industrial customized display projects?

Development cycle depends on LCD platform, FPC modification, touch structure, cover glass, tooling and validation scope. Projects based on existing display platforms normally require shorter development time. Development scope, sample plan and estimated lead time are confirmed after engineering review.

6. What integration services are available for custom LCD display projects?

Custom LCD display projects can include cover glass, logo printing, color printing, AG/AR/AF treatment, OCA or liquid optical bonding, metal frame and selected housing structures. These options support integration of display, touch and mechanical components into one project-specific module.

7. What sample and validation support is available before mass production?

Prototype and sample validation are available before mass production. Sample quantity, tooling requirement, NRE, validation scope and lead time depend on customization level. Engineering team confirms relevant details after project specification review.
