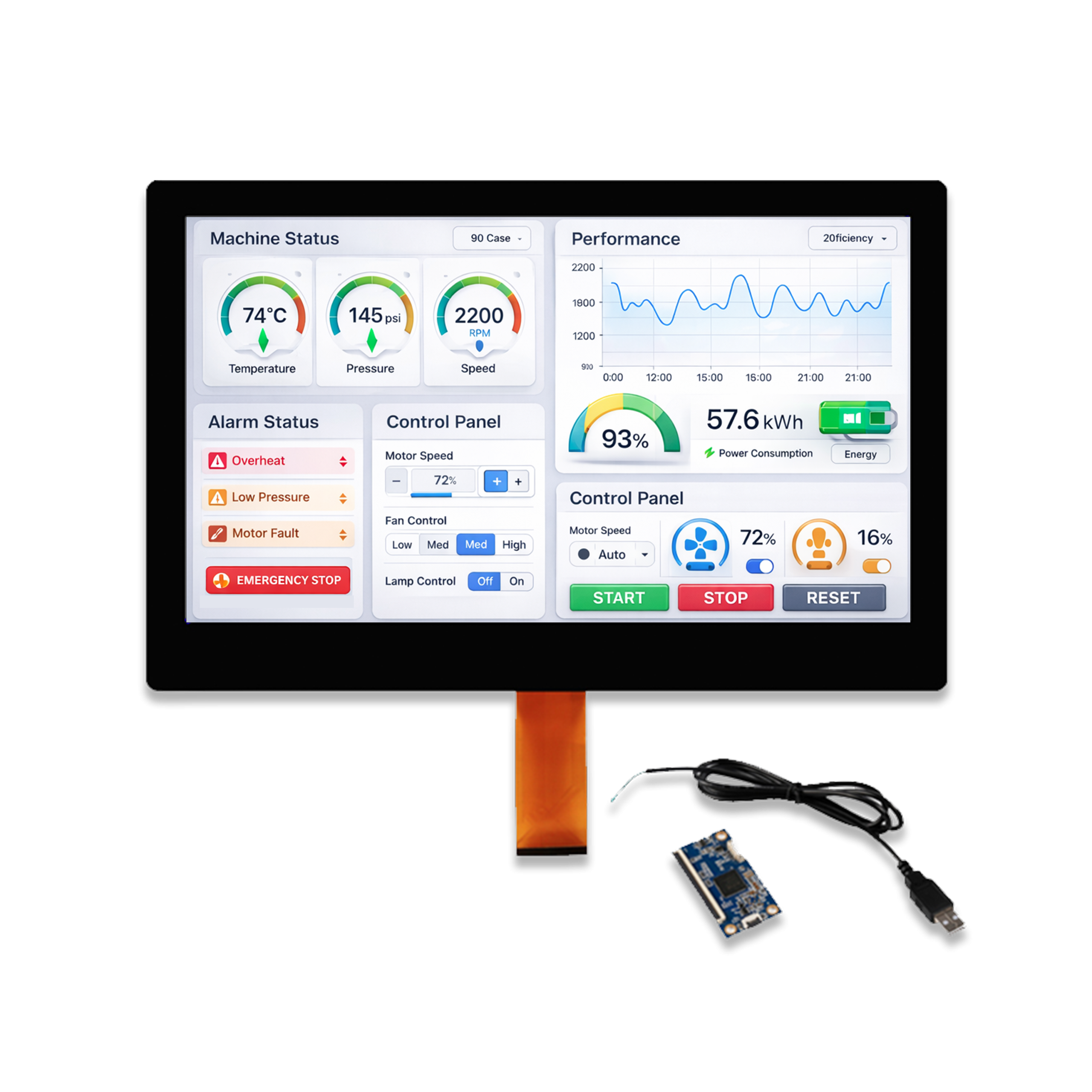

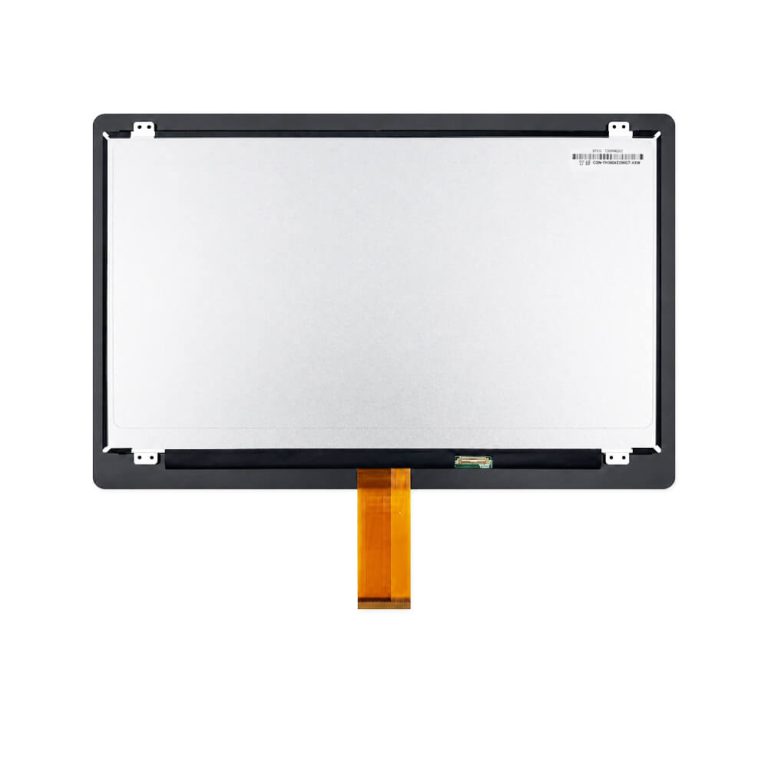

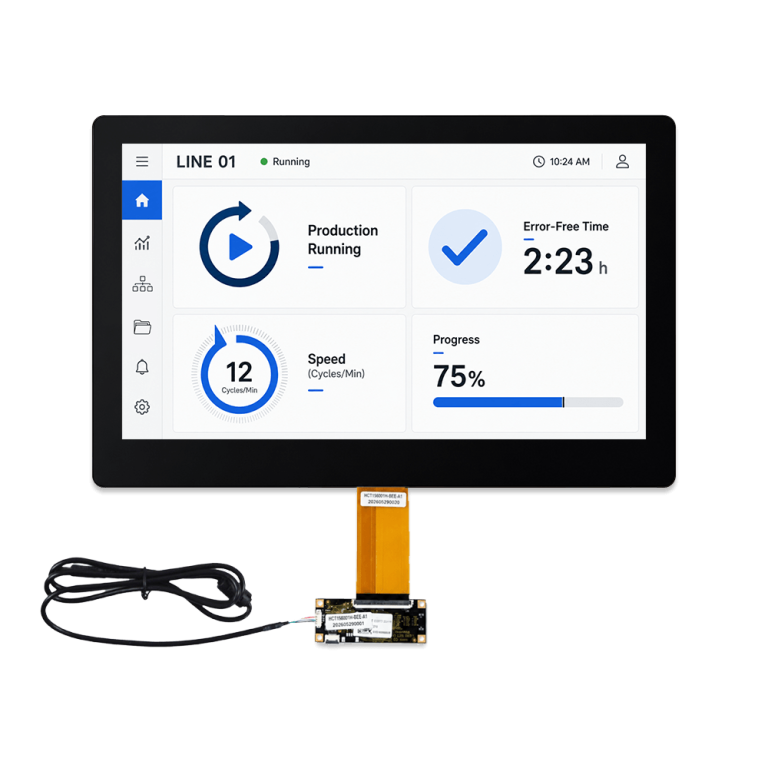

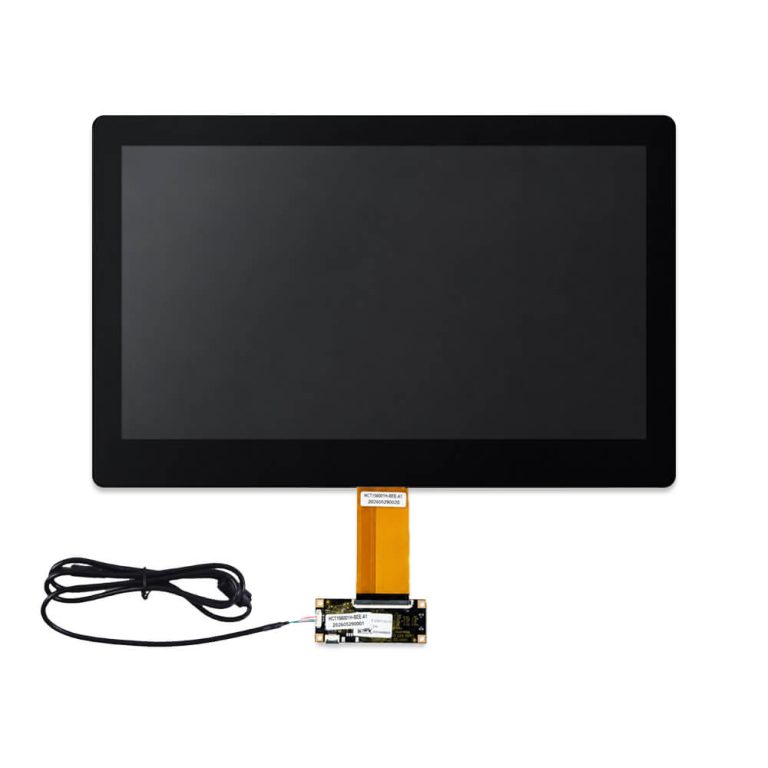

15.6 inch LCD Screen Touch Screen

Ideal for industrial control panels, smart terminals, medical equipment, self-service kiosks, and embedded devices that require interactive display operation.

Main Features

  • Part No. MX-156FE30AFM-N17-BEE
  • 15.6 inch LCD Screen Air Bonding with Touch Screen
  • 1920x1080 resolution
  • High brightness 600 cd/m²
  • Full viewing angles (IPS)
  • 30-pin EDP interface
  • Capacitive Touch with ILI2511 Controller (USB interface)
Get a Quote

15.6 inch LCD Touch Screen      MX-156FE30AFM-N17-BEE

13.3 inch Touch Screen LCD MX-B133FE30-IS03KB-F1622 is an OCA bonding assembly version that combines 13.3 inch LCD panel with capacitive touch screen, making it suitable for industrial control panels, smart terminals, medical equipment, self-service kiosks, and embedded devices that require interactive display operation. Featuring 1920x1080 Full HD resolution, IPS technology, 350 nits brightness, and 293.76x165.24 mm active area, this 13.3 inch capacitive touch screen delivers sharp visuals, stable color performance, and smooth touch response for indoor applications. The 13.3" LCD uses a 30-pin EDP interface, while the PCAP touch panel supports USB communication with ILI2511 touch IC. For projects that only require the display panel without touch, a separate 13.3 LCD Screen version is also available. With OCA bonding and a slim 305.90x188.29x5.25 mm structure, this module is a practical choice for products that need a clean, integrated touch display solution.

13.3 inch capacitive touch screen 1920x1080 ips oca bonding

  • Standard Brightness

    350 nits

  • Working Temp Range

    0°C to 50°C

  • Interface

    30-pin EDP

  • Touch Controller IC

    ILI2511

  • LCM Pin Assignment (30-pin EDP)
  • TP PIN Definition (USB)
  • Product Drawing

LCM Pin Assignment (30-pin EDP)

Terminal Symbol Functions
Pin No. Symbol Description
1  NC No connection
2  H-GND Ground
3  LAN1_N Complement Signal Link_Lane1
4  LAN1_P True Signal Link _Lane1
5  H-GND Ground
6  LANO_N Complement Signal Link_Lane0
7  LANO_P True Signal Link _Lane0
8  H-GND High Speed Ground
9  AUXP True Signal Link_Auxiliry Channel
10  AUXN Complement Signal Link_Auxiliry Channel
11  H-GND Ground
12  LCD_VCC Power Supply,3.3V(typ.)
13  LCD_VCC Power Supply,3.3V(typ.)
14  BIST Panel self test enable
15  H-GND Ground
16  H-GND Ground
17  HPD HPD(Hot Plug Detect)Signal Pin
18  BL_GND High Speed Ground
19  BL_GND High Speed Ground
20  BL_GND High Speed Ground
21  BL_GND High Speed Ground
22  BL_EN Backlight on/off Control pin
23  BL_PWM Back light PWM Dimming
24  NC No connection
25  NC No connection
26  BL_PWR Backlight power
27  BL_PWR Backlight power
28  BL_PWR Backlight power
29  BL_PWR Backlight power
30  NC No connection

TP PIN Definition (USB)

PIN NO. Interface
1 VDD/5V
2 D-
3 D+
4 GND

15.6 inch LCD Screen Touch Screen Product Drawing
