IPS TFT LCD, Wide Viewing Angle LCD Screens

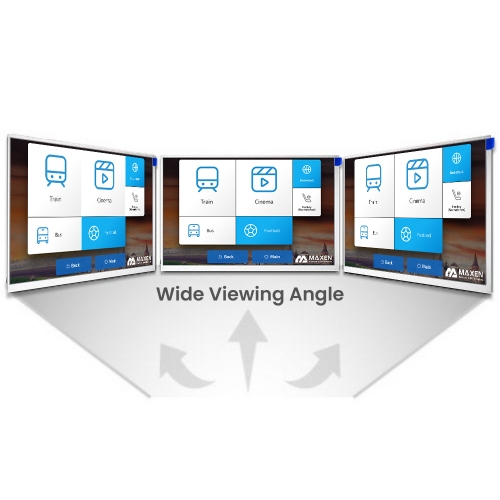

IPS (In-Plane Switching) technology ensures that you get stunning colors, sharp images, and wide viewing angles. The IPS TFT LCD screen is designed to provide consistent and accurate color reproduction, making it perfect for gaming, video playback, and other multimedia applications. MAXEN offers a full range of IPS TFT LCD Screens; available sizes from mini IPS TFT of 2" to 43” inch large IPS display, to deliver better performance in a range of demanding situations, we also offer higher brightness version (500~1000 cd/m2) as options for some models and offer resistive touchscreen (RTP) or capacitive touchscreen (PCAP) for optional as well. With its superior display technology, MAXEN IPS TFT LCD Screens will take your visual experience to the next level.
SEND INQUIRY
Product
Size Resolution Image Model No. Type PIN Interface Brightness Technology Viewing Angle(T/B/L/R) O.T L.T Outline Dimension Active Area

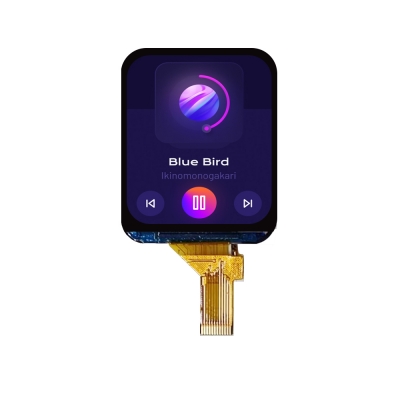

1.69" 240x280 1.69 inch IPS TFT LCD MX-0169NS12EFS-N03 Portrait 12pin 4 wire SPI 400 nits IPS / -20~70 °C 30K Hr. 30.07*37.43*1.60 27.97*32.63
2.4" 240x320 2.4 inch TFT LCD Module MX-T240MHQS-28 Portrait 30pin MCU 350 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 42.72*59.46*2.02 36.72*48.96

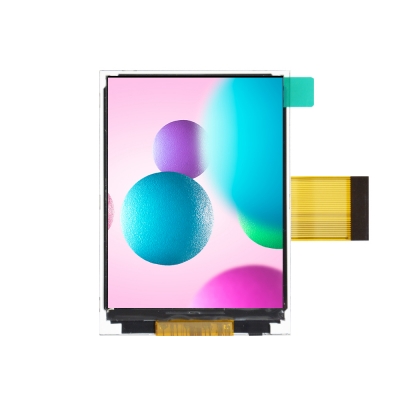

2.8" 240x320 2.8 inch IPS LCD Display Panel MX-028NS33BFS-N06 Portrait 33pin 4 wire SPI 300 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 50.00*69.20*2.25 43.20*57.60
2.8" 240x320 2.8 inch TFT Display MX-H28NS40I-WT03(V02) Portrait 40pin SPI+RGB 300 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 50.50*69.70*2.10 43.20*57.60
3.0" 360x640 3 inch TFT LCD Screen MX-30HR40-IL01 Portrait 40pin RGB 500 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 42.70*74.70*2.20 36.72*65.28
3.5" 320x240 3.5 inch IPS LCD Display HCT-I035T54-32006L02T Landscape 54pin RGB+SPI 550 nits IPS 80/80/80/80 -30~85 °C 50K Hr 76.90*63.90*3.20 70.08*52.56

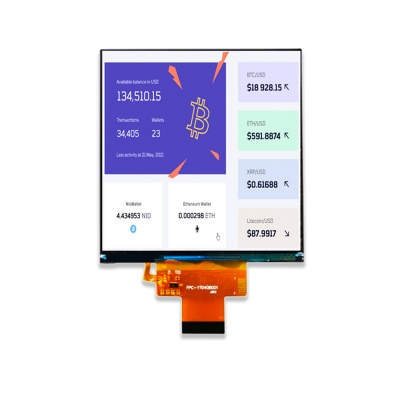

4.0" 720x720 4 inch Square LCD Screen MX-B40FM30-IT02 Square 30pin MIPI 350 nits IPS 80/80/80/80 -10~60 °C 30K Hr. 83.70*83.70*3.06 71.93*71.93
4.3" 800x480 4.3 inch IPS LCD Display MX-B43HR-40IS13 Landscape 40pin RGB 500 nits IPS 80/80/80/80 -20~70 °C 30K Hr. 105.42*67.07*2.90 95.04*53.86
4.3" 480x800 4.3 inch LCD Panel MX-N43HR42-IT30 Portrait 42pin MIPI+RGB+SPI 350 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 62.40*105.40*2.15 56.16*93.60
5.0" 800x480 5 inch IPS Display MX-B50HR40-TIS06 Landscape 40pin RGB 500 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 120.70*75.90*3.05 108.00*64.80
5.0" 720x1280 5 inch 720x1280 IPS LCD Screen MX-I50HM40-IL04 Portrait 40pin MIPI 450 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 66.40*120.05*2.35 62.10*110.40
5.5" 720x1280 5.5 inch 720x1280 LCD Screen HCT546017HDA Portrait 25pin MIPI 350 nits IPS 80/80/80/80 -10~60 °C 30K Hr. 71.00*129.66*1.63 68.04*120.96

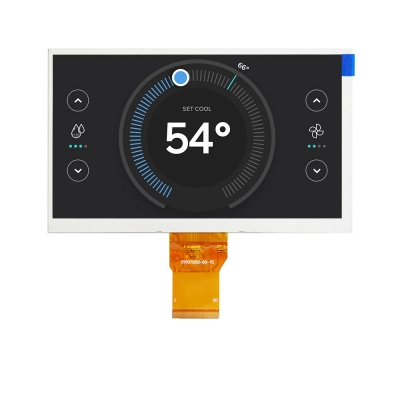

7.0" 800x480 7 inch 800x480 IPS TFT Display MX-070NR50KFS-N57 Landscape 50pin RGB 200 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 164.86*99.96*3.50 153.84*85.63
7.0" 800x480 7 inch RGB 40 PIN IPS Display MX-U70NT40-IG48(V02) Landscape 40pin RGB 350 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 165.00*104.09*5.30 152.40*91.44
7.0" 1024x600 7 inch LCD Screen MX-B70HR50-IX19 Landscape 50pin RGB 280 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 164.00*97.00*2.60 154.21*85.92
7.0" 1024x600 7 inch IPS Display MX-B70HL40-IX20 Landscape 40pin LVDS 350 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 165.00*100.00*3.50 154.21*85.92
7.0" 1024x600 7 inch IPS LCD Panel MX-B70HM30I-S03 Landscape 30pin MIPI 500 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 165.00*100.00*3.50 154.21*85.92
7.0" 1024x600 7 inch TFT Display MX-B70HM30-IX21 Landscape 30pin MIPI 500 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 164.00*97.00*2.60 154.21*85.92
7.0" 800x1280 7 inch IPS TFT Display MX-I70FM31-ILX40 Portrait 31pin MIPI 250 nits IPS 80/80/80/80 -10~60 °C 20K Hr. 99.76*161.60*2.60 94.20*150.72
8.0" 800x1280 8 inch LCD Screen MX-U80HM31-IP07 Portrait 31pin MIPI 250 nits IPS 80/80/80/80 -10~60 °C 20K Hr. 114.60*184.10*2.60 107.64*172.22
9.0" 1024x600 9 inch TFT Display MX-B90HR50-IS02 Landscape 50pin RGB 450 nits IPS 80/80/80/80 -20~70 °C 30K Hr. 210.70*126.40*5.00 196.61*114.15
9.0" 1024x600 9 inch LCD Panel MX-B90HL60-IS07 Landscape 60pin LVDS 500 nits IPS 80/80/80/80 -20~70 °C 30K Hr. 210.70*126.40*5.00 196.61*114.15
10.1" 1024x600 10.1 inch TFT Display MX-B10HR50-IS23 Landscape 50pin RGB 600 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 238.00*143.00*5.20 222.72*125.28
10.1" 1024x600 10.1 inch LCD Panel MX-B101NL40-IS05 Landscape 40pin LVDS 400 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 235.00*143.00*3.50 222.72*125.28
10.1" 1280x800 10.1 inch TFT LCD Screen MX-B101FL40-IM21 Landscape 40pin LVDS 350 nits IPS 80/80/80/80 -20~70 °C 30K Hr. 228.20*148.95*2.60 216.96*135.60
10.1" 800x1280 10.1 inch TFT LCD Module MX-A101FL20-IP37 Portrait 20pin LVDS 300 nits IPS 80/80/80/80 -10~50 °C 20K Hr. 143.00*228.60*2.60 135.36*216.58
10.1" 800x1280 10.1 inch LCD Display MX-A101FM40-IX15 Portrait 40pin MIPI 300 nits IPS 80/80/80/80 -10~50 °C 30K Hr. 143.00*228.60*2.50 135.36*216.58
10.1" 1920x1200 10.1 inch LCD Display Module MX-B101FL45-IM22 Landscape 45pin LVDS 300 nits IPS 80/80/80/80 -20~70 °C 30K Hr. 228.16*148.91*2.55 216.81*135.50
10.1" 1200x1920 10.1 inch TFT LCD Panel MX-H101FM40-IP31 Portrait 40pin MIPI 230 nits IPS 80/80/80/80 -10~60 °C 10K Hr. 143.00*228.60*2.45 135.36*216.58
