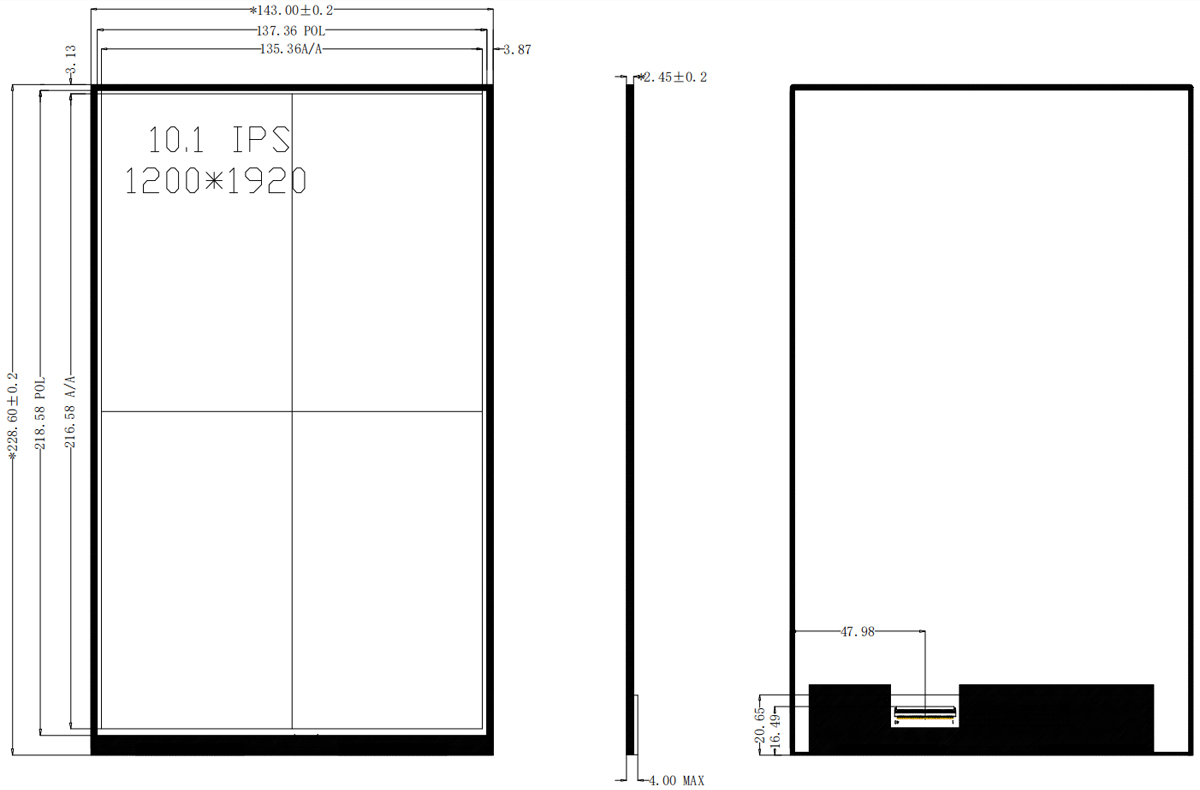

Product Structure
LCD PIN Function (MIPI 40 PIN)
|
PIN NO. |
SYMBOL |
DESCRIPTION |
|
1 |
VCOM |
NC |
|
2 |
VDDIN |
Power supply for interface system except MIPI interface pin, VDDIN=3.3V |
|
3 |
VDDIN |
|
|
4 |
GND |
Ground |
|
5 |
RESET |
REST PIN |
|
6 |
NC |
No connection |
|
7 |
GND |
Ground |
|
8 |
MIPI_DON |
Negative MIPI differential data input |
|
9 |
MIPI_DOP |
Positive MIPI differential data input |
|
10 |
GND |
Ground |
|
11 |
MIP_ID1N |
Negative MIPI differential data input |
|
12 |
MIPI_D1P |
Positive MIPI differential data input |
|
13 |
GND |
Ground |
|
14 |
MIPI_CLKN |
Negative MIPI differential clock input |
|
15 |
MIPI_CLKP |
Positive MIPI differential clock input |
|
16 |
GND |
Ground |
|
17 |
MIPI_D2N |
Negative MIPI differential data input |
|
18 |
MIPI_D2P |
Positive MIPI differential data input |
|
19 |
GND |
Ground |
|
20 |
MIPI_D3N |
Negative MIPI differential data input |
|
21 |
MIPI_D3P |
Positive MIPI differential data input |
|
22 |
GND |
Ground |
|
23 |
NC |
No connection |
|
24 |
NC |
No connection |
|
25 |
GND |
Ground |
|
26 |
NC |
No connection |
|
27 |
PWM |
PWM control signal for LED driver (CABC) |
|
28 |
NC |
No connection |
|
29 |
VCL |
NC |
|
30 |
GND |
Ground |
|
31 |
LED- |
LED cathode |
|
32 |
LED- |
LED cathode |
|
33~38 |
NC |
No connection |
|
39~40 |
LED+ |
LED The anode |
|
PARAMETER |
Sym. |
Min. |
Typ. |
Max. |
Unit |
Test Condition |
|
LED Current |
IF |
- |
100 |
- |
mA |
- |
|
LED Voltage |
VF |
21 |
23.1 |
24.5 |
V |
- |
|
LED Life Time |
- |
- |
10000 |
- |
Hr. |
I≦100mA |
|
Luminance |
- |
- |
230 |
- |
cd/m2 |
- |
|
Uniformity |
- |
70 |
75 |
- |
% |
- |
|
Color |
White |
|||||
