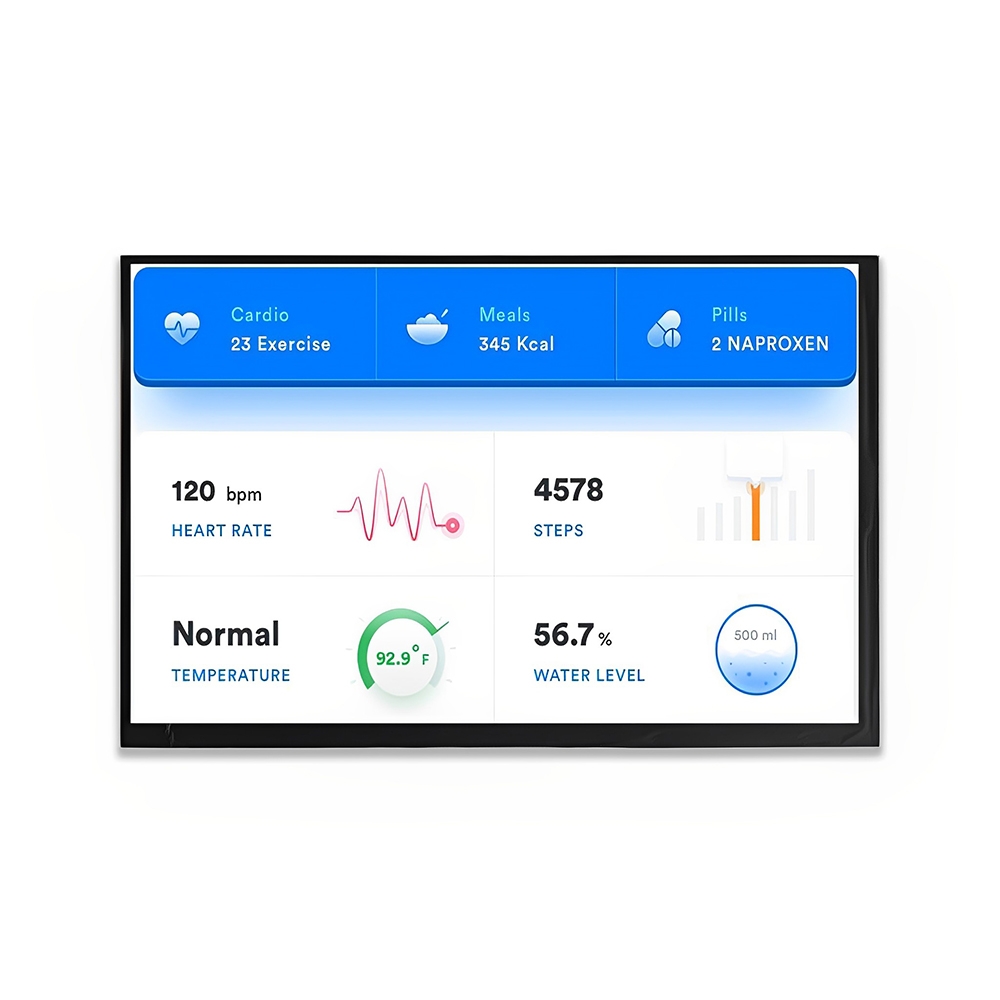

MX-B101FL40-IM21 is a 10.1 inch TFT LCD screen designed for various applications. This 10.1 inch LCD screen features advanced IPS technology, a high resolution of 1280X800 pixels, LVDS interface support, and a standard brightness of 350 nits. Ideal for tablets, laptops, medical devices, automotive displays, and more, its IPS technology ensures superior image quality and wide viewing angles. The high resolution guarantees sharp and clear visuals, while the LVDS interface enables easy integration with control boards. With a standard brightness of 350 nits, the 10.1" LCD screen remains visible in both indoor and outdoor environments. Built to meet industry standards, this 10.1 inch LCD panel is a durable and dependable solution for your display needs.

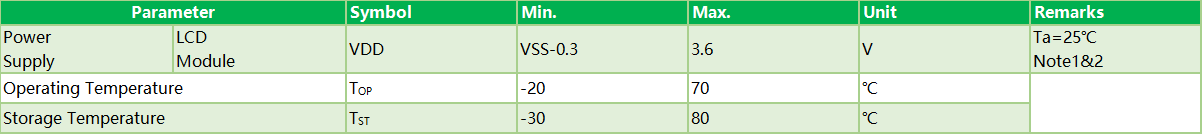

Note:

1. These range above is maximum value not the actual operating temperature. Actual Operating temperature is no more than 40℃ and temperature refers to the LCM surface temperature;

2. BOE is not responsible for product problems beyond the use conditions.

Notes:

1. The supply voltage is measured and specified at the interface connector of LCM.

2. The current draw and power consumption specified is for VDD=3.3V, Frame rate fV=60Hz and Clock frequency = 72.4MHz. Test Pattern of power supply current.
