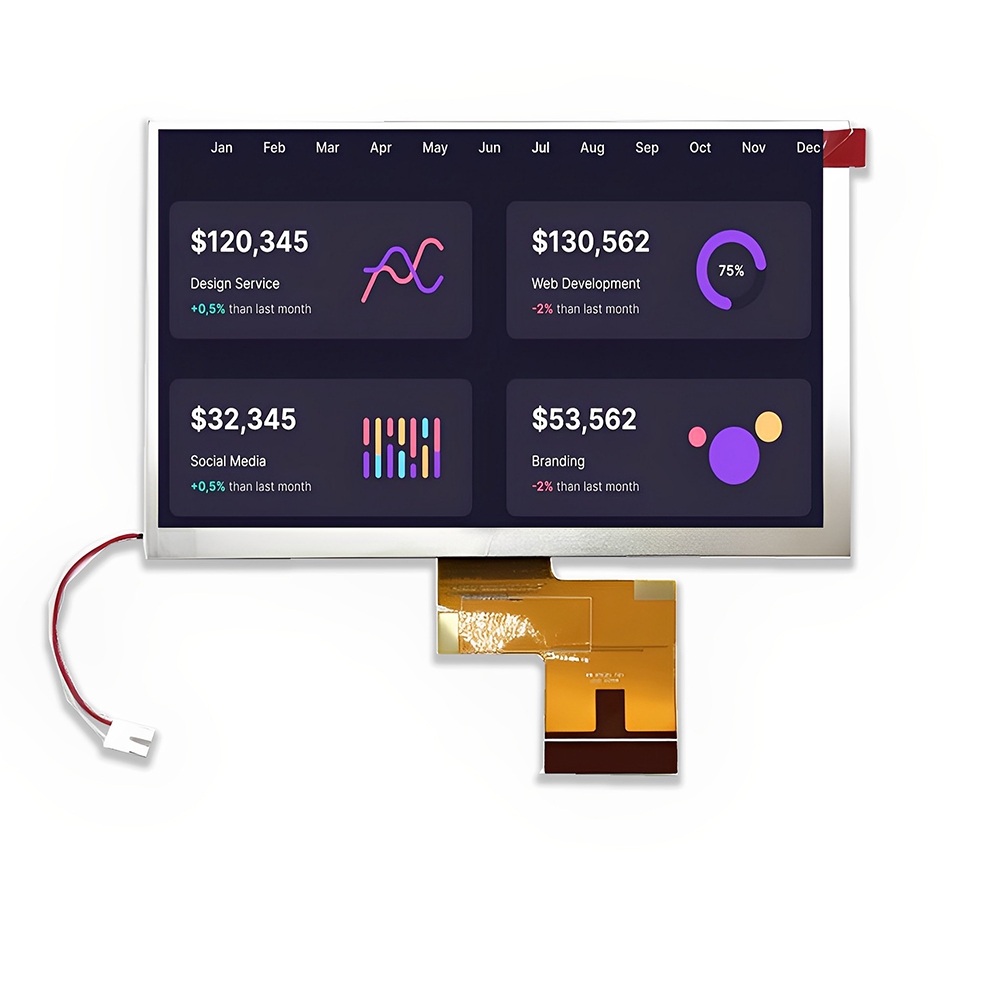

7 inch RGB 40 PIN IPS Display

Part NO: MX-U70NT40-IG48(V02)
► Size: 7.0"
► Resolution: 800*480 Pixels
► Display Mode: IPS
► Brightness: 350 Nits
► Interface: RGB 40 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-U70NT40-IG48(V02) is a 7 inch RGB 40 PIN IPS Display featuring 800x480 resolution. It stands out from other 7 inch LCD displays by employing a 40 pin RGB interface instead of the more common 50 pin interface. This IPS type LCD screen delivers a standard brightness of 350 cd/m2 and boasts a contrast ratio of 1000:1. With its versatility, the 7 inch IPS display is well-suited for a wide range of applications, including human-machine interface (HMI) systems, industrial environments, and medical equipment.

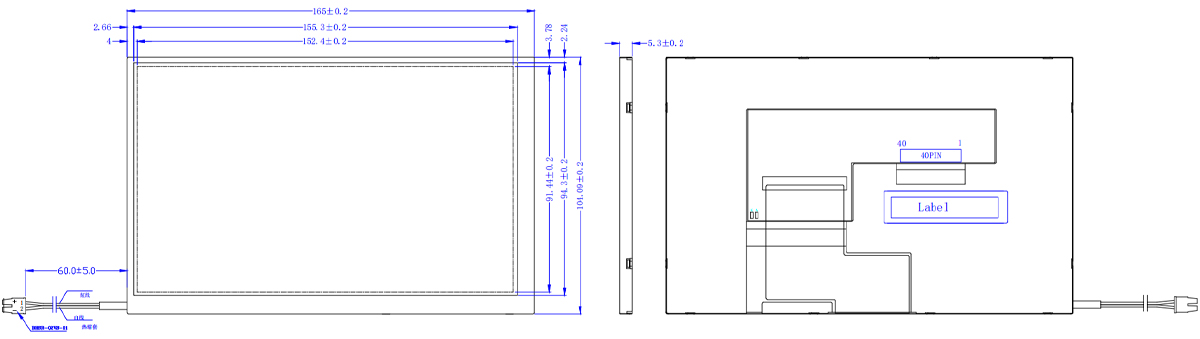

Product Structure

LCD PIN Function (RGB 40 PIN)

Pin No.	Symbol	Description
1	GND	Power Ground
2	GND	Power Ground
3	NC	Not Connect
4	Vcc	Power Supply for Digital Circuit
5	Vcc	Power Supply for Digital Circuit
6	Vcc	Power Supply for Digital Circuit
7	Vcc	Power Supply for Digital Circuit
8	NC	Not Connect
9	DE	Data Enable
10	GND	Power Ground
11	GND	Power Ground
12	GND	Power Ground
13	B5	Blue Data 5 (MSB)
14	B4	Blue Data 4
15	B3	Blue Data 3
16	GND	Power Ground
17	B2	Blue Data 2
18	B1	Blue Data 1
19	B0	Blue Data 0 (LSB)
20	GND	Power Ground
21	G5	Green Data 5 (MSB)
22	G4	Green Data 4
23	G3	Green Data 3
24	GND	Power Ground
25	G2	Green Data 2
26	G1	Green Data 1
27	G0	Green Data 0 (LSB)
28	GND	Power Ground
29	R5	Red Data 5 (MSB)
30	R4	Red Data 4
31	R3	Red Data 3
32	GND	Power Ground
33	R2	Red Data 2
34	R1	Red Data 1
35	R0	Red Data 0 (LSB)
36	GND	Power Ground
37	GND	Power Ground
38	DCLK	Clock Signals; Latch Data at the Falling Edge
39	GND	Power Ground
40	GND	Power Ground

Backlight Driving Part

Pin No.	Symbol	Description
1	VLED+	Red, LED_Anode
2	VLED-	White, LED_Cathode

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Supply voltage	V_CC	-0.3	6.0	V
Input signal voltage	V_I	-0.3	6.3	mA
Operating temperature	T_OP	-20	70	℃
Storage temperature	T_ST	-30	80	℃

Typical operation conditions

Item	Symbol	Values			Unit	Remark
Item	Symbol	Min.	Typ.	Max.	Unit	Remark
Power voltage	VCC	3.1	3.3	3.5	V	Note 1
Current consumption	ICC	-	200	260	mA	-
Current consumption	IF	-	160	-	mA	Note 2
Input logic high voltage	VIH	0.7VCC	-	VCC	V	Note 3
Input logic low voltage	VIL	0	-	0.3V	V	Note 3
LED life time	-	30,000	50,000	-	Hr	Note 4

Note 1: V_CC setting should match the signals output voltage (refer to Note 4) of customer‘s system board.

Note 2: LED driving current.

Note 3: DCLK, DE, HS, VS, R0~R5, G0~G5, B0~B5.

Note 4: The “LED life time" is defined as the module brightness decrease to 50% original brightness at Ta=25℃ and I_LED= 160mA. The LED lifetime could be decreased if operating I_LED is larger than 160 mA.
