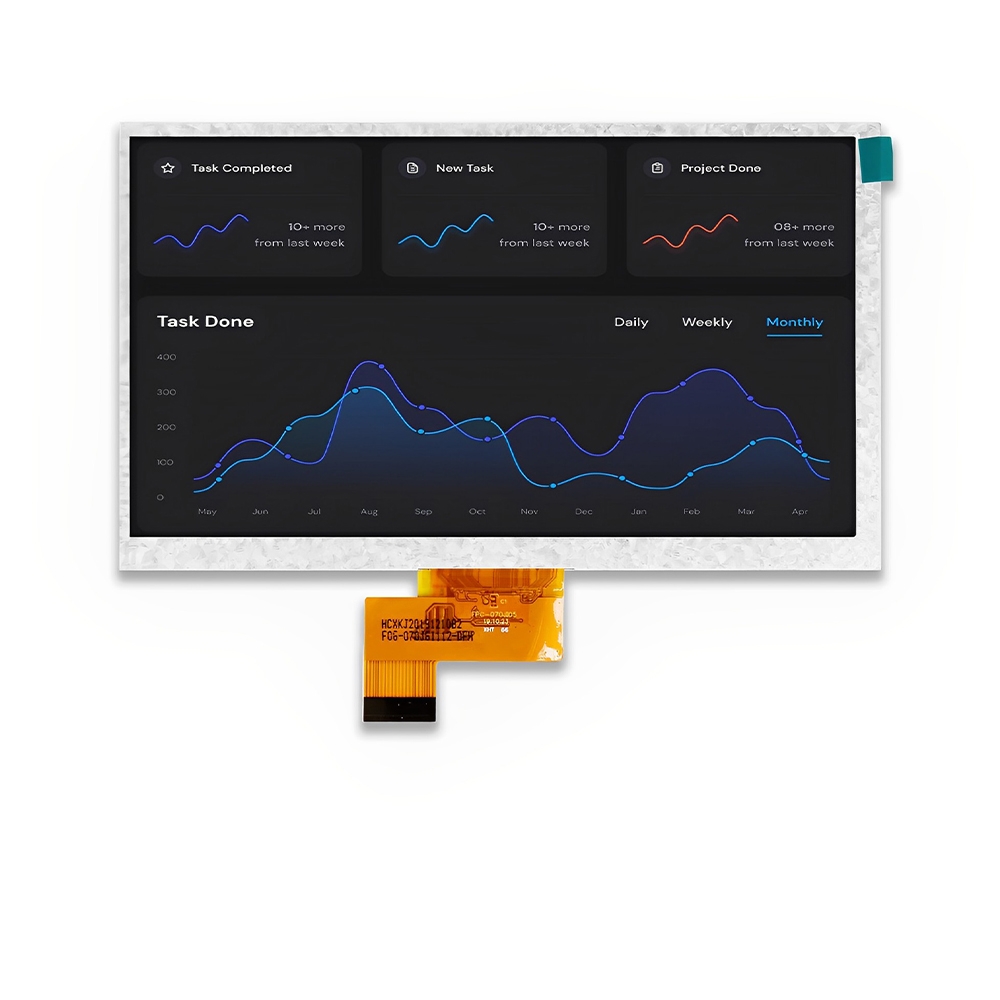

7 inch IPS LCD Panel

< >

Part NO: MX-B70HM30I-S03
► Size: 7"
► Resolution: 1024*600 Pixels
► Display Mode: IPS
► Brightness: 500 Nits
► Interface: MIPI 30 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-B70HM30I-S03 is a 7 inch IPS LCD Panel. This 7 inch LCD display showcases a 1024x600 pixel resolution, wide viewing angles, precise color reproduction, and a brightness level of 500 nits, ensuring optimal visibility in any light condition. The 7 inch panel‘s MIPI 30 PIN interface and dimensions (165.00x100.00x3.50 mm module size, 154.21x85.92 mm active area) enables seamless integration with various devices and applications. Moreover, optional touchscreen functionality opens up enhanced user interaction possibilities, making this panel an unparalleled choice for high-performance displays in consumer electronics and industrial equipment alike.

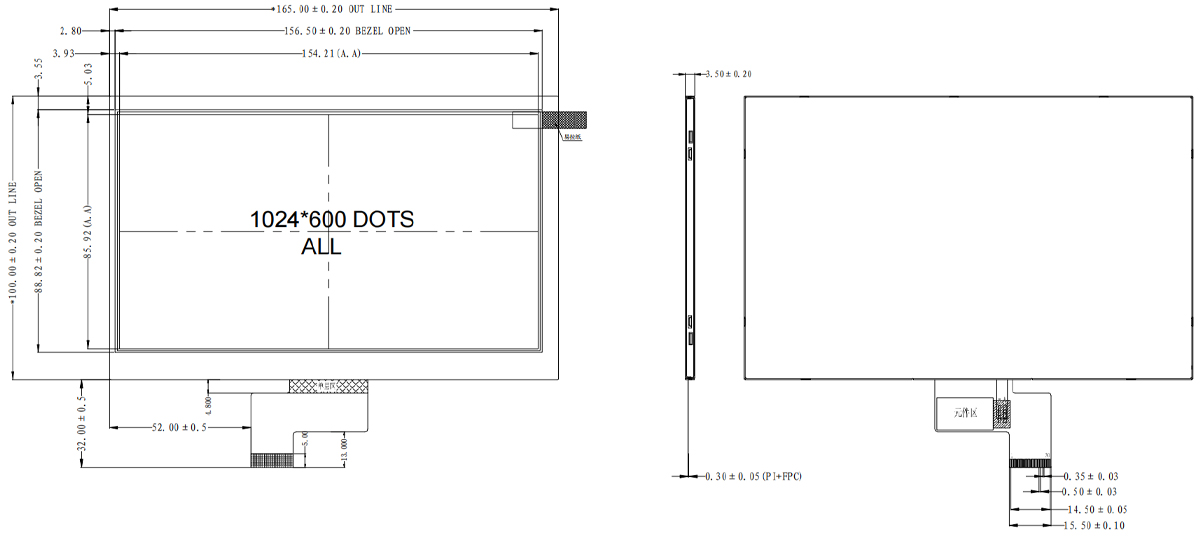

Product Structure

LCD PIN Function (MIPI 30 PIN)

Pin NO.	SYMBOL	DESCRIPTION
1~2	LED+	Power for LED backlight (Anode)
3	VGH	Positive Power for TFT
4	VGL	Negative Power for TFT
5	UPDN	Up/Down Display Control
6	SHLR	Left or Right Display Control
7~8	LED-	Power for LED backlight (Cathode)
9	AVDD	Analog Power
10	GND	Power ground
11	MIPI_D3P	MIPI data Lane 3 positive-end input
12	MIPI_D3N	MIPI data Lane 3 negative-end input
13	GND	Power ground
14	MIPI_D2P	MIPI data Lane 2 positive-end input
15	MIPI_D2N	MIPI data Lane 2 negative-end input
16	GND	Power ground
17	MIPI_CP	MIPI Clock Lane positive-end input/output
18	MIPI_CN	MIPI Clock Lane negative-end input/output
19	GND	Power ground
20	MIPI_D1P	MIPI data Lane 1 positive-end input
21	MIPI_D1N	MIPI data Lane 1 negative-end input
22	GND	Power ground
23	MIPI_D0P	MIPI data Lane 0 positive-end input/output
24	MIPI_D0N	MIPI data Lane 0 negative-end input/output
25	GND	Power ground
26	STBYB	Standby mode
27	RESET	Global reset pin. Active low to enter reset state.Suggest to connecting with an RC reset circuit for stability. Normally pull high.
28~29	VDD	Digital Power
30	VCOM	Common Voltage

Electrical Absolute Maximum Ratings (VSS=0V, Ta=25℃)

Item	Symbol	Min.	Max.	Unit
Digital Supply Voltage	VDD	-0.3	1.89	V
Analog Supply Voltage	AVDD	-0.5	14.85	V
TFT Gate ON Voltage	VGH	0.3	20	V
TFT Gate OFF Voltage	VGL	-20	0.3	V
TFT Common Electrode Voltage	VCOM	0	6	V
Operating Temperature	TOP	-20	70	°C
Storage Temperature	TST	-30	80	°C

Electrical characteristics (VSS=0V, Ta=25℃)

Item	Symbol	Min.	Typ.	Max.	Unit
Digital Supply Voltage	VDD	1.71	1.8	1.89	V
Analog Supply Voltage	AVDD	9.4	9.6	9.8	V
TFT Gate ON Voltage	VGH	17	18	19	V
TFT Gate OFF Voltage	VGL	-6.6	-6	-5.4	V

LED backlight specification(VSS=0V ,Ta=25℃)

Item	Symbol	Min	Typ	Max	Unit
Supply voltage	-	9	9.6	10.8	V
Supply current	If	-	180	-	mA
Brightness	Bp	-	500	-	Cd/m²
Uniformity	⊿Bp	75	80	-	%
LED Life Time	-	30,000	50,000	-	Hr
