MX-T240MHQS-28 is a 2.4 inch IPS TFT LCD module, integrated with a ST7789T3 driver IC, offering an MCU and SPI interface and a resolution of 240x320 dots. This 2.4 inch LCD module is distinct for its standard design and IPS panel, delivering wider viewing angles of Left: 80 / Right: 80 / Up: 80 / Down: 80 degrees, along with a brightness of 350 nits. The 2.4 inch TFT LCD boasts robust temperature parameters, operable from -20℃ to +70℃, with storage temperatures also within -30℃ to +80℃. This makes this 2.4 inch display a versatile and reliable display solution suitable for various applications.

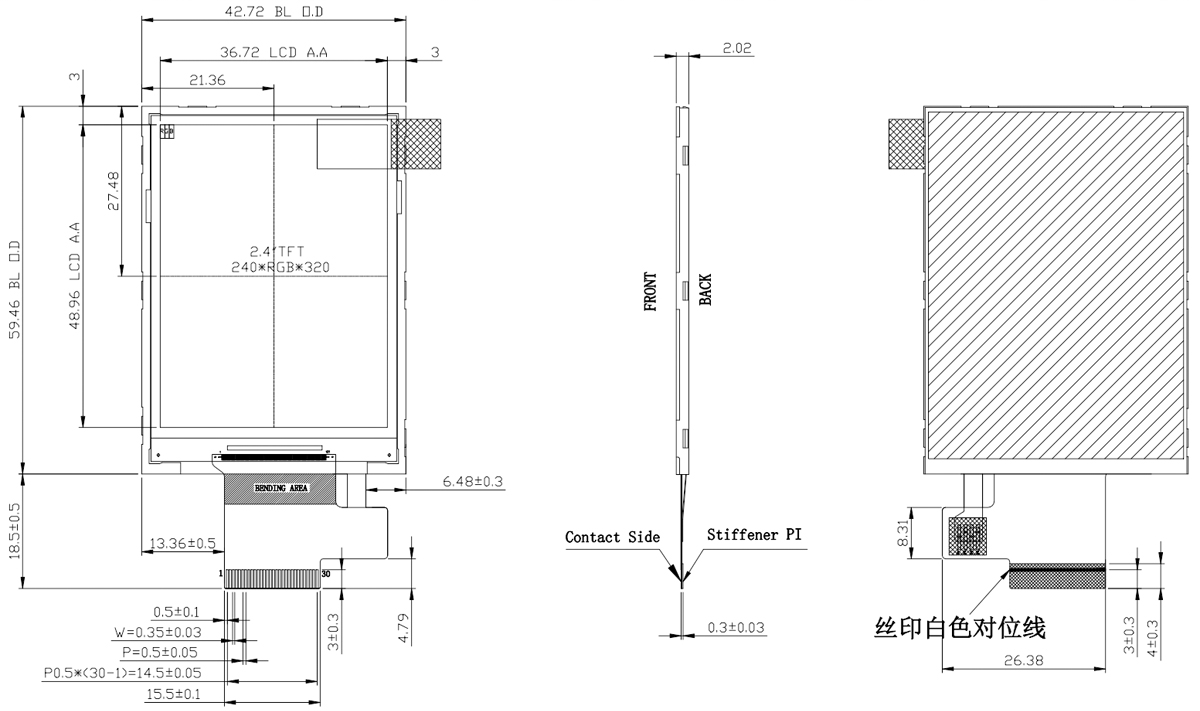

Product Structure
