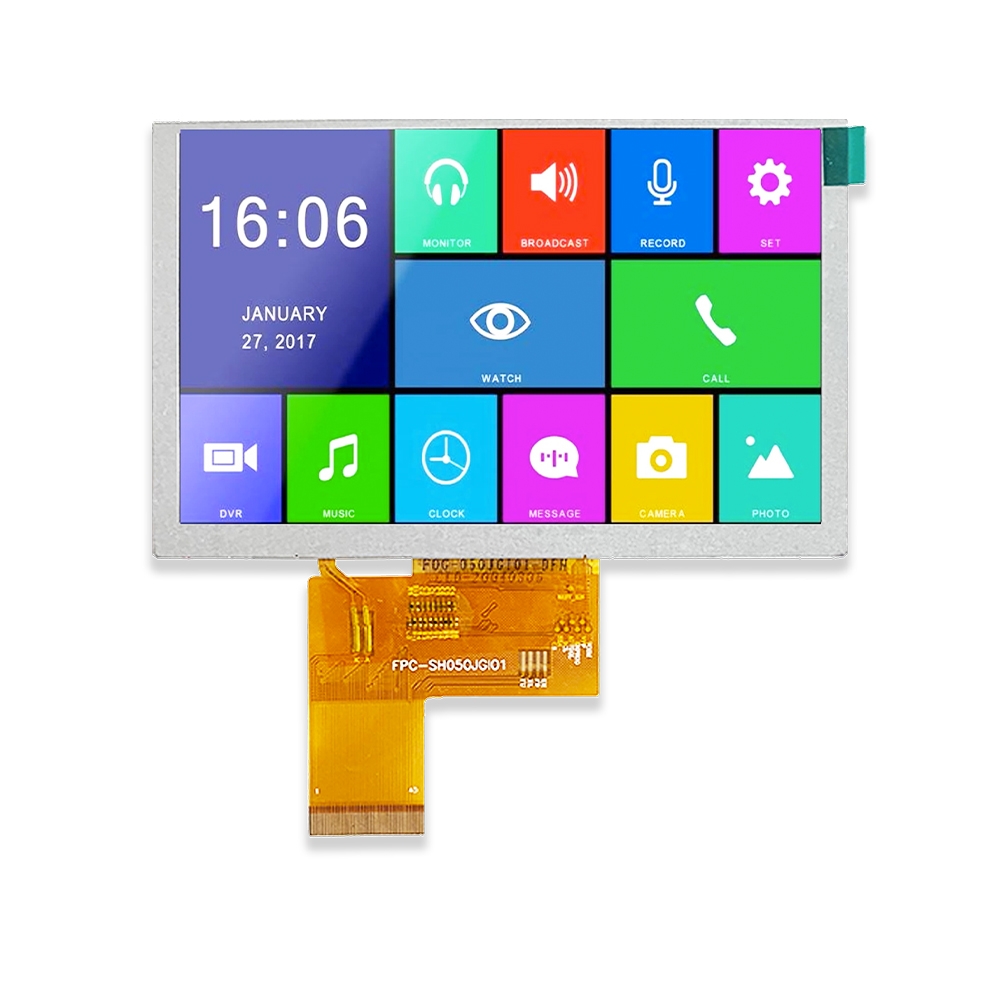

5 inch IPS Display

Part NO: MX-B50HR40-TIS06
► Size: 5.0"
► Resolution: 800*480 Pixels
► Display Mode: IPS
► Brightness: 500 Nits
► Interface: RGB 40 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-B50HR40-TIS06 is 5 inch IPS Display. This 5 inch IPS TFT model is having the typical brightness 500 cd/m2 and 800:1 transimissive contrast ratio, supply voltage (DVDD) range from 3V to 3.6V. This module is available for sunlight readable 1000 nits version optional. The operating temperature ranges from -20 to +70 ℃ and storage from -30 to +80 ℃. This 5 inch IPS Display is very suitable for smart home applications, medical devices, portable devices, wearable devices, energy controls, telecoms and data transfers etc.

Product Structure

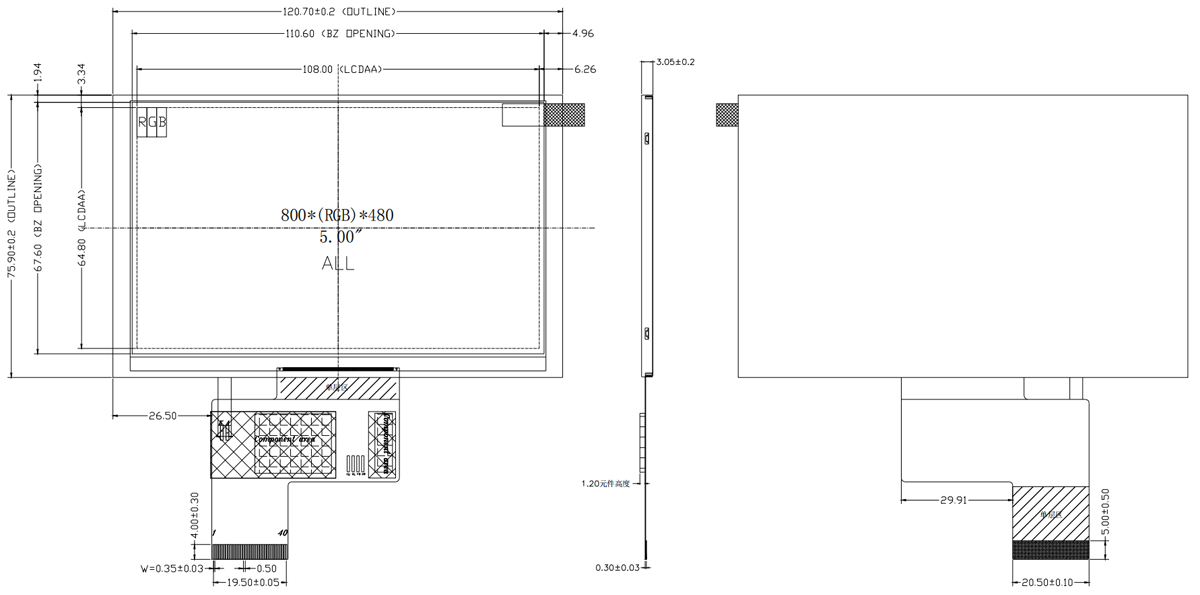

Drawing of 5 inch IPS Display

LCD PIN Function (RGB 40 PIN)

Pin	Symbol	Description
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Stand by mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin

Electrical Absolute Maximum Ratings (Vss=0V ,Ta=25℃)

Item	Symbol	Min.	Max.	Unit	Note
Power Supply Voltage	VDD	-0.3	3.6	V	1,2
Input Voltage	V_In	-0.3	VDD+0.5	V
Current of LED	I_LED	0	20	mA

Notes:

1. If the module is above these absolute maximum ratings. It may become permanently damaged.

Using the module within the following electrical characteristic conditions are also exceeded, the

module will malfunction and cause poor reliability.

2. VDD>V_SS must be maintained.

3. Please be sure users are grounded when handing LCD Module.

Environmental Absolute Maximum Ratings

Item	Storage		Operating		Note
Item	MIN.	MAX.	MIN.	MAX.	Note
Ambient Temperature	-30℃	80℃	-20℃	70℃	1,2
Humidity	-	-	-	-	3

Notes:

1. The response time will become lower when operated at low temperature.

2. Background color changes slightly depending on ambient temperature.

The phenomenon is reversible.

3. Ta<=40℃: 85%RH MAX.

Ta>=40℃: Absolute humidity must be lower than the humidity of 85%RH at 40℃.

Electrical characteristics (Vss=0V ,Ta=25℃)

Parameter		Symbol	Condition	Min.	Typ.	Max.	Unit	Note
Power supply		VDD	Ta=25℃	2.8	3.3	3.6	V	-
Input voltage	‘H’	V_IH	VDD=3.3V	0.7VDD	-	VDD	V	-
Input voltage	‘L’	V_IL	VDD=3.3V	0	-	0.3VDD	V	-
Current Consumption		I_CC1	Normal mode	-	-	-	mA	2
Current Consumption		I_CC2	Sleep mode	-	0.03	0.09	mA	2
