10.1 inch LCD Display Module

Part NO: MX-B101FL45-IM22
► Size: 10.1"
► Resolution: 1920*1200 Pixels
► Display Mode: IPS
► Brightness: 300 Nits
► Interface: LVDS 45 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-B101FL45-IM22: a high-quality 10.1 inch LCD module with a resolution of 1920x1200 pixels, offers sharp and detailed imagery for an immersive viewing experience. The IPS (In-Plane Switching) technology ensures a wide viewing angle, allowing users to enjoy clear and vibrant visuals from various perspectives. The 10.1 inch LCD display module features a convenient LVDS 45-pin interface, enabling seamless integration with compatible devices. With a standard luminance of 300 nits, this display maintains vivid and easily readable content in indoor environments. Whether you are using it for information displays, digital signage, or other applications, the 10.1 inch TFT LCD display delivers consistent brightness and excellent visual performance. Designed to withstand various operating conditions, this display operates within a temperature range of -20°C to 70°C, making it suitable for a wide range of indoor applications. Additionally, it has a storage temperature range of -30°C to 85°C, ensuring durability and longevity even in extreme conditions.

Product Structure

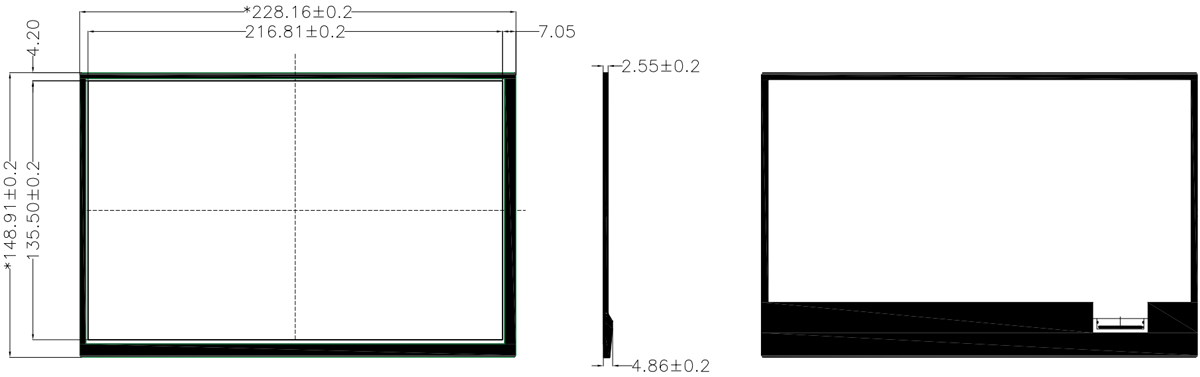

Drawing of 10.1 inch LCD Display Module

LCD PIN Function (LVDS 45 PIN)

Pin No.	Symbol	Description
1	VLED-	LED Cathode
2	VLED-	LED Cathode
3	VLED+	LED Anode
4	VLED+	LED Anode
5	NC	NC
6	GND	GROUND
7	ELV3P	EVEN LVDS Positive data signal (+)
8	ELV3N	EVEN LVDS Negative data signal (-)
9	GND	GROUND
10	ELV2P	EVEN LVDS Positive data signal (+)
11	ELV2N	EVEN LVDS Negative data signal (-)
12	GND	GROUND
13	ELVCLKP	EVEN LVDS Positive CLK signal (+)
14	ELVCLKN	EVEN LVDS Negative CLK signal (-)
15	GND	GROUND
16	ELV1P	EVEN LVDS Positive data signal (+)
17	ELV1N	EVEN LVDS Negative data signal (-)
18	GND	GROUND
19	ELV0P	EVEN LVDS Positive data signal (+)
20	ELV0N	EVEN LVDS Negative data signal (-)
21	GND	GROUND
22	OLV3P	Odd LVDS Positive data signal (+)
23	OLV3N	Odd LVDS Negative data signal (-)
24	GND	GROUND
25	OLV2P	Odd LVDS Positive data signal (+)
26	OLV2N	Odd LVDS Negative data signal (-)
27	GND	GROUND
28	OLVCLKP	Odd LVDS Positive CLK signal (+)
29	OLVCLKN	Odd LVDS Negative CLK signal (-)
30	GND	GROUND
31	OLV1P	Odd LVDS Positive data signal (+)
32	OLV1N	Odd LVDS Negative data signal (-)
33	GND	GROUND
34	OLV0P	Odd LVDS Positive data signal (+)
35	OLV0N	Odd LVDS Negative data signal (-)
36	GND	GROUND
37	I2C_SDA	Reserved for LCD manufacturer’s use, not connection
38	I2C_SCL
39	VDD_OTP
40	EEPEN	Not Connection
41	VDDIN	Power supply VDDIN=3.3V (Typ.)
42	VDDIN
43	VDDIN
44	VDDIN
45	VDDIN

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Power Supply	VDD	VSS-0.3	3.6	V
Operating Temperature	T_OP	-20	70	℃
Storage Temperature	T_ST	-30	85	℃
Operating Ambient Humidity	H_OP	10	90	%RH
Storage Humidity	H_ST	10	90	%RH

Electrical specifications

Parameter		Symbol	Values			Unit
Parameter		Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage		VDD	3	3.3	3.6	V
Power Supply Voltage		VRP	-	-	300	mV
Power Supply Current		IDD	-	300	360	mA
Power Consumption		PLCD	-	1	1.2	W
Rush current		IRUSH	-	-	3	A
CMOS Interface	Input Voltage	VIH	2.7	-	3.3	V
	Input Voltage	VIL	0	-	0.5	V
	Output Voltage	VOH	2.7	-	3.3	V
	Output Voltage	VOL	0	-	0.5	V

Backlight Characteristic

PARAMETER	Sym.	Min.	Typ.	Max.	Unit	Test Condition
LED Current	I_F	-	120	-	mA	-
LED Voltage	V_F	16.8	-	19.8	V	-
Life Time	-	-	30000	-	Hr.	I≦120mA
Luminance	L	250	300	-	Cd/m²	-
Luminance Uniformity	Y_U	70	75	-	%	-
