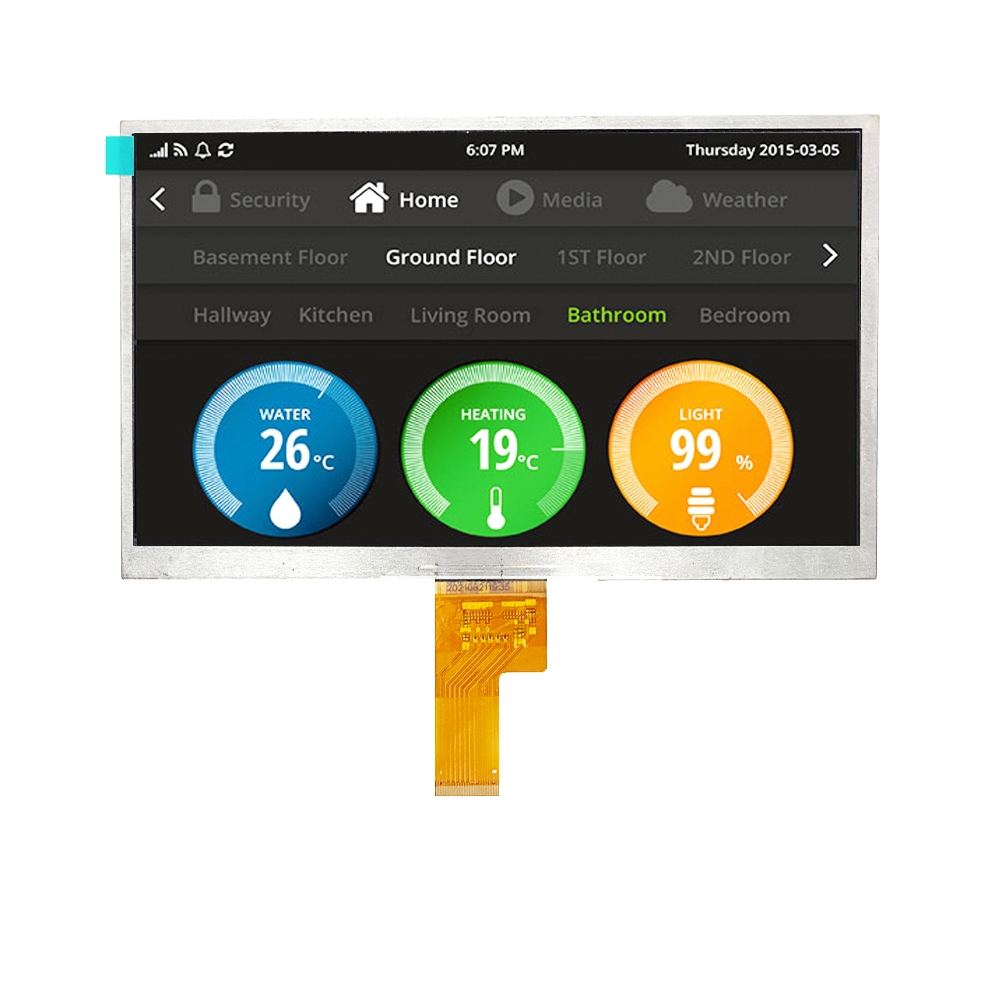

10.1 inch LCD Panel

Part NO: MX-B101NL40-IS05
► Size: 10.1"
► Resolution: WSVGA 1024x600 Pixels
► Display Mode: IPS
► Brightness: 500 Nits
► Interface: LVDS 40 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-B101NL40-IS05 is a 10.1 inch IPS LCD display with an LVDS interface. The 10.1" LCD display features a resolution of 1024x600 pixels and offers a wide viewing angle of 85/85/85/85 degrees on four sides. With a brightness of 400 nits, this display delivers vivid visuals. Equipped with the HX8282-A11+HX8696 driver IC, it operates reliably in temperatures ranging from -20℃ to 70℃ and can withstand storage temperatures ranging from -30℃ to 80℃. The 10.1 inch LCD panel is a versatile display suitable for various applications, providing exceptional performance and durability.

Product Structure

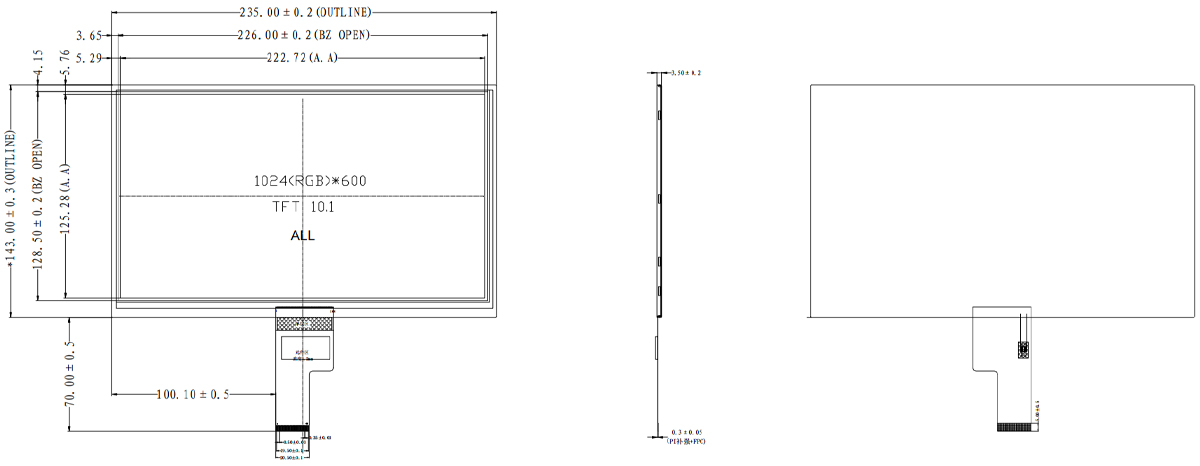

Drawing of 10.1 inch LCD Panel

LCD PIN Function (LVDS 40 PIN)

Pin NO.	Symbol	Description
1	VCOM	Common voltage
2~3	VDD	Digital Power
4	NC	No connection
5	Reset	Global reset pin. Active Low to enter Reset State. Normally pull high. It’s necessary to connecting with an RC delay circuit for stability. (GRB delay VDD larger than 1ms)
6	STBYB	Standby mode, normally pull high STBYB=”1”, Normal Operation STBYB=”0”, Timing control, source driver will turn off, all output are high-Z
7	GND	Ground level for analog block
8	NIND0	Negative LVDS Differential Data Inputs
9	PIND0	Positive LVDS Differential Data Inputs
10	GND	Ground
11	NIND1	Negative LVDS Differential Data Inputs
12	PIND1	Positive LVDS Differential Data Inputs
13	GND	Ground
14	NIND2	Negative LVDS Differential Data Inputs
15	PIND2	Positive LVDS Differential Data Inputs
16	GND	Ground
17	NINC	Negative LVDS Differential Clock Inputs
18	PINC	Positive LVDS Differential Clock Inputs
19	GND	Ground
20	NIND3	Negative LVDS Differential Data Inputs
21	PIND3	Positive LVDS Differential Data Inputs
22	GND	Ground
23~24	NC	No connection
25	GND	Ground
26~27	NC	No connection
28	SELB	6bit/8bit mode select
29	AVDD	Power for Analog Circuit
30	GND	Ground
31~32	LED-	LED Cathode
33	SHLR	Horizontal Inversion
34	UPDN	Vertical Inversion
35	VGL	Negative Power for TFT
36~37	NC	No connection
38	VGH	Positive Power for TFT
39~40	LED+	LED Anode

Electrical Absolute Maximum Ratings (Vss=0V, Ta=25℃)

Item	Symbol	Min.	Max.	Unit
Digital Supply Voltage	D_VDD	-0.3	3.6	V
Analog Supply Voltage	A_VDD	0	13.5	V
TFT Gate ON Voltage	VGH	-0.3	20	V
TFT Gate OFF Voltage	VGL	-20	0.3	V
Operating Temperature	T_OP	-20	70	°C
Storage Temperature	T_ST	-30	80	°C

Electrical characteristics (Vss=0V, Ta=25℃)

Item	Symbol	Min.	Typ	Max.	Unit
Digital Supply Voltage	DVDD	3	3.3	3.6	V
Analog Supply Voltage	AVDD	9.5	9.6	9.7	V
TFT Gate ON Voltage	VGH	17.6	18	18.4	V
TFT Gate OFF Voltage	VGL	-6.4	-6	-5.6	V
TFT Common Electrode Voltage	VCOM	4	4.2	4.4	V

LED backlight specification (Vss=0V, Ta=25℃)

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply voltage	-	-	8.4	9.3	10.2	V
Supply current	If	-	-	220	-	mA
Brightness	Bp	θ=0° F=0°	-	400	-	Cd/m²
Uniformity	⊿Bp	θ=0° F=0°	75	80	-	%
LED Life Time	-	-	30,000	50,000	-	Hr
