8 inch LCD Screen

< >

Part NO: MX-U80HM31-IP07
► Size: 8"
► Resolution: 800*1280 Pixels
► Display Mode: IPS
► Brightness: 250 Nits
► Interface: MIPI 31 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-U80HM31-IP07 is a 8 inch LCD screen. With an 800x1280 pixel resolution, IPS technology for wide viewing angles and accurate color reproduction, and a 250-nits brightness level, it ensures vibrant, sharp and consistent visuals. Its MIPI 31 PIN interface provides seamless connectivity and smooth data transmission. The slim and compact module, with a display supporting 16.7 million colors, allows easy integration and installation, while the optional touchscreen feature offers interactive user experiences. To enrich your applications with superior visual quality and functionality, reach out to us today.

Product Structure

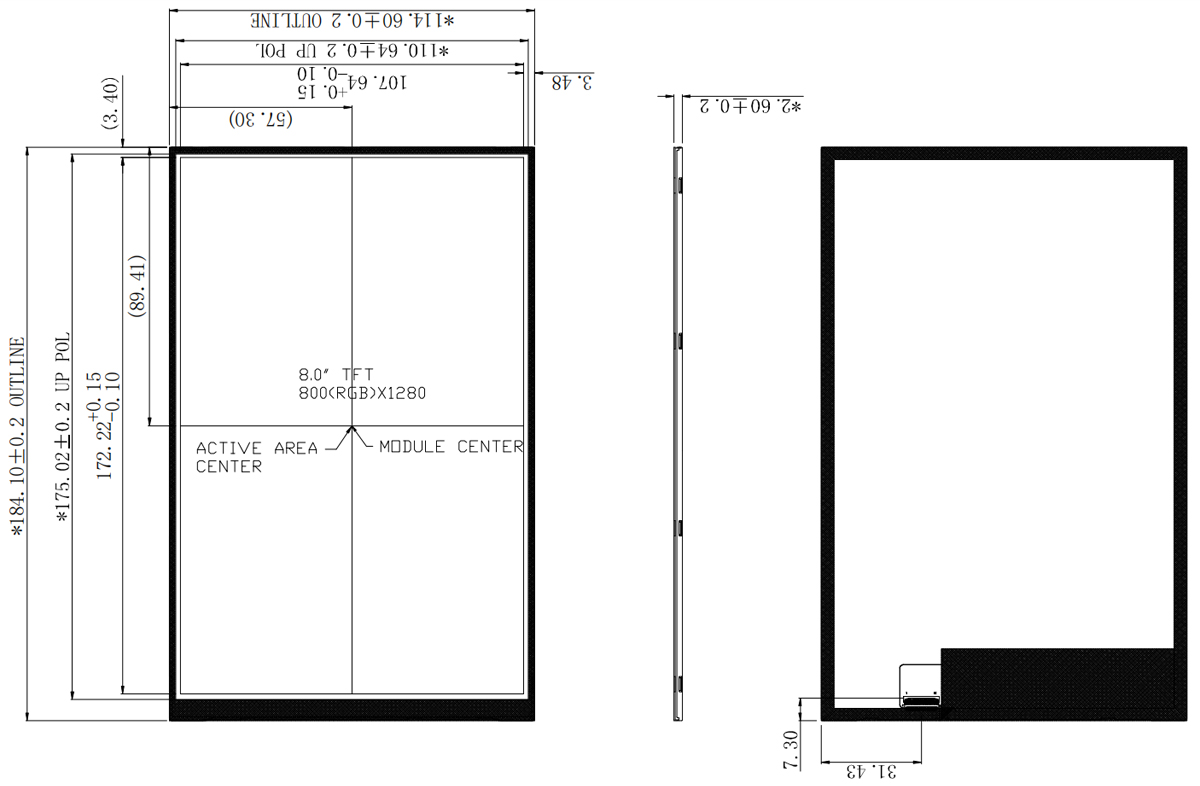

Drawing of 8 inch LCD Screen

LCD PIN Function (MIPI 31 PIN)

PIN NO.	SYMBOL	DESCRIPTION
1	LEDA	Power for LED backlight (Anode)
2	LEDA	Power for LED backlight (Anode)
3	LEDA	Power for LED backlight (Anode)
4	NC	No connect
5	LEDK	Power for LED backlight (Cathode)
6	LEDK	Power for LED backlight (Cathode)
7	LEDK	Power for LED backlight (Cathode)
8	LEDK	Power for LED backlight (Cathode)
9	GND	Ground
10	GND	Ground
11	MIPI_D2+	HSSI_D2_Pare differential small amplitude signals
12	MIPI_D2-	HSSI_D2_Nare differential small amplitude signals
13	GND	Ground
14	MIPI_D1+	HSSI_D1_Pare differential small amplitude signals
15	MIPI_D1-	HSSI_D1_Nare differential small amplitude signals
16	GND	Ground
17	MIPI_CLK+	HSSI_CLK_Pare differential small amplitude signals
18	MIPI_CLK-	HSSI_CLK_Nare differential small amplitude signals
19	GND	Ground
20	MIPI_D0+	HSSI_D0_Pare differential small amplitude signals
21	MIPI_D0-	HSSI_D0_Nare differential small amplitude signals
22	GND	Ground
23	MIPI_D3+	HSSI_D3_Pare differential small amplitude signals
24	MIPI_D3-	HSSI_D3_Nare differential small amplitude signals
25	GND	Ground
26	NC
27	RESET	Reset signal
28	NC
29	VDD1V8	I/O power supply
30	VDD3V3	Power supply 3.0-3.6V
31	VDD3V3	Power supply 3.0-3.6V

Electrical Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Supply Voltage	VDD1V8	1.7	1.8	2.0	V
Supply Voltage	VDD3V3	3.0	3.3	3.6	V
Input Signal Voltage	V_IH	0.7DV_DD	-	DV_DD	V
Input Signal Voltage	V_IL	0	-	0.3DV_DD	V
Power Current	I_VDD3V3	-	135	-	mA

Environment Absolute Rating

Item	Symbol	Min.	Max.	Unit
Operating Temperature	Topa	-10	60	℃
Storage Temperature	Tstg	-20	70	℃

Back-light Unit

PARAMETER	Sym.	Min.	Typ.	Max.	Unit	Test Condition
LED Current	IF	-	140	-	mA	-
LED Voltage	VF	9	9.9	10.5	V	-
Luminance	L	200	250	-	Cd/m²	-
Life Time	-	-	20,000	-	Hr.	I≤140mA
