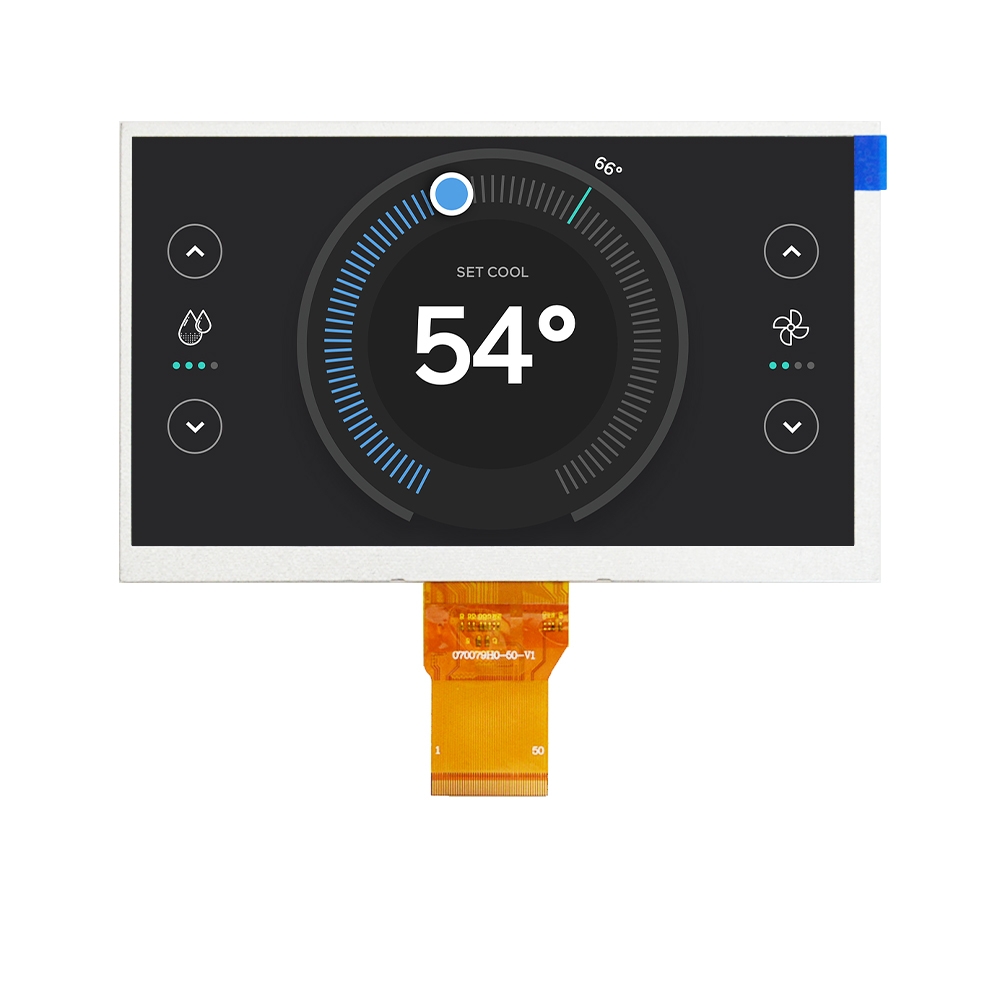

MX-070NR50KFS-N57 is a 7 inch LCD display with a resolution of 800x480 pixels, IPS full-view angle, 200 nits brightness, and a 50-pin RGB interface. Unlike traditional 7 inch 800x480 RGB 50 pin TN screens, MX-070NR50KFS-N57 distinguishes itself with its unique IPS panel design. Whether in industrial applications, medical devices, or embedded systems, the IPS screen of MX-070NR50KFS-N57 showcases outstanding performance, making it a highly anticipated high-quality LCD display.

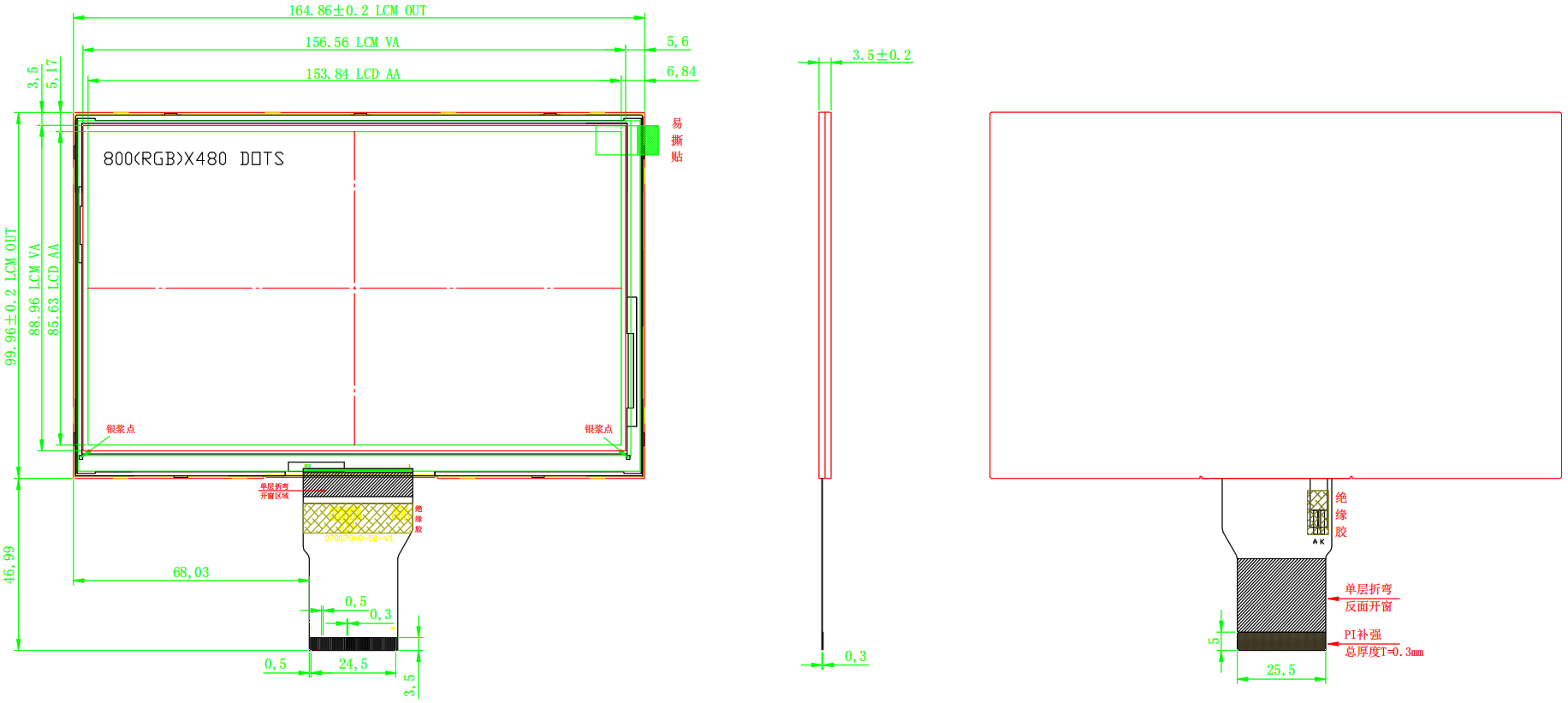

Product Structure
LCD PIN Function (50 PIN RGB)
| Pin NO. | Symbol | Description |
| 1~2 | VLEDA+ | Power for LED backlight (Anode) |
| 3~4 | VLED- | Power for LED backlight (Catgode) |
| 5 | GND | Power ground |
| 6 | NC | Not connect |
| 7 | DVDD | Digital Power |
| 8 | NC | Not connect |
| 9 | DE | Data Enable signal |
| 10 | VSD | Vertical sync input. Negative polarity |
| 11 | HSD | Horizontal sync input. Negative polarity |
| 12 | B7 | Blue Data lnput (MSB) |
| 13~18 | B6~B1 | Blue Data lnput |
| 19 | B0 | Blue Data lnput (LSB) |
| 20 | G7 | Green Data lnput (MSB) |
| 21~26 | G6~G1 | Green Data lnput |
| 27 | G0 | Green Data lnput (LSB) |
| 28 | R7 | Red Data lnput (MSB) |
| 29~34 | R6 | Red Data lnput |
| 35 | R0 | Red Data lnput (LSB) |
| 36 | GND | Power ground |
| 37 | DCLK | Clock input |
| 38 | GND | Power ground |
| 39 | SHLR | Left or Right Display Control |
| 40 | UPDN | Up/Down Display Control |
| 41~43 | NC | No tconnect |
| 44 | RSTB | Global reset pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10KΩ, C=1μF) |
| 45~47 | NC | Not connect |
| 48 | GND | Power ground |
| 49~50 | NC | Not connect |
