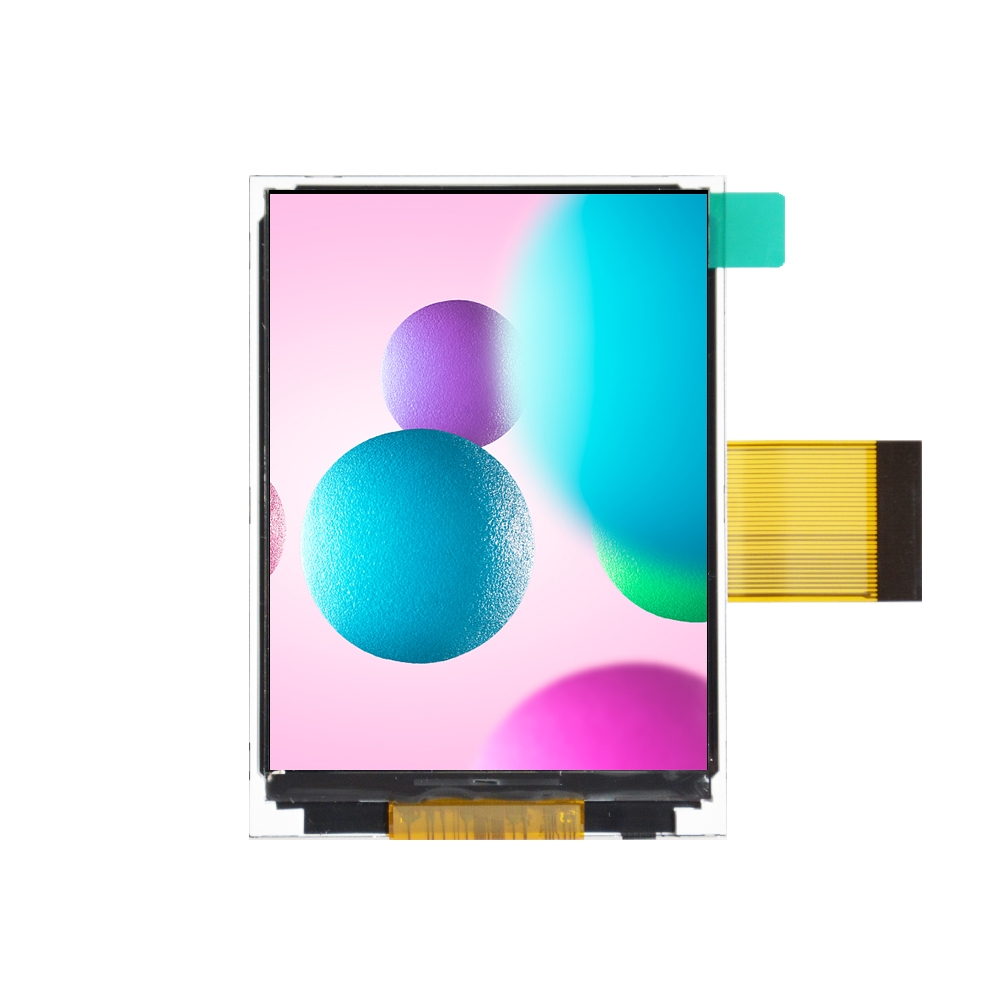

MX-028NS33BFS-N06 is a 2.8 inch IPS LCD with a resolution of 240x320 pixels. The 2.8 inch LCD Display features an IPS technology with a wide viewing angle of 80/80/80/80, and utilizes a 4-wire SPI (Serial Peripheral Interface) interface. The operating temperature range is -20°C to 70°C, and it boasts a working lifespan of up to 50,000 hours. This 2.8 inch display is suitable for a variety of electronic devices, including embedded systems and portable devices.

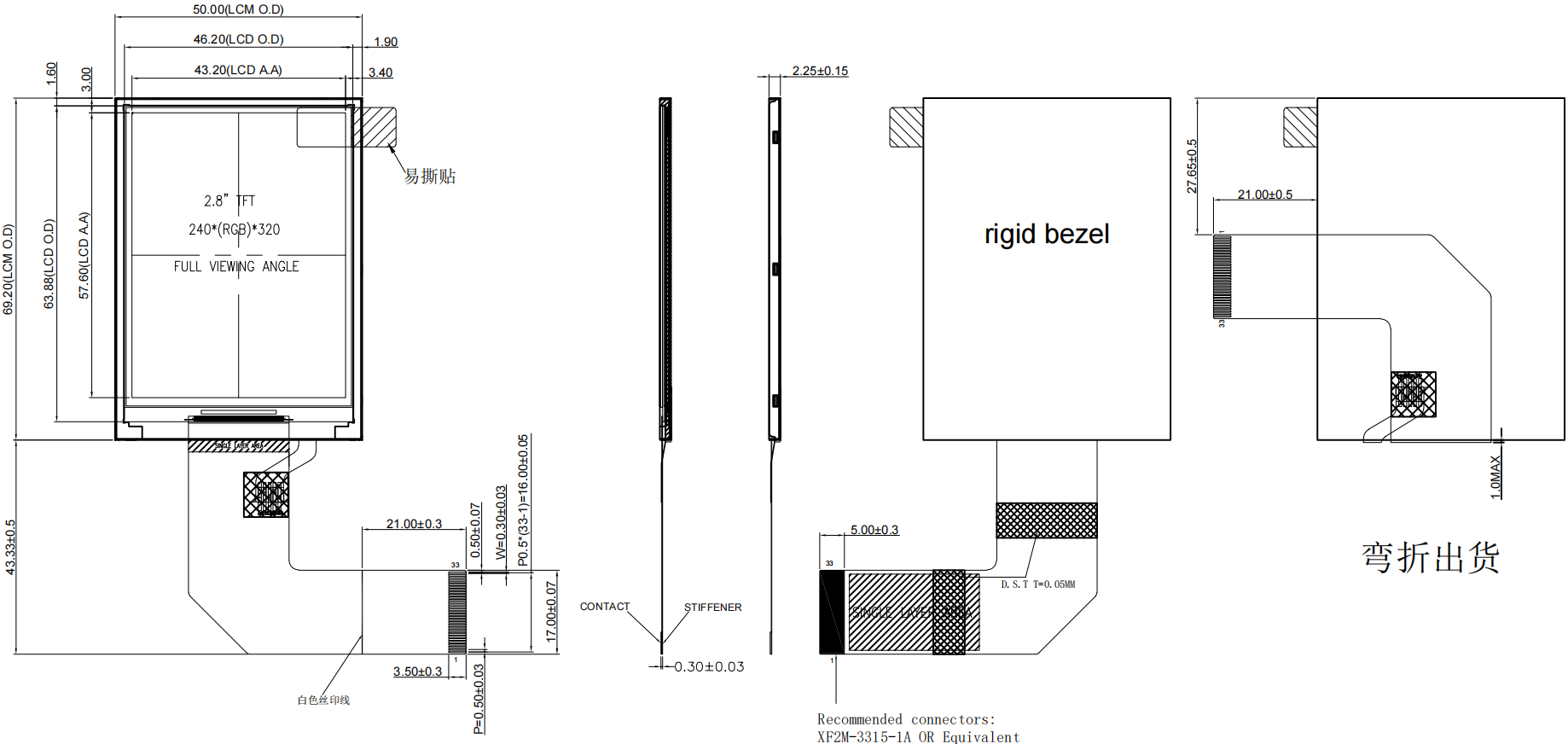

Product Structure
LCD PIN Function (33 pin SPI)
| PIN NO. | SYMBOL |
| 1~2 | GND |
| 3 | CS-MAIN |
| 4 | DC |
| 5 | WR |
| 6 | RD |
| 7~14 | DB0~DB7 |
| 15 | SDA |
| 16 | SDO |
| 17 | LCD RESET |
| 18 | IM0 |
| 19 | IM1 |
| 20~21 | GND |
| 22 | IM2 |
| 23 | IM3 |
| 24 | ID (GND) |
| 25 | GND |
| 26 | VCC |
| 27 | IOVCC |
| 28 | LED_K1 |
| 29 | LED_K2 |
| 30 | LED_K3 |
| 31 | LED_K4 |
| 32~33 | LED_A |
