21.5 inch Touch Screen

HCT215003H-B2A-C1

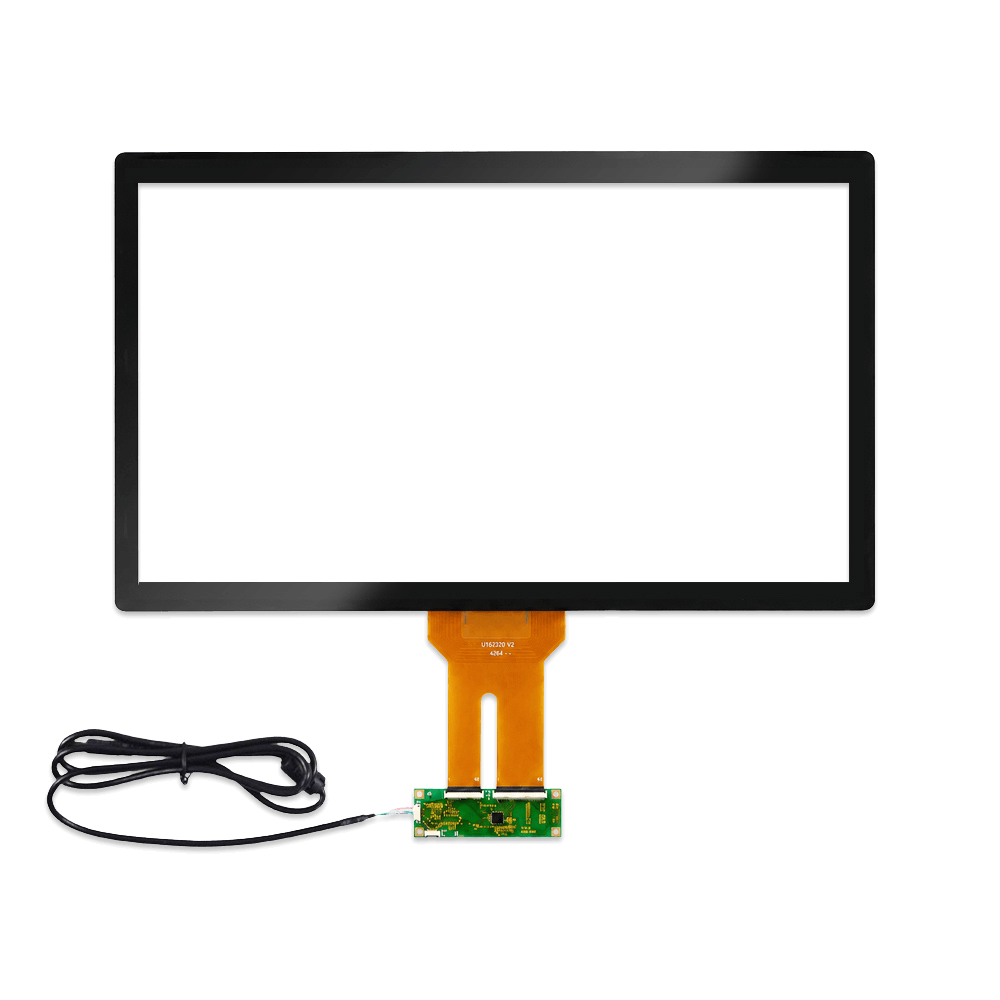

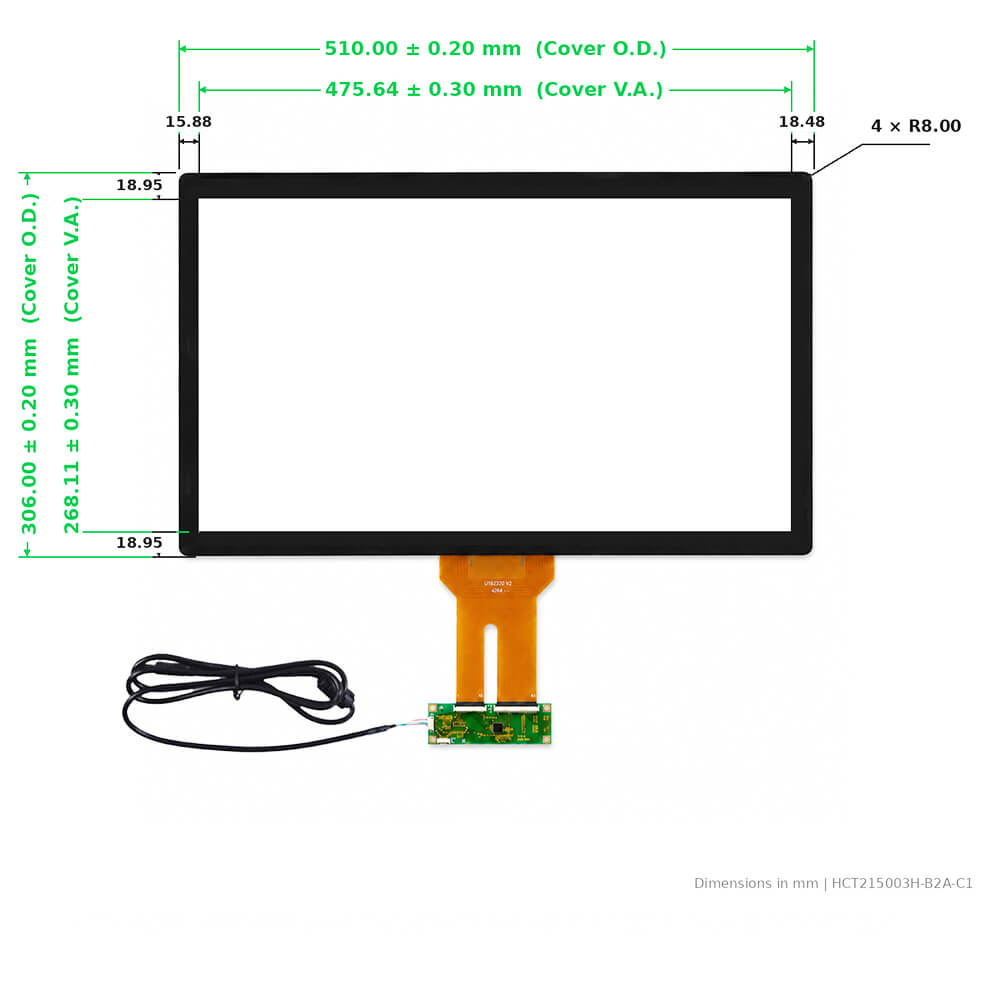

21.5 inch touch screen HCT215003H-B2A-C1 is a Glass+Glass projected capacitive touch panel designed for integration with 21.5 inch TFT LCD displays and professional embedded equipment. Each touch panel is supplied with a dedicated touch controller board equipped with the Ilitek ILI2510 touch controller IC. The controller board supports either a 6-pin I²C interface or a 4-pin USB interface, helping deliver stable and responsive multi-touch operation. This 21.5" capacitive touch screen features 1.80 mm cover glass and 0.70 mm touch sensor, with an overall size of 510.00*306.00*2.75 mm and viewing area of 475.64*268.11 mm. Designed as a 21.5" touch screen overlay, it is well suited for self-ordering kiosks, visitor check-in terminals, interactive wayfinding displays, smart retail equipment, gaming terminals, and large-format embedded touch monitors. For OEM projects requiring a customized 21.5 inch capacitive touch panel or complete 21.5" touch screen kit, Maxen provides cover glass, interface, firmware, bonding, and structural customization support as an experienced touch screen manufacturer and supplier.
