Touch Screen Display | LCD Touch Screen

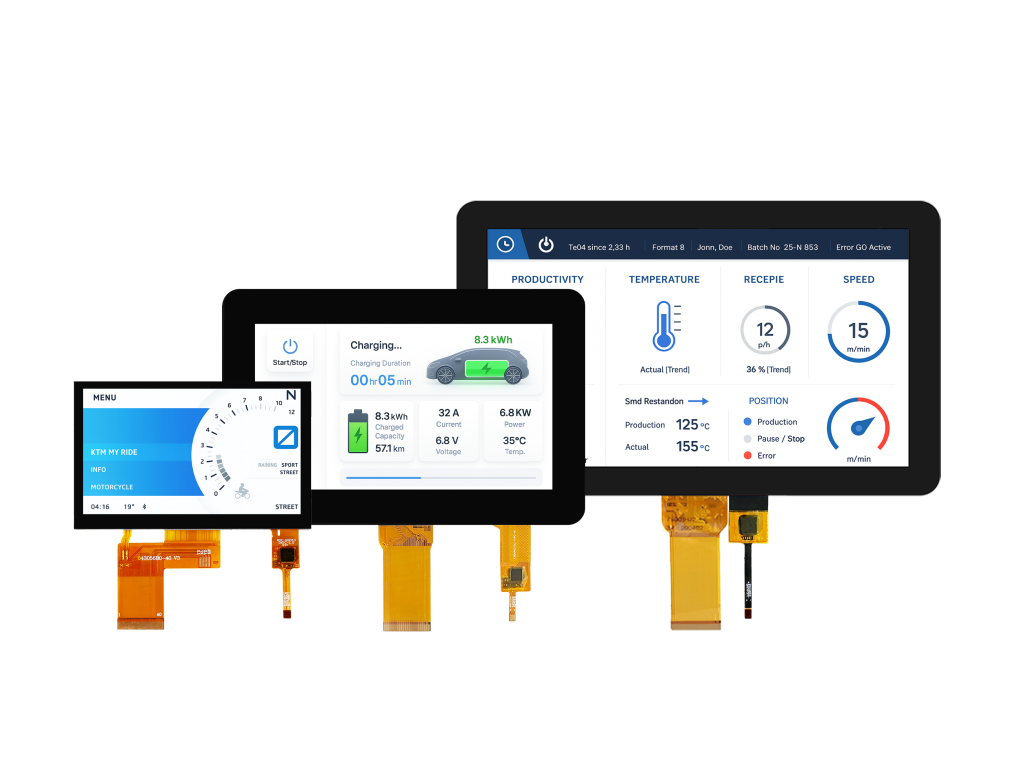

MAXEN touch screen displays pair TFT LCDs with PCAP or resistive touch, offered with air bonding or optical bonding. Popular sizes include 4.3" (480×272), 5" (800×480), 7" (800×480 / 1024×600), 10.1" (1024×600 / 1280×800), 10.4" (1024×768), 12.1" (1280×800). Options: IPS full viewing, high brightness, glove/wet touch, and AG/AR/AF surface treatments on the touch glass. Interfaces: SPI / RGB / LVDS / MIPI.

Built for real-world use: stable touch, low reflection (with optical bonding), and durable cover glass. Well-suited for industrial HMI/PLC panels, medical equipment, marine chartplotters & fish finders, energy/EV chargers, smart-home wall panels, and mobility dashboards.

We support customization of pinouts, FPC shape, and cover-lens (thickness, black mask, logo/printing) to fit your mechanicals and UI needs.

Size	Resolution	Image	Part NO.	TFT Type	Brightness (nits)	TFT Interface	Touch Interface	Touch Type	Touch IC	Bonding Method	Outline Dimension (with TP) (WxHxT, mm)	Active Area (WxH, mm)	Drawing
4.3"	480*272	4.3 inch TFT LCD Touch Screen	MX-B43NR40-IG32H-CTP01	IPS	500	40-pin RGB	6-pin I²C	PCAP	GT911	Air Bonding	105.50x67.20x5.00	95.04x53.86	Download PDF
4.3"	480*272	4.3 inch Resistive Touch LCD Screen	MX-043NR40BFM-R35	IPS	500	40-pin RGB	4-wire	Resistive	/	Air Bonding	105.50x67.20x4.00	95.04x53.86	Download PDF
4.3"	480*800	4.3 inch LCD Touch Screen	MX-N43HR42-IT30-F011	IPS	350	42-pin RGB	6-pin I²C	PCAP	GT911	Optical Bonding	79.20x120.30x4.33	56.16x96.30	Download PDF
5"	800*480	5 inch LCD Touch Screen	MX-050WR40BFM-N16-CTP02	IPS	500	40-pin RGB	10-pin I²C	PCAP	GT911	Air Bonding	126.70x86.20x4.93	108.00x64.80	Download PDF
5"	800*480	5 inch Resistive Touch Screen LCD Display	MX-050WR40BFM-R42	IPS	500	40-pin RGB	4-wire	Resistive	/	Air Bonding	120.70x75.80x4.05	108.00x64.80	Download PDF
7"	800*480	7 inch LCD Touch Screen	MX-070WR50KFM-N74-C2572	IPS	500	50-pin RGB	6-pin I²C	PCAP	ST1633i	Air Bonding	192.00x128.00x7.58	153.84x85.63	Download PDF
7"	800*480	7 inch TFT LCD Touch Screen	MX-070WR50KFH-R137	IPS	1000	50-pin RGB	4-wire	Resistive	/	Air Bonding	165.00x100.00x4.70	153.84x85.63	Download PDF
7"	1024*600	7 inch Capacitive Touch Screen LCD	MX-070HR50BFS-C81	IPS	300	50-pin RGB	8-pin I²C	PCAP	GT911	Air Bonding	164.00x97.60x4.38	154.21x86.92	Download PDF
10.1"	1280*800	10.1 inch LCD Touch Screen	MX-101FL40BFH-N71-F1619	IPS	1000	40-pin LVDS	8-pin I²C	PCAP	HY4635	Optical Bonding	251.50x165.50x8.90	216.96x135.60	Download PDF
12.1"	1280*800	12.1 inch LCD Touch Screen	MX-121FL20BFH-C14	IPS	1000	20-pin LVDS	6-pin I²C, USB	PCAP	EETI	Optical Bonding	299.12x201.10x11.60	261.12x163.20	Download PDF
