Standard TFT LCD display | TN LCD Panel

Standard TFT LCD display, TN LCD Panel

MAXEN Standard TFT LCD Displays refer to TN LCD panels, one of the most widely adopted TFT display technologies for cost-effective and reliable applications. TN (Twisted Nematic) LCDs are well known for their fast response time, low power consumption, and stable performance, making them ideal for industrial displays, medical displays, home appliance displays, and handheld device displays.

These TN LCD modules are available in a full range, with popular sizes 1.3 inch, 2.4 inch, 3.5 inch, 4.3 inch, 5 inch, 7 inch, 8 inch, 10.1 inch up to 15.6 inch. Supports resolutions including 240x240, 320x240, 480x272, 800x480, 1024x600, 1280x800, 1920x1080 Full HD, ensuring vivid image quality and wide compatibility for different applications.

Meanwhile, MAXEN TFT LCD panels are designed to operate reliably at operation temperature of -20°C to +70°C, with wide temperature optional available up to -30°C to +85°C.

While TN TFT technology provides excellent cost-performance balance, MAXEN also offers custom displays with touch screen integrating resistive touch screen (RTP) or capacitive touch screen (PCAP | CTP), TFT backlight brightness customization, optical bonding, etc., to meet specific product requirements.

Size	Resolution	Image	Part NO.	TFT Type	Brightness (nits)	Interface	Viewing Angle (T/B/L/R)	Operation Temp. (℃)	Outline Dimension (WxHxT, mm)	Active Area (WxH, mm)	Drawing
1.77"	128*160	1.77 inch TFT LCD Screen	MX-0177NP20NTS-N01	TN	250	20-pin MCU	45/20/45/45	-20~70	34.0042.942.30	28.03*35.04	Download PDF
2.4"	240*320	2.4 inch TFT Display	MX-024NM40CMS-N06	TN	250	40-pin MCU	60/60/60/45	-20~60	42.7260.262.46	36.72*48.96	Download PDF
2.8"	240*320	2.8 inch LCD Display	MX-028NR40HFM-N10	IPS	500	40-pin SPI+RGB	80/80/80/80	-20~70	50.5069.702.10	43.20*57.60	Download PDF
2.8"	240*320	2.8 inch TFT Display	MX-028NS40HFH-N14	IPS	1000	40-pin SPI+RGB	80/80/80/80	-20~70	50.5069.702.10	43.20*57.60	Download PDF
3.5"	320*240	3.5 inch LCD Display	MX-35T5432024006L01T	TN	350	54-pin RGB	50/60/70/70	-20~70	76.8063.803.26	70.08*52.56	Download PDF
3.5"	320*240	3.5 inch TFT Display	MX-I035T54-32006L02T	IPS	550	54-pin RGB	80/80/80/80	-30~85	76.9063.903.20	70.08*52.56	Download PDF
3.5"	640*480	3.5 inch LCD Screen	MX-035WR54EFH-N20	IPS	1000	54-pin RGB	80/80/80/80	-20~70	76.9063.903.20	70.08*52.56	Download PDF
4.3"	480*272	4.3 inch LCD Display	MX-B43NR40-IG32H	IPS	500	40-pin RGB	80/80/80/80	-20~70	105.5067.203.00	95.04*53.86	Download PDF
4.3"	800*480	4.3 inch TFT Display	MX-B43HR-40IS13	IPS	500	40-pin RGB	80/80/80/80	-20~70	105.4267.072.90	95.04*53.86	Download PDF
5"	1024*600	5 inch TFT Display	MX-050HR40BFM-N18	IPS	500	40-pin RGB	85/85/85/85	-20~70	120.7075.802.90	108.03*64.80	Download PDF

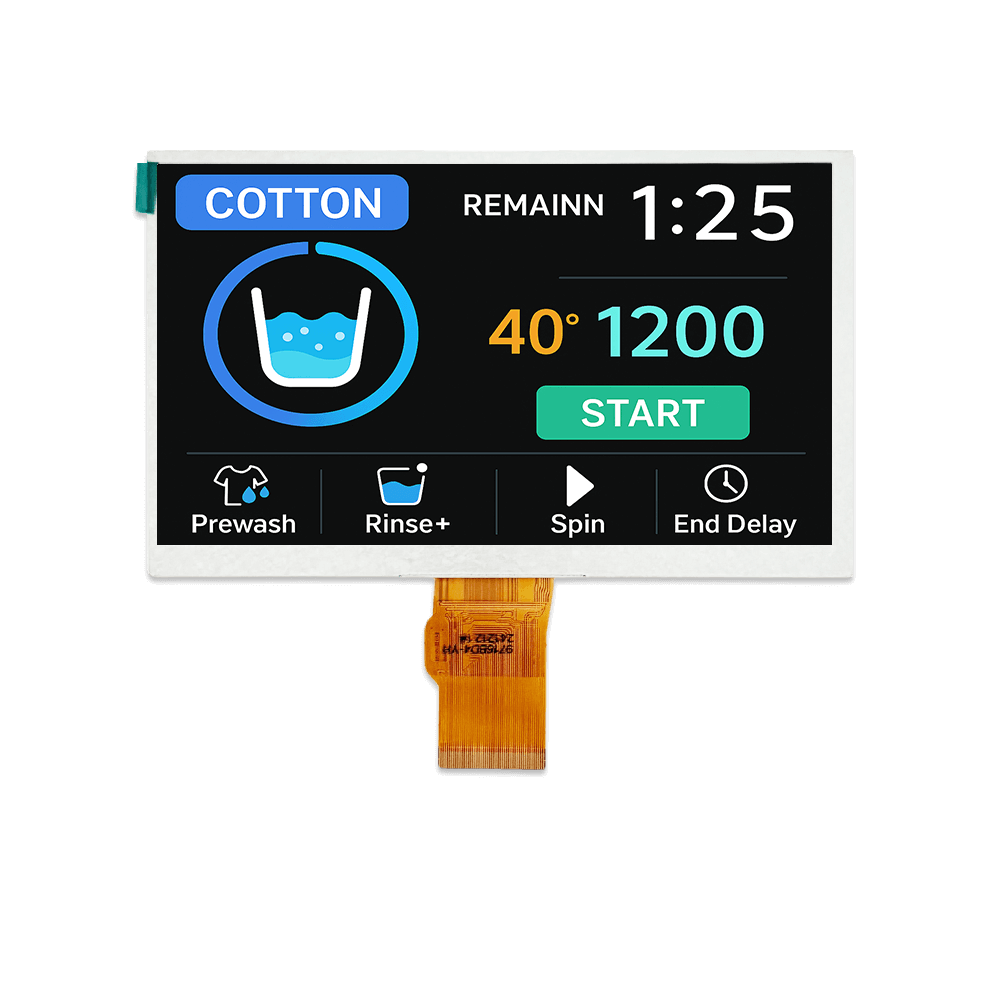

7"	800*480	7 inch LCD Screen	MX-B70NR50-TNX64	TN	350	50-pin RGB	50/60/60/60	-20~70	164.8699.963.40	153.84*85.63	Download PDF
7"	800*480	7 inch LCD Display	MX-070WR50KFM-N74	IPS	500	50-pin RGB	85/85/85/85	-20~70	164.2099.303.20	153.84*85.63	Download PDF
7"	1024*600	7 inch TFT LCD Screen	MX-070HR50BFM-N62	IPS	500	50-pin RGB	85/85/85/85	-20~70	165.00100.003.50	154.21*85.92	Download PDF
7"	1024*600	7 inch LCD Panel	MX-H70HL40-IS311K	IPS	1000	40-pin LVDS	85/85/85/85	-20~70	165.00100.003.50	154.21*85.92	Download PDF
10.1"	1280*800	10.1 inch LCD Display	MX-101FL40BFH-N71	IPS	1000	40-pin LVDS	80/80/80/80	-20~70	227.56149.336.50	216.96*135.60	Download PDF
