IPS TFT LCD | Full Viewing Angle Display

IPS TFT LCD, Full Viewing Angle Display

MAXEN's IPS TFT LCD adopts advanced In-Plane Switching (IPS) technology, delivering full viewing angles. Compared with TN panels, IPS panels ensure consistent brightness and color from any direction, providing premium visual quality for applications where readability matters most.

Our IPS LCD displays are produced user-friendly with narrow bezels, compact design, high brightness, high contrast, making them more easily to apply optical bonding for high-end applications, including industrial control systems, medical equipment, automotive dashboards, smart home devices, and outdoor terminals like boat monitor, fish finders etc.

Most popular IPS TFTs sizes are display 4.3 inch, 5 inch, 7 inch, 9 inch, 10.1 inch, 10.4 inch, 12.1 inch, with multiple resolutions 480x272, 800x480, 1024x600, 1024x768, 1280x800, 1920x1200 etc, ensuring vivid and sharp image quality. These SPI, RGB, LVDS, MIPI LCD pin assignment can be customized to follow customer requests. Optional with custom capacitive and resistive touch panels, as well as optical bonding.

Size	Resolution	Image	Part NO.	TFT Type	Brightness (nits)	Interface	Viewing Angle (T/B/L/R)	Operation Temp. (℃)	Outline Dimension (WxHxT, mm)	Active Area (WxH, mm)	Drawing
1.3"	240*240	1.3 inch TFT Display	MX-013NS18HFH-N02	IPS	1000	18-pin SPI	80/80/80/80	-20~70	26.1629.132.30	23.40*23.40	Download PDF
1.69"	240*280	1.69 inch LCD Display Module	MX-0169NS12EFS-N03	IPS	400	12-pin SPI	80/80/80/80	-20~70	30.0737.431.60	27.97*32.63	Download PDF
2.8"	240*320	2.8 inch LCD Display	MX-028NR40HFM-N10	IPS	500	40-pin SPI+RGB	80/80/80/80	-20~70	50.5069.702.10	43.20*57.60	Download PDF
2.8"	240*320	2.8 inch TFT Display	MX-028NS40HFH-N14	IPS	1000	40-pin SPI+RGB	80/80/80/80	-20~70	50.5069.702.10	43.20*57.60	Download PDF
3.5"	320*240	3.5 inch TFT Display	MX-I035T54-32006L02T	IPS	550	54-pin RGB	80/80/80/80	-30~85	76.9063.903.20	70.08*52.56	Download PDF
3.5"	640*480	3.5 inch LCD Screen	MX-035WR54EFH-N20	IPS	1000	54-pin RGB	80/80/80/80	-20~70	76.9063.903.20	70.08*52.56	Download PDF
4.3"	480*272	4.3 inch LCD Display	MX-B43NR40-IG32H	IPS	500	40-pin RGB	80/80/80/80	-20~70	105.5067.203.00	95.04*53.86	Download PDF
4.3"	800*480	4.3 inch TFT Display	MX-B43HR-40IS13	IPS	500	40-pin RGB	80/80/80/80	-20~70	105.4267.072.90	95.04*53.86	Download PDF
4.3"	800*480	4.3 inch LCD Screen	MX-B43HR-40IS141K	IPS	1000	40-pin RGB	80/80/80/80	-20~70	105.4267.072.90	95.04*53.86	Download PDF
5"	800*480	5 inch TFT LCD Screen	MX-050WR40BFH-N15	IPS	1000	40-pin RGB	80/80/80/80	-20~70	120.7075.802.90	108.00x64.80	Download PDF
5"	1024*600	5 inch TFT Display	MX-050HR40BFM-N18	IPS	500	40-pin RGB	85/85/85/85	-20~70	120.7075.802.90	108.03*64.80	Download PDF
7"	800*480	7 inch LCD Display	MX-070WR50KFM-N74	IPS	500	50-pin RGB	85/85/85/85	-20~70	164.2099.303.20	153.84*85.63	Download PDF
7"	1024*600	7 inch TFT LCD Screen	MX-070HR50BFM-N62	IPS	500	50-pin RGB	85/85/85/85	-20~70	165.00100.003.50	154.21*85.92	Download PDF

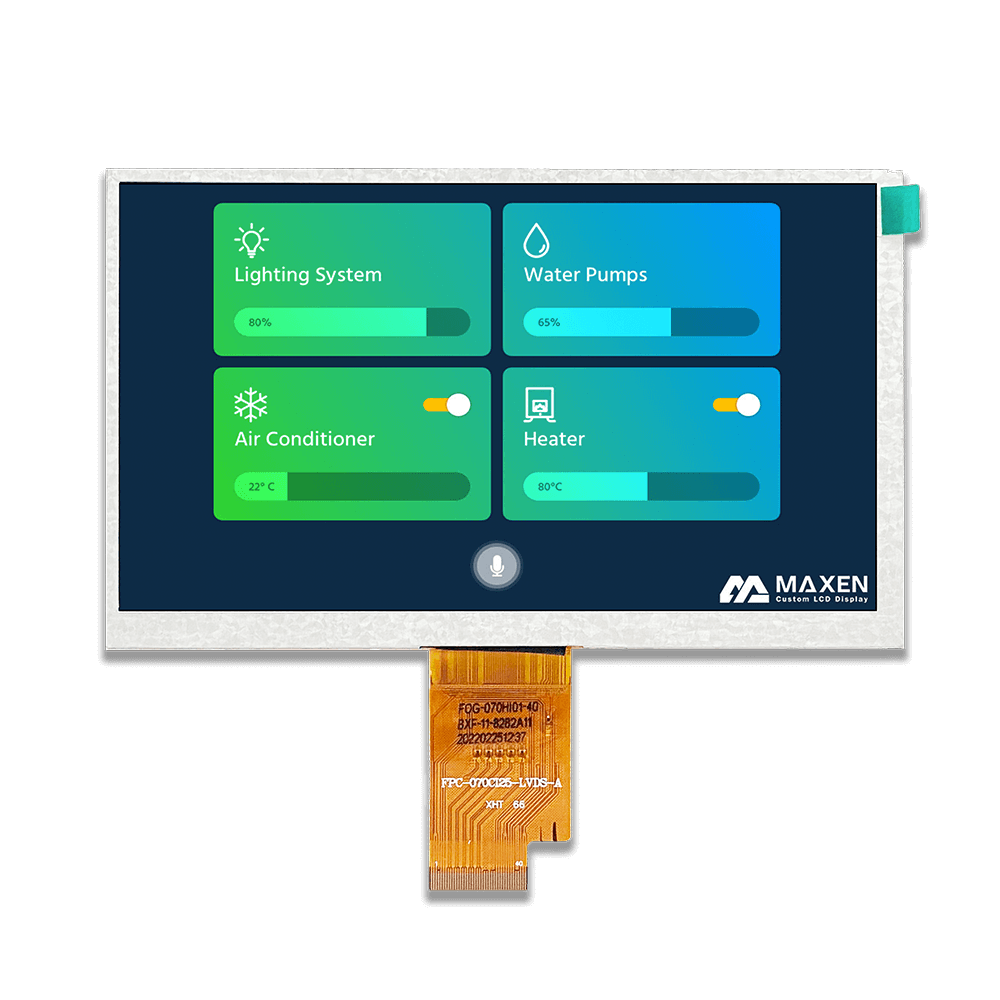

7"	1024*600	7 inch LCD Panel	MX-H70HL40-IS311K	IPS	1000	40-pin LVDS	85/85/85/85	-20~70	165.00100.003.50	154.21*85.92	Download PDF
10.1"	1280*800	10.1 inch LCD Display	MX-101FL40BFH-N71	IPS	1000	40-pin LVDS	80/80/80/80	-20~70	227.56149.336.50	216.96*135.60	Download PDF
