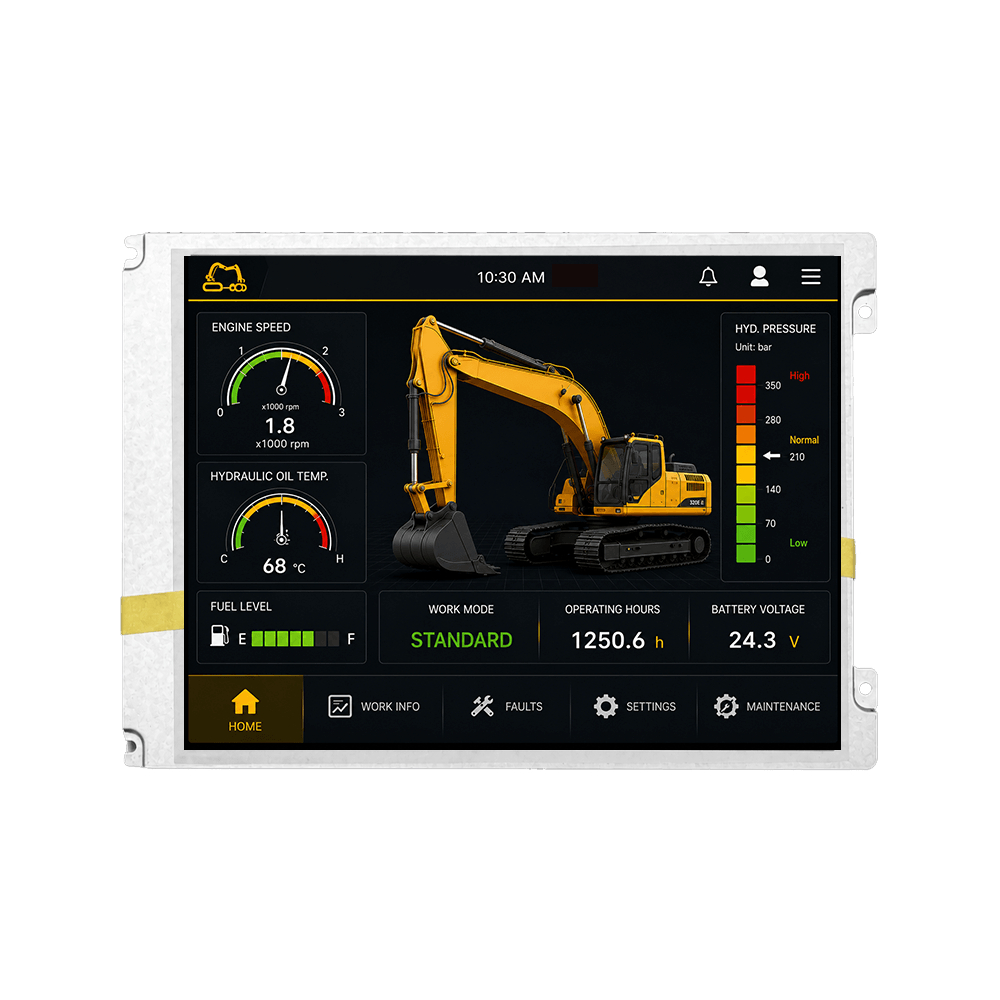

8.4 inch TFT LCD Module

Ideal for industrial control panels, outdoor equipment, test instruments, medical devices, vehicle terminals, and other embedded systems.

Main Features

  • Part No. MX-V84HL20-IW011K
  • 8.4" TFT LCD Display
  • 800x600 resolution
  • High brightness 1000 cd/m²
  • 12 o'clock viewing angles (TN)
  • 20-pin LVDS interface

MX-V84HL20-IW011K

8.4 inch TFT LCD Module MX-V84HL20-IW011K is a high-brightness 800x600 SVGA display designed for industrial control panels, outdoor equipment, test instruments, medical devices, vehicle terminals, and other embedded systems that need a reliable LCD screen display with clear visibility. With 1000 nits brightness, TN technology, 20-pin LVDS interface, and operating temperature range of -20°C to 70°C, this 8.4" display TFT module supports stable performance in demanding environments. Its 203.00x142.50x5.70 mm module size and 170.40x127.80 mm active area make it suitable for equipment that requires a medium-size TFT LCD display with high brightness, standard LVDS signal input, and stable operation in industrial applications.

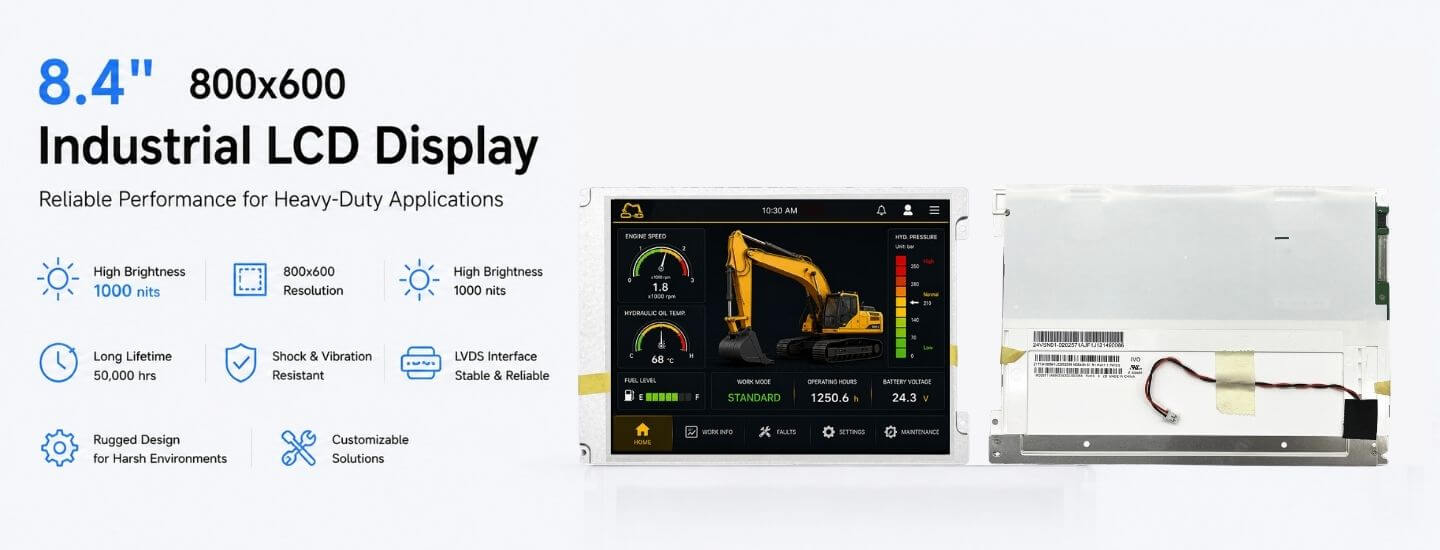

8.4 inch TFT LCD Module 800x600 LVDS LCD Screen Display
  • High Brightness

    1000 nits

  • Working Temp Range

    -20°C to 70°C

  • Interface

    20-pin LVDS

  • IC

    /

LCM Pin Assignment (20-pin LVDS)

Pin No. Symbol Description
1~2 VDD Power Supply 3.3V (typical)
3 UD Vertical Reverse Scan control
4 LR Horizontal Reverse Scan control
5 RxIN1- -LVDS differential data input (R0-R5, G0)
6 RxIN1+ +LVDS differential data input (R0-R5, G0)
7 GND Ground
8 RxIN2- -LVDS differential data input (G1-G5, B0-B1)
9 RxIN2+ +LVDS differential data input (G1-G5, B0-B1)
10 GND Ground
11 RxIN3- -LVDS differential data input (B2-B5, HS, VS, DE)
12 RxIN3+ +LVDS differential data input (B2-B5, HS, VS, DE)
13 GND Ground
14 RxCLKIN- -LVDS differential clock input
15 RxCLKIN+ +LVDS differential clock input
16 GND Ground
17 SEL68 6/8 bits LVDS data input selection (H:8bit L/NC:6bit)
18 BIST H:BIST MODE, L/NC:Normal MODE
19 RxIN4- -LVDS differential data input (R6-R7,G6-G7,B6-B7)
20 RxIN4+ +LVDS differential data input (R6-R7,G6-G7,B6-B7)

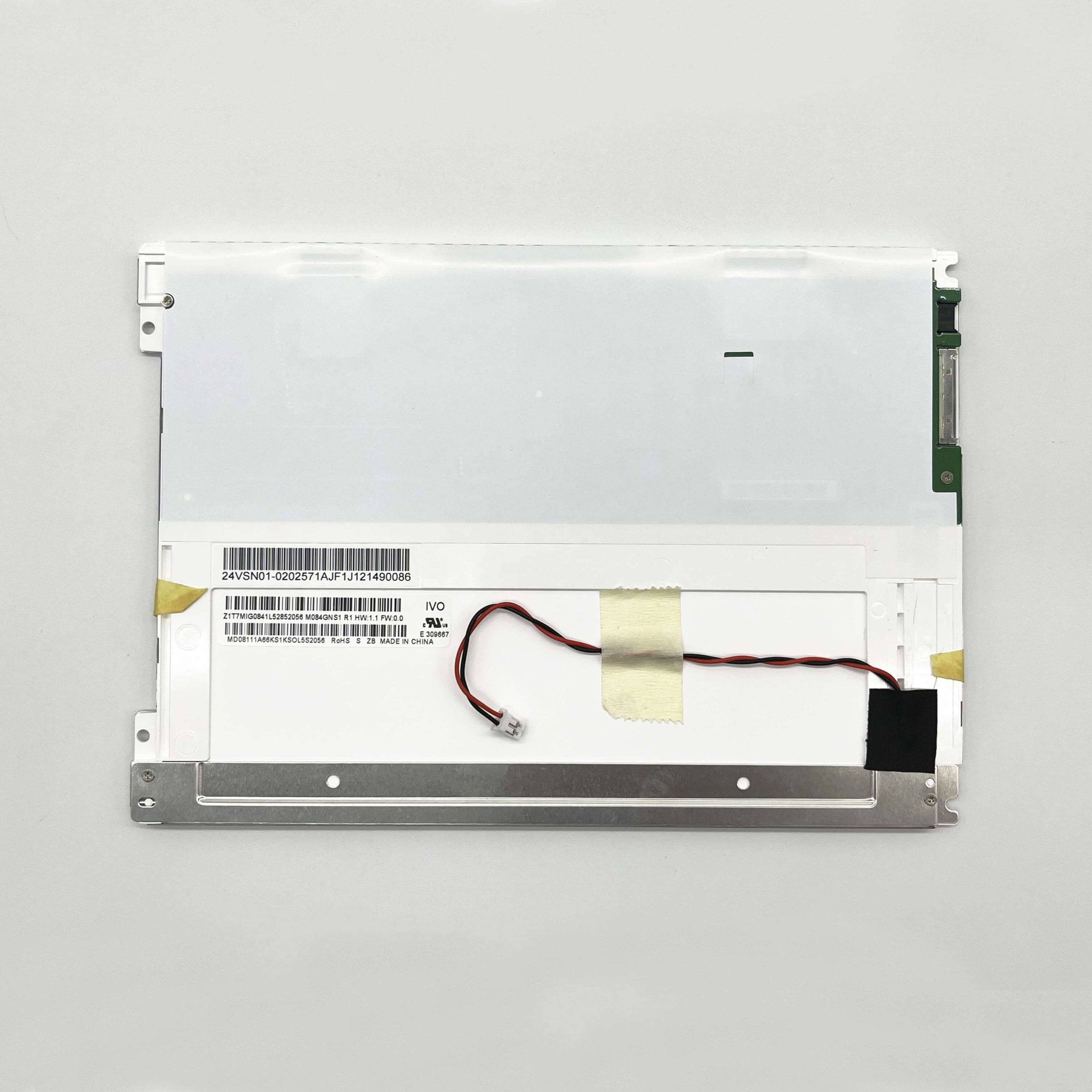

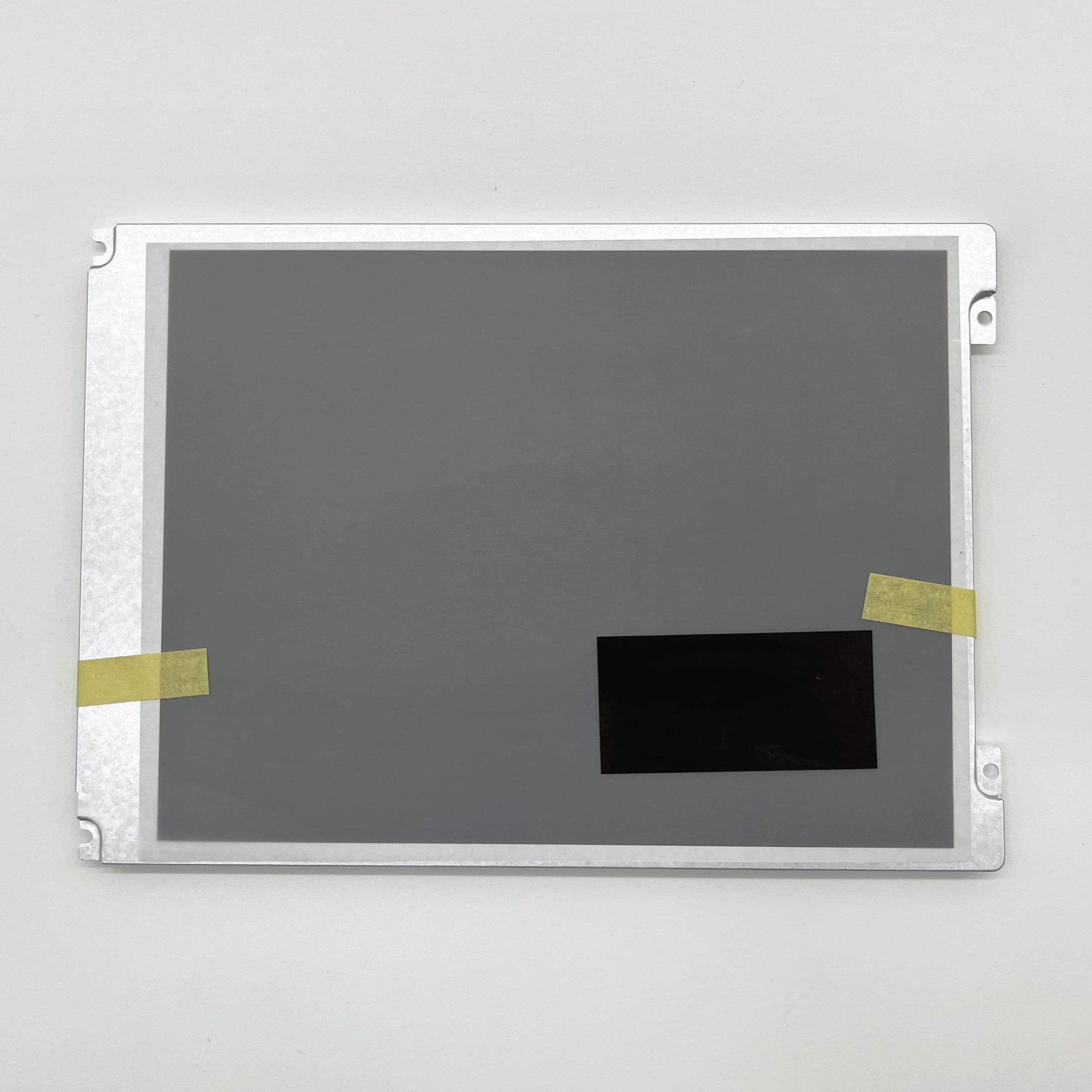

8.4 inch TFT LCD Module Product Drawing
