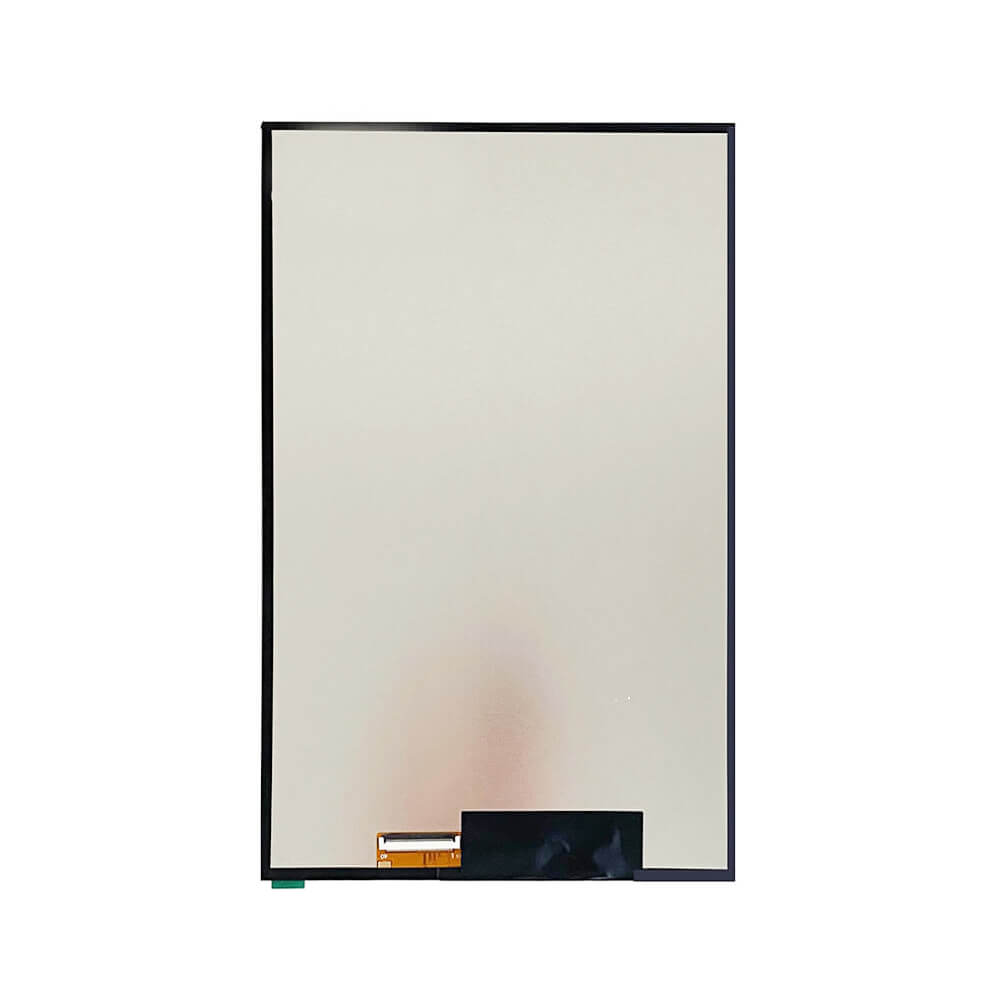

LCM Pin Definition (40-pin MIPI)
| PIN No. | SYMBOL | Function |
| 1 | NC | No connection |
| 2-3 | VDD | 3.3V input |
| 4 | GND | Ground |
| 5 | RESET | Device reset signal 3.3V |
| 6 | NC | No connection |
| 7 | GND | Ground |
| 8 | MIPI D0- | MIPI differential data0 input(Negative) |
| 9 | MIPI D0+ | MIPI differential data0 input(Positive) |
| 10 | GND | Ground |
| 11 | MIPI D1- | MIPI differential datal input(Negative) |
| 12 | MIPI D1+ | MIPI differential datal input(Positive) |
| 13 | GND | Ground |
| 14 | MIPI CLK- | MIPI differential clock input(Negative) |
| 15 | MIPI CLK+ | MIPI differential clock input(Positive) |
| 16 | GND | Ground |
| 17 | MIPI D2- | MIPI differential data0input(Negative) |
| 18 | MIPI D2+ | MIPI differential data0 input(Positive) |
| 19 | GND | Ground |
| 20 | MIPI D3- | MIPI differential data3 input(Negative) |
| 21 | MIPI D3+ | MIPI differential data3 input(Positive) |
| 22 | GND | Ground |
| 23 | NC | No connection |
| 24 | NC | No connection |
| 25 | GND | Ground |
| 26 | NC | No connection |
| 27 | LED PWM | CABC PIN OR NC |
| 28 | NC | No connection |
| 29 | NC | No connection |
| 30 | GND | Ground |
| 31-32 | LED- | Cathode for light bar |
| 33 | NC | No connection |
| 34 | NC | No connection |
| 35 | NC | No connection |
| 36 | NC | No connection |
| 37 | NC | No connection |
| 38 | NC | No connection |
| 39-40 | LED+ | Anode for light bar |
Absolute Maximum Ratings
| Item | Symbol | Rating | Unit |
| Digital Supply Voltage | VDD | -0.3 to 4.0 | V |
| Operating Temperature Range | Top | -20 to +70 | ℃ |
| Storage Temperature Range | Tst | -20 to +70 | ℃ |
Electrical Characteristics
| Item | Symbol | Min. | Type. | Max. | Unit |
| Digital Power Supply Voltage | VDD | 3.0 | 3.3 | 3.6 | V |
LED Backlight Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit | |
| Forward Voltage | VF | IF=160mA | 17.2 | 18 | 19.6 | V | |
| Uniformity | △Bp | - | 80 | - | % | ||
| LCM Luminance | Lv | IF=160mA | 980 | 1000 | - | cd/m² | |
