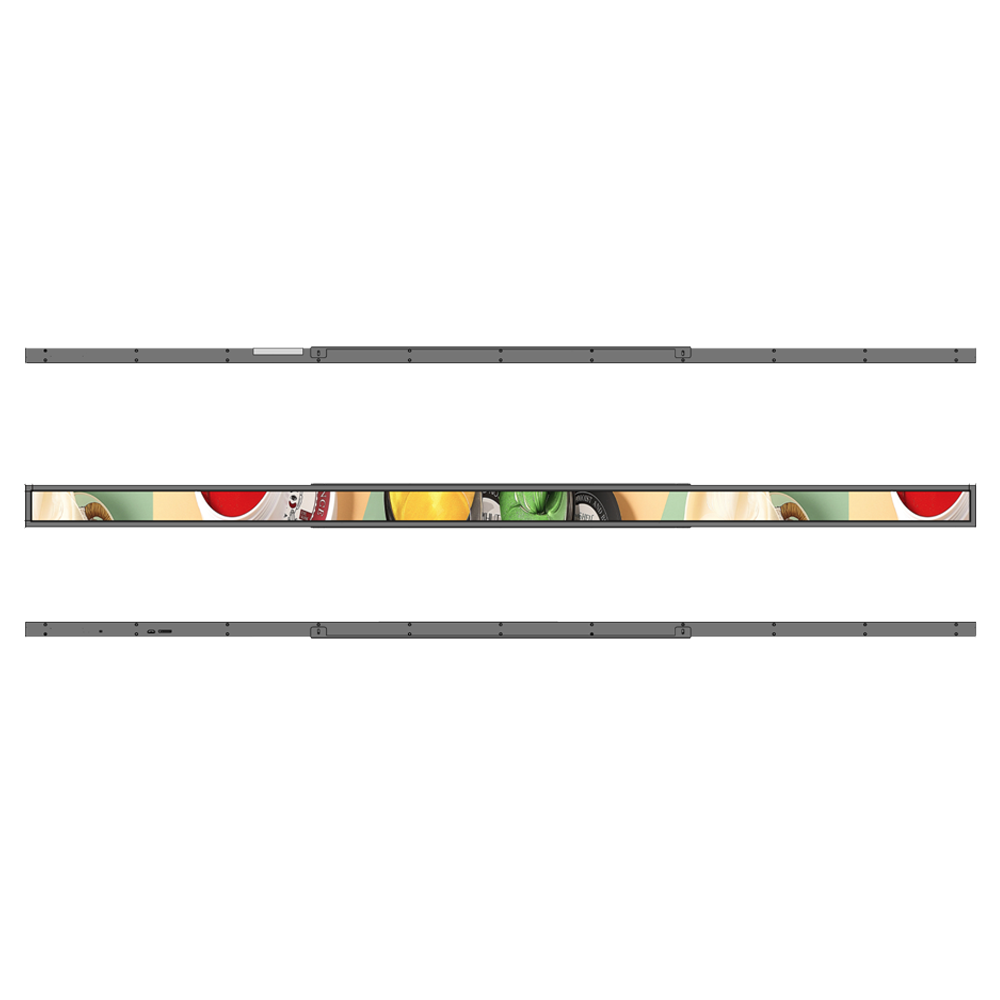

46.6 inch Shelf Bar-Type LCD Display

Ideal for digital shelf edge projects in supermarkets, chain stores and specialty retail.

Main Features

  • 46.6" stretched bar-type LCD with 3840x120 resolution
  • High brightness 450 cd/m²
  • IPS full viewing angle
  • Built-in Android platform (Cortex-A55, 2G RAM + 8G eMMC)
  • Flexible content playback via WiFi, USB, TF card, OTG and Type-C
  • Slim wall-mount design ideal for narrow shelf edge digital signage

Ultra-Wide Shelf Bar Display for Retail Digital Signage

46.6 inch shelf bar-type LCD display is an extra-long stretched screen for digital shelf edge projects in supermarkets, chain stores and specialty retail. The 46.6" panel delivers 3840x120 ultra-wide resolution, 450 cd/m² brightness and IPS full viewing angles, so price strips, promotions and brand messages stay clear and readable along the entire run of the shelf. With an integrated Android system based on a Cortex-A55 processor, 2G RAM and 8G eMMC, it can run player software directly and pull content via WiFi or update via USB, TF card, OTG and Type-C. The slim wall-mount structure is designed to sit neatly on narrow shelf edges, creating a continuous digital band without major changes to existing fixtures.

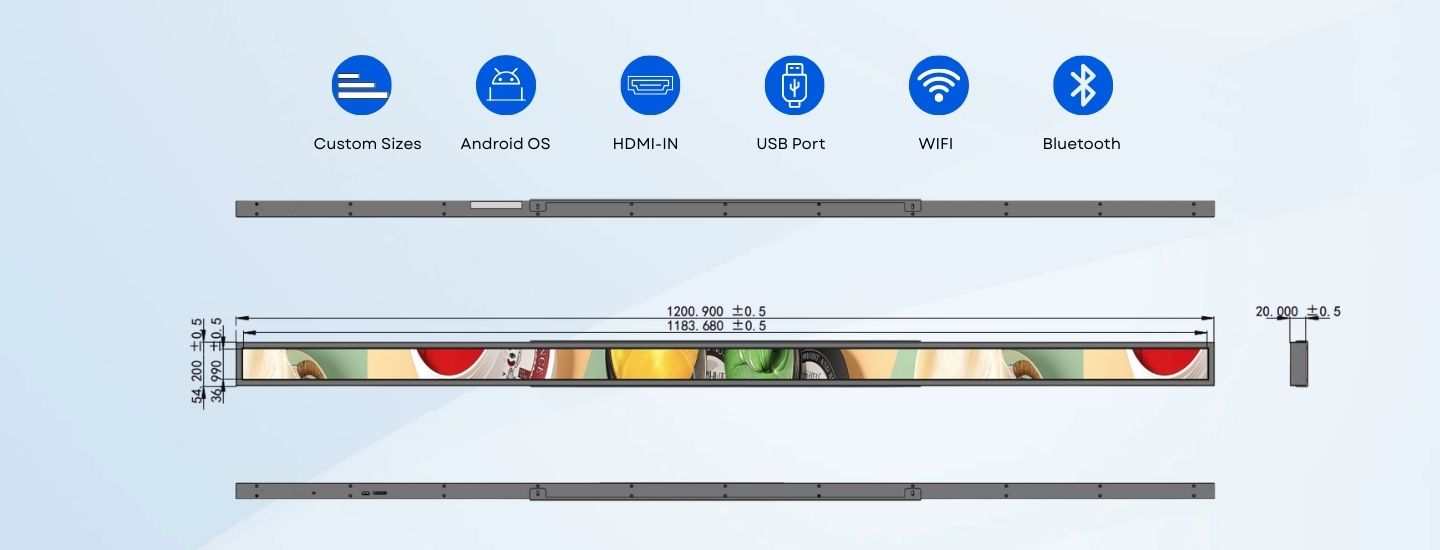

46.6 inch Shelf Bar Type Display 3840x120 resolution
  • High Brightness

    450 nits

  • Interface

    Type-C

  • Working Temp Range

    -20°C to 60°C

  • Operating System

    Android

Size 46.6"
Panel Type a-Si TFT-LCD
Display Area 1183.68(H) × 36.9(V)mm
Aspect Ratio >3:1
Resolution 3840(H) × 120(V)
Display Colors 16.7M
Pixel Pitch 0.45735×0.4494mm
Brightness 450CD
Contrast Ratio 1500:1
Viewing Angles 178°
Response Time 8ms
Refresh Rate 60Hz
Menu Language Chinese/English
Video Interface N/A
Audio Interface N/A
Other Interfaces N/A
CPU Cortex-A55
Memory 2G DDR3
Hard Drive 8G EMMC
WIFI 2.4G WIFI
802.11b : DQPSK, DBPSK, CCK
802.11g/n : 64-QAM,16-QAM, QPSK, BPSK
Bluetooth N/A
Ethernet Port LANX1
Interface Support SD×1/USB×1 DCIN×1
System Version Android 9.0
Input Voltage ~AC 100-240V 50/60Hz
Maximum Power Consumption 38W
Standby Power Consumption ≤0.1W(Board only)
Storage Temperature -20--60°
Amplifier Power N/A
Product Dimensions 1200.9×54.2×20mm
Packaging Dimensions /
Product Weight 2.1KG
Remote Control N/A
AC Power Adapter AC 12V/3A
Warranty Card, Certificate of Quality X1

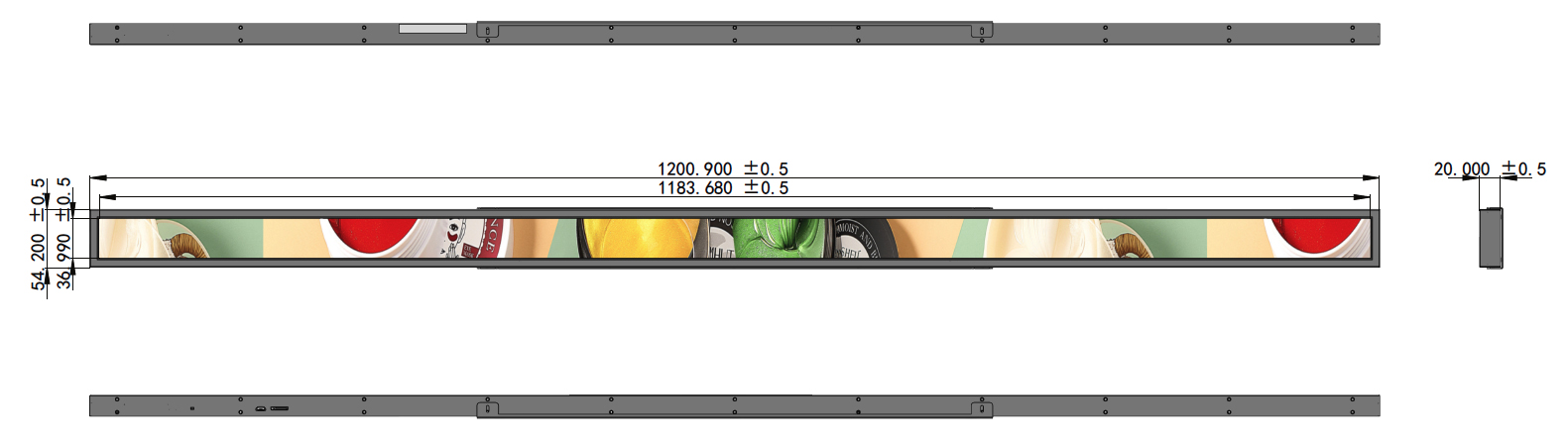

46.6 inch Shelf Bar-Type LCD Display Product Drawing
Tags:

46.6 inch shelf edge display

ultra wide bar lcd

bar type lcd display

retail digital signage display

supermarket shelf display

custom shelf lcd manufacturer

retail shelf lcd screen

narrow shelf edge lcd

digital shelf edge display

android shelf bar display

3840x120 lcd display

FAQs

Frequently Asked Questions

Contact Us
What do you need to start a custom project?

Target size, resolution, interface, environment (indoor / outdoor) and estimated volume. Drawings or photos are helpful but not mandatory.

Can you support small MOQ for new projects?

Yes. We can support smaller MOQ for new designs and pilot runs, then ramp up with your mass production plan.

Do you provide drawings and basic documents?

Yes. We provide 2D drawings and basic electrical information; 3D files and reference schematics can be offered where applicable.

Can I visit your factory?

Yes, factory visits are welcome with prior scheduling.

How long is your lead time?

Sample lead time is usually 1–2 weeks; mass production takes 4–6 weeks depending on the project.
