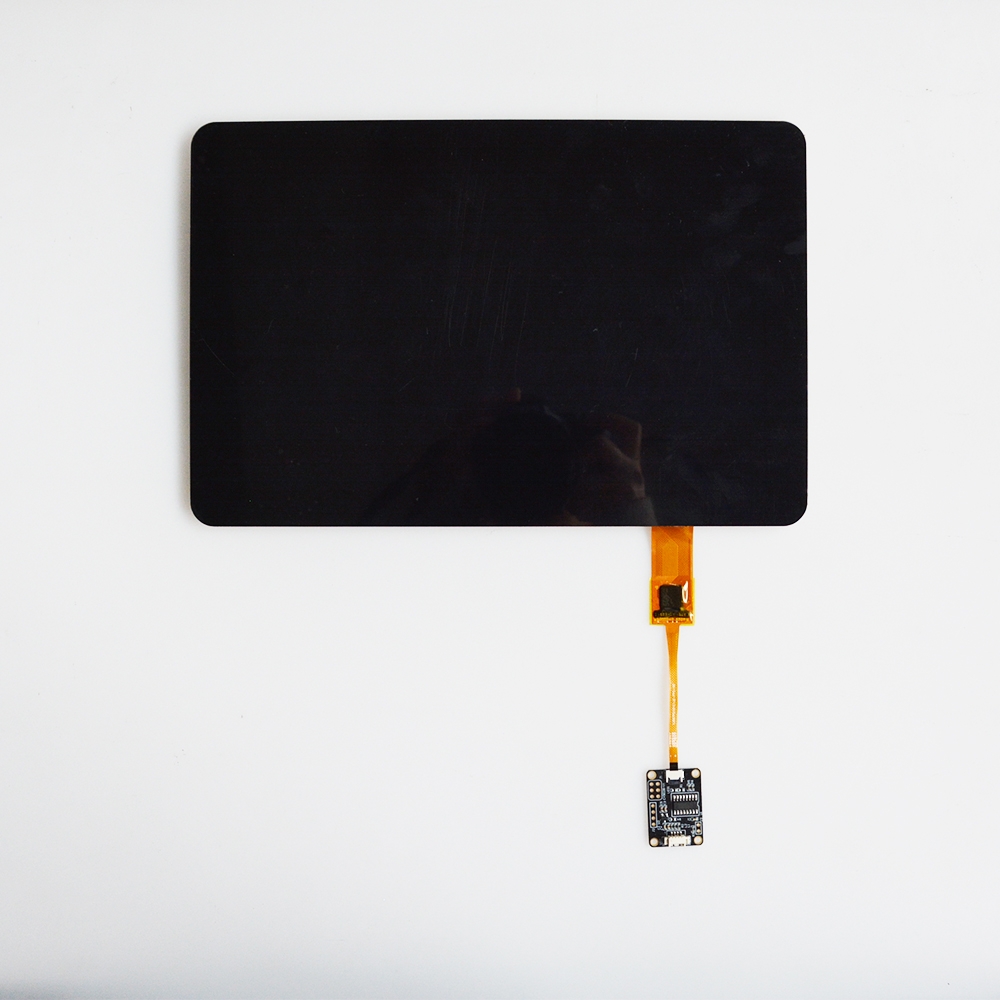

MX101FL45BMNF005-F776 is a 10.1 inch LCD touchscreen that employs OCA bonding to adhere a 10.1-inch LCD and touchscreen together. The 10.1 inch LCD screen features a resolution of 1920x1200 pixels, a brightness of 800 nits, and utilizes a 45-pin LVDS interface. The touchscreen adopts a G+G structure and incorporates the GT9271 touchscreen IC, a commonly used controller chip that supports multi-touch functionality. The touchscreen interfaces through IIC and also supports USB. This OCA bonding 10.1 inch LCD touchscreen is suitable for applications requiring high resolution, brightness, and touchscreen capabilities.

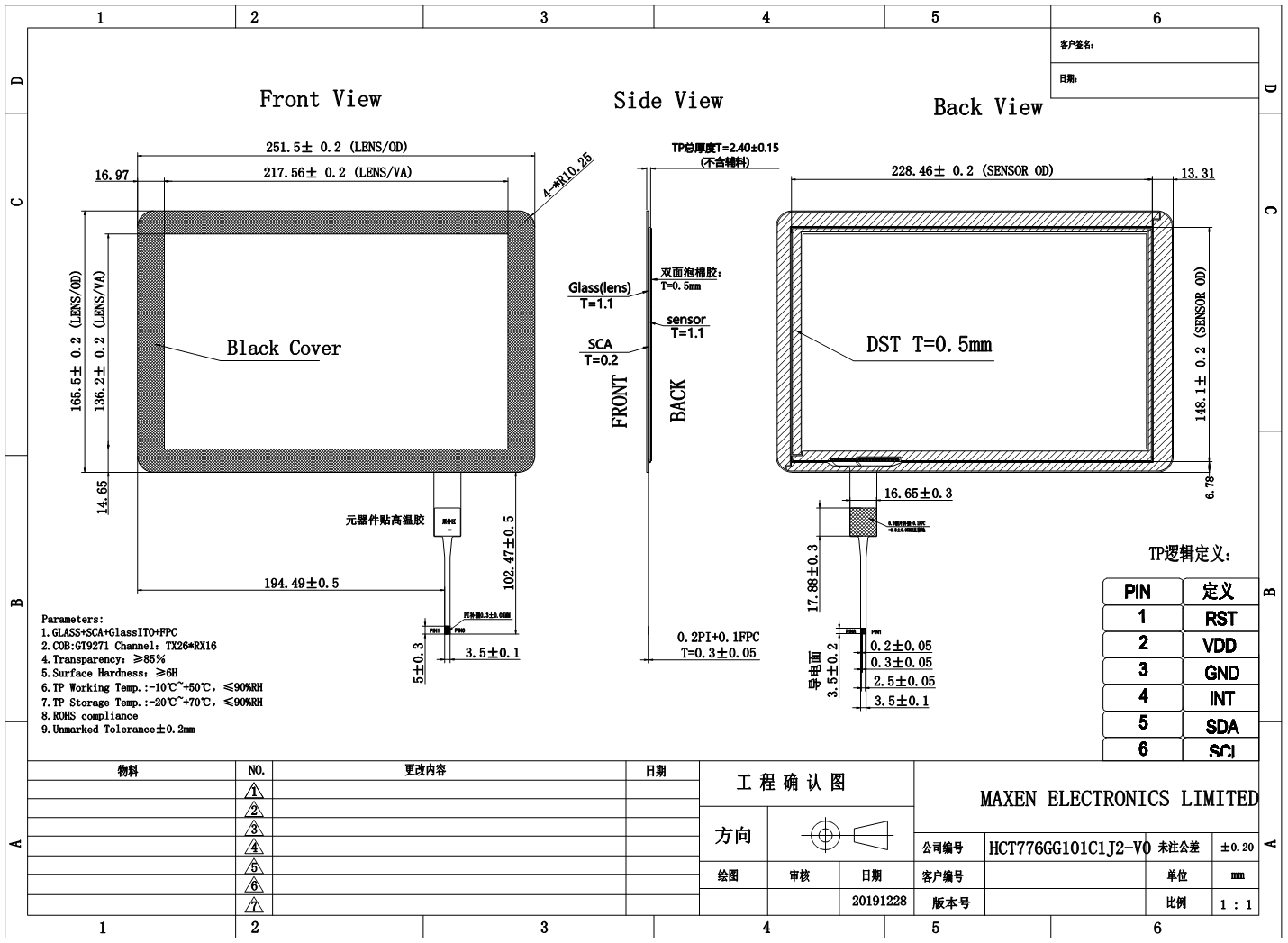

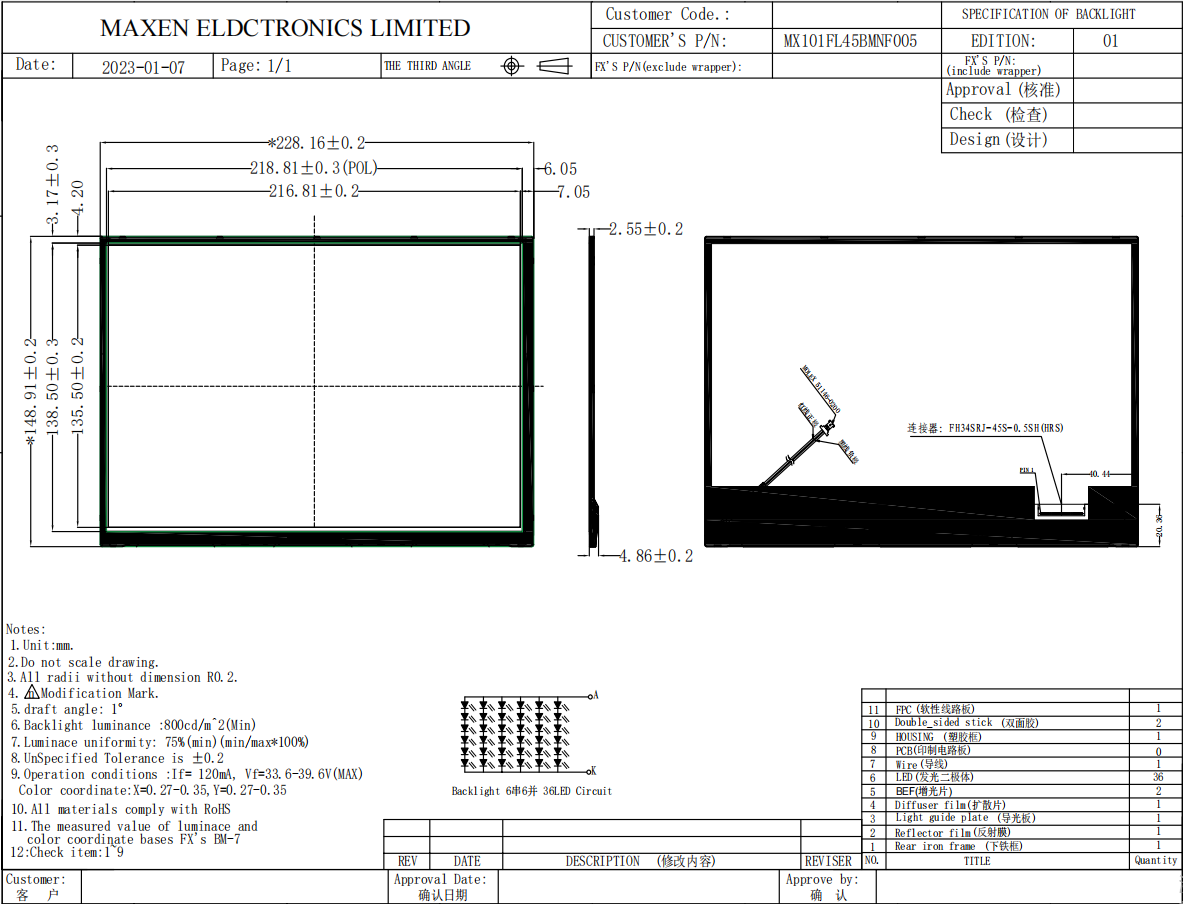

Product Structure
LCD PIN Function (LVDS 45 PIN)
| Pin No. | Symbol | Description | I/O |
| 1~2 | VLED- | LED Cathode | P |
| 3~4 | VLED+ | LED Anode | P |
| 5 | NC | NC | - |
| 6 | GND | GROUND | P |
| 7 | ELV3P | EVEN LVDS Positive data signal (+) | I |
| 8 | ELV3N | EVEN LVDS Negative data signal (-) | I |
| 9 | GND | GROUND | P |
| 10 | ELV2P | EVEN LVDS Positive data signal (+) | I |
| 11 | ELV2N | EVEN LVDS Negative data signal (-) | I |
| 12 | GND | GROUND | P |
| 13 | ELVCLKP | EVEN LVDS Positive CLK signal (+) | I |
| 14 | ELVCLKN | EVEN LVDS Negative CLK signal (-) | I |
| 15 | GND | GROUND | P |
| 16 | ELV1P | EVEN LVDS Positive data signal (+) | I |
| 17 | ELV1N | EVEN LVDS Negative data signal (-) | I |
| 18 | GND | GROUND | P |
| 19 | ELV0P | EVEN LVDS Positive data signal (+) | I |
| 20 | ELV0N | EVEN LVDS Negative data signal (-) | I |
| 21 | GND | GROUND | P |
| 22 | OLV3P | Odd LVDS Positive data signal (+) | I |
| 23 | OLV3N | Odd LVDS Negative data signal (-) | I |
| 24 | GND | GROUND | P |
| 25 | OLV2P | Odd LVDS Positive data signal (+) | I |
| 26 | OLV2N | Odd LVDS Negative data signal (-) | I |
| 27 | GND | GROUND | P |
| 28 | OLVCLKP | Odd LVDS Positive CLK signal (+) | I |
| 29 | OLVCLKN | Odd LVDS Negative CLK signal (-) | I |
| 30 | GND | GROUND | P |
| 31 | OLV1P | Odd LVDS Positive data signal (+) | I |
| 32 | OLV1N | Odd LVDS Negative data signal (-) | I |
| 33 | GND | GROUND | P |
| 34 | OLV0P | Odd LVDS Positive data signal (+) | I |
| 35 | OLV0N | Odd LVDS Negative data signal (-) | I |
| 36 | GND | GROUND | P |
| 37 | I2C_SDA | Reserved for LCD manufacturer‘s use, not connection | I |
| 38 | I2C_SCL | I | |
| 39 | VDD_OTP | P | |
| 40 | EEPEN | Not Connection | I |
| 41~45 | VDDIN | Power supply VDDIN=3.3V (Typ.) | P |
Absolute Maximum Ratings (Ta=25℃)
| Parameter | Symbol | Min. | Max. | Unit | |
| Power Supply | LCD Module | VDD | VSS-0.3 | 3.6 | V |
| Operating Temperature | TOP | -10 | 50 | ℃ | |
| Storage Temperature | TST | -20 | 60 | ℃ | |
| Operating Ambient Humidity | Hop | 10 | 90 | %RH | |
| Storage Humidity | Hst | 10 | 90 | %RH | |
LCD Module Electrical specifications
| Parameter | Symbol | Values | Unit | |||
| Min. | Typ. | Max. | ||||
| Power Supply Voltage | VDD | 3 | 3.3 | 3.6 | V | |
| VRP | - | - | 300 | mV | ||
| Power Supply Current | IDD | - | 300 | 360 | mA | |
| Power Consumption | PLCD | - | 1 | 1.2 | W | |
| Rush current | IRUSH | - | - | 3 | A | |
| CMOS Interface | Input Voltage | VIH | 2.7 | - | 3.3 | V |
| VIL | 0 | - | 0.5 | V | ||
| Output Voltage | VOH | 2.7 | - | 3.3 | V | |
| VOL | 0 | - | 0.5 | V | ||
BACKLIGHT UNIT
| PARAMETER | Sym. | Min. | Typ. | Max. | Unit | Test Condition |
| LED Current | IF | – | 120 | – | mA | – |
| LED Voltage | VF | 33.6 | 36.6 | 39.6 | V | – |
| Life Time | – | 20000 | – | Hr. | I≦120mA | |
| Color | White | |||||
