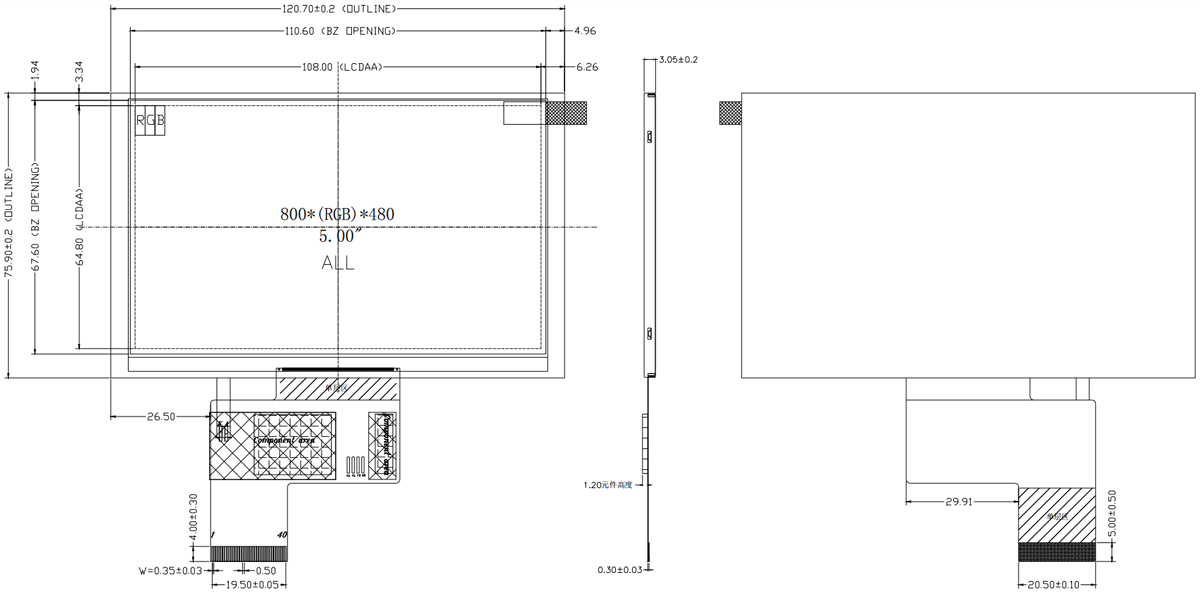

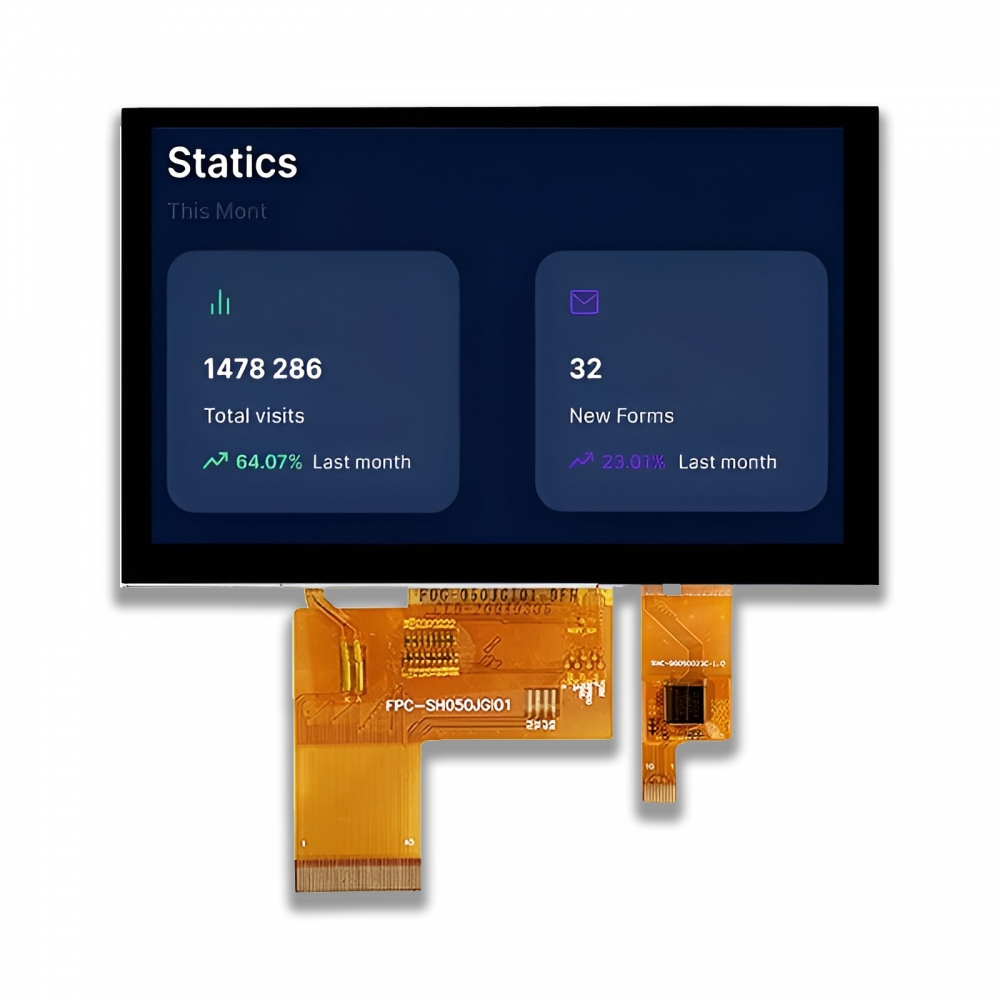

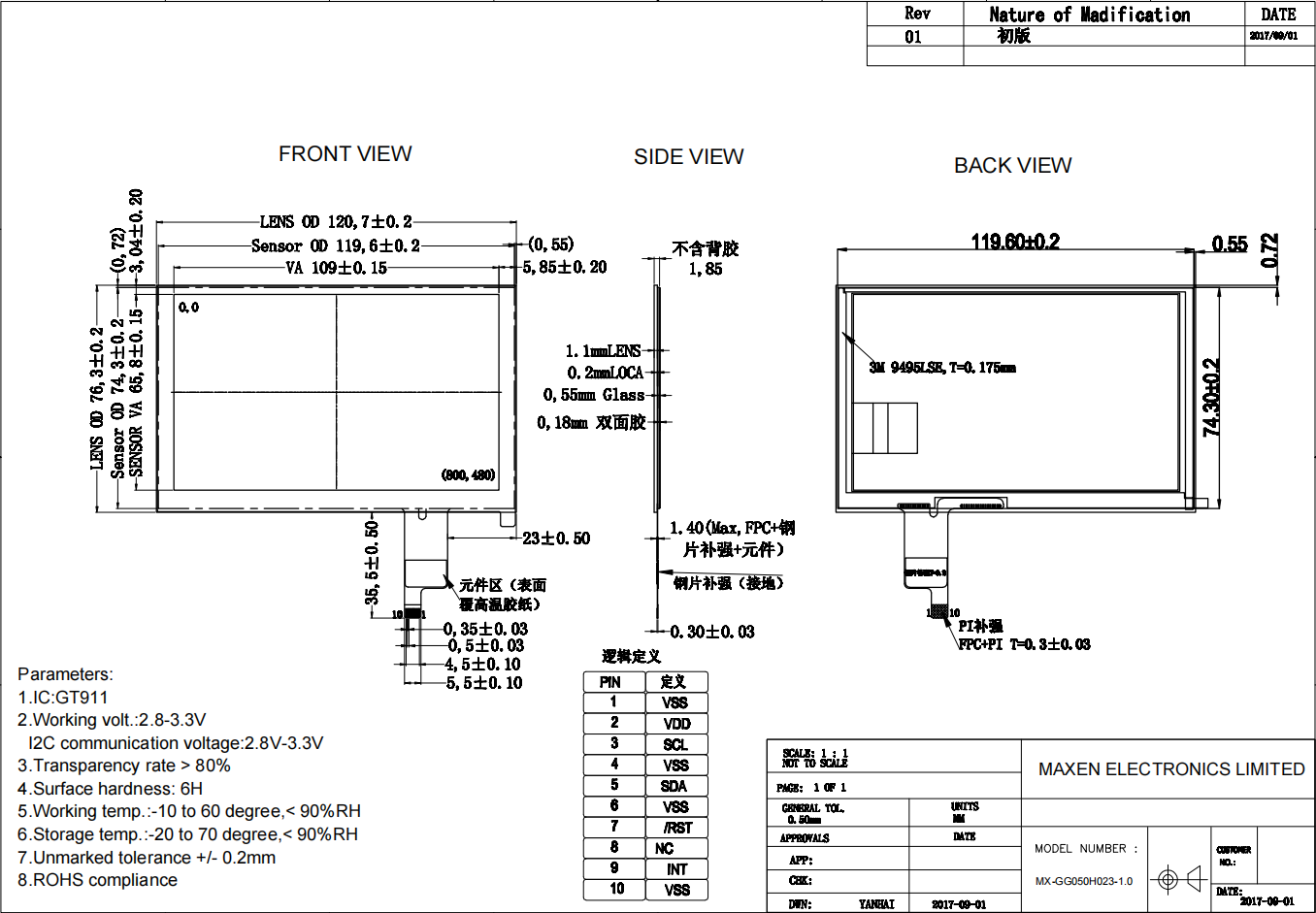

MX-B50HR40-TIS09-H023, a standout 5-inch LCD touch screen display module that marries advanced technology with exceptional performance. This module is equipped with an IPS display mode, ensuring accurate color representation and wide viewing angles for an unparalleled viewing experience. Encased within a compact frame of 120.70mm x 76.30mm x 4.90mm, this module provides a rich active viewing area of 108.00mm x 64.80mm. Experience striking detail on the 800x480 pixel resolution display that can exhibit up to 262K colors, creating a vibrant and immersive user experience. The MX-B50HR40-TIS09-H023 is optimized for efficient data transmission with its 40PIN RGB interface. With a luminous brightness level of 1000 nits, this display remains clear and radiant under a wide array of lighting conditions. At the heart of this module is a projected capacitive touch screen, built with a sturdy glass+glass structure. Equipped with a GT911 touch controller, this module guarantees precise and instantaneous user interaction. This is further enhanced with an I2C interface, providing reliable communication paths between devices. Featuring an impressive LED lifespan of 50,000 hours (typical), the MX-B50HR40-TIS09-H023 is ideal for embedded systems and handheld devices. This touch screen display module exemplifies the potent combination of practical design and innovation, making it the superior choice for excellent visual interaction.

LCD PIN Function (RGB 40 PIN)

Pin	Symbol	Description
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Stand by mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin
