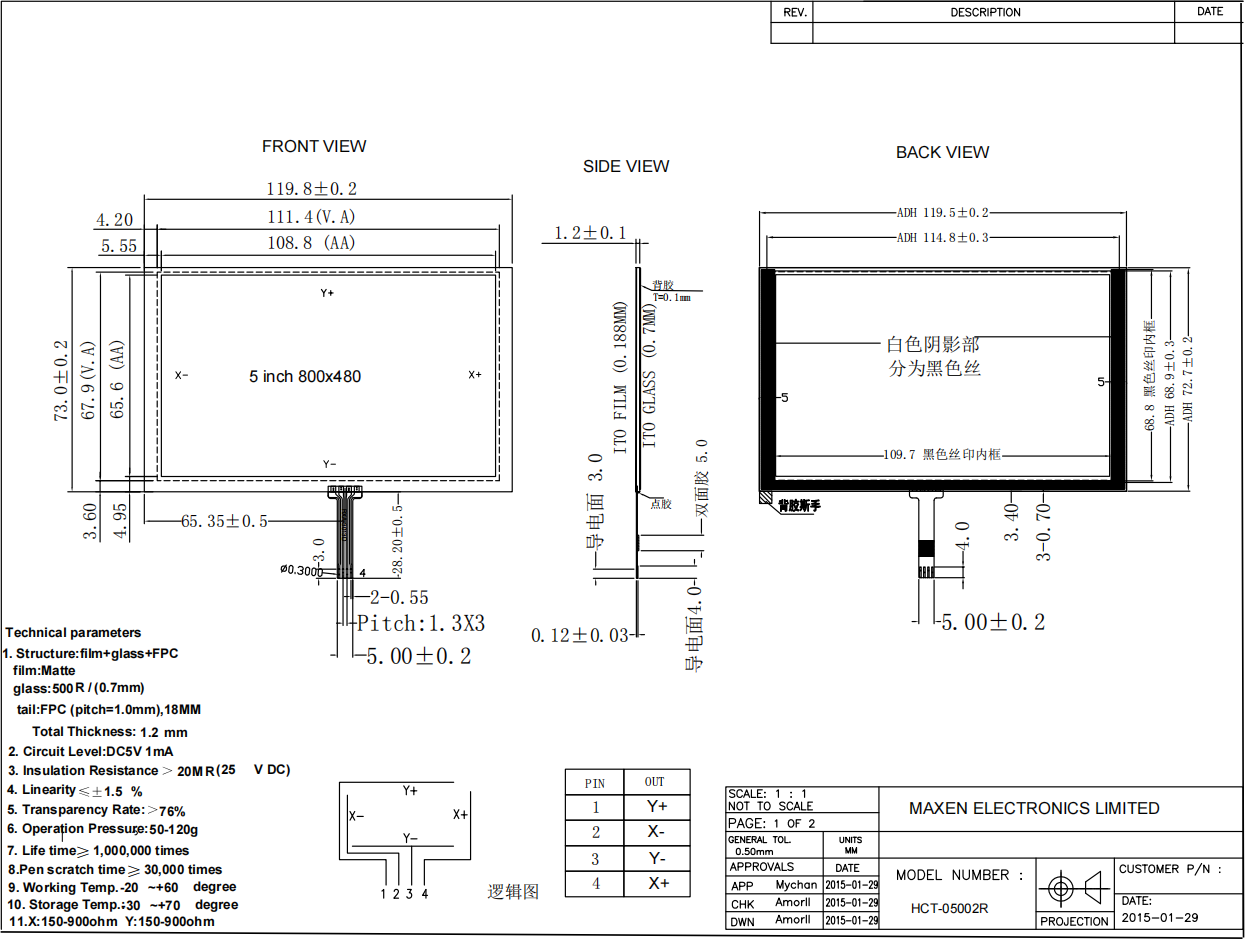

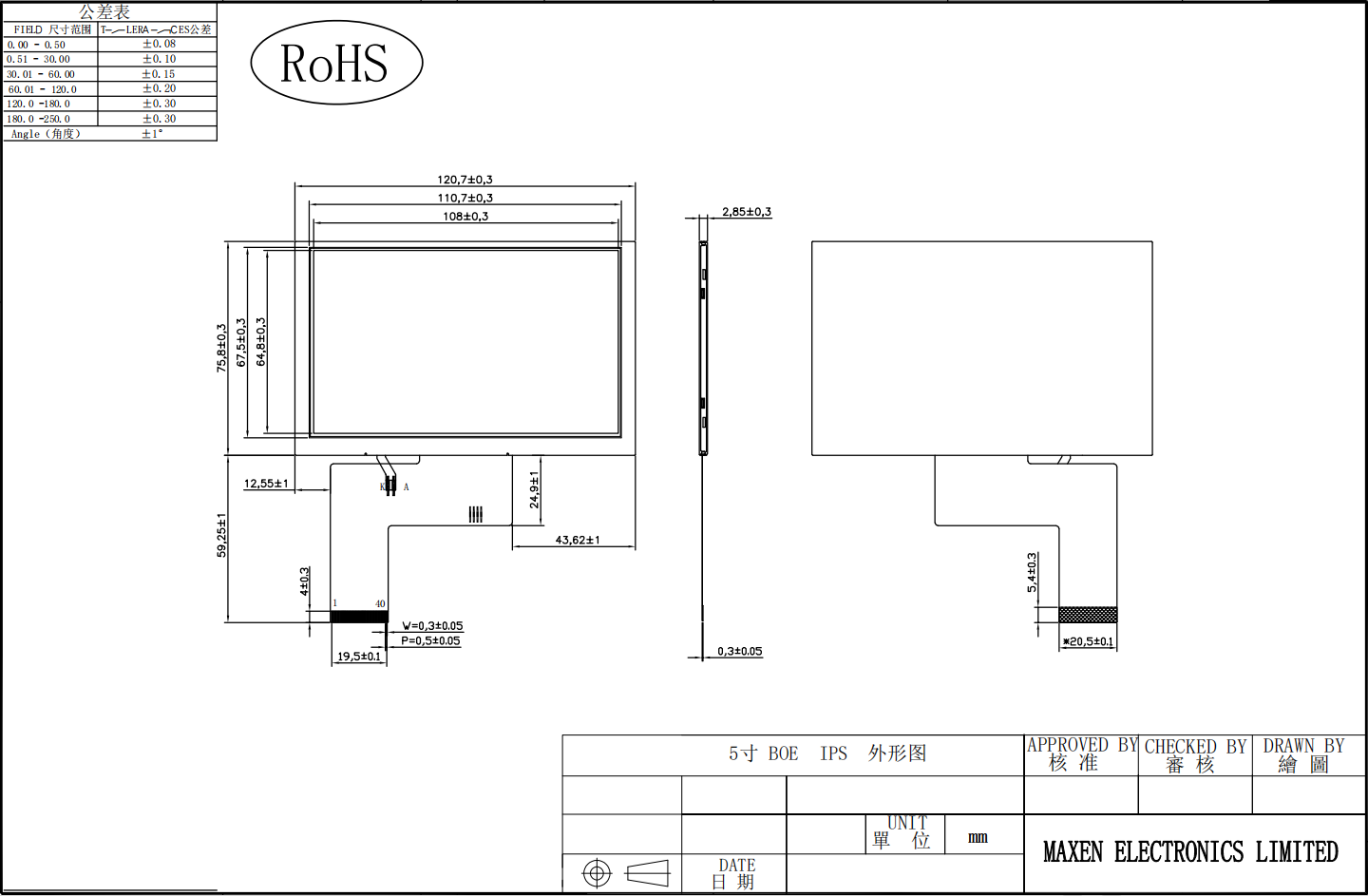

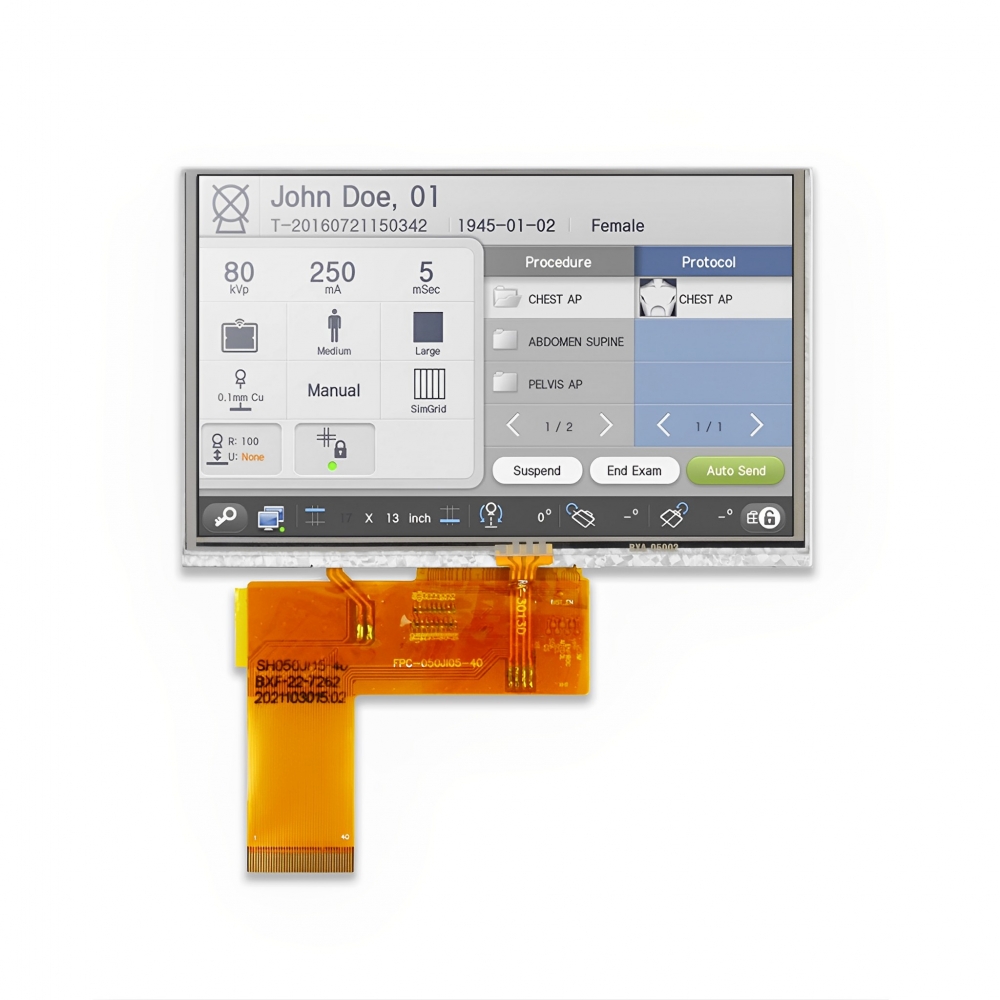

MX-B50HR40-TIS09FL-002R is a 5 inch LCD display with Resistive Touch Panel, featuring a resolution of 800x480 pixels, an IPS panel for full viewing angles, and RGB 40 pin interface. This 5 inch resistive touch display module boasts a high brightness of 950 nits. The resistive touch screen utilizes a 4-wire configuration, with the touch screen wires directly soldered to the LCD‘s flex cables, making it a plug-and-play solution. This 5 inch resistive LCD touch screen is suitable for embedded systems, electronic devices, or embedded control panels. With its IPS technology and touch screen functionality, it delivers excellent image quality and interactivity.

LCD PIN Function (RGB 40 PIN)

Pin NO.	Symbol	Description
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Stand by mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin
