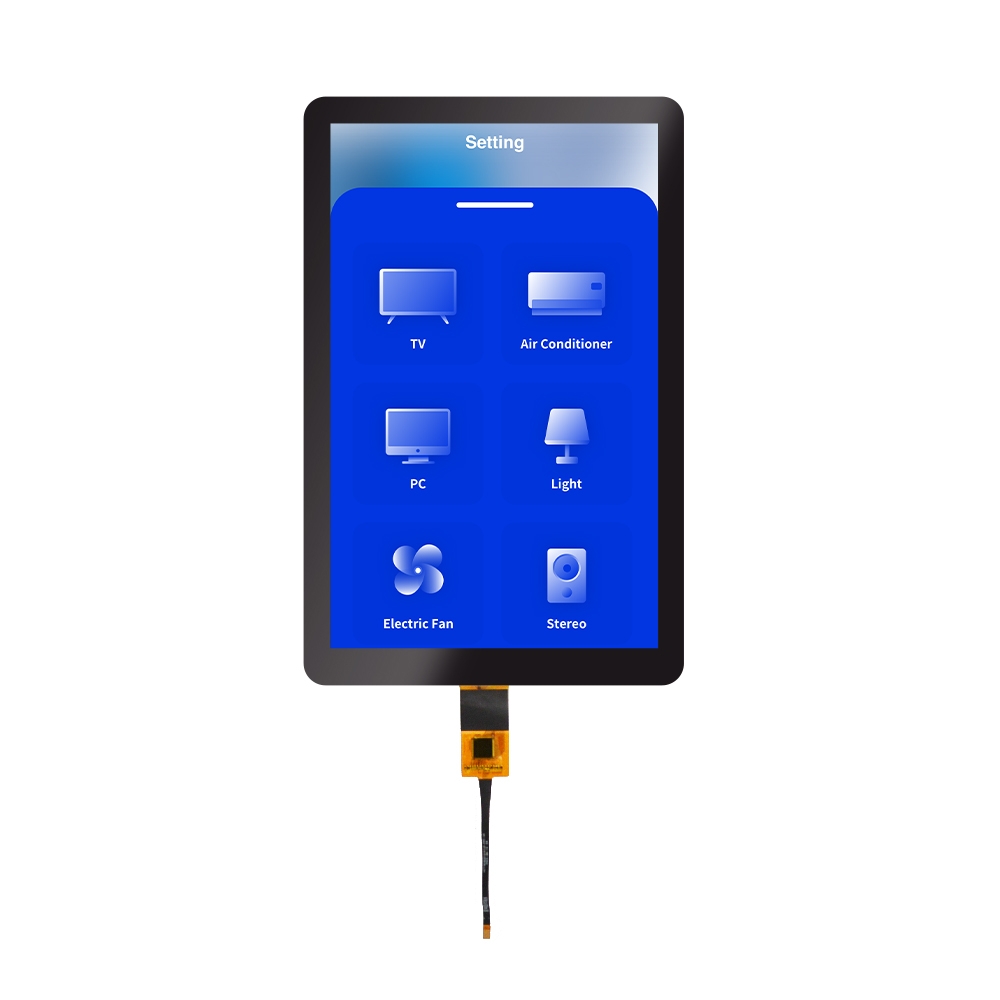

MX-A101FM40-IL34-F1928 is a 10.1 inch LCD touch display that utilizes the OCA bonding method. The 10.1 inch LCD display features a resolution of 1200x1920 pixels and a brightness of 400 nits, and adopts a MIPI 40 pin interface. The accompanying touch screen has a G+G structure, with the touch IC being GT9271. The 10.1 inch LCD Touch Screen operates within a temperature range of -20°C to +70°C. Suitable for a wide range of applications, including industrial control systems, medical devices, educational technology, consumer electronics, transportation, smart home interfaces, commercial advertising, and mobile devices.

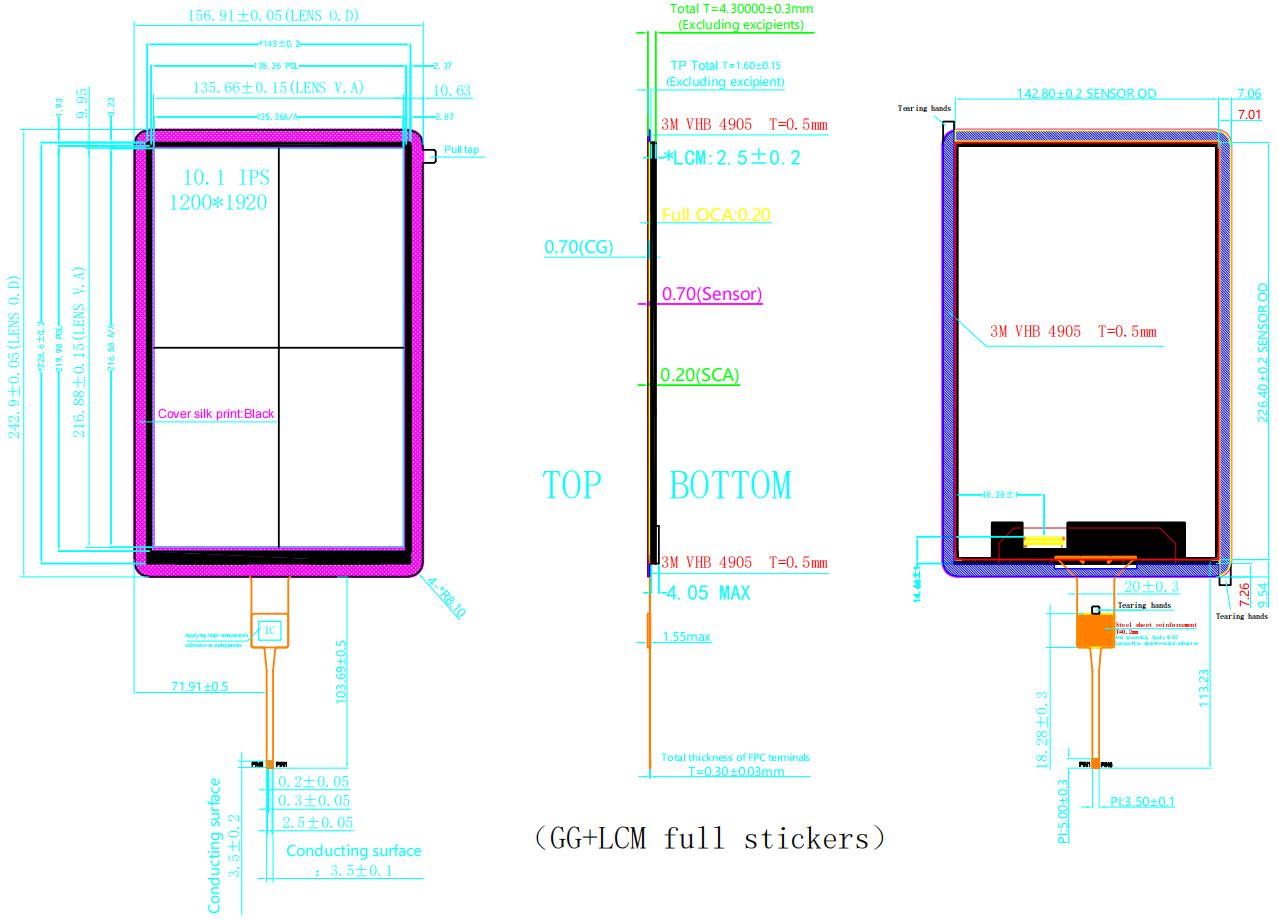

Product Structure
LCD Interface Pin Connection (40 PIN MIPI)
| PIN NO. | SYMBOL | DESCRIPTION |
| 1 | NC | No connect |
| 2~3 | VDD (3.3V) | Power Voltage for digital circuit 3.3V |
| 4 | NC | No connect |
| 5 | Reset (NC) | Global reset pin (NC) |
| 6 | NC | No connect |
| 7 | GND | Ground |
| 8 | MIPI D0- | -0 MIPI differential data input |
| 9 | MIPI D0+ | +0 MIPI differential data input |
| 10 | GND | Ground |
| 11 | MIPI D1- | -1 MIPI differential data input |
| 12 | MIPI D1+ | +1 MIPI differential data input |
| 13 | GND | Ground |
| 14 | MIPI CLK- | -CLK MIPI differential clock input |
| 15 | MIPI CLK+ | +CLK MIPI differential clock input |
| 16 | GND | Ground |
| 17 | MIPI D2- | -2 MIPI differential data input |
| 18 | MIPI D2+ | +2 MIPI differential data input |
| 19 | GND | Ground |
| 20 | MIPID3- | -3 MIPI differential data input |
| 21 | MIPID3+ | +3 MIPI differential data input |
| 22 | GND | Ground |
| 23~24 | NC | No connect |
| 25 | GND | Ground |
| 26 | NC | No connect |
| 27 | PMWO | PWM contron signal for LED driver (CABC) |
| 28~29 | NC | No connect |
| 30 | GND | Ground |
| 31~32 | VLED- | Power for LED backlight (Cathode) |
| 33~38 | NC | No connect |
| 39~40 | VLED+ | Power for LED backlight (Anode) |
Environment Absolute Rating
| Item | Symbol | Min. | Max. | Unit |
| Operating Temperature | Topa | -10 | 50 | ℃ |
| Storage Temperature | Tstg | -20 | 60 | ℃ |
Back-light Unit Characteristic
| PARAMETER | Sym. | Min. | Typ. | Max. | Unit |
| LED Current | IF | – | 92 | – | mA |
| LED Voltage | VF | 22.4 | 24.0 | 25.6 | V |
| Luminous (Without PET) | Lv | 350 | 400 | – | cd/m2 |
| LED Life Time | – | 20000 | – | Hr. | |
| Color | White | ||||
