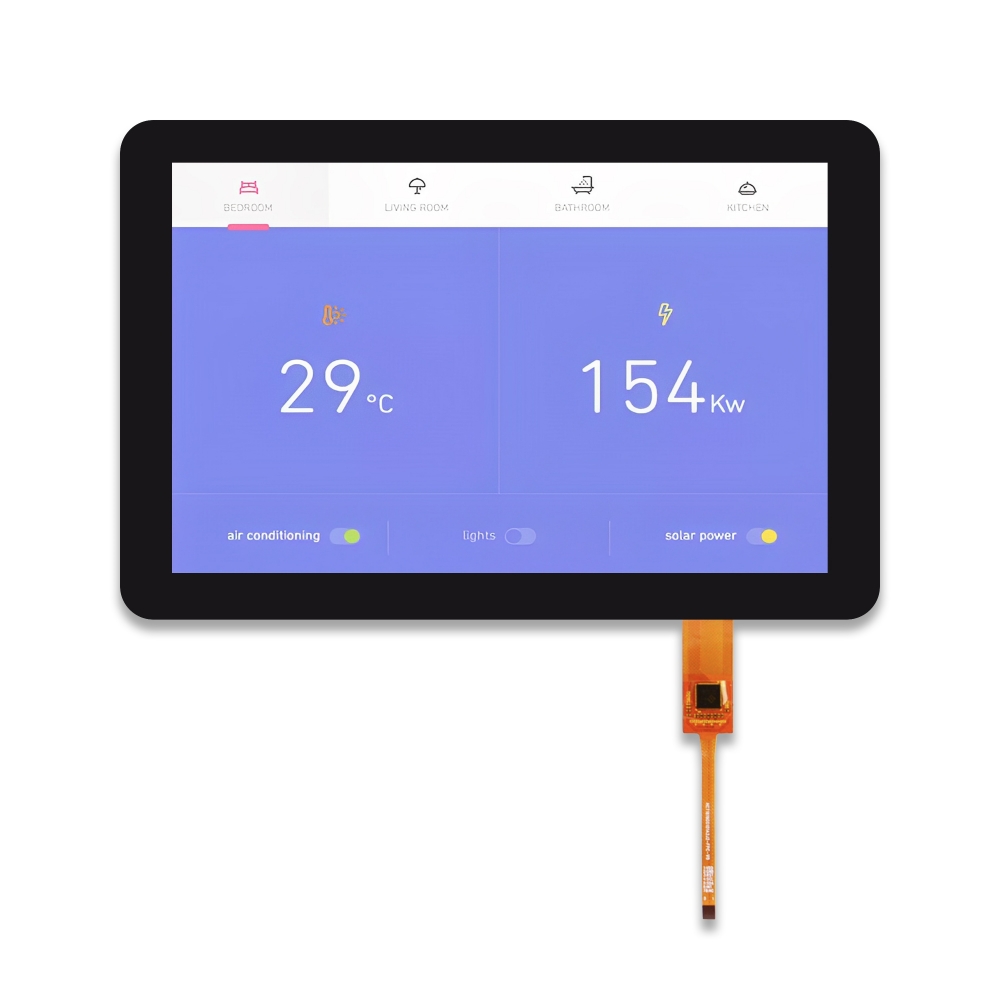

10 inch TFT Touch Screen

Module NO: MX-B101L40-206-776
► Size: 10"
► Resolution: 1280*800 Pixels
► Display Mode: IPS
► Brightness: 400 Nits
► Interface: LVDS 40 PIN
► Projected Capacitive Touch Screen
- Glass+Glass Structure
- I2C and USB Interface
- GT9271 Touch Controller

Make an inquiry

Datasheet Download

Description

MAXEN MX-B101L40-206-776 is a 10 inch TFT Touch Screen with a resolution of 1280x800 and LVDS interface, providing high-speed data transmission and reliable connectivity. The 10 inch LCD screen also boasts a standard brightness of 400 nits and utilizes IPS technology for exceptional color reproduction and viewing angles. The 10 inch touch screen features a capacitive touch panel, delivering precise and responsive touch control. It also supports compatibility with both IIC and USB interfaces, ensuring seamless integration with a wide range of devices. Whether you‘re using it for gaming, browsing, or work, our 10 inch TFT Touch Screen with LVDS interface is the perfect choice for anyone seeking a high-quality display with reliable connectivity options.

Product Structure

Pin Assignments for the Interface Connector

Pin No.	Symbol	Description
1	NC	Non Connection
2	VDDIN	Power supply VDDIN=3.3V (Typ.)
3	VDDIN	Power supply VDDIN=3.3V (Typ.)
4	VDC	Power supply VDC=3.3V (Typ.)
5	NC	Non Connection
6	CLK EDID	CLK for EDID function use
7	Data EDID	CLK for EDID function use
8	RIN0-	LVDS Negative data signal(-)
9	RIN0+	LVDS Positive data signal(+)
10	GND	GROUND
11	RIN1-	LVDS Negative data signal(-)
12	RIN1+	LVDS Positive data signal(+)
13	GND	GROUND
14	RIN2-	LVDS Negative data signal(-)
15	RIN2+	LVDS Positive data signal(+)
16	GND	GROUND
17	LVDS_CLK-	LVDS Negative CLK signal(-)
18	LVDS_CLK+	LVDS Positive CLK signal(+)
19	GND	GROUND
20	RIN3-	LVDS Negative data signal(-)
21	RIN3+	LVDS Positive data signal(+)
22	CE_EN	Color engine enable
23	NC	Non Connection
24	NC	Non Connection
25	GND	GROUND
26	NC	Non Connection
27	NC	Non Connection
28	GND	GROUND
29	NC	Non Connection
30	NC	Non Connection
31	LED_GND	LED GROUND
32	LED_GND
33	LED_GND
34	NC	Non Connection
35	LED_PWM	LED driver PWM duty
36	LED_EN	LED driver enable
37	CABC_EN	CABC function enable
38	VLED	Power supply VLED=8~18V (12V Typ.)
39	VLED
40	VLED

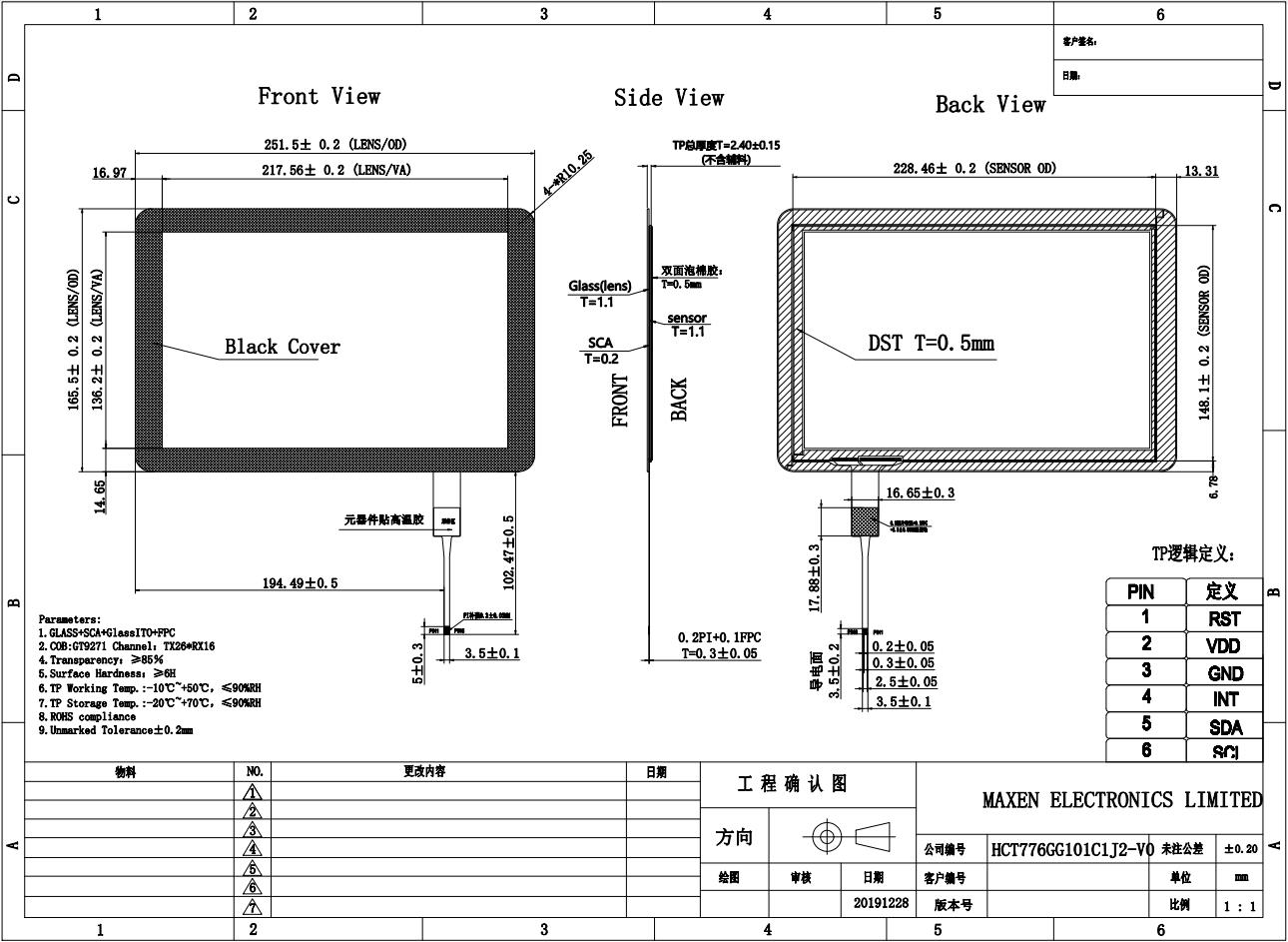

Touch Interface PIN Assignment

PIN NO.	Function
1	RST
2	VDD
3	GND
4	INT
5	SDA
6	SCL

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min.	Max.	Unit	Remarks
Power Supply Voltage (LCD Module)	V_DD	-0.3	4.2	V
Back-light Power Supply Voltage	HV_DDOUT	-0.3	18	V
Back-light LED Current	I_HVDD	-	96	mA
Back-light LED Reverse Voltage	V_R	-	2	V
Operating Temperature	T_OP	0	+50	℃	1)
Storage Temperature	T_ST	-20	+60	℃	1)

Note:

1) Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39 ℃ max. and no condensation of water.

ELECTRICAL SPECIFICATIONS

Parameter	Symbol	Values			Unit	Notes
Parameter	Symbol	Min.	Typ.	Max.	Unit	Notes
Power Supply Input Voltage	V_DD	3	3.3	3.6	V	Note1
Power Supply Current	I_DD	-	303	-	mA	Note1
LED Driver Power Supply Voltage	H_VDD	8	-	18	V	Note2
LED Driver Power Supply Current	I_HVDD	-	568	-	mA
LED Driver Efficiency	η	-	85	-	%
Positive-going Input Threshold Voltage	V_IT+	-	-	100	mV	V_com=1.2V typ.
Negative-going Input Threshold Voltage	V_IT-	-100	-	-	mV	V_com=1.2V typ.
Differential input common Mode voltage	V_com	-	1.2	-	V	V_IH=100mV, V_IL=-100mV
Power Consumption	P_D	-	1		W
	P_BL	-	2.4		W	Have Driver
	P_Total	-	3.4		W

Notes:

1. The supply voltage is measured and specified at the interface connector of LCM.

The current draw and power consumption specified is for 3.7V at 25 ℃

Max value at White Pattern.

2. Calculated value for reference (V_LED X I_LED).

3. CTF of Power Supply Current: P_D /P_BL.

LED Driving guideline specifications

Parameter			Min.	Typ.	Max.	Unit	Remarks
LED Forward Voltage		V_F	-	2.8	3	V	-
LED Forward Current		I_F	-	20	21	mA	-
LED Power Consumption		P_LED	-	2	2.3	W	Note1
LED Life-Time		N/A	15,000	-	-	Hour	IF=20mA, Note 2
Power supply voltage for Backlight		V_LED	-	16.8	-	V
Power supply Current for Backlight		I_LED	-	120	-	mA
EN Control Level	Backlight on	V_ENH	1.2	-	-	V	EN logic high voltage
EN Control Level	Backlight off	V_ENL	-	-	0.4	V	EN logic low voltage
PWM Control Level	PWM High Level	V_PML	1.2	-	-	V
PWM Control Level	PWM Low Level	V_PML	-	-	0.4	V
PWM Control Frequency		F_PWM	5	-	20	KHz
PWM duty Ratio			10%	-	-	%
