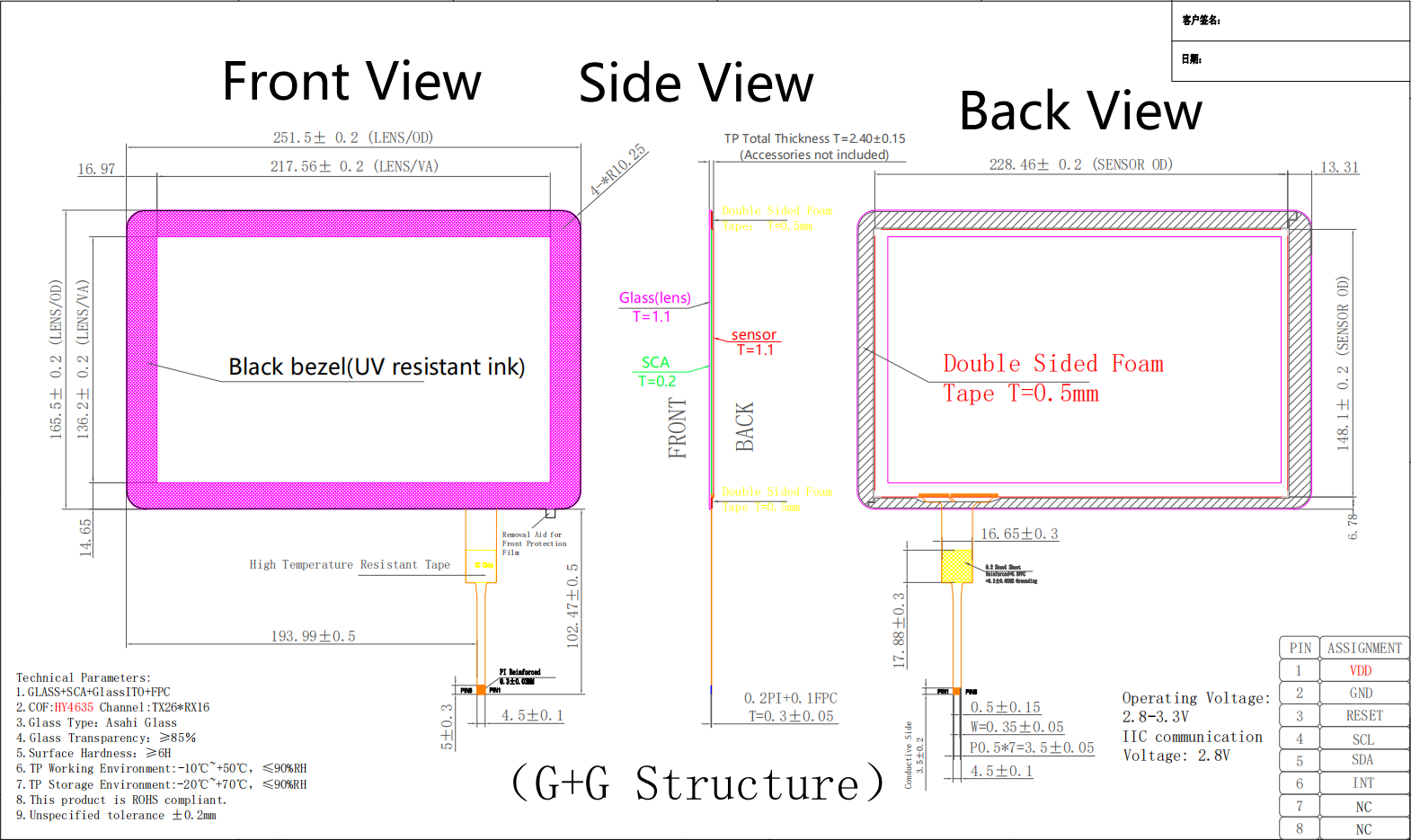

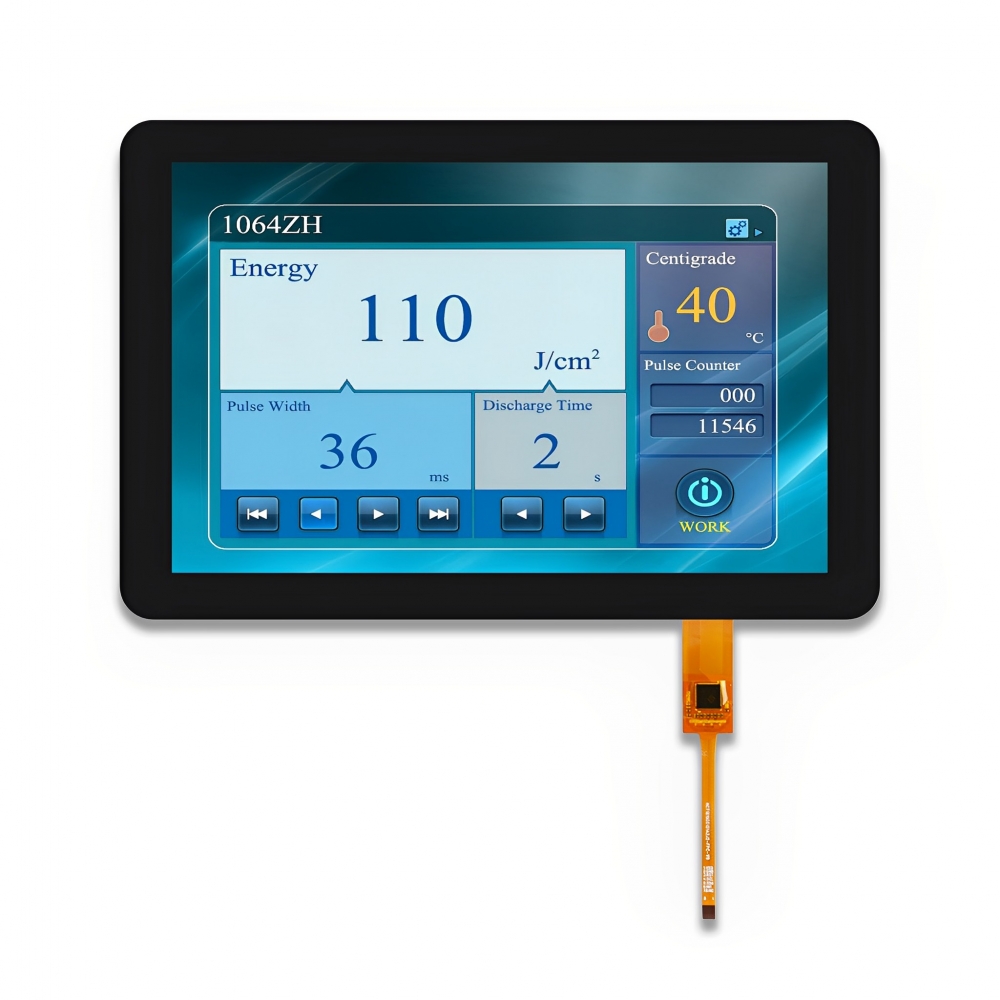

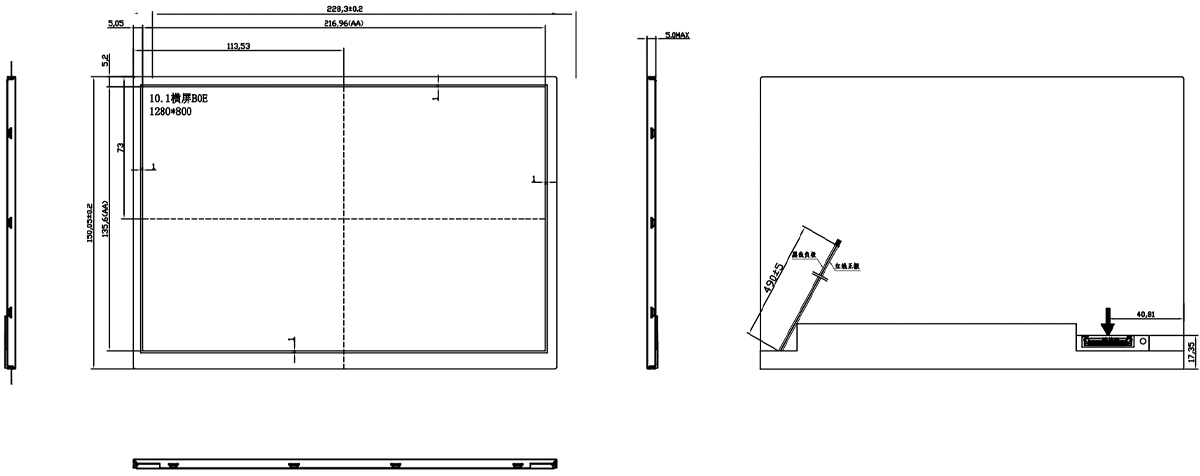

Pin No.

Symbol

Description

I/O

1

NC

Non Connection

-

2~4

VDDIN

Power supply VDDIN=3.3V (Typ.)

P

5

NC

Non Connection

-

6~7

GND

GROUND

P

8

RIN0-

LVDS Negative data signal (-)

I

9

RIN0+

LVDS Positive data signal (+)

I

10

GND

GROUND

P

11

RIN1-

LVDS Negative data signal (-)

I

12

RIN1+

LVDS Positive data signal (+)

I

13

GND

GROUND

P

14

RIN2-

LVDS Negative data signal (-)

I

15

RIN2+

LVDS Positive data signal (+)

I

16

GND

GROUND

P

17

LVDS_CLK-

LVDS Negative CLK signal (-)

I

18

LVDS_CLK+

LVDS Positive CLK signal (+)

I

19

GND

GROUND

P

20

RIN3-

LVDS Negative data signal (-)

I

21

RIN3+

LVDS Positive data signal (+)

I

22

GND

GROUND

P

23~24

NC

Non Connection

-

25

GND

GROUND

P

26~27

NC

Non Connection

-

28

GND

GROUND

P

29~30

NC

Non Connection

-

31~33

LED-

GROUND

P

34~37

NC

Non Connection

-

38~40

LED+

LED Anode

P
