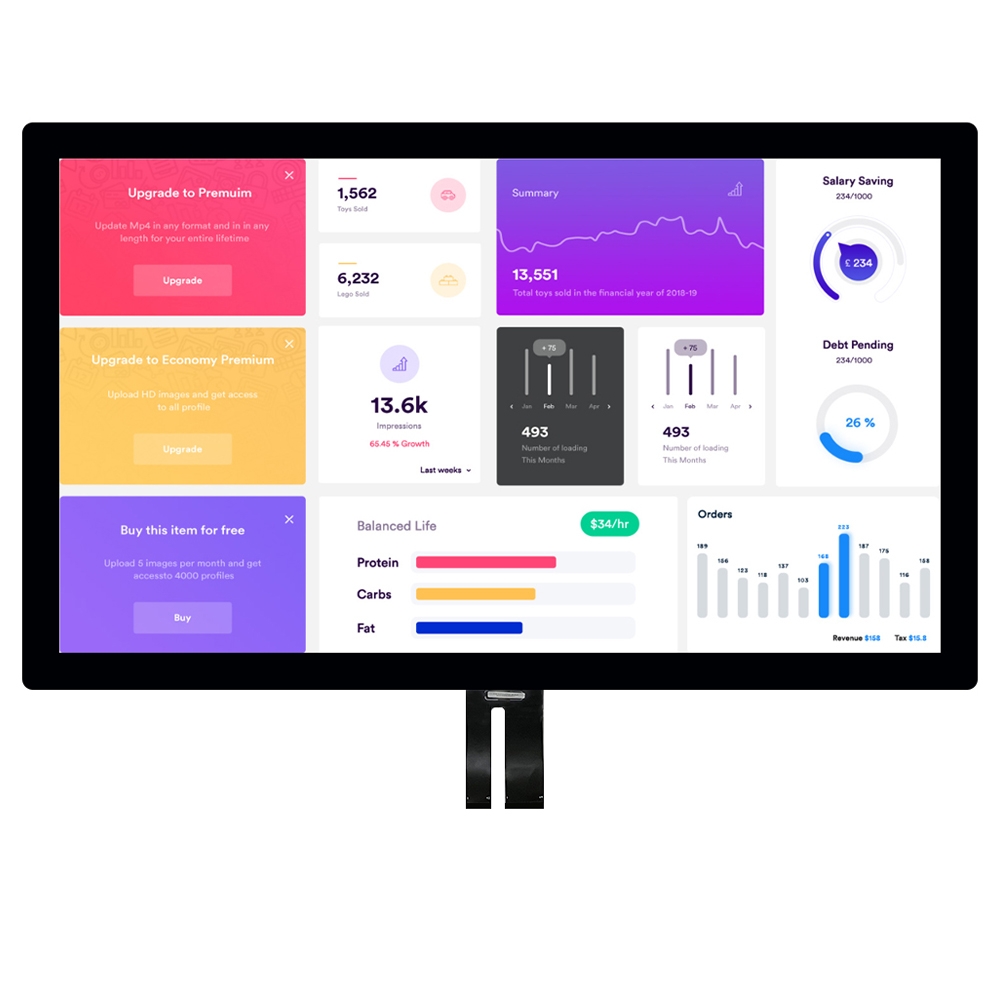

32 inch LCD Display with PCAP Touch Screen

Model NO: MX-320HL51UFS-C04
► Size: 32"
► Resolution: 1920*1080 Pixels
► Display Mode: IPS
► Brightness: 500 Nits
► Interface: LVDS 51 PIN
► Projected Capacitive Touch Screen
- Glass+Glass Structure
- USB Interface
- WD8752 Touch Controller

Make an inquiry

Datasheet Download

Description

MX-320HL51UFS-C04 is a 32 inch LCD display with a capacitive touchscreen, boasting a resolution of 1,920 x 1,080 pixels, featuring an LVDS 51 PIN interface, an IPS panel with wide viewing angles, and a brightness of 500 nits. The included touchscreen is of the capacitive type with a G+G structure, utilizing the WD8752 chip as the touch IC, and supporting 10-point touch functionality. In multiple industries such as retail, healthcare, industrial, education, and transportation, this 32 inch LCD Touch Screen offers high resolution, capacitive touchscreen, and wide-angle IPS panel to support various interactive applications.

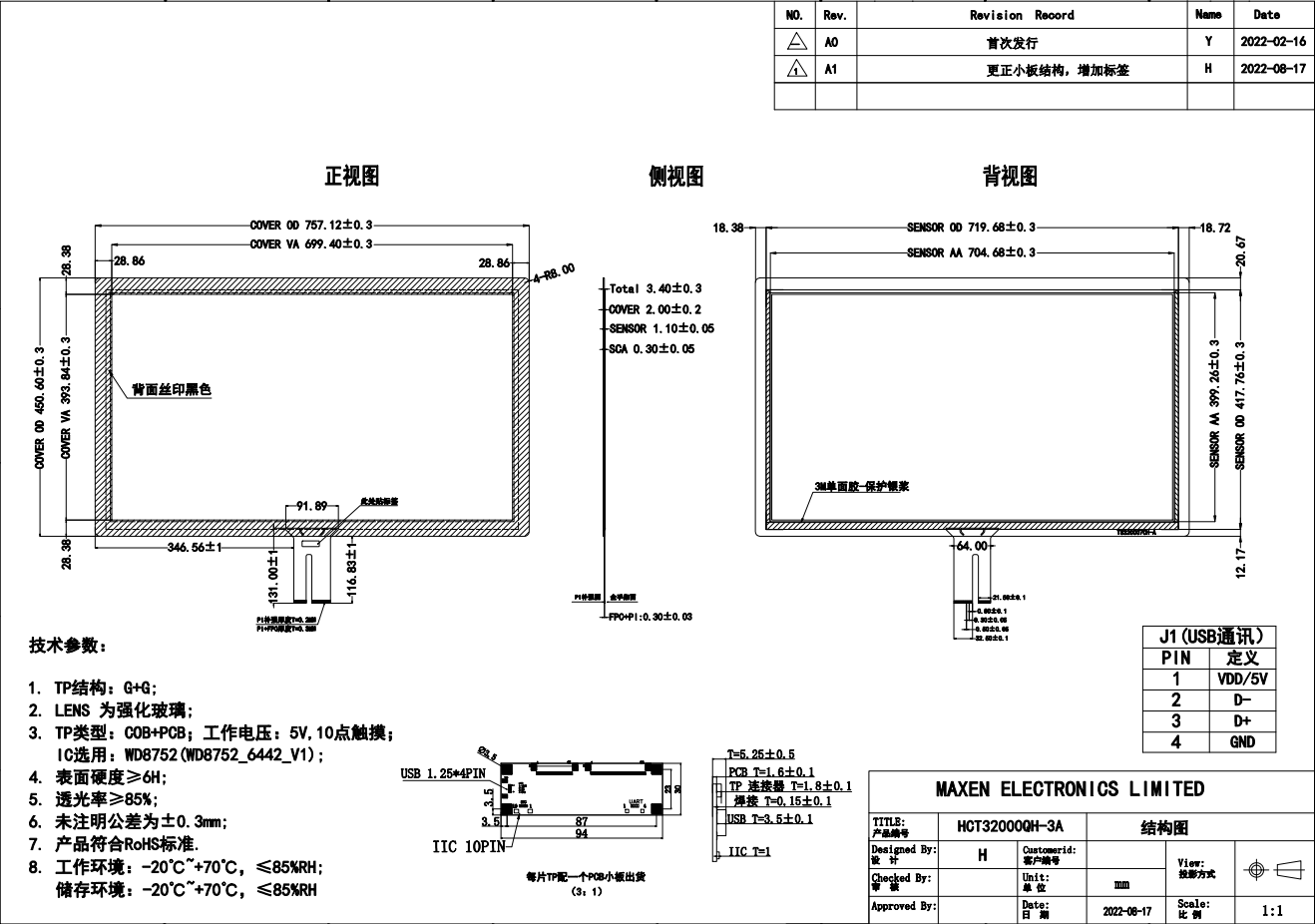

Product Structure

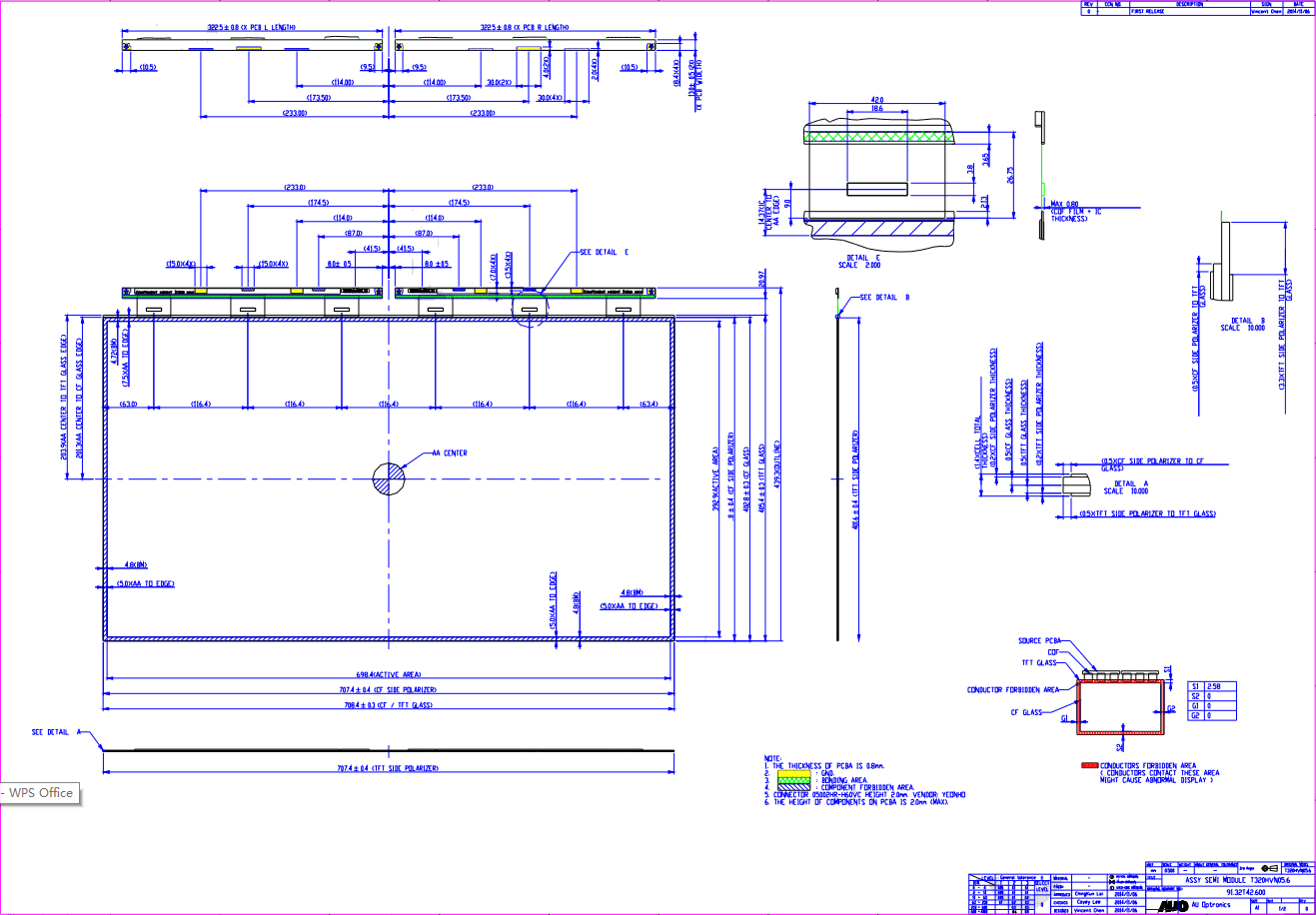

Drawing of 32 inch LCD display

LCD Pin Function (LVDS 51 PIN)

PIN	Symbol	Description	PIN	Symbol	Description
1	N.C.	No Connection	23	CH1_3+	LVDS Channel 1, Signal 3+
2	SCL	I2C Clock	24~25	N.C.	No Connection
3	WP	Write Protection	26	GND or N.C.	Ground or No Connection
4	SDA	I2C Data	27	N.C.	No Connection
5	N.C.	No Connection	28	CH2_0-	LVDS Channel 2, Signal 0-
6	N.C.	No Connection	29	CH2_0+	LVDS Channel 2, Signal 0+
7	LVDS_SEL	LVDS data form at selection	30	CH2_1-	LVDS Channel 2, Signal 1-
8~10	N.C.	No Connection	31	CH2_1+	LVDS Channel 2, Signal 1+
11	GND	Ground	32	CH2_2-	LVDS Channel 2, Signal 2-
12	CH1_0-	LVDS Channel 1, Signal 0-	33	CH2_2+	LVDS Channel 2, Signal 2+
13	CH1_0+	LVDS Channel 1, Signal 0+	34	GND	Ground
14	CH1_1-	LVDS Channel 1, Signal 1-	35	CH2_CLK-	LVDS Channel 2, Clock-
15	CH1_1+	LVDS Channel 1, Signal 1+	36	CH2_CLK+	LVDS Channel 2, Clock+
16	CH1_2-	LVDS Channel 1, Signal 2-	37	GND	Ground
17	CH1_2+	LVDS Channel 1, Signal 2+	38	CH2_3-	LVDS Channel 2, Signal 3-
18	GND	Ground	39	CH2_3+	LVDS Channel 2, Signal 3+
19	CH1_CLK-	LVDS Channel 1, Clock-	40~41	N.C.	No Connection
20	CH1_CLK+	LVDS Channel 1, Clock+	42~46	GND	Ground
21	GND	Ground	47	N.C.	No Connection
22	CH1_3-	LVDS Channel 1, Signal 3-	48~51	VDD	Power Supply Input Voltage

Absolute Maximum Rating

Item	Symbol	Min.	Max.	Unit
Operating Temperature	TOP	0	50	℃
Operating Humidity	HOP	10	90	%RH
Storage Temperature	TST	-20	60	℃
Storage Humidity	HST	10	90	%RH
Panel Surface Temperature	PST	-	65	℃

Electrical Characteristics

Item		Symbol	Min.	Typ.	Max.	Unit
Power Supply Input Voltage		VDD	10.8	12.7	14	V
Power Supply Input Current	Black pattern	IDD	-	0.35	0.41	A
	White pattern		-	0.36	0.42	A
	H-strip pattern		-	0.52	0.61	A
Power Consumption	Black pattern	PC	-	4.45	5.21	W
	White pattern		-	4.57	5.33	W
	H-strip pattern		-	6.6	7.75	W
Inrush Current		IRUSH	-	-	4	A

Backlight Characteristics

Item	Symbol	Condition	Values			Unit
Item	Symbol	Condition	MIN	TYP	MAX	Unit
Input light bar voltage	Vpin	single	-	60	66	V
Input light bar current	Ipin	single	-	320	350	mA
Brightness	-	-	-	500	600	cd/m2
Lead life time	-	-	30000	-	-	Hours
Power	P	-	-	42	45	W
