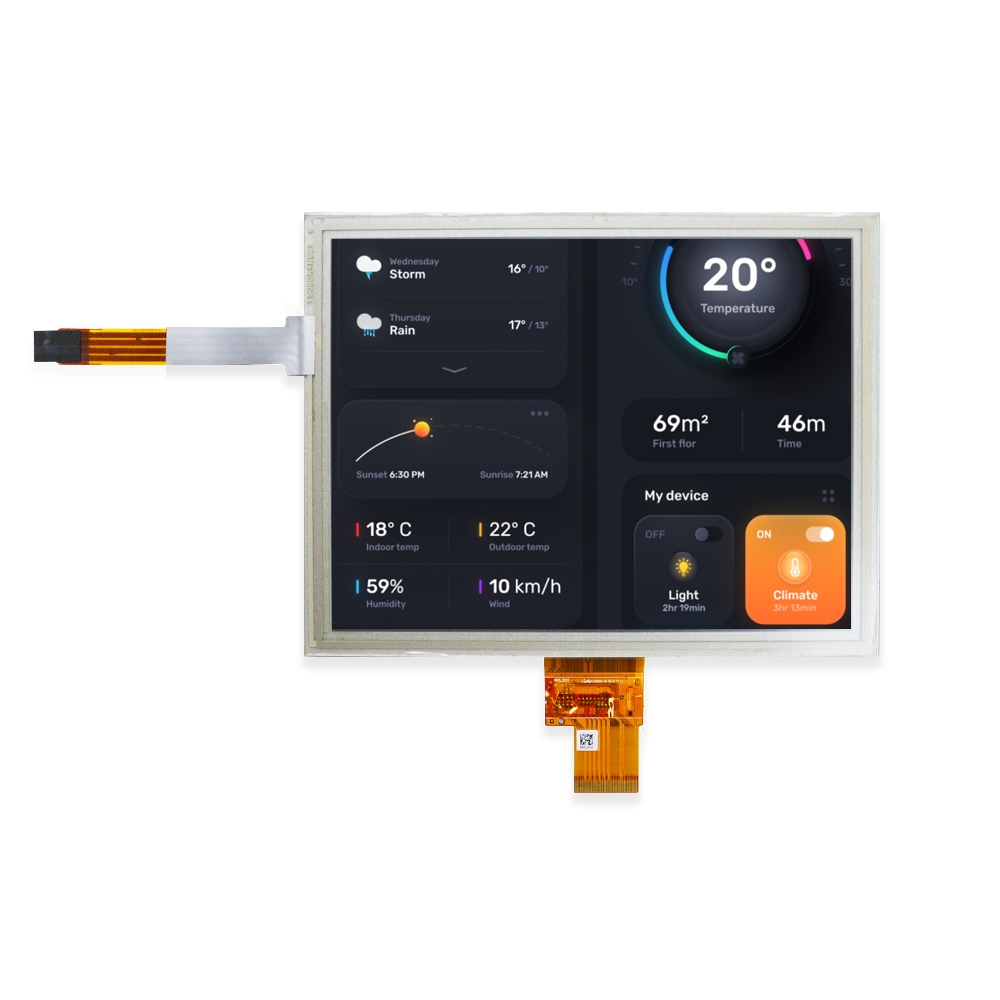

MX-A80HL40-IPQ03-RT is an 8 inch LCD display module featuring a resistive touch screen. It boasts a pixel resolution of 1024x768, with a module delivering a brightness of 700 nits and an IPS (In-Plane Switching) panel for wide viewing angles. The LCD interface utilizes a 40-pin LVDS connection, while the resistive touchscreen is equipped with a 4-wire USB interface.
Additionally, the resistive touchscreen offers notable advantages, including strong resistance to smudging and scratching, low power consumption, and a relatively cost-effective manufacturing process. This makes it suitable for a variety of applications that demand high resolution, high brightness, wide viewing angles, and touchscreen capabilities. These applications include industrial control, medical devices, information kiosks, and more.

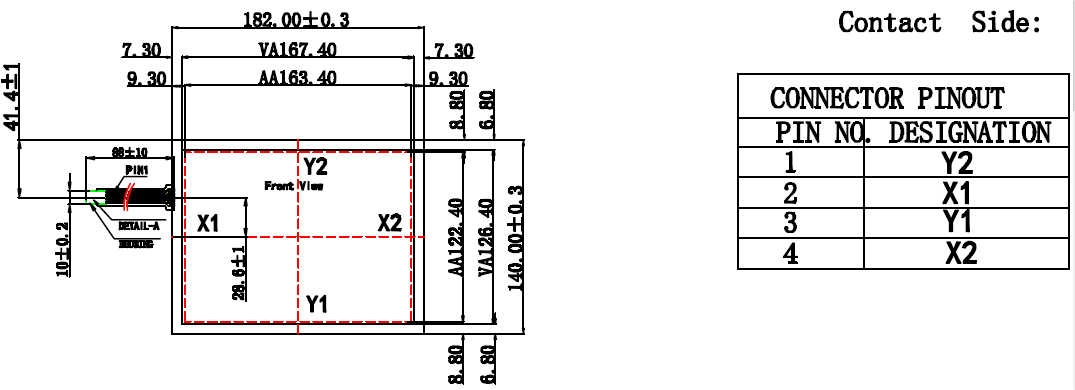

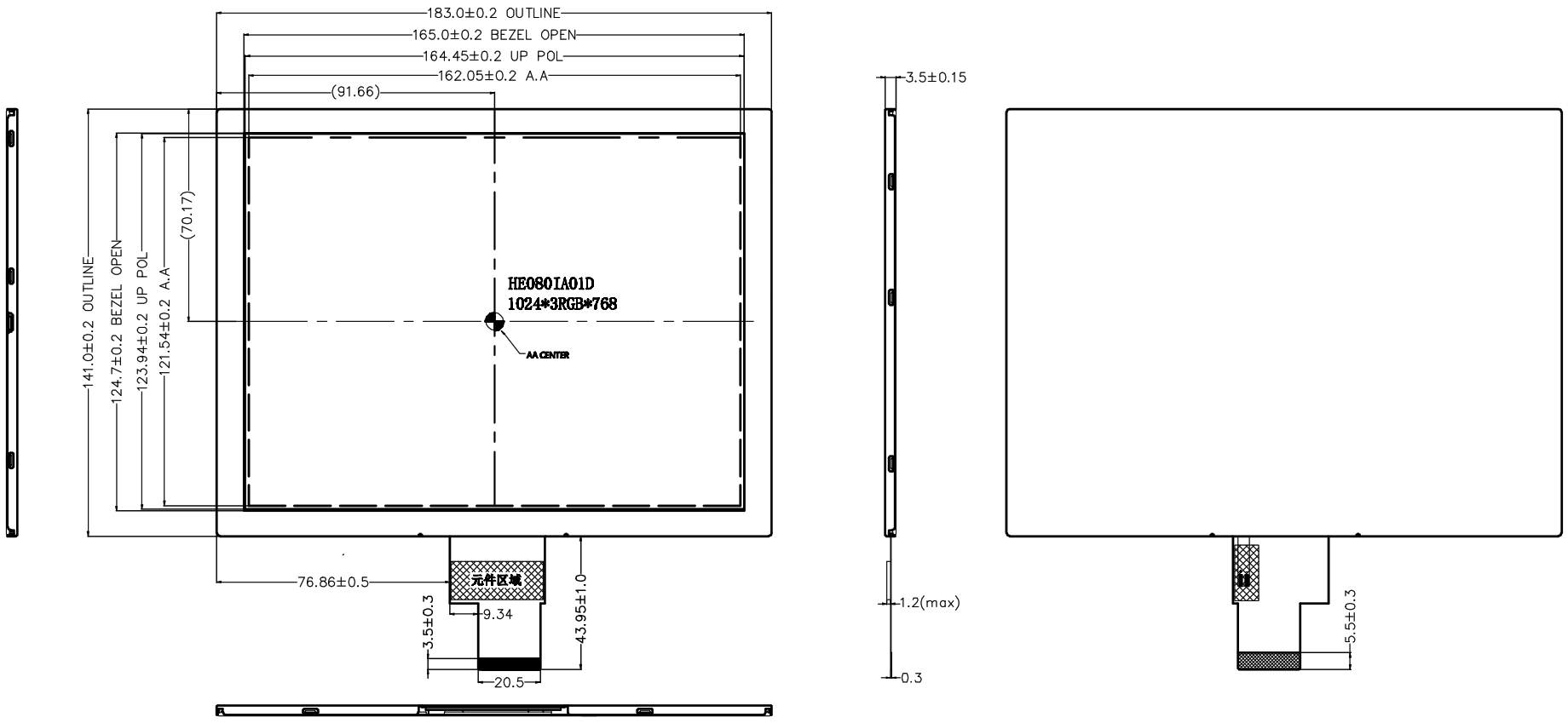

Product Structure
