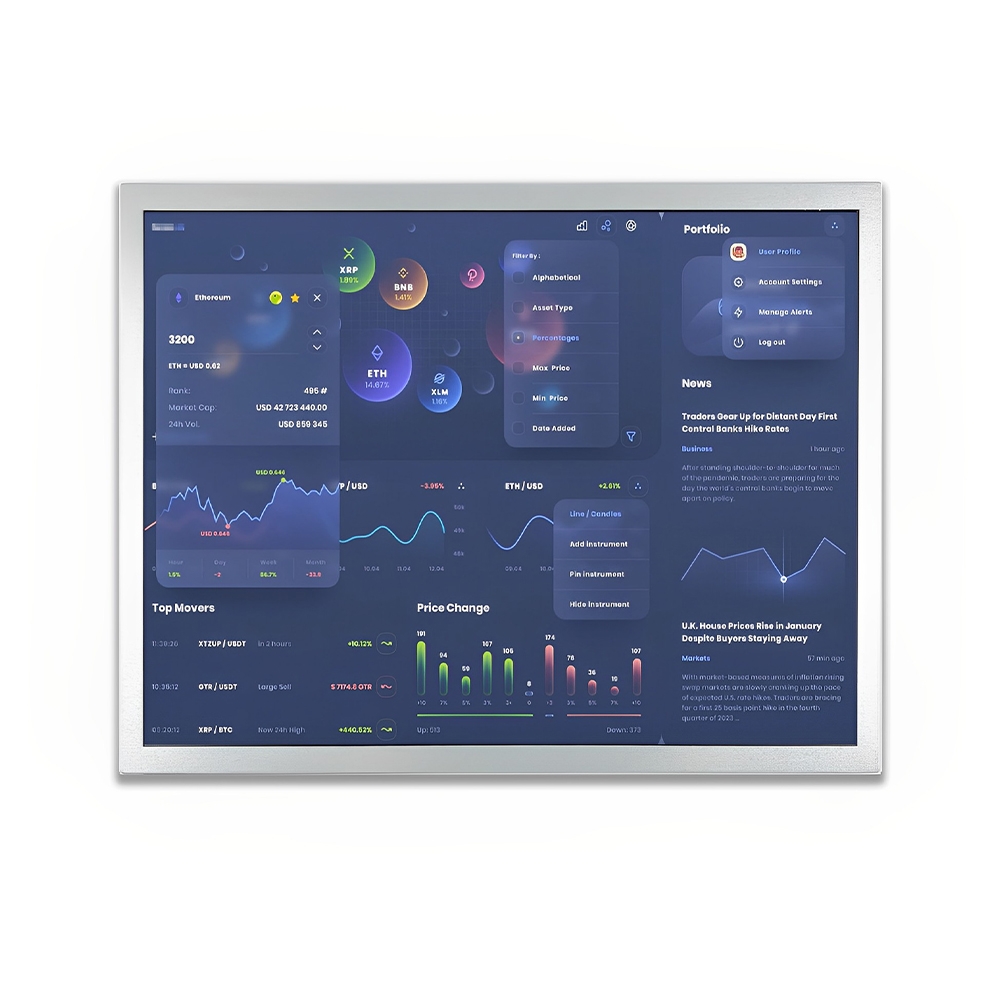

15 inch High Brightness Industrial LCD Module

Part NO: MX-B150X0M-N101K
► Size: 15.0"
► Resolution: 1024*768 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: LVDS 20 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-B150X0M-N101K is a 15 inch industrial TFT LCD display using amorphous silicon as an active switch. The 15 inch LCD screen supports XGA 1024x768 resolutions and can produce 16.7 million colors. The 15 inch LCD model offers low reflectivity, superior color reproduction, fast response times, and wide viewing angles. The 15 inch TFT LCD display also features a high brightness level of 1000 nits and incorporates IPS (In-Plane Switching) technology, enabling full-angle viewing for an enhanced visual experience. The 15 inch TFT LCD operates on an LVDS interface, employs 6-bit +FRC color depth, and uses ADS technology for improved display quality. Compliant with RoHS standards, it is suitable for commercial digital displays, control system terminals, and 24/7 indoor use in both landscape and portrait orientations, with an expected one-year lifespan.

Product Structure
Drawing of 15 inch High Brightness Industrial LCD Module

Drawing of 15 inch Industrial LCD Module

LCD PIN Function (LVDS 20 PIN)

Pin No	Symbol	Description	Pin No	Symbol	Description
1	VDD	Power Supply, 3.3V (typ.)	11	RIN2-	-LVDS differential data input 2
2	VDD	Power Supply, 3.3V (typ.)	12	RIN2+	+LVDS differential data input 2
3	VSS	Ground	13	VSS	Ground
4	NC	No Connection	14	CLKIN-	-LVDS differential clock input CLK
5	RIN0-	-LVDS differential data input 0	15	CLKIN+	+LVDS differential clock input CLK
6	RIN0+	+LVDS differential data input 0	16	VSS	Ground
7	VSS	Ground	17	RIN3-	-LVDS differential data input 3
8	RIN1-	-LVDS differential data input 1	18	RIN3+	+LVDS differential data input 3
9	RIN1+	+LVDS differential data input 1	19	VSS	Ground
10	VSS	Ground	20	NC	No Connection

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min.	Max.	Unit
Power Supply Voltage	VDD	-0.3	4	V
Operating Temperature	T_OP	-20	70	℃
Storage Temperature	T_SUR	-20	70	℃
Storage Temperature	T_ST	-20	70	℃
Operating Ambient Humidity	H_OP	10	90	%RH
Storage Humidity	H_ST	10	90	%RH

Open Cell Electrical Specifications

Parameter		Symbol	Values			Unit
Parameter		Symbol	Min.	Typ.	Max.	Unit
Power Supply Input Voltage		VDD	3.0	3.3	3.6	V
Power Supply Current		IDD	-	410	740	mA
Power Supply Ripple Voltage		VRP	-	-	300	mV
Rush Current		IRUSH	-	2	3	A
LVDS Interface	Differential Input High Threshold Voltage	VLVTH	-	-	100	mV
	Differential Input Low Threshold Voltage	VLVTL	-100	-	-	mV
	Common Input Voltage	VLVC	0.7	-	1.6	V
CMOS Interface	Input High Threshold Voltage	VIH	0.7VDD	-	VDD	V
CMOS Interface	Input Low Threshold Voltage	VIL	0	-	0.3VDD	V
Power Consumption		P_D	-	0.8	1.3	W
		P_BL	-	17.92	18.71	W
		P_total	-	19.22	-	W

Backlight Unit Electrical Specifications

Parameter			Min.	Typ.	Max.	Unit
LED Driver Power Supply Voltage		H_VDD	10.8	12	12.6	V
LED Driver Power Supply Current		I_HVDD	550	600	700	mA
EN Control Level	Backlight on	V_ENH	3	3.3	3.6	V
EN Control Level	Backlight off	V_ENL	0	0	0.6	V
PWM Control Level	PWM High Level	V_PML	3	3.3	3.6	V
PWM Control Level	PWM Low Level	V_PML	0	0	0.6	V
PWM Control Frequency		F_PWM	0.12	-	20	KHz
Duty Ratio		-	5	-	100	%
LED Life Time		N/A	50,000	-	-	Hour
LED Light Bar Input Voltage Per Input Pin		V_PIN	32.4	36	39.6	V
LED Light Bar Input Current Per Input Pin		I_PIN	-	55	-	mA
LED Power Consumption		P_BL	-	17.92	18.71	W
