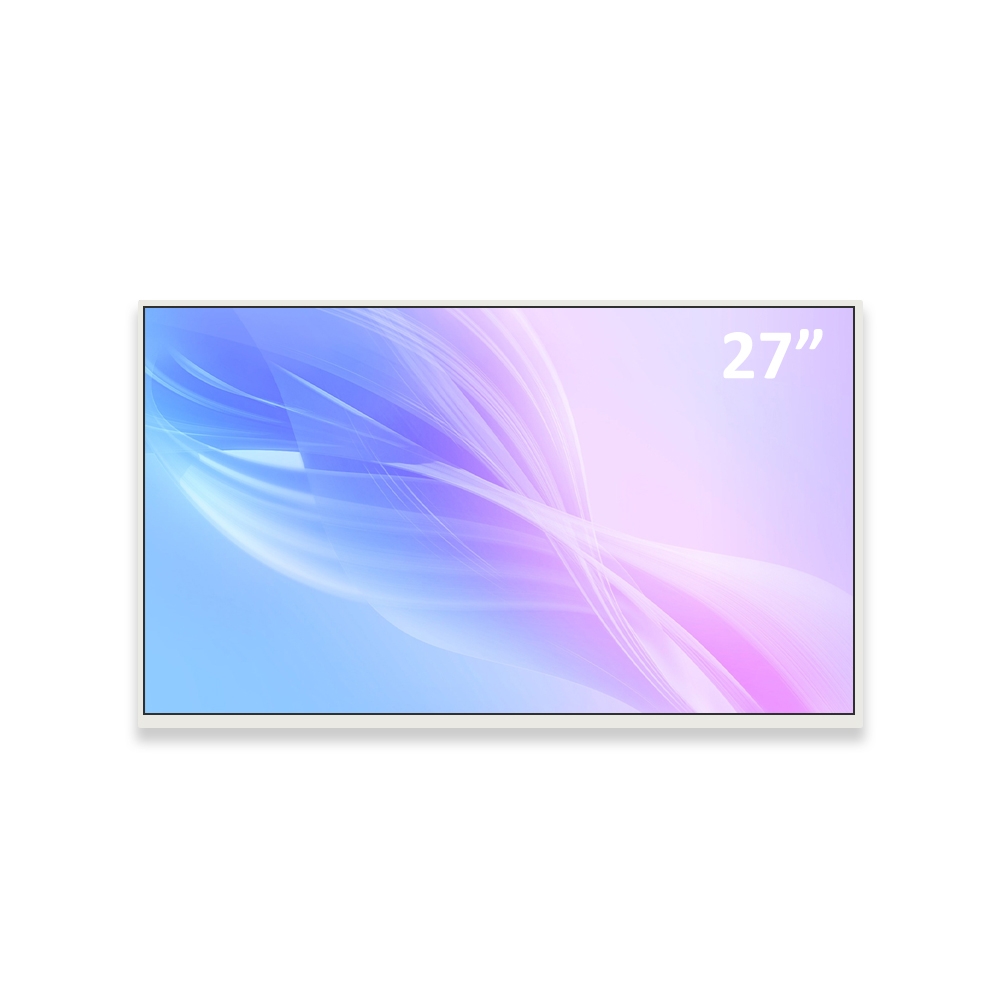

27 inch Industrial LCD Panel

Part NO.: MV270FHM-N60

► Size: 27.0"

► Resolution: 1920*1080 Pixels

► Display Mode: IPS

► Brightness: 250 Nits

► Interface: LVDS 30 PIN

► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MV270FHM-N60 is a 27 inch color active matrix TFT LCD module that leverages amorphous silicon Thin Film Transistors, providing Full HD resolution of 1920x1080 pixels and a standard brightness of 250 nits. The 27 inch LCD panel can display up to 16.7M colors and offers excellent color accuracy with 8-bit color depth and 72% NTSC color gamut, a high-speed LVDS interface, and wide viewing angle technology. Compliant with RoHS/Halogen-free, TCO 8.0, and ES 8.0 standards, and featuring a built-in gamma correction, this eco-friendly module ensures optimal viewing for applications like desktops, workstations, standalone monitors, and control systems.

Product Structure

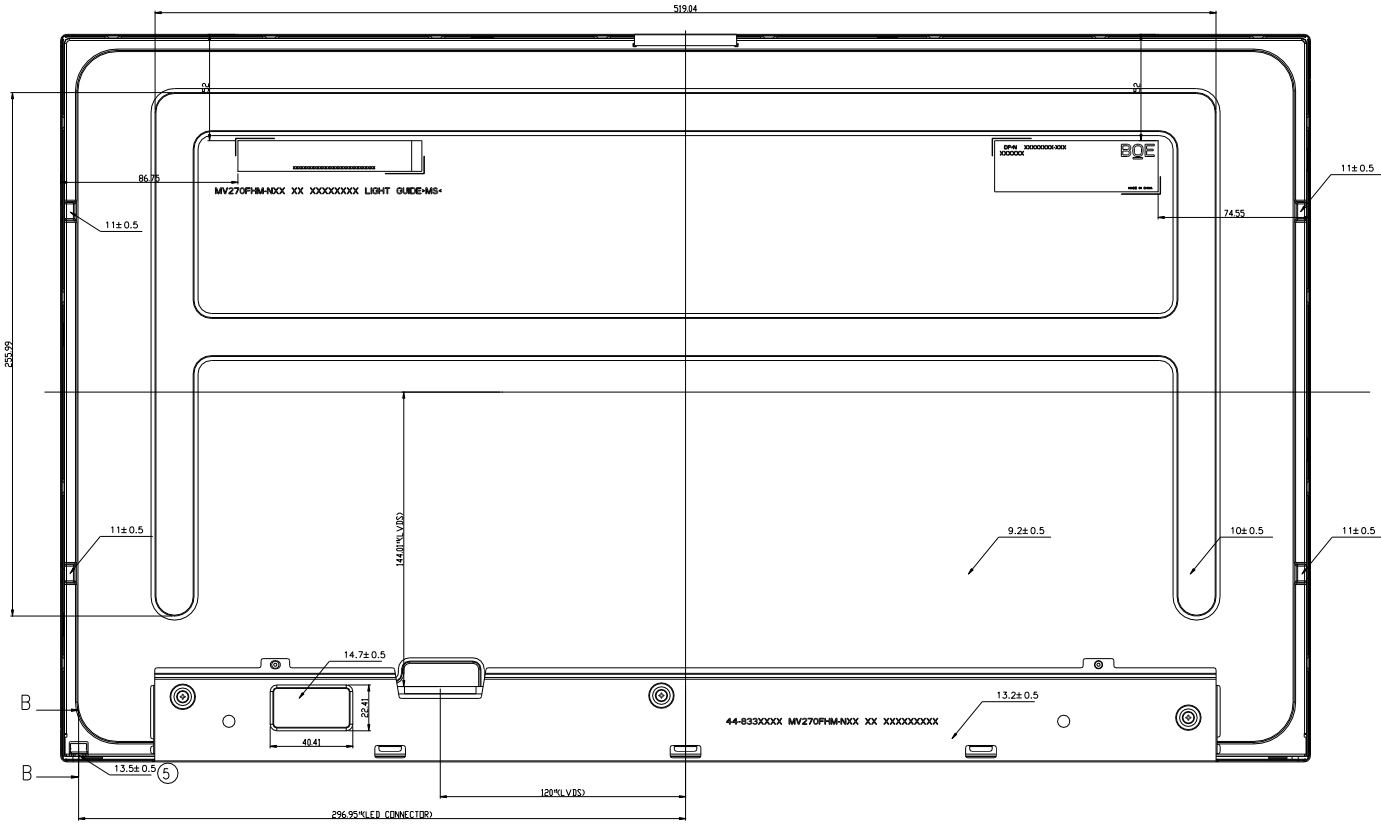

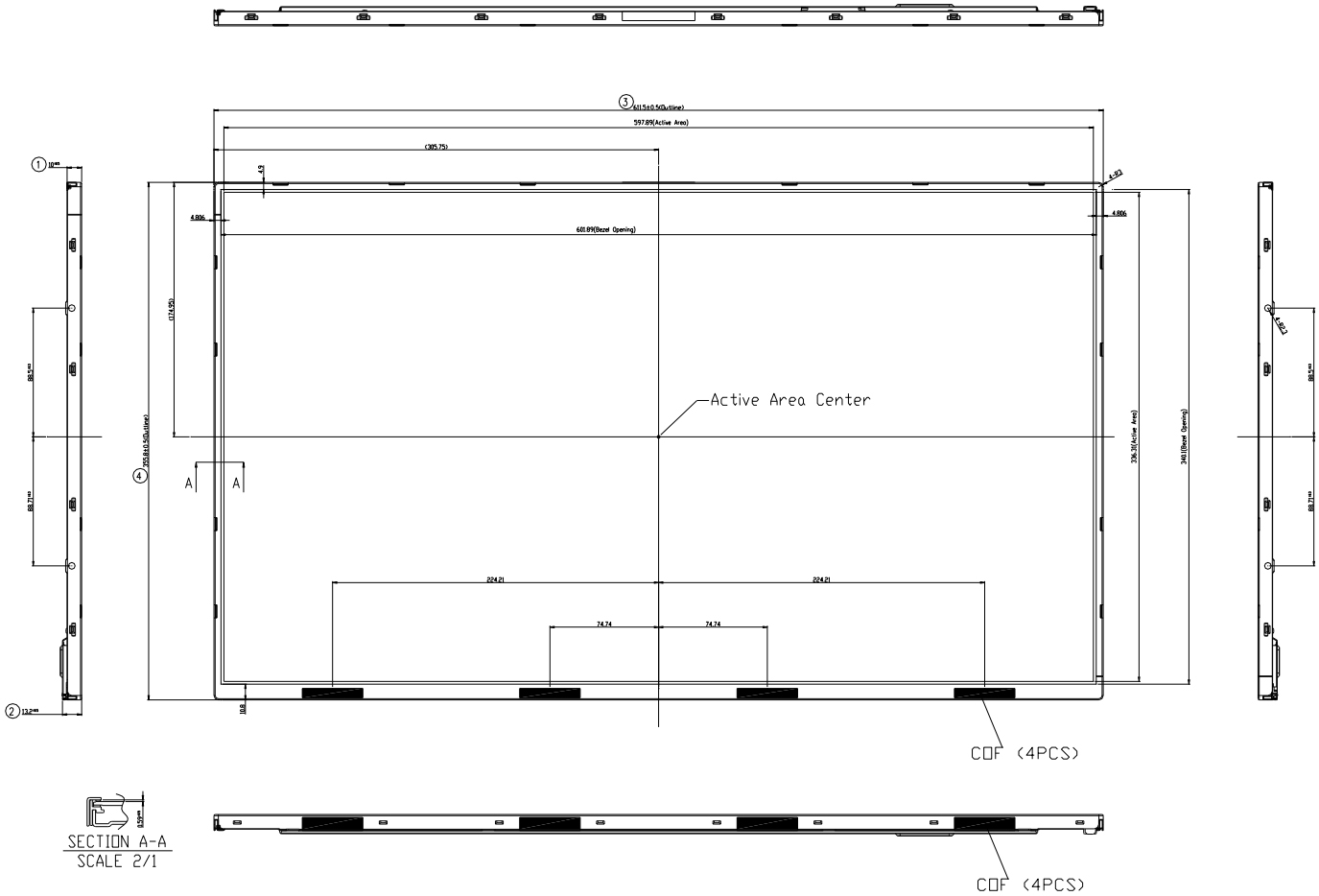

Drawing of 27 inch Industrial LCD Panel

LCD PIN Function (LVDS 30 PIN)

Pin No.	Symbol	Function
1	RXO0N	Negative LVDS differential data input
2	RXO0P	Positive LVDS differential data input
3	RXO1N	Negative LVDS differential data input
4	RXO1P	Positive LVDS differential data input
5	RXO2N	Negative LVDS differential data input
6	RXO2P	Positive LVDS differential data input
7	BIST	BIST
8	RXOCN-	Negative LVDS differential clock input
9	RXOCP	Positive LVDS differential clock input
10	RXO3N	Negative LVDS differential data input
11	RXO3P	Positive LVDS differential data input
12	RXE0N	Negative LVDS differential data input
13	RXE0P	Positive LVDS differential data input
14	GND	Ground
15	RXE1N	Negative LVDS differential data input
16	RXE1P	Positive LVDS differential data input
17	GND	Ground
18	RXE2N	Negative LVDS differential data input
19	RXE2P	Positive LVDS differential data input
20	RXECN	Negative LVDS differential clock input
21	RXECP	Positive LVDS differential clock input
22	RXE3N	Negative LVDS differential data input
23	RXE3P	Positive LVDS differential data input
24	GND	Ground
25	SCL	I2C Clock (For VCOM tuning )
26	SDA	I2C Data (For VCOM tuning)
27	NC	NC
28	VIN	Power Supply 5V
29	VIN	Power Supply 5V
30	VIN	Power Supply 5V

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Power Supply Voltage	VDD	GND-0.3	6	V
Logic Supply Voltage	VIN	VSS-0.3	VDD+0.3	V
Operating Temperature	TOP	0	50	℃
Storage Temperature	TST	-20	60	℃

Electrical specifications

Parameter		Min.	Typ.	Max..	Unit
Power Supply Voltage	VDD	4.5	5	5.5	V
Power Supply Current	IDD	-	800	1060	mA
In-Rush Current	IRUSH	-	-	4.0	A
Permissible Input Ripple Voltage	VRF	-	-	400	mA
High Level Differential Input Threshold Voltage	VIH	+100	-	+300	mV
Low Level Differential Input Threshold Voltage	VIL	-300	-	-100	mV
Differential input voltage	\|VID\|	200	-	600	mV
Differential input common mode voltage	Vcm	1.0	1.2	1.5	mV
Power Consumption	PD	-	4	5.3	W
	PBL	-	16.1	17.5	W
	Ptotal	-	20.1	22.8	W

Backlight Unit

Parameter		Min.	Typ.	Max.	Unit
LED Light Bar Input Voltage Per Input Pin	VPIN	63.8	66	68.2	V
LED Light Bar Input Current Per Input Pin	IPIN	-	49	51.5	mA
LED Power Consumption	PBL		12.94	13.60	W
Luminance of White	Yw	200	250		cd/m2
White luminance uniformity	ΔY	75	80		%
LED Life Time	-	30,000	-	-	Hrs
