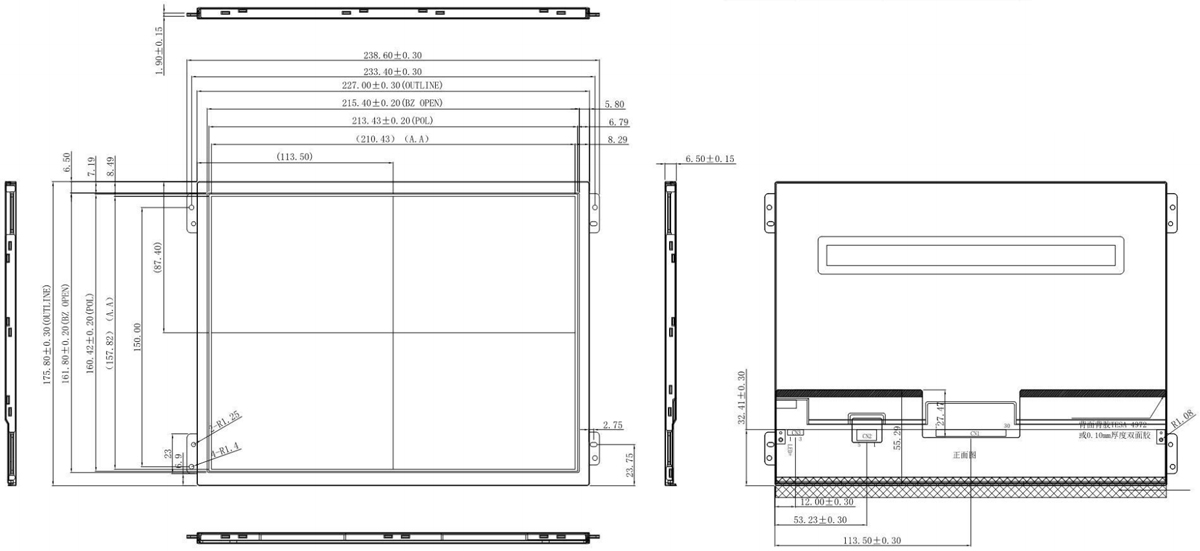

Pin No.

Symbol

Description

1

NC

Reserved as BIST function for INX test

2

GND

Ground

3

Rin3+

Positive LVDS differential data input (+)

4

Rin3-

Positive LVDS differential data input (-)

5

GND

Ground

6

CLK+

Clock signal (+)

7

CLK-

Clock signal (-)

8

GND

Ground

9

Rin2+

Positive LVDS differential data input (+)

10

Rin2-

Positive LVDS differential data input (-)

11

GND

Ground

12

Rin1+

Positive LVDS differential data input (+)

13

Rin1-

Positive LVDS differential data input (-)

14

GND

Ground

15

Rin0+

Positive LVDS differential data input (+)

16

Rin0-

Positive LVDS differential data input (-)

17

GND

Ground

18

NC

No Connection

19

GND

Ground

20

SEL6/8

Selection for 6 bits/8bit LVDS data input
Low or NC: 8 bit input mode
High: 6 bit input mode

21

NC

Reversed as EE_WP for OTP function

22

NC

Reversed as EE_SDA for OTP function

23

NC

Reversed as EE_SCL for OTP function

24

Reverse

Reverse panel function (Display rotation)

25~27

GND

Ground

28~30

VDD

Power supply: +3.3V
