5.7 inch Industrial LCD Screen

Part NO: MX-57NR40-TWT01
► Size: 5.7"
► Resolution: 640*480 Pixels
► Display Mode: TN
► Brightness: 700 Nits
► Interface: RGB 40 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-57NR40-TWT01 is a robust 5.7 inch industrial LCD screen that offers a full-color display with a resolution of 640x480 pixels. Incorporating the HX8250-A01*2+HX8678A driver IC, this 5.7 inch industrial LCD screen is characterized as a TN, transmissive LCD product. The 5.7 inch LCD display boasts an impressive display brightness of 700 cd/m² and a viewing angle of 60/40/70/70 (Typ.) (CR≥10) with the best view direction at 6 o‘clock. Resilient in varied conditions, it operates efficiently within temperatures of -20℃ to +70℃, while its storage temperatures range from -30℃ to +80℃. The 5.7 inch TFT LCD screen comes with an option for IPS type and LVDS interface, enhancing its versatility. Primarily recommended for industrial use, this 5.7-inch industrial LCD screen delivers superior performance and reliability.

Product Structure

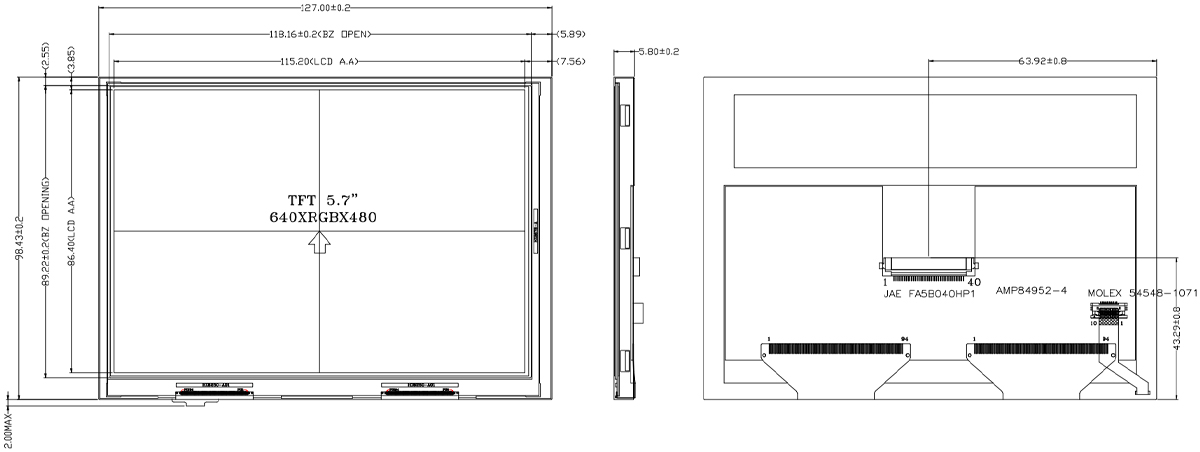

Drawing of 5.7 inch Industrial LCD Screen

LCD PIN Function (RGB 40 PIN)

Pin No.	Symbol	Description
1	U/D	Up/down scan setting. When U/D=H, reverse scan. When U/D=L, normal scan.
2	NC	No connection.
3	HSYNC	Horizontal sync input in digital RGB and CCIR601 mode. (Short to GND if not used)
4~6	VLED	Power supply for BLU LDO circuit.
7	VCC	Power supply.
8	VSYNC	Vertical sync input in digital RGB and CCIR601 mode. (Short to GND if not used)
9	DE	Input data enable control. When DE mode, active High to enable data input. Default pull low.
10	NC(X2)	No connection. (Touch panel control PIN:X2)
11	NC(Y1)	No connection. (Touch panel control PIN:Y1)
12	ADJ	Chip Enable (Active High).
13~15	B5~B3	Blue data input.
16	VSS	Power ground.
17~19	B2~B0	Blue data input.
20	VSS	Power ground.
21~23	G5~G3	Green data input.
24	VSS	Power ground.
25~27	G2~G0	Green data input.
28	VSS	Power ground.
29~31	R5~R3	Red data input.
32	VSS	Power ground.
33~35	R2~R0	Red data input.
36	NC(X1)	No connection. (Touch panel control PIN:X1)
37	NC(Y2)	No connection. (Touch panel control PIN:Y2)
38	DCLK	Clock signal. Latching data at the rising edge.
39	VSS	Power ground.
40	L/R	The shift direction of device internal shift register is controlled by this pin as shown below: L/R=H: STH->SO1->• • •->SO960->STHO L/R=L: STH->SO960->• • •->SO1->STHO

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Supply voltage for analog	VCC	-0.5	5	V
Supply voltage for logic	VCC	-0.5	5	V
Supply current (One LED)	I_LED	-	40	mA
Operating temperature	T_OP	-20	70	℃
Storage temperature	T_ST	-30	80	℃

Electrical Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Supply Voltage for Analog	VCC	2.7	3.3	3.6	V
Supply Voltage for Logic	VCC	2.7	3.3	3.6	V
Input Voltage	V_IL	-0.3	-	0.2VCC	V
Input Voltage	V_IH	0.8VCC	-	VCC	V
Input leakage Current	I_LKG	-1	-	1	μA

Backlight Characteristics

Item	Symbol	Value			Unit	Remark
Item	Symbol	Min.	Typ.	Max.	Unit	Remark
Voltage for LED Backlight	VF	8.4	9.6	10.2	V	IL=140mA
Current for LED Backlight	IL	-	140	-	mA	-
Power Consumption	P	-	1.344	-	W	-
LED Life Time	-	30,000	50,000	-	Hr	Note
Power supply for LED	VLED	4.5	5	5.5	V	-
ADJ frequency	-	19K	20K	21K	Hz	-
ADJ input voltage	VIH	3	-	3.3	V	-
ADJ input voltage	VIL	0	-	0.3	V	-
