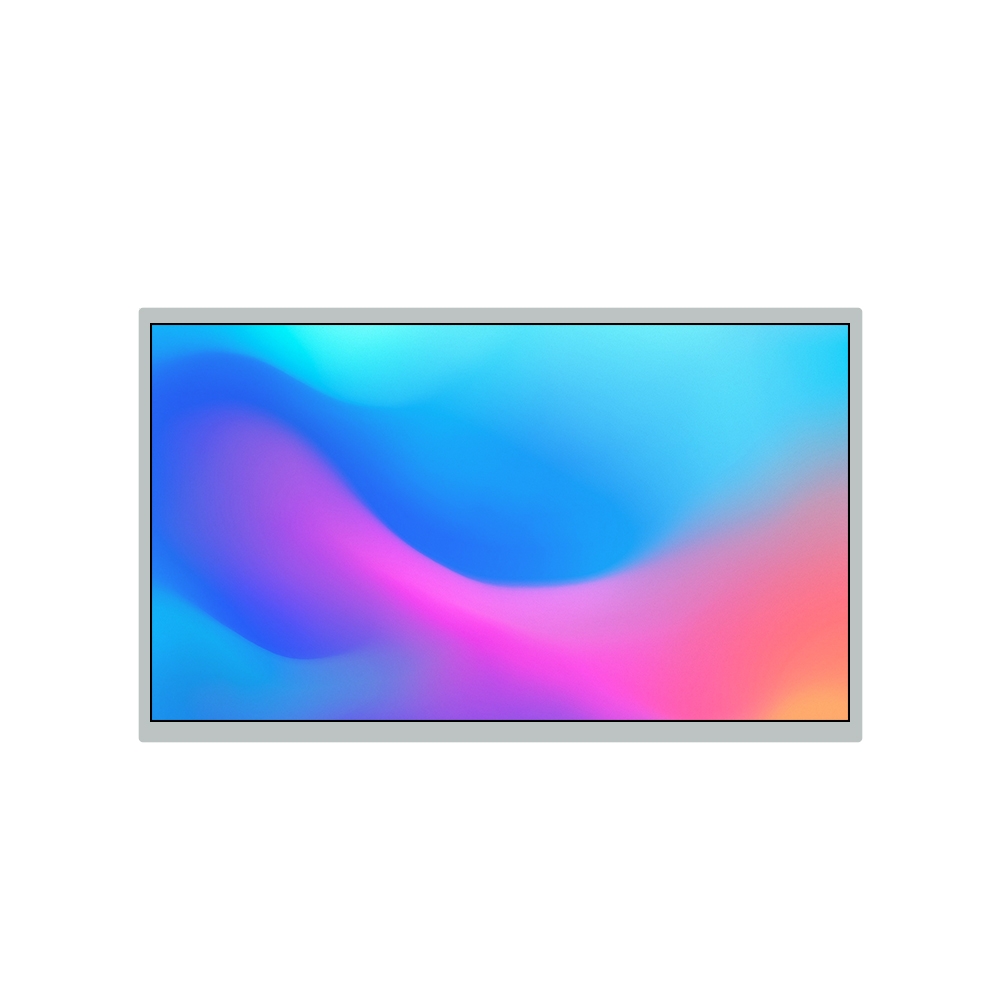

21.5 inch Industrial LCD Panel

Part NO.: MX-215FL30BFH-N07
► Size: 21.5"
► Resolution: 1920*1080 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: LVDS 30 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-215FL30BFH-N07 is a kind of 21.5 inch Industrial LCD Panel with Full HD 1920*1080 resolution and IPS display, ensuring sharp image quality and wide viewing angles, ideal for multi-operator environments. This 21.5" LCD display with a brightness of 1000 nits enhances readability in bright conditions, while the LVDS 30 PIN interface ensures dependable connectivity. The compact size (495.60 x 292.20 x 10.70 mm) facilitates integration into various designs without performance compromise. The 21.5 inch LCD module‘s rich color palette and LED backlight with a 30,000-hour lifespan provide vibrant visuals and long-term durability. An optional touchscreen (CTP or RTP) is available for interactivity. Contact Maxen Electronics for your industrial display needs.

Product Structure
Drawing of 21.5 inch Industrial LCD Panel

LCD PIN Function (LVDS 30 PIN)

Pin No.	Symbol	Function
1	RXO0-	Negative Transmission data of Pixel 0 (ODD)
2	RXO0+	Positive Transmission data of Pixel 0 (ODD)
3	RXO1-	Negative Transmission data of Pixel 1 (ODD)
4	RXO1+	Positive Transmission data of Pixel 1 (ODD)
5	RXO2-	Negative Transmission data of Pixel 2 (ODD)
6	RXO2+	Positive Transmission data of Pixel 2 (ODD)
7	GND	Power Ground
8	RXOC-	Negative Transmission Clock (ODD)
9	RXOC+	Positive Transmission Clock (ODD)
10	RXO3-	Negative Transmission data of Pixel 3 (ODD)
11	RXO3+	Positive Transmission data of Pixel 3 (ODD)
12	RXE0-	Negative Transmission data of Pixel 0 (EVEN)
13	RXE0+	Positive Transmission data of Pixel 0 (EVEN)
14	GND	Power Ground
15	RXE1-	Negative Transmission data of Pixel 1 (EVEN)
16	RXE1+	Positive Transmission data of Pixel 1 (EVEN)
17	GND	Power Ground
18	RXE2-	Negative Transmission data of Pixel 2 (EVEN)
19	RXE2+	Positive Transmission data of Pixel 2 (EVEN)
20	RXEC-	Negative Transmission Clock (EVEN)
21	RXEC+	Positive Transmission Clock (EVEN)
22	RXE3-	Negative Transmission data of Pixel 3 (EVEN)
23	RXE3+	Positive Transmission data of Pixel 3 (EVEN)
24	GND	Power Ground
25	NC	Not connection, this pin should be open
26	NC	Not connection, this pin should be open
27	NC	Not connection
28	VDD	Power Supply: +5V
29	VDD
30	VDD

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Power Supply Voltage	V_DD	-0.3	5.5	V
Logic Supply Voltage	V_IN	VSS-0.3	VDD+0.3	V
Operating Temperature	T_OP	-20	85	℃
Storage Temperature	T_ST	-30	85	℃
Liquid crystal clear point	T_Lc	104.9		℃

Electrical Specifications

Parameter		Min.	Typ.	Max.	Unit
Power Supply Voltage	V_DD	4.5	5.0	5.5	V
Power Supply Current	I_DD	-	700	1200	mA
In-Rush Current	I_RUSH	-	-	3	A
Permissible Input Ripple Voltage	V_RF	-	-	300	mV
High Level Differential Input Threshold Voltage	V_IH	-	-	100	mV
Low Level Differential Input Threshold Voltage	V_IL	-100	-	-	mV
Differential input voltage	\|V_ID\|	200	-	600	mV
Differential input common mode voltage	Vcm	1.0	1.2	1.5
LED Voltage	V_L	-	6	-	V
LED Channel Voltage	V_L	-	54	-	V
LED Channel Current	I_L	-	350	-	mA
Luminance of White	Y	-	1000	-	cd/m²
White luminance uniformity	ΔY	75	80	-	%
LED Life time	-	30000	-	-	Hrs
Power Consumption	P_total	-	38.5		W
