12.1 inch 1280x800 Industrial LCD Display

Part NO: MX-121ICE-L02-H
► Size: 12.1"
► Resolution: 1280*800 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: LVDS 30 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-121ICE-L02-H is a 12.1" TFT (Thin Film Transistor) Liquid Crystal Display (LCD) module equipped with an LED (Light Emitting Diode) Backlight unit and an LVDS (Low Voltage Differential Signaling) interface. This 12.1 inch LCD module supports a resolution of 1280 x 800 in Wide-XGA MVA mode and is capable of displaying 262k/16.7M colors. The LED converter required for the backlight is integrated into the control board. Moreover, this 12.1 inch LCD display features an impressive brightness level of 1000 nits and operates in IPS (In-Plane Switching) mode, providing superior color reproduction and viewing angles.

Product Structure

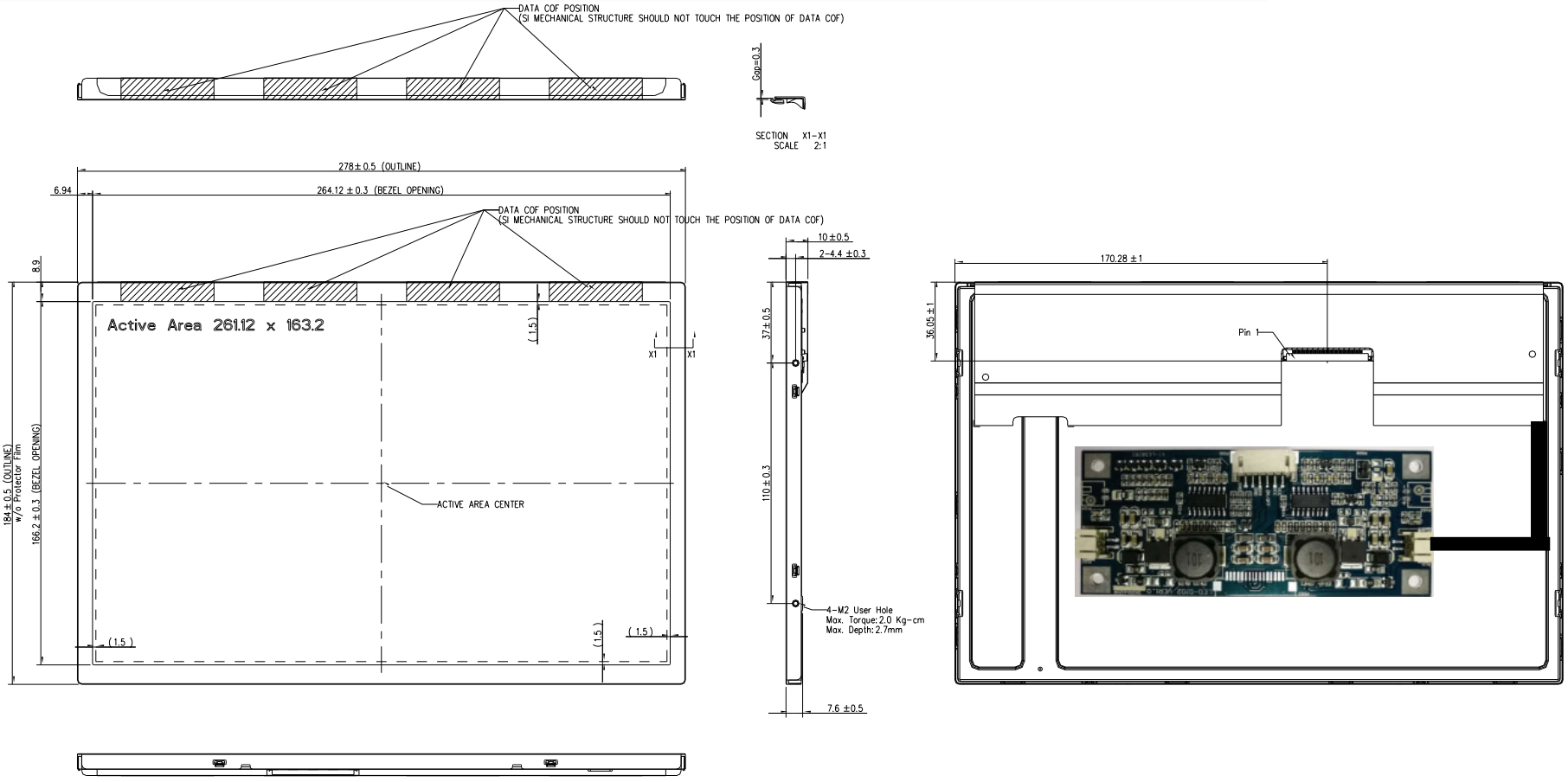

Drawing of 12.1 inch 1280x800 Industrial LCD Display

LCD PIN Function (LVDS 30 PIN)

Pin No.	Symbol	Description
1~4	12V	LED power
5	ENLED	Enable pin
6	Dimming	Backlight Adjust
7~8	NC	No Connection or Ground
9~10	VCC	Power supply: +3.3V
11~12	GND	Ground
13	RX0-	Negative transmission data of pixel 0
14	RX0+	Positive transmission data of pixel 0
15	GND	Ground
16	RX1-	Negative transmission data of pixel 1
17	RX1+	Positive transmission data of pixel 1
18	GND	Ground
19	RX2-	Negative transmission data of pixel 2
20	RX2+	Positive transmission data of pixel 2
21	GND	Ground
22	RXCLK-	Negative of clock
23	RXCLK+	Positive of clock
24	GND	Ground
25	RX3-	Negative transmission data of pixel 3
26	RX3+	Positive transmission data of pixel 3
27	GND	Ground
28	SEL6/8	LVDS 6/8bit select function control, Low→6 bit Input Mode High→8 bit Input Mode
29	GND	Ground
30	NC	No Connection or Ground

ABSOLUTE MAXIMUM RATINGS

Item	Symbol	Value		Unit
Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-20	70	ºC
Operating Ambient Temperature	TOP	-20	70	ºC

LCD ELETRONICS SPECIFICATION

Parameter	Symbol	Value			Unit	Note
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Power Supply Voltage	V_CC	3.0	3.3	3.6	V	-
Permissive Ripple Voltage	V_RP	-	50	-	mV	-
LVDS Differential Input High Threshold	V_TH(LVDS)	100	-	-	mV	V_CM=1.2V
LVDS Differential Input Low Threshold	V_TL(LVDS)	-	-	-100	mV	V_CM=1.2V
LVDS Common Mode Voltage	V_CM	1.125	-	1.375	V	-
LVDS Differential Input Voltage	\|V_ID\|	100	-	600	mV	-
Terminating Resistor	R_T	-	100	-	Ohm	-

BACKLIGHT UNIT

Parameter		Symbol	Value			Unit
Parameter		Symbol	Min.	Typ.	Max.	Unit
LED Converter Input voltage		V_i	10.8	12	13.2	V_DC
LED light bar input current		I_i	160	180	200	A_DC
LED Light bar Voltage		V_f	-	31.9	-	V_DC
LED Current		I_f	-	45	-	mA
Input Power Consumption		P_i	-	6.3	-	W
EN Control Level	Backlight on	ENLED (BLON)	2.5	3.3	5	V
EN Control Level	Backlight off	ENLED (BLON)	0	-	0.3	V
PWM Control Level	PWM High Level	Dimming (E_PWM)	2.5	-	5	V
PWM Control Level	PWM Low Level	Dimming (E_PWM)	0	-	0.15	V
PWM Control Frequency		f_PWM	190	200	20k	Hz
PWM Control Duty Ratio		-	2	-	100	%
LED Life Time		L_BL	50000	-	-	Hrs
