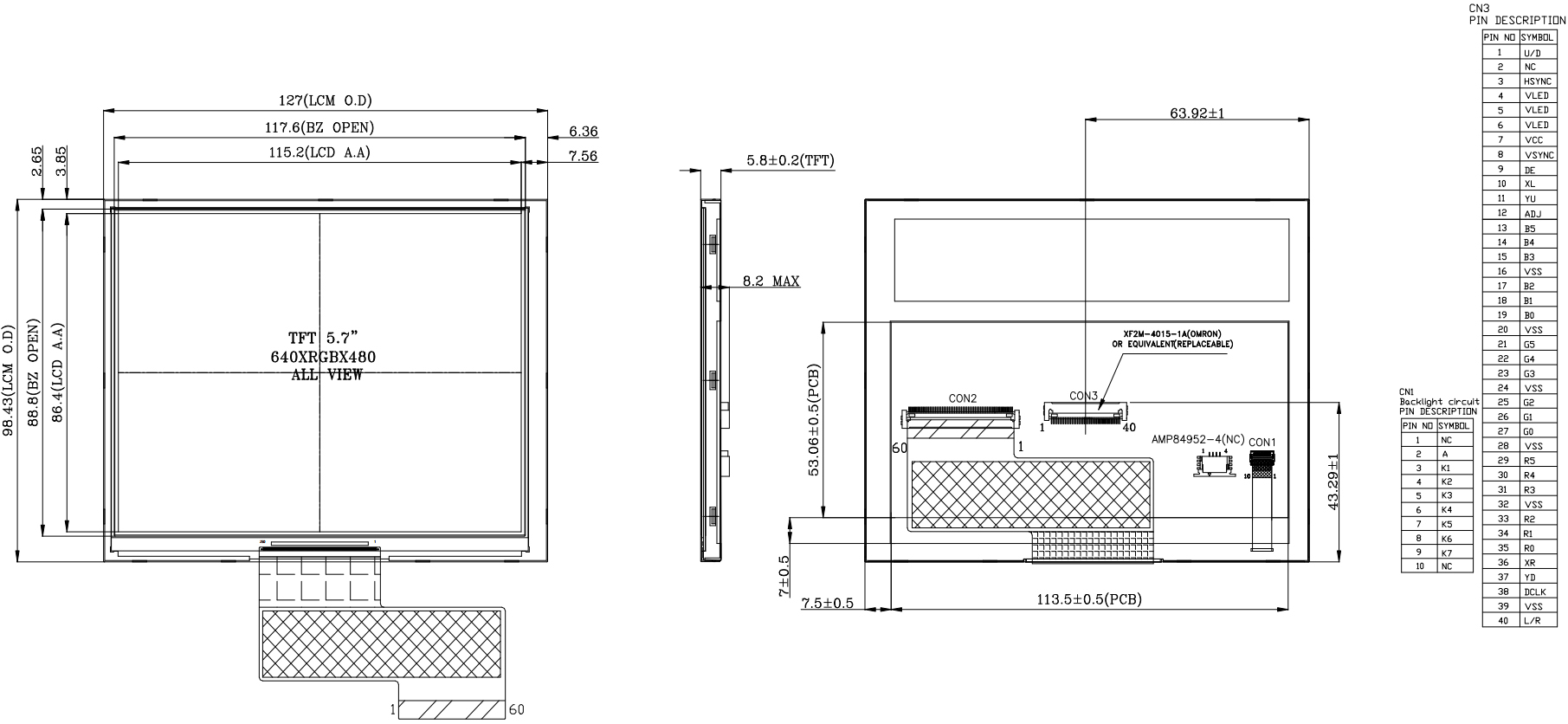

Pin No.

Symbol

Description

1

U/D

Up/down scan setting.
When U/D=H, reverse scan.
When U/D=L, normal scan.

2

NC

No connection.

3

HSYNC

Horizontal sync input in digital RGB and CCIR601 mode.
(Short to GND if not used)

4~6

VLED

Power supply for BLU LDO circuit(5V).

7

VCC

Power supply

8

VSYNC

Vertical sync input in digital RGB and CCIR601 mode.
(Short to GND if not used)

9

DE

Input data enable control. When DE mode, active High to enable data input.
Default pull low.

10

NC(X2)

No connection (Touch panel control PIN: X2)

11

NC(Y1)

No connection (Touch panel control PIN: Y1)

12

ADJ

Backlight Dimming control

13~15

B5~B3

Blue data input

16

VSS

Power ground

17~19

B2~B0

Blue data input

20

VSS

Power ground

21~23

G5~G3

Green data input

24

VSS

Power ground

25~27

G2~G0

Green data input

28

VSS

Power ground

29~31

R5~R3

Red data input

32

VSS

Power ground

33~35

R2~R0

Red data input

36

NC(X1)

No connection (Touch panel control PIN: X1)

37

NC(Y2)

No connection (Touch panel control PIN: Y2)

38

DCLK

Clock signal. Latching data at the rising edge.

39

VSS

Power ground

40

L/R

The shift direction of device internal shift register is controlled by this pin as shown below:
L/R=H: STH->SO1->• • •->SO960->STHO
L/R=L: STH->SO960->• • •->SO1->STHO
