Industrial 9 inch IPS LCD Panel

Part NO: MX-B90HL60-IS07
► Size: 9.0"
► Resolution: 1024*600 Pixels
► Display Mode: IPS
► Brightness: 500 Nits
► Interface: LVDS 60 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-B90HL60-IS07 is an Industrial 9 inch IPS LCD Panel. This 9 inch LCD Panel is with IPS Technology that provides a full viewing angle, true colors. These 9" LCD Panel features 1024x600 pixels resolution and 500cd/m2 brightness that helps in delivering brilliant images. The MX-B90HL60-IS07 9" LCD Panel comes with an LVDS 6-bit/8-bit interface and built in HX8282+HX8696 drive IC. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The 9 inch LCD Panel is recommended for industrial use.

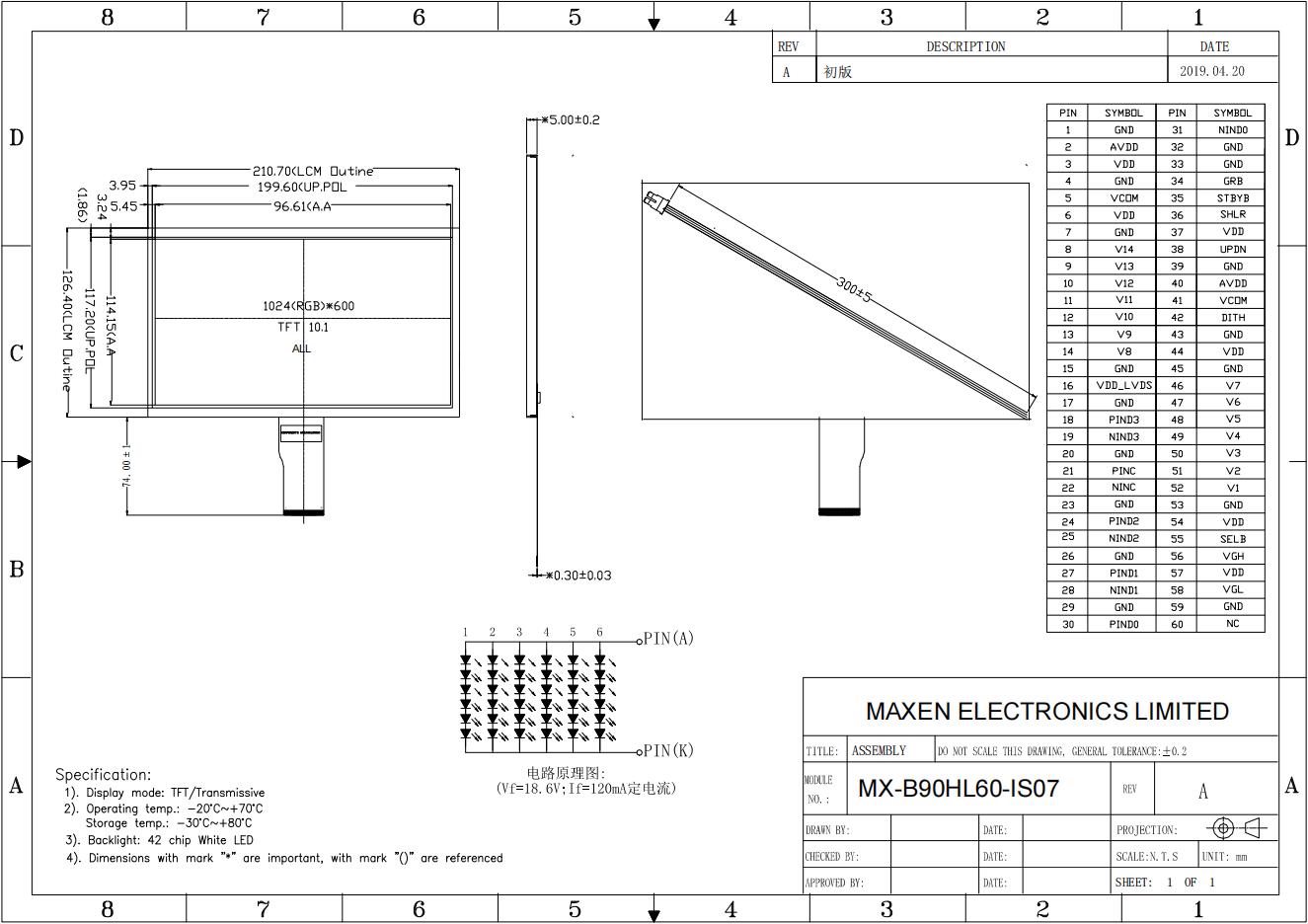

Product Structure

LCD PIN Function (LVDS 60 PIN)

Pin NO.	Symbol	Description
1	GND	Ground
2	AVDD	Analog Power
3	VDD	Digital Power
4	GND	Ground
5	VCOM	Common voltage
6	VDD	Digital Power
7	GND	Ground
8~14	V14~V8	Gamma correction voltage reference
15	GND	Ground
16	VDD_LVDS	LVDS Power
17	GND	Ground
18	PIND3	Positive LVDS Differential Data Inputs
19	NIND3	Negative LVDS Differential Data Inputs
20	GND	Ground
21	PINC	Positive LVDS Differential Clock Inputs
22	NINC	Negative LVDS Differential Clock Inputs
23	GND	Ground
24	PIND2	Positive LVDS Differential Data Inputs
25	NIND2	Negative LVDS Differential Data Inputs
26	GND	Ground
27	PIND1	Positive LVDS Differential Data Inputs
28	NIND1	Negative LVDS Differential Data Inputs
29	GND	Ground
30	PIND0	Positive LVDS Differential Data Inputs
31	NIND0	Negative LVDS Differential Data Inputs
32	GND	Ground
33	GND	Ground
34	GRB	Global reset pin. Active Low to enter Reset State. Normally pull high. It’s necessary to connecting with an RC delay circuit for stability. (GRB delay VDD larger than 1ms)
35	STBYB	Standby mode, normally pull high STBYB=1, Normal Operation STBYB=0, Timing control, source driver will turn off, all output are high-Z
36	SHLR	Horizontal Inversion
37	VDD	Digital Power
38	UPDN	Vertical Inversion
39	GND	Ground
40	AVDD	Analog Power
41	VCOM	Common voltage
42	DITH	Dithering function
43	GND	Ground
44	VDD	Digital Power
45	GND	Ground
46~52	V7~V1	Gamma correction voltage reference
53	GND	Ground
54	VDD	Digital Power
55	SELB	6 bit/8 bit mode select
56	VGH	Positive Power for TFT
57	VDD	Digital Power
58	VGL	Negative Power for TFT
59	GND	Ground
60	NC	No connection

Electrical Absolute Maximum Ratings. (Vss=0V ,Ta=25℃)

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Power supply	VDD	-0.3	-	3.96	V
	AVDD	-0.5	-	14.85	V
	VGL	-20	-	0.3	V
	VGH	-0.3		42	V
Operating Temperature	TOP	-20	-	70	℃
Storage Temperature	TST	-30	-	80	℃

Notes:

1. If the module is above these absolute maximum ratings. It may become permanently damaged.

Using the module within the following electrical characteristic conditions are also exceeded, the module will malfunction and cause poor reliability.

2. VCC>VSS must be maintained.

3. Please be sure users are grounded when handing LCD Module.

Environmental Absolute Maximum Ratings

Item	Storage		Operating		Note
Item	MIN.	MAX.	MIN.	MAX.	Note
Ambient Temperature	-30℃	80℃	-20℃	70℃	1,2

Notes:

1. The response time will become lower when operated at low temperature.

2. Background color changes slightly depending on ambient temperature. The phenomenon is reversible.

LCM Electrical characteristics (Vss=0V ,Ta=25℃)

Parameter		Symbol	Min.	Typ.	Max.	Unit
Power supply		VDD	3.0	3.3	3.6	V
		AVDD	9.6	10.2	13.5	V
		VGL	-	-8	-	V
		VGH	-	18	-	V
Input signal voltage		VCOM	4.0	4.4	4.6	-
Input voltage	‘H’	V_IH	0.7V_VDD	-	V_VDD	V
Input voltage	‘L’	V_IL	0	-	0.3V_VDD	V

LED backlight specification (Vss=0V ,Ta=25℃)

Item	Symbol	Condition	Min.	Typ.	Max.	Unit	Note
Supply voltage	Vf	-	16.8	18.6	20.4	V	1
Supply current	If	-	-	120	-	mA	2
Number of LED	-	6Sx6P	-	36	-	Piece	-
Power Consumption	-	-	2016	2232	2448	mW	-
LED life time	-	-	30000	-	-	Hrs	-
