High Brightness TFT LCD, High Luminance LCD Display

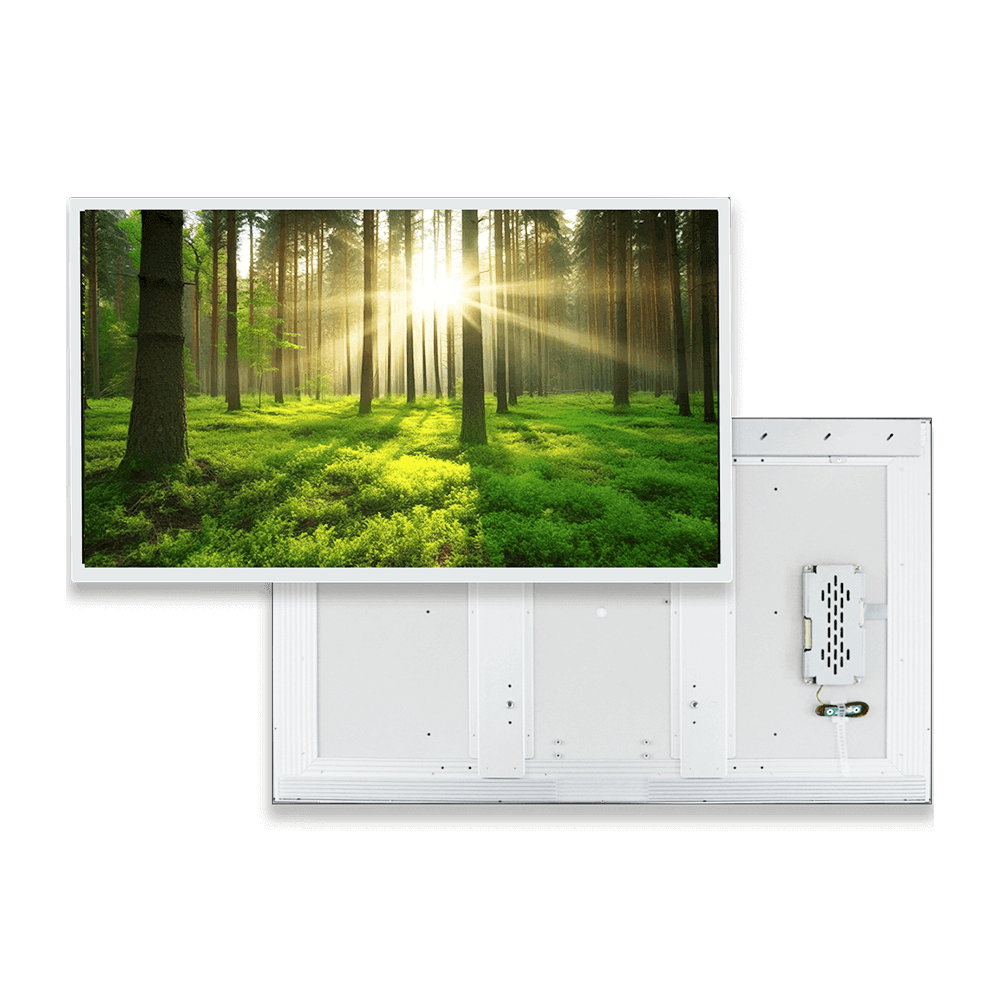

MAXEN's High Brightness TFT LCDs (or High Luminance LCD Displays) are specifically designed with sunlight readable feature for applications which generally used in outdoor. Available luminance ranges from 1000 nits to 2500 nits, depending on the LCD display sizes, ensuring visibility in direct sunlight or high-ambient-light environments.

This type of high brightness displays have superior readability under bright light compared to standard LCDs, with reduced reflections. And advanced high-brightness LCDs (e.g., IPS-based) offer wide viewing angles (e.g., 178°) (premium models), also no burn-in risk (unlike OLED), with durable backlighting and optimized power consumption and cost-effective (More affordable than OLED or Mini-LED, balancing brightness needs with budget constraints).

Starting from 2.8 inch to maximum 32 inch, including popular sizes 5 inch, 7 inch, 10.1 inch, 10.4 inch, 12.1 inch, 18.5 inch, 21.5 inch, 24 inch, 27 inch. Such high brightness TFT displays are available in resolutions ranging from Full HD 1920x1080 to 4K 3840x2160 pixels.

To solve the general heat dissipation problem caused by the backlight in order to increase the brightness, MAXEN's sunlight readable displays' backlight adopts optimized design in LED strips and with alluminum backlight materials so that have better cooling performance at long time operation.

Recommended for outdoor kiosks, outdoor digital sinage, SOE, transportation hubs, industrial control terminals, ev charging stations, sunlight readable tablets where high brightness is required.

Size	Resolution	Image	Part NO.	TFT Type	Brightness (nits)	Interface	Viewing Angle (T/B/L/R)	Operation Temp. (℃)	Outline Dimension (WxHxT, mm)	Active Area (WxH, mm)	Drawing
1.3"	240*240	1.3 inch TFT Display	MX-013NS18HFH-N02	IPS	1000	18-pin SPI	80/80/80/80	-20~70	26.1629.132.30	23.40*23.40	Download PDF
2.8"	240*320	2.8 inch TFT Display	MX-028NS40HFH-N14	IPS	1000	40-pin SPI+RGB	80/80/80/80	-20~70	50.5069.702.10	43.20*57.60	Download PDF
3.5"	640*480	3.5 inch LCD Screen	MX-035WR54EFH-N20	IPS	1000	54-pin RGB	80/80/80/80	-20~70	76.9063.903.20	70.08*52.56	Download PDF
4.3"	800*480	4.3 inch LCD Screen	MX-B43HR-40IS141K	IPS	1000	40-pin RGB	80/80/80/80	-20~70	105.4267.072.90	95.04*53.86	Download PDF
5"	800*480	5 inch TFT LCD Screen	MX-050WR40BFH-N15	IPS	1000	40-pin RGB	80/80/80/80	-20~70	120.7075.802.90	108.00x64.80	Download PDF
7"	1024*600	7 inch LCD Panel	MX-H70HL40-IS311K	IPS	1000	40-pin LVDS	85/85/85/85	-20~70	165.00100.003.50	154.21*85.92	Download PDF
10.1"	1280*800	10.1 inch LCD Display	MX-101FL40BFH-N71	IPS	1000	40-pin LVDS	80/80/80/80	-20~70	227.56149.336.50	216.96*135.60	Download PDF
17"	1280*1024	17 inch LCD Display	MX-170FL30BFH-N02	IPS	1000	30-pin LVDS	89/89/89/89	0~50	358.50296.5010.30	337.92*270.34	Download PDF
18.5"	1920*1080	18.5 inch LCD Panel	MX-185FL30BFH-N07	IPS	1000	30-pin LVDS	85/85/85/85	-20~70	430.40254.6012.00	408.96*230.04	Download PDF
19"	1280*1024	19 inch LCD Display	MX-190FL30UFH-N03	IPS	1000	30-pin LVDS	80/80/85/85	-30~85	396.00324.0012.88	376.32*301.06	Download PDF
21.5"	1920*1080	21.5 inch TFT LCD	MX-215FL30BFH-N07	IPS	1000	30-pin LVDS	89/89/89/89	-20~85	495.60292.2010.70	476.64*268.11	Download PDF
23.8"	1920*1080	23.8 inch LCD Display	MX-238FL51BFH-N02	IPS	1500	51-pin LVDS	89/89/89/89	-20~70	558.00328.0018.50	527.04*296.46	Download PDF
27"	1920*1080	27 inch LCD Screen	MX-270FL30BFH-N05	IPS	1500	30-pin LVDS	89/89/89/89	0~60	626.00363.809.30	597.89*336.31	Download PDF
32"	1920*1080	32 inch LCD Display	MX320CD05-G15KD	IPS	1500	51-pin LVDS	89/89/89/89	-20~80	730.40425.0018.50	698.40*392.85	Download PDF
