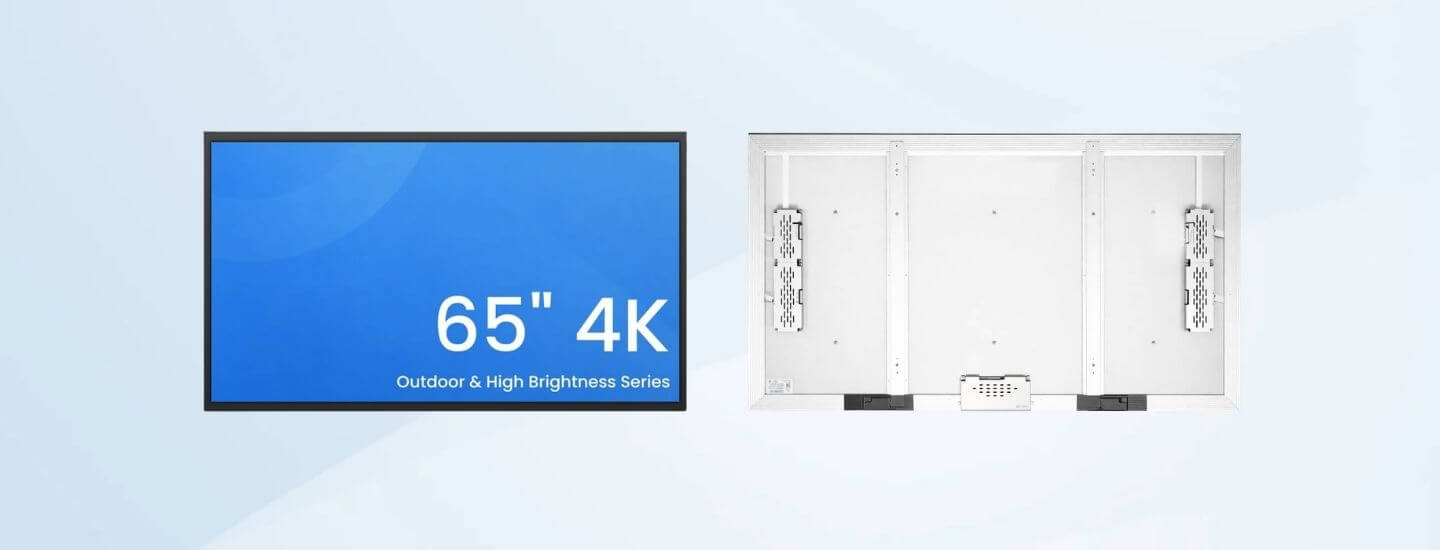

65 inch LCD Panel

Ideal for retail storefront window displays, outdoor interactive ticketing kiosks, and commercial building directories.

Main Features

Part No. MX-650QL51MFH-N02
65" Diagonal | 3840x2160 Pixels
Ultra-high brightness 3000 cd/m²
Full viewing angles (IPS)
51-pin LVDS interface
Wide operating temp -20℃ to 80℃

Get a Quote Download Specs.

MX-650QL51MFH-N02

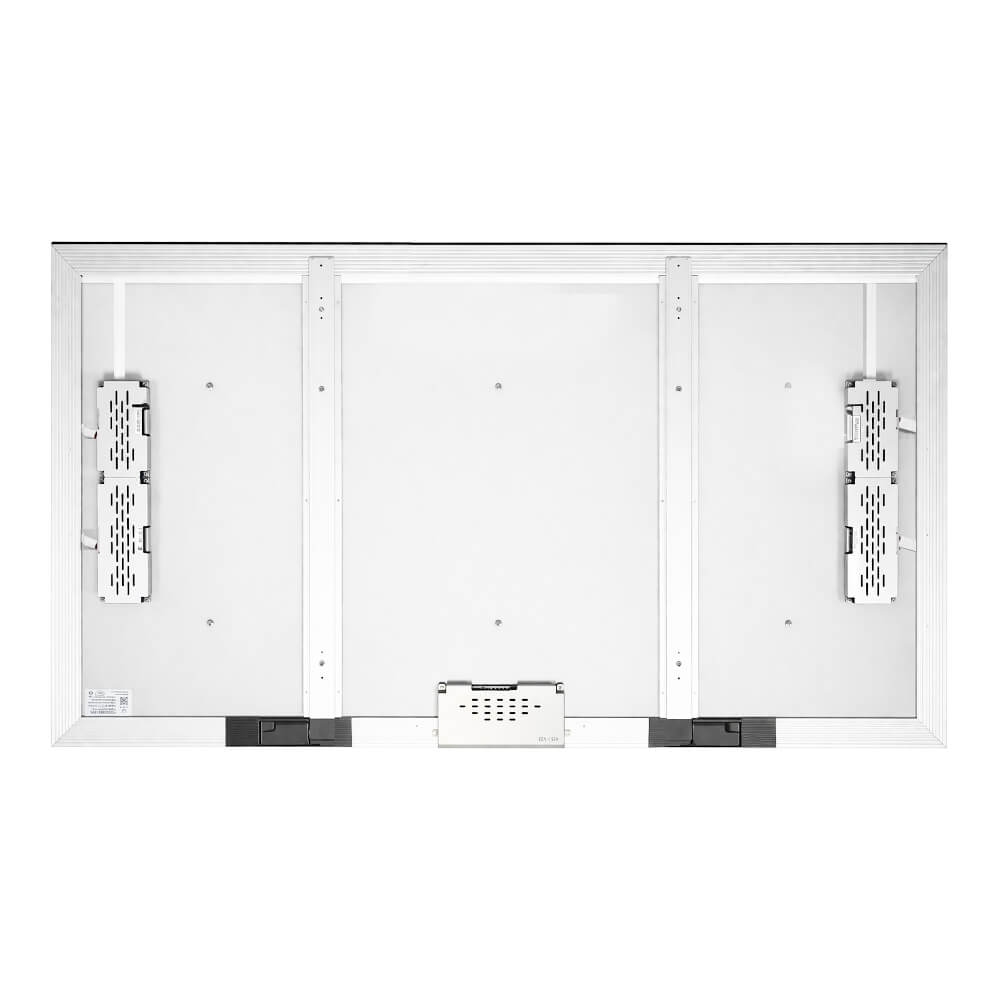

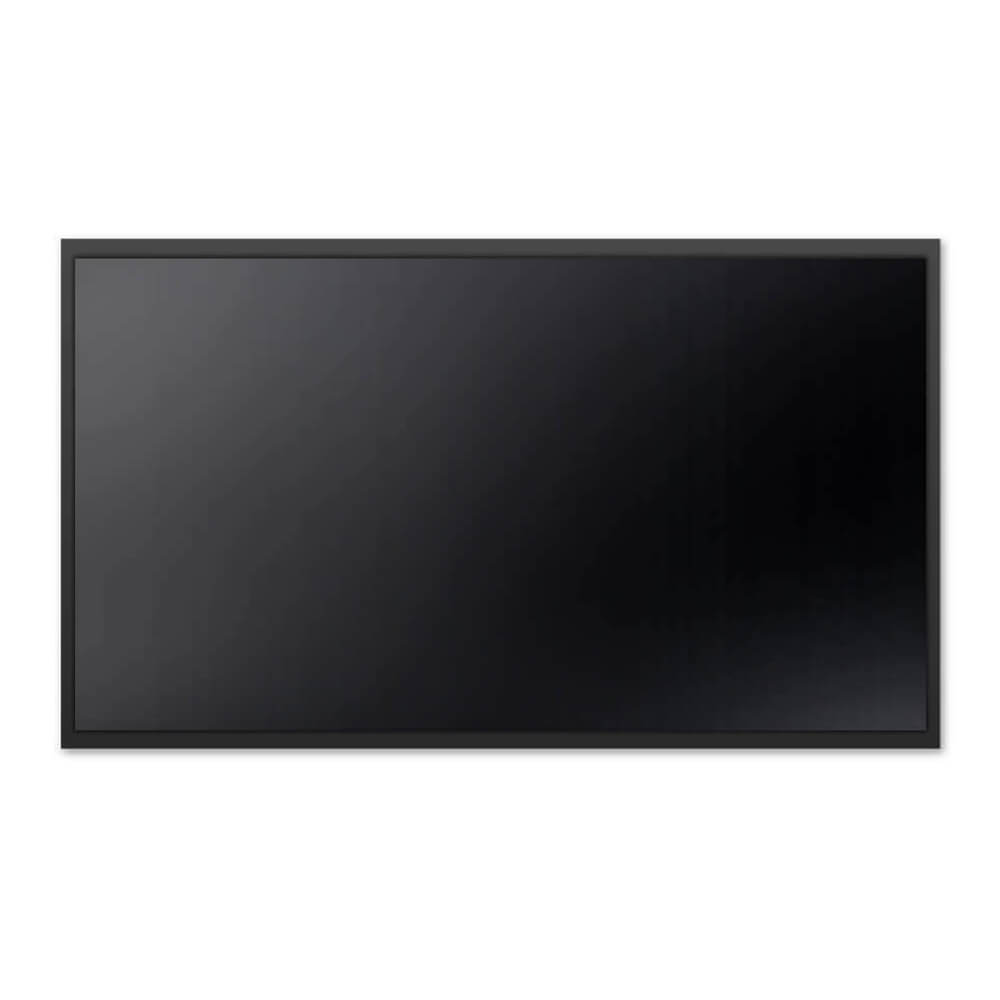

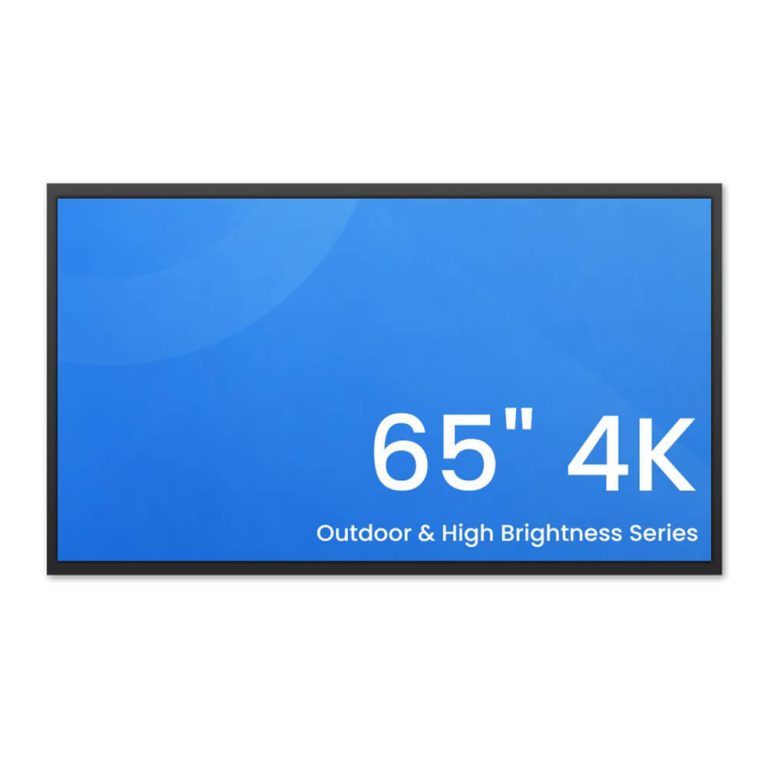

65 inch LCD Panel MX-650QL51MFH-N02 incorporates 3840x2160 4K UHD resolution alongside exceptional 3000 nits of extreme brightness, built for the most demanding outdoor environments. Featuring IPS full 89/89/89/89 viewing angles, this 65" display screen provides unparalleled sunlight readability and crisp details from any direction. The -20℃ to 80℃ working range supports stable operation in outdoor cabinets and heat-prone enclosures. A standard 51-pin LVDS interface makes the 4K LCD module easy to integrate into heavy-duty systems, rendering this ultra-bright TFT panel ideal for retail storefront window displays, outdoor interactive ticketing kiosks, and commercial building directories.

Resolution

65" 3840x2160 pixels
Ultra-high brightness

3000 nits
Working Temp Range

-20°C to 80°C
Interface

51-pin LVDS

LCM Pin Definition (51-pin LVDS)

Pin No.	Symbol	Description
1~8	VLCD	Power Supply+12.0V
9	NC	NO CONNECTION
10~13	GND	Ground
14	PWM_TIN	External VBR(From System)
15	PWM_TOUT	External VBR(For System)
16	MODE_SELO	MPLUS MODE SEL[1:0] '00':Low Power I, '01':High Luminance l '10':High Luminance II, '11':Low Power l
17	MODE_SEL1
18	SDA	SDA(For 12C)
19	SCL	SCL(For I2C)
20	NC	NO CONNECTION
21	Bit SEL	'H'or NC=10bit(D), 'L'=8bit
22	Data format	'L':Non division, 'H':2 division
23	AGP or NSB &M+Bypass	'H':AGP,M+bypass 'L'or NC:NSB(No signal Black),M+
24	NC	NO CONNECTION
25	HTPDN	Hot plug detect
26	LOCKN	Lock detect
27	GND	Ground
28	RxOn	V-by-One HS Data Lane 0
29	RxOp	V-by-One HS Data Lane 0
30	GND	Ground
31	Rx1n	V-by-One HS Data Lane 1
32	Rx1p	V-by-One HS Data Lane 1
33	GND	Ground
34	Rx2n	V-by-One HS Data Lane 2
35	Rx2p	V-by-One HS Data Lane 2
36	GND	Ground
37	Rx3n	V-by-One HS Data Lane 3
38	Rx3p	V-by-One HS Data Lane 3
39	GND	Ground
40	Rx4n	V-by-One HS Data Lane 4
41	Rx4p	V-by-One HS Data Lane 4
42	GND	Ground
43	Rx5n	V-by-One HS Data Lane 5
44	Rx5p	V-by-One HS Data Lane 5
45	GND	Ground
46	Rx6n	V-by-One HS Data Lane 6
47	Rx6p	V-by-One HS Data Lane 6
48	GND	Ground
49	Rx7n	V-by-One HS Data Lane 7
50	Rx7p	V-by-One HS Data Lane 7
51	GND	Ground

Backlight Interface Connection

CN2: Input terminal

PIN#	Symbol	Description
1~5	VDDB	Operating Voltage Supply,+24V DC Regulated
6~10	GND	Ground
11	NC	Not connect
12	VBLON	BL On-Off: High (2.5~5.5V) for BL, Low/Open (0~0.5V) for BL off
13	PDIM	DC Dimming High (5.0V/100% Duty) for 100% Lum.
14	PDIM	PWM Dimming High (OV/100% Duty) for 100% Lum.

CN3: Input terminal

PIN#	Symbol	Description
1~5	VDDB	Operating Voltage Supply,+24V DC Regulated
6~10	GND	Ground
11~14	NC	No Connect

Absolute Maximum Ratings

Parameter		Symbol	Value		Unit
Parameter		Symbol	Min	Max	Unit
Power Input Voltage	LCD Circuit	VLCD	-0.3	+14.0	VDC
T-Con Option Selection Voltage		VLOGIC	-0.3	+4.0	VDC
Operating Temperature		Top	-20	+80	℃
Storage Temperature (without packing)		Tst	-20	+80	℃
Panel Front Temperature (Considering L/C Phase Transition Temperature)		Tpt	-	+80	℃
Operating Ambient Humidity		Hop	10	90	%RH
Storage Humidity		Hst	5	90	%RH

Electrical Characteristics

Parameter		Symbol	Value			Unit
Parameter		Symbol	Min	Typ	Max	Unit
Circuit:
Power Input Voltage		VLCD	10.8	12.0	13.2	VDC
Power Input Current		ILCD	-	1210	1570	mA
Power Input Current		ILCD	-	2140	2780	mA
T-CON Option Selection Voltage	Input High Voltage	VIH	2.7	-	3.6	VDC
T-CON Option Selection Voltage	Input Low Voltage	VIL	0	-	0.7	VDC
Power Consumption		PLCD	-	14.52	18.88	Watt
Power Consumption		PLCD	-	25.68	33.38	Watt
Rush current		IRUSH	-	-	10	A

LED Backlight Characteristics

Item	Symbol		Condition	Min	Typ	Max	Unit
Power Supply Input Voltage	VDDB		-	22.8	24	25.2	V
Power Supply Input Current	lDDB		VDDB=24V	-	21.60	-	A
Power Consumption	PDDB		VDDB=24V	-	520	-	Watt
Inrush Current	lRUSH		VDDB=24V	-	-	TBD	A
Control signal voltage	Vsignal	High	VDDB=24V	2.5	-	5.5	V
Control signal voltage	Vsignal	Low	VDDB=24V	0	-	0.8	V
Control signal current	lsignal		VDDB=24V	-	-	1.5	mA
External PWM Duty ratio (input duty ratio)	D_EPWM		VDDB=24V	0	-	100	%
External PWM Frequency	F_EPWM		VDDB=24V	100	-	1000	Hz
External DC Duty ratio (input duty ratio)	D_E DC		VDDB=24V	25	-	100	%
External DC Voltage	V_E DC		VDDB=24V	0	-	5.0	V
External induction dimming	(Duty ratio)		VDDB=24V	25	-	100	%
Input Impedance	Rin		VDDB=24V	TBD	-	-	Kohm
LED lifetime	LTLED		-	-	50,000	-	Hr

Tags:

51-pin LVDS display

3000 nits screen

4K UHD display

3840x2160 LCD module

65.0" outdoor LCD

MX-650QL51MFH-N02

65 inch LCD panel

ultra-bright panel

sunlight readable TFT

FAQs

Frequently Asked Questions

Do you provide drawings and basic documents?

Yes. We provide 2D drawings and basic electrical information; 3D files and reference schematics can be offered where applicable.

How do you handle design or component changes during the product lifetime?

Design or key component changes are communicated in advance. We follow a controlled change process and can provide alternative solutions or second-source options where needed.

Can I request samples before placing a bulk order?

Yes, samples are available for evaluation before mass production.

Are MAXEN displays sunlight-readable?

Yes, we offer high-brightness options up to 1000+ cd/m² for outdoor use.

Can TFT LCD modules be used in low-temperature environments?

Yes, we offer models with wide temperature ranges, such as -30°C to +80°C.
