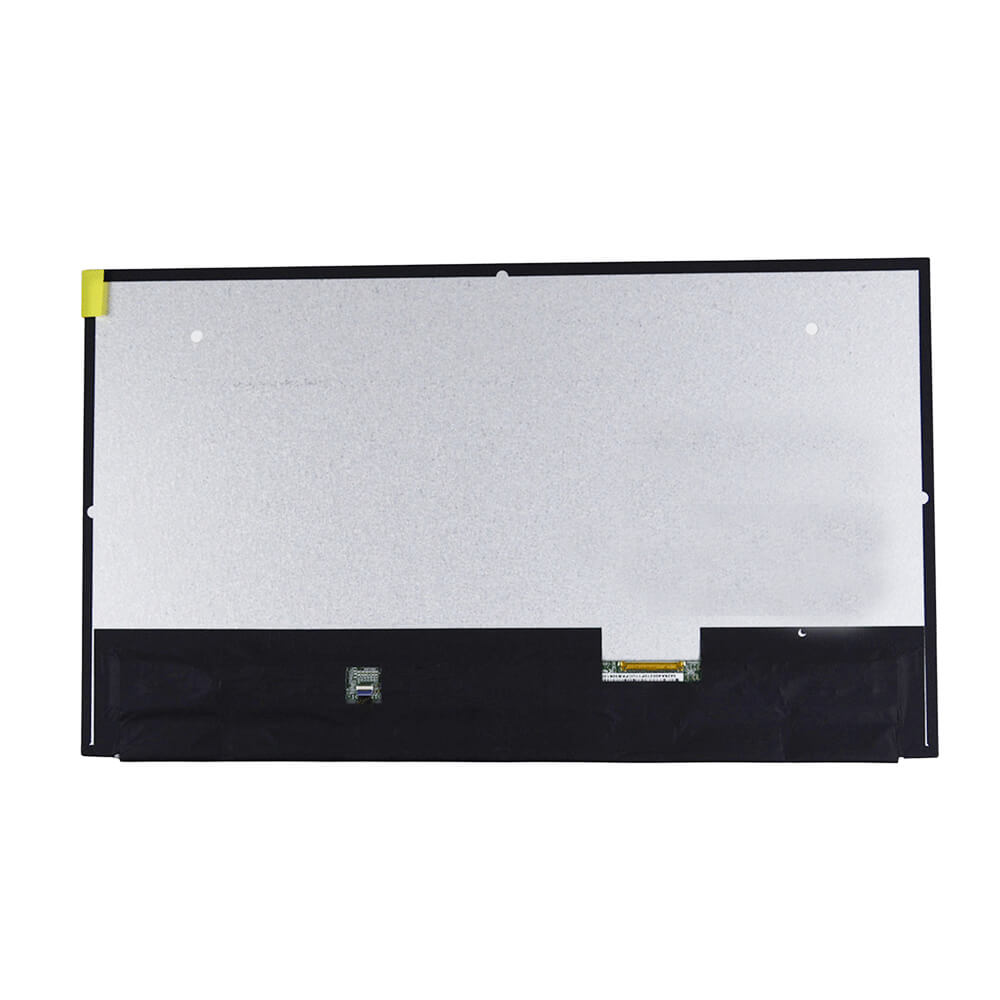

  • 15.6 lcd screen 40 pin thumbnail

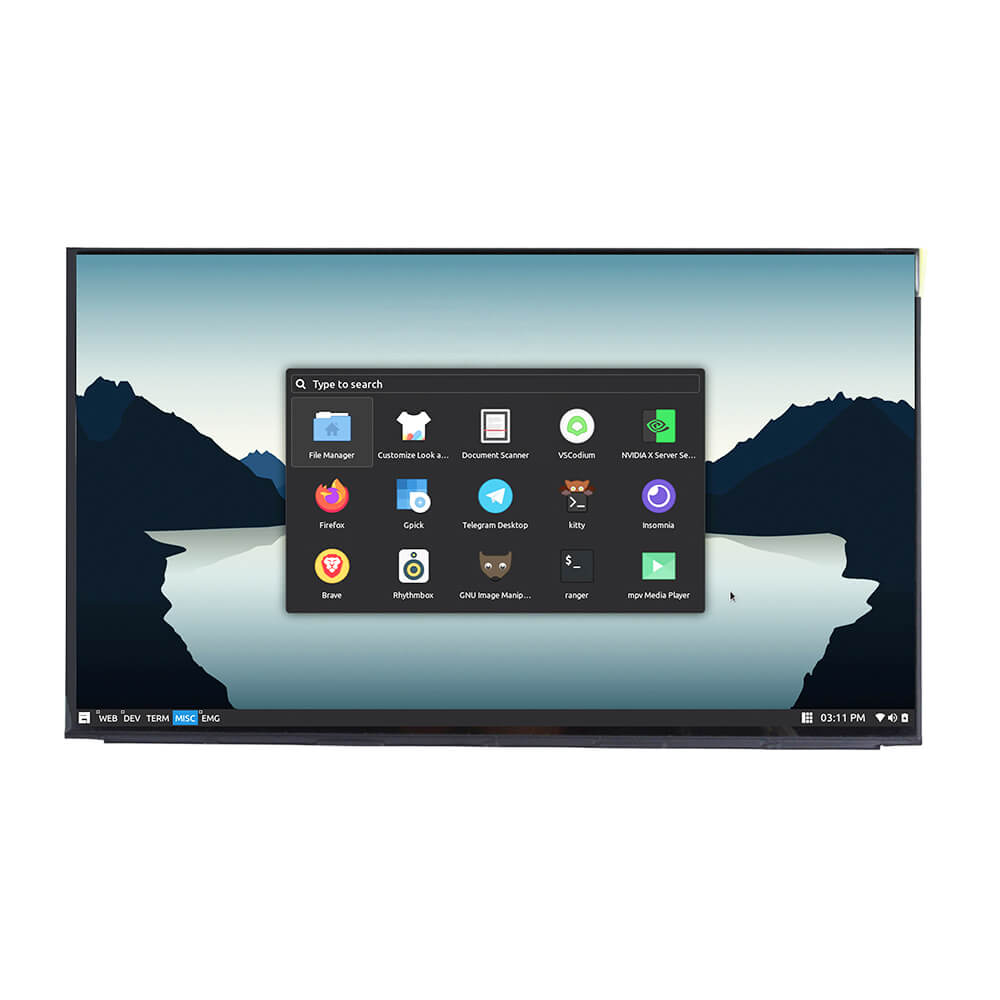

15.6 inch LCD Screen

Ideal for production line operator workstations, machine vision control consoles, equipment commissioning terminals, and smart building management panels.

Main Features

  • Part No. MX-H156FL40-IH01
  • 15.6" TFT LCD Display
  • 1920x1200 resolution
  • Standard brightness 250 cd/m²
  • 85/85/85/85 full viewing angles (IPS)
  • 40-pin LVDS interface
Get a Quote Download Specs.

MX-H156FL40-IH01

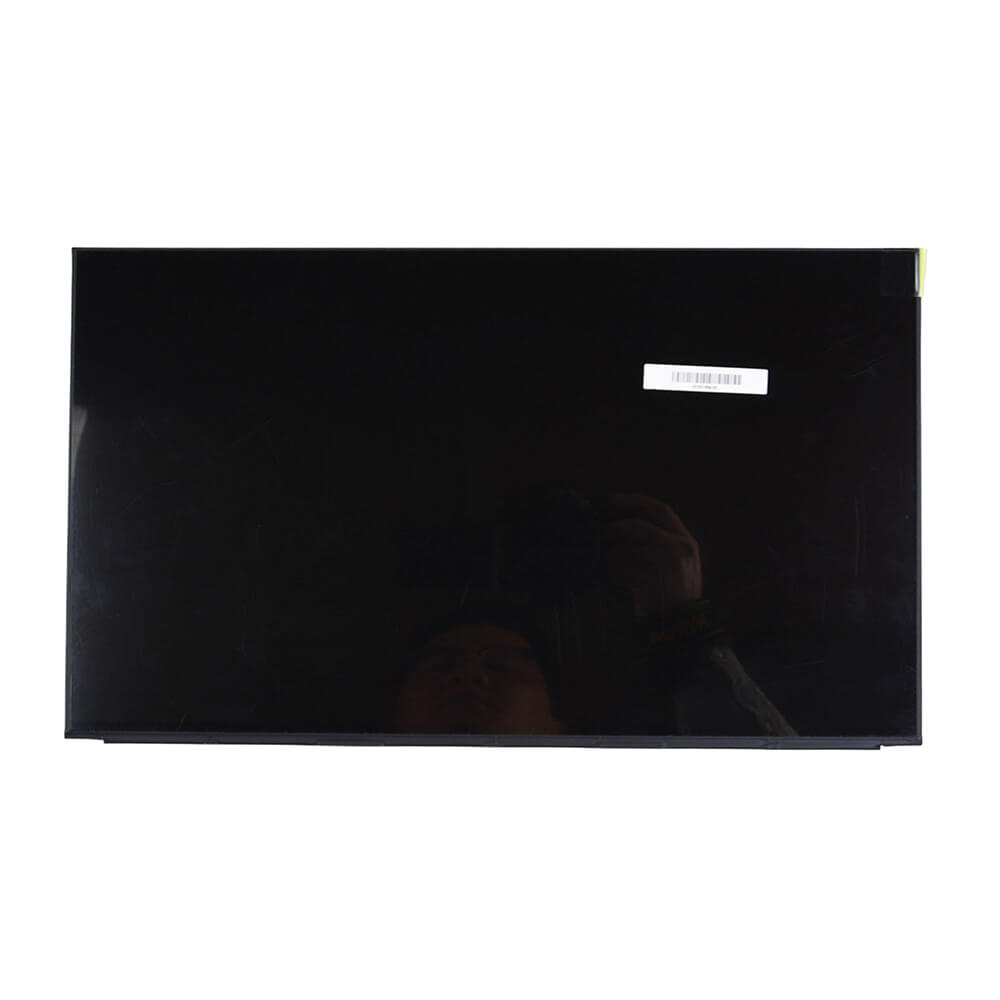

Designed for professional indoor systems that require a larger and clearer display area, this 15.6 inch LCD Screen MX-H156FL40-IH01 features a 1920x1200 resolution, IPS wide viewing angles, and a 40-pin LVDS interface for stable integration into embedded platforms. The larger format helps improve information visibility for interface-rich applications such as production line operator workstations, machine vision control consoles, equipment commissioning terminals, and smart building management panels. As a practical 15.6 lcd screen 40 pin solution, this model supports projects that need a standard electrical interface and a display size suitable for more detailed UI layouts. The TFT IPS LCD structure also helps maintain consistent image quality from different viewing positions, making the module a reliable option for equipment that values screen clarity, layout space, and dependable indoor display performance. For selected compatible projects, the panel can also be considered for replacing laptop screen applications, subject to confirmation of interface compatibility, outline dimensions, mounting structure, and electrical requirements.

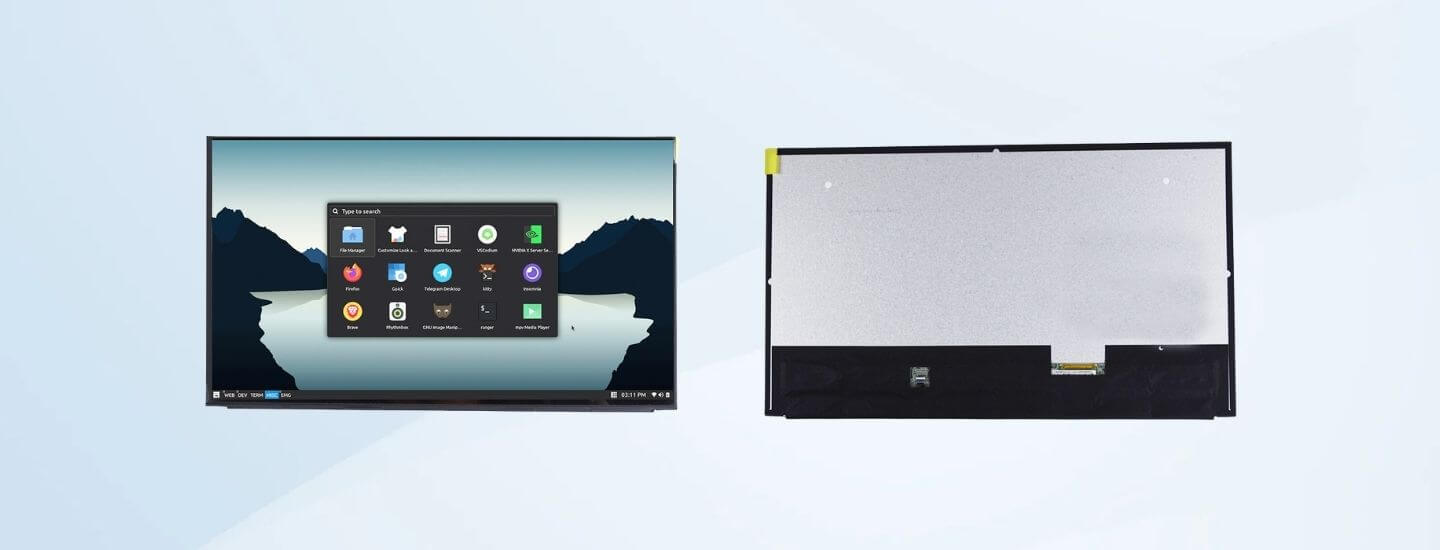

15.6 inch LCD Screen 1920x1200 40-Pin LVDS TFT IPS

  • Resolution

    15.6" 1920x1080

  • Brightness

    250 nits

  • Working Temp Range

    0°C to 50°C

  • Interface

    40-pin LVDS

  • LCM PIN Definition (40-pin LVDS)
  • Product Drawing

LCM PIN Definition (40-pin LVDS)

Pin NO. Symbol Description
1 RxO0- Negative LVDS differential data input (Odd data)
2 RxO0+ Positive LVDS differential data input(Odd data)
3 RxO1- Negative LVDS differential data input (Odd data)
4 RxO1+ Positive LVDS differential data input(Odd data)
5 RxO2- Negative LVDS differential data input (Odd data)
6 RxO2+ Positive LVDS differential data input(Odd data)
7 GND Ground
8 RxOCLK- Negative LVDS differential clock input(Odd clock)
9  RxOCLK+ Positive LVDS differential clock input(Odd clock)
10 GND Ground
11 RxO3- Negative LVDS differential data input (Odd data)
12 RxO3+ Positive LVDS differential data input(Odd data)
13 GND Ground
14 RxE0- Negative LVDS differential data input(Even data)
15 RxE0+ Positive LVDS differential data input(Even data)
16 RxE1- Negative LVDS differential data input(Even data)
17 RxE1+ Positive LVDS differential data input(Even data)
18  RxE2- Negative LVDS differential data input (Even data)
19 RxE2+ Positive LVDS differential data input (Even data)
20 GND Ground
21  RxECLK- Negative LVDS differential clock input (Even clock)
22 RxECLK+ Positive LVDS differential clock input(Even clock)
23 GND Ground
24 RxE3- Negative LVDS differential data input(Even data)
25 RxE3+ Positive LVDS differential data input(Even data)
26 GND Ground
27 LCD_VCC LCD    VCC(12V)
28 LCD_VCC LCD    VCC(12V)
29 BIST LCD self-test(Normal mode: NC or pull L; BIST mode: pull H
30 BL_ENABLE Backlight on/off
31 BL_PWM_DIM System   PWM
32 BL_POWER LED Power Supply Input Voltage(12V)
33 BL_POWER LED Power Supply Input Voltage(12V)
34  BL_POWER LED Power Supply Input Voltage(12V)
35  BL_POWER LED Power Supply Input Voltage(12V)
36  GND Ground
37  GND Ground
38  GND Ground
39  ID1 Reserved PIN, Default 'H’, Recommend NC
40  ID2 Reserved PIN, Default 'L’, Recommend NC

15.6 inch LCD Screen Product Drawing
