11.6 inch TFT LCD Screen

Ideal for EV charging stations, medical devices, industrial automation equipment, and electricity monitoring systems.

Main Features

Part No. MX-116FE30BFM-N05
11.6" TFT LCD Display
1920x1080 resolution
Standard brightness 600 cd/m²
Full viewing angles (IPS)
30-pin EDP interface

Get a Quote Download Specs.

MX-116FE30BFM-N05

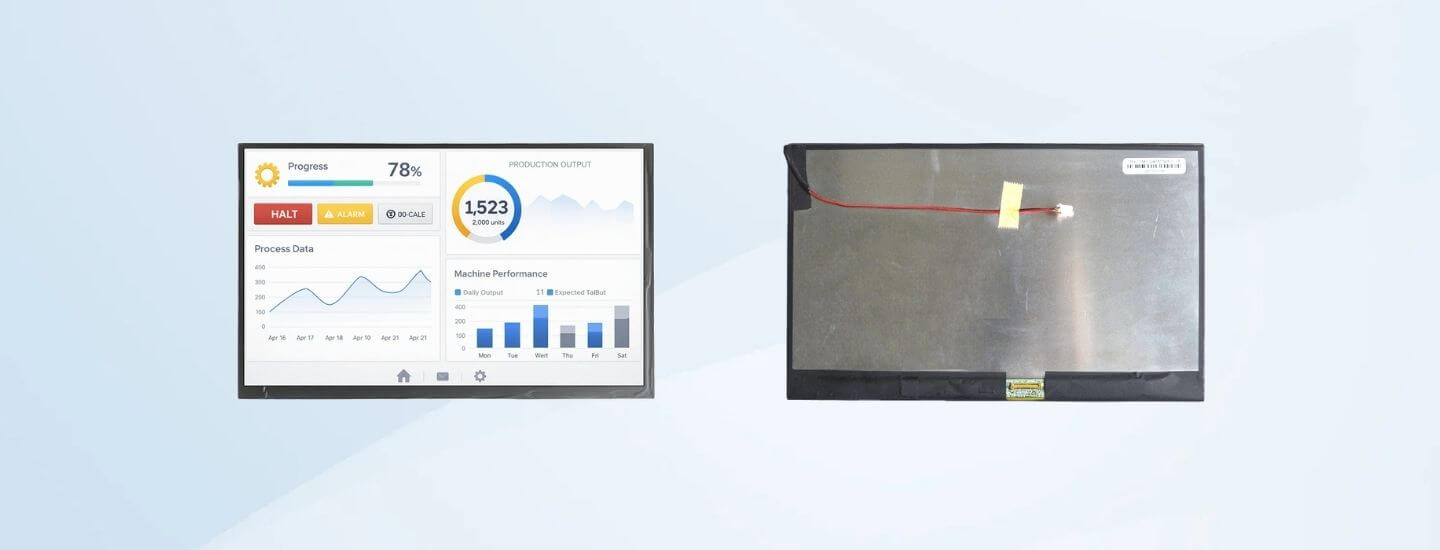

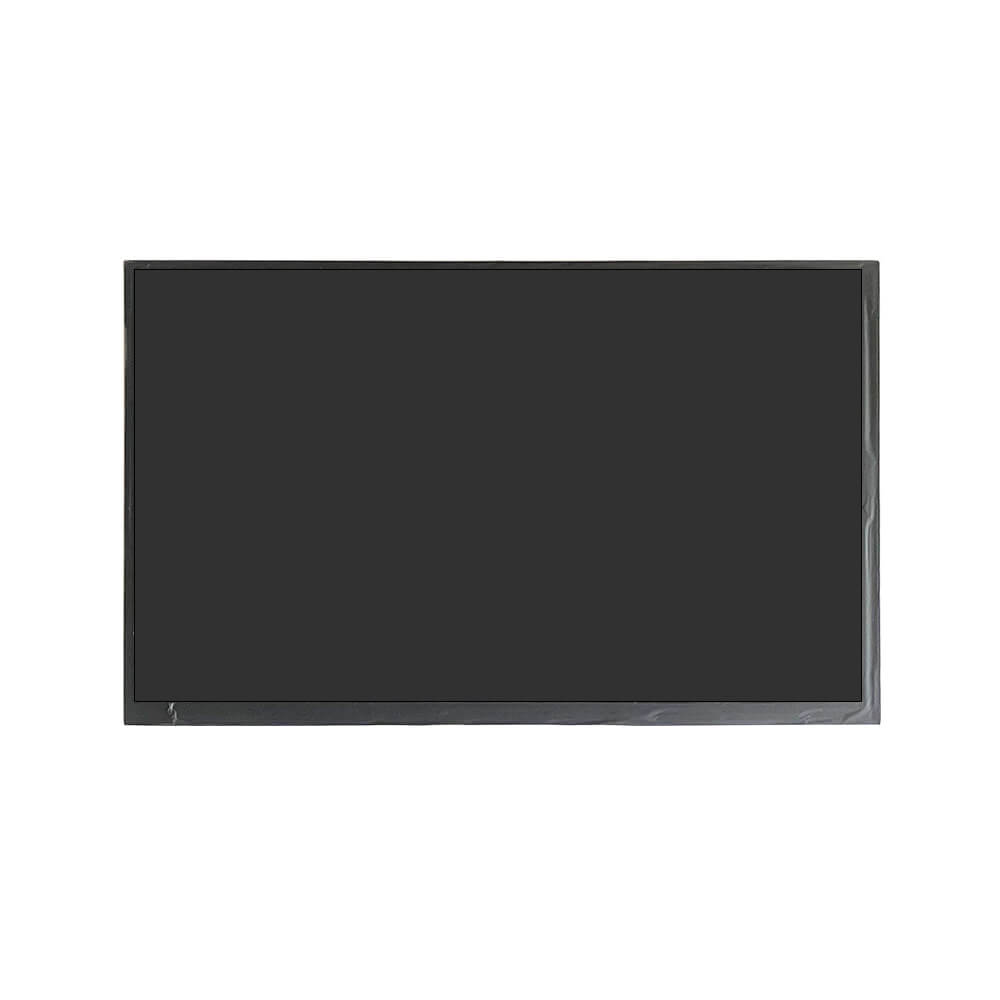

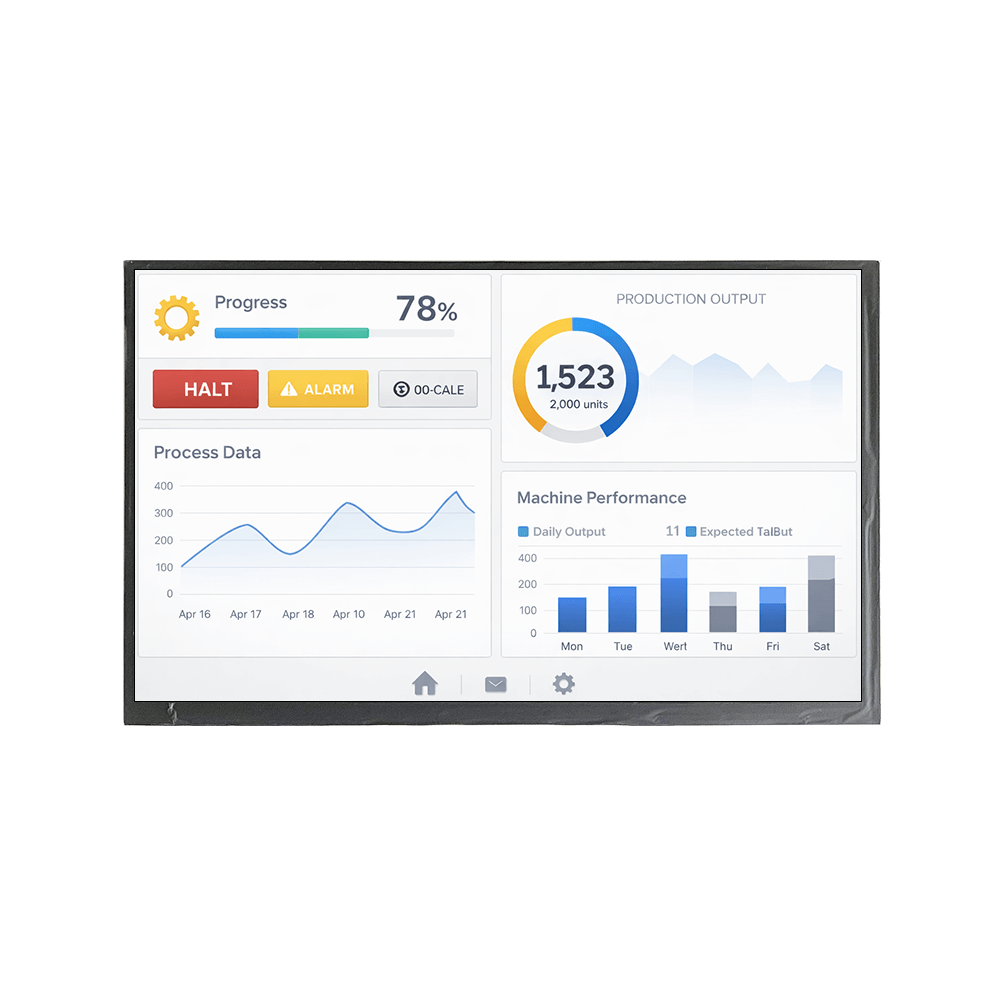

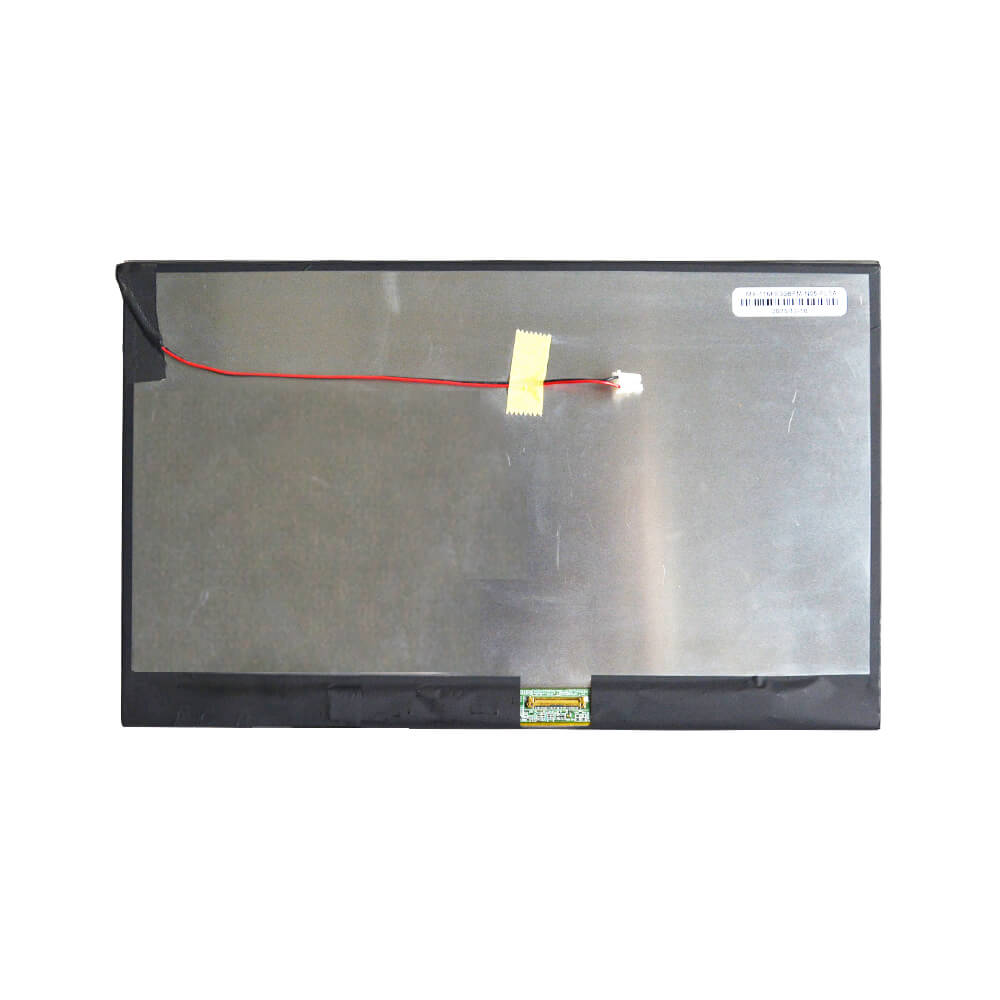

11.6 inch TFT LCD Screen MX-116FE30BFM-N05 is a high resolution IPS module engineered for precise industrial system integration. Delivering a crisp 1920x1080 FHD resolution and 600 nits of brightness, this 11.6 inch display utilizes full 85/85/85/85 viewing angles to ensure accurate visual clarity and color reproduction from any direction. Equipped with a standard 30-pin EDP interface, the FHD TFT panel operates reliably within a standard temperature range of -20℃ to 70℃. This 11.6" EDP screen is directly integrated into EV charging stations, medical devices, industrial automation equipment, and electricity monitoring systems.

Standard Brightness

600 nits
Working Temp Range

-20°C to 70°C
Interface

30-pin EDP
IC

/

LCM Pin Assignment (30-pin EDP)
Product Drawing

PIN#	Symbol	Description Remark	PIN#	Symbol	Description Remark
1	CABC-EN	CABC-EN	16	GND	Power Ground
2	GND	Power Ground	17	HPD	Hot plug detect output
3	LANE1-N	eDP RX channel 1 negative	18	BL-GND	Power Ground
4	LANE1-P	eDP RX channel 1 positive	19	BL-GND	Power Ground
5	GND	Power Ground	20	BL-GND	Power Ground
6	LANEO-N	eDP RX channel 0 negative	21	BL-GND	Power Ground
7	LANEO-P	eDP RX channel 0 positive	22	BL-ENABLE	BL-ENABLE
8	GND	Power Ground	23	BL-PWM	Reset low active
9	AUX-CH-P	eDP AUX CH positive	24	MSCL	FOR DEBUG
10	AUX-CH-N	eDP AUX CH negative	25	MSDA	FOR DEBUG
11	GND	Power Ground	26	BL-POWER	BL-POWER
12	LDC-VCC	3.3V	27	BL-POWER	BL-POWER
13	LCD-VCC	3.3V	28	BL-POWER	BL-POWER
14	LCD-TEST	Panel self test enable	29	BL-POWER	BL-POWER
15	GND	Power Ground	30	NC	NC
