MX320CD05-G1KD is a 32 inch LCD display module boasting a remarkable resolution of Full HD 1920x1080 pixels. With its impressive 1000 nits brightness, this display ensures stunning clarity in any setting, even outdoors. Tailored for superior visibility, the 32 inch LCD Module excels in well-lit environments. Its precision engineering, featuring an 8-bit 2-port LVDS interface and LVDS 51PIN connectivity, guarantees seamless performance. Versatile and technologically advanced, the 32 inch LCD Display is perfect for LCD TVs, PCTVs, and commercial displays, offering a high color gamut, super-wide viewing angle, and fast response time.

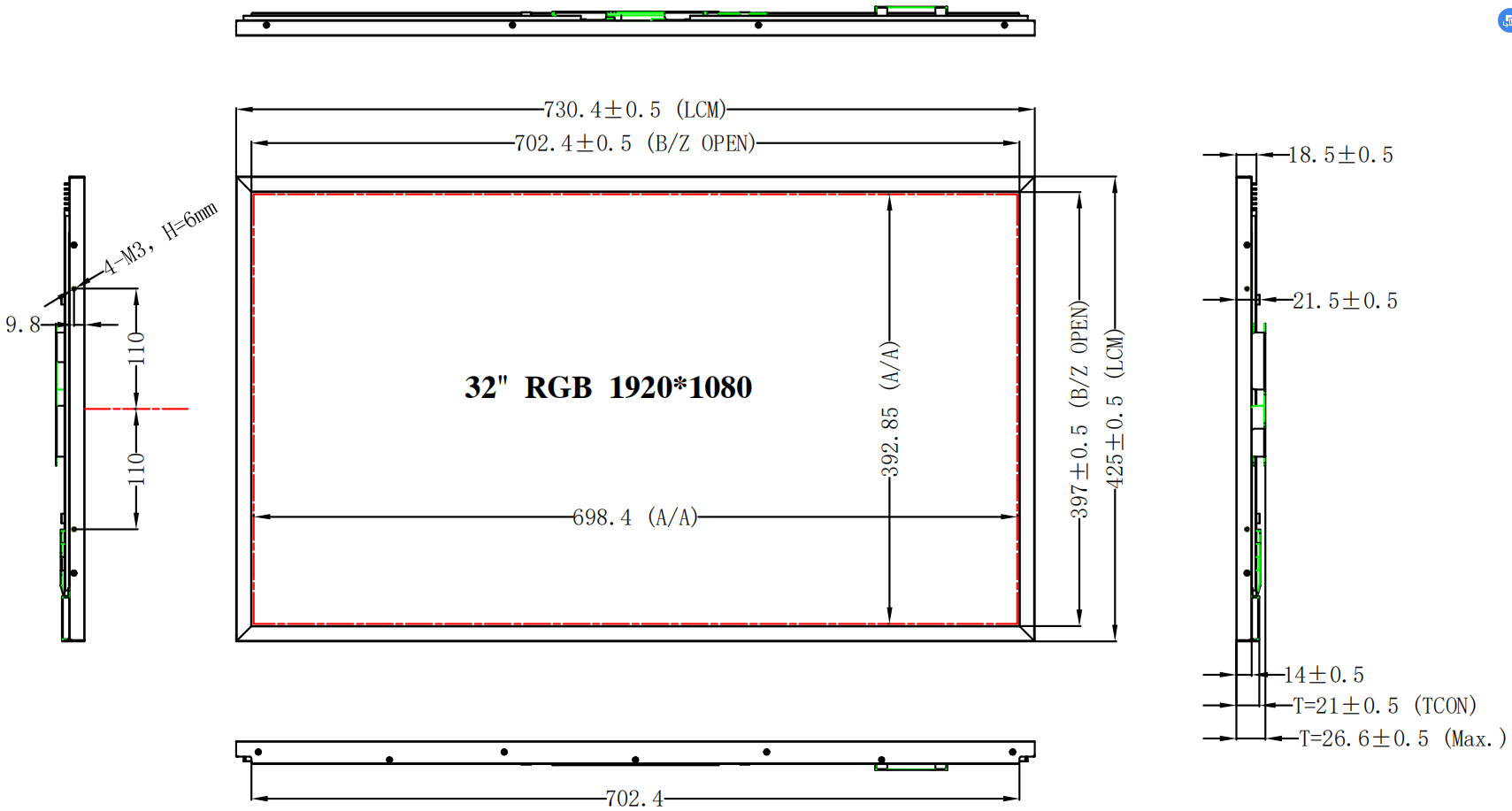

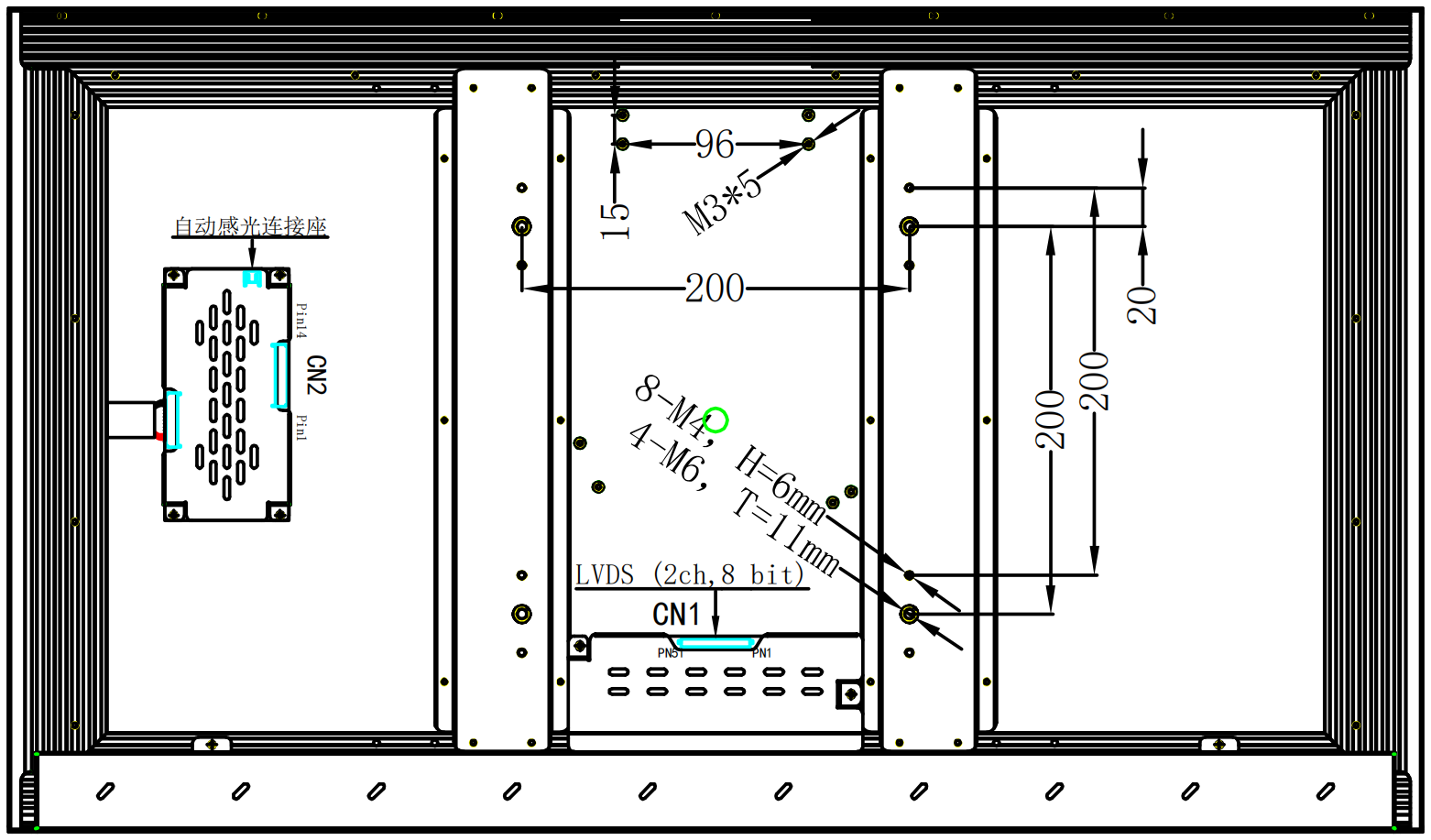

Product Structure
.png)
LCD Module PIN Function (LVDS 51 PIN)
| PIN No. | Symbol | Description |
| 1~6 | NC | No Connection |
| 7 | LVDS Select | ‘H‘=JEIDA, ‘L‘or NC=VESA |
| 8~10 | NC | No Connection |
| 11 | GND | Ground |
| 12 | R1AN | FIRST LVDS Receiver Signal (A-) |
| 13 | R1AP | FIRST LVDS Receiver Signal (A+) |
| 14 | R1BN | FIRST LVDS Receiver Signal (B-) |
| 15 | R1BP | FIRST LVDS Receiver Signal (B+) |
| 16 | R1CN | FIRST LVDS Receiver Signal (C-) |
| 17 | R1CP | FIRST LVDS Receiver Signal (C+) |
| 18 | GND | Ground |
| 19 | R1CLKN | FIRST LVDS Receiver Clock Signal (-) |
| 20 | R1CLKP | FIRST LVDS Receiver Clock Signal (+) |
| 21 | GND | Ground |
| 22 | R1DN | FIRST LVDS Receiver Signal (D-) |
| 23 | R1DP | FIRST LVDS Receiver Signal (D+) |
| 24~25 | NC | No connection |
| 26 | NC or GND | No Connection or Ground |
| 27 | NC | No connection |
| 28 | R2AN | SECOND LVDS Receiver Signal (A-) |
| 29 | R2AP | SECOND LVDS Receiver Signal (A+) |
| 30 | R2BN | SECOND LVDS Receiver Signal (B-) |
| 31 | R2BP | SECOND LVDS Receiver Signal (B+) |
| 32 | R2CN | SECOND LVDS Receiver Signal (C-) |
| 33 | R2CP | SECOND LVDS Receiver Signal (C+) |
| 34 | GND | Ground |
| 35 | R2CLKN | SECOND LVDS Receiver Clock Signal (-) |
| 36 | R2CLKP | SECOND LVDS Receiver Cloc kSignal (+) |
| 37 | GND | Ground |
| 38 | R2DN | SECOND LVDS Receiver Signal (D-) |
| 39 | R2DP | SECOND LVDS Receiver Signal (D+) |
| 40~41 | NC | No connection |
| 42~43 | NC or GND | No Connection or Ground |
| 44~46 | GND | Ground |
| 47 | NC | No connection |
| 48~51 | VLCD | Power Supply +12.0V |
