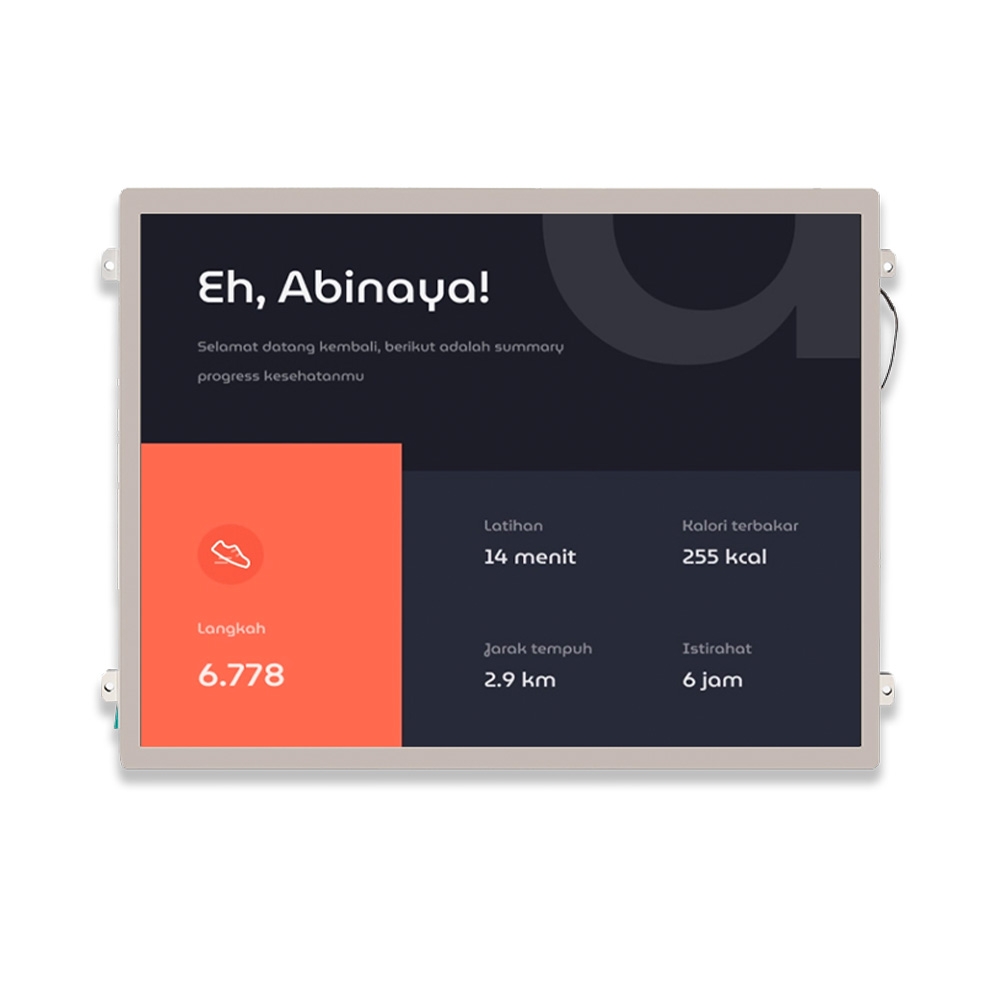

1000 Nits 10.4 inch LCD Display

Part NO: HCT-H104L30-32H02I
► Size: 10.4"
► Resolution: 1024*768 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: LVDS 30 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

HCT-H104L30-32H02I is a 10.4 inch full-color TFT LCD display with XGA (1024x768) resolution, composed of several components, including a TFT-LCD panel, timing controller, and driver circuits. The 10.4 inch LCD panel supports LVDS interface and operates within a 3.0V to 3.6V supply voltage range. This IPS type LCD display has a brightness of approximately 1000 nits, can withstand operating temperatures from -20℃ to +70℃, and is recommended for outdoor uses such as POS systems, agricultural applications, and industrial manufacturing equipment.

Product Structure
Drawing of 1000 Nits 10.4 inch LCD Display

LCD PIN Function (LVDS 30 PIN)

PIN No.	Symbol	Function
1	NC	No connection
2	GND	Ground
3	RIN3+	LVDS Signal(+)-channel 3
4	RIN3-	LVDS Signal(-)-channel 3
5	GND	Ground
6	RXCLK+	LVDS Clock Signal(+)
7	RXCLK-	LVDS Clock Signal(-)
8	GND	Ground
9	RIN2+	LVDS Signal(+)-channel 2
10	RIN2-	LVDS Signal(-)-channel 2
11	GND	Ground
12	RIN1+	LVDS Signal(+)-channel 1
13	RIN1-	LVDS Signal(-)-channel 1
14	GND	Ground
15	RIN0+	LVDS Signal(+)-channel 0
16	RIN0-	LVDS Signal(-)-channel 0
17	GND	Ground
18	NC	No connection
19	GND	Ground
20	SEL6/8	SELB="0" 8Bit SELB="1" 6Bit
21	NC	No connection
22	NC	No connection
23	NC	No connection
24	REVERSE	Reverse Panel function
25	GND	Ground
26	GND	Ground
27	GND	Ground
28	VCC	Power Voltage for digital circuit 3.3V
29	VCC	Power Voltage for digital circuit 3.3V
30	VCC	Power Voltage for digital circuit 3.3V

ABSOLUTE MAXIMUM RATINGS

Item	Symbol	Min.	Max.	Unit
Digital Supply Voltage	VDD	-0.3	5	V
Backlight Power	V	-0.3	28	V

ELECTRICAL CHARACTERISTICS

Parameter	Symbol	Min.	Typ.	Max.	Unit
Digital Power Supply Voltage	VDD	2.8	3.3	3.6	V
Current of power	I_DD	-	0.3	-	A
VDD	P_DD	-	1	-	W
Inrush current	I_RUSH	-	-	2	A
Backlight Power	V	11	13.2	14.4	V

Switching Characteristics for LVDS Receiver

Symbol	Item	Min.	Typ.	Max.	Unit	Remark
VTH	Differential Input High Threshold	-	-	100	mV	VCM=1.2V
VTL	Differential Input Low Threshold	100	-	0.3	mV	A
VID	Input Differential Voltage	100	400	600	mV	W
VICM	Differential Input Common Mode Voltage	1.1	-	1.45	V	A

BACKLIGHT CHARACTERISTICS

Item	Symbol	Min.	Typ.	Max.	Unit	Remark
LED current	ILED	-	480	-	mA	Total LED
Forward voltage	VF	11	11.7	12	V	IF=480mA
Reverse current	IR	-	-	50	μA	VR=5V, 1LED
Power dissipation	Pd	6000			mW	Total LED
Peak forward current	IFP	150			mA	1LED
Reverse Voltage	VR	5			V	1LED
