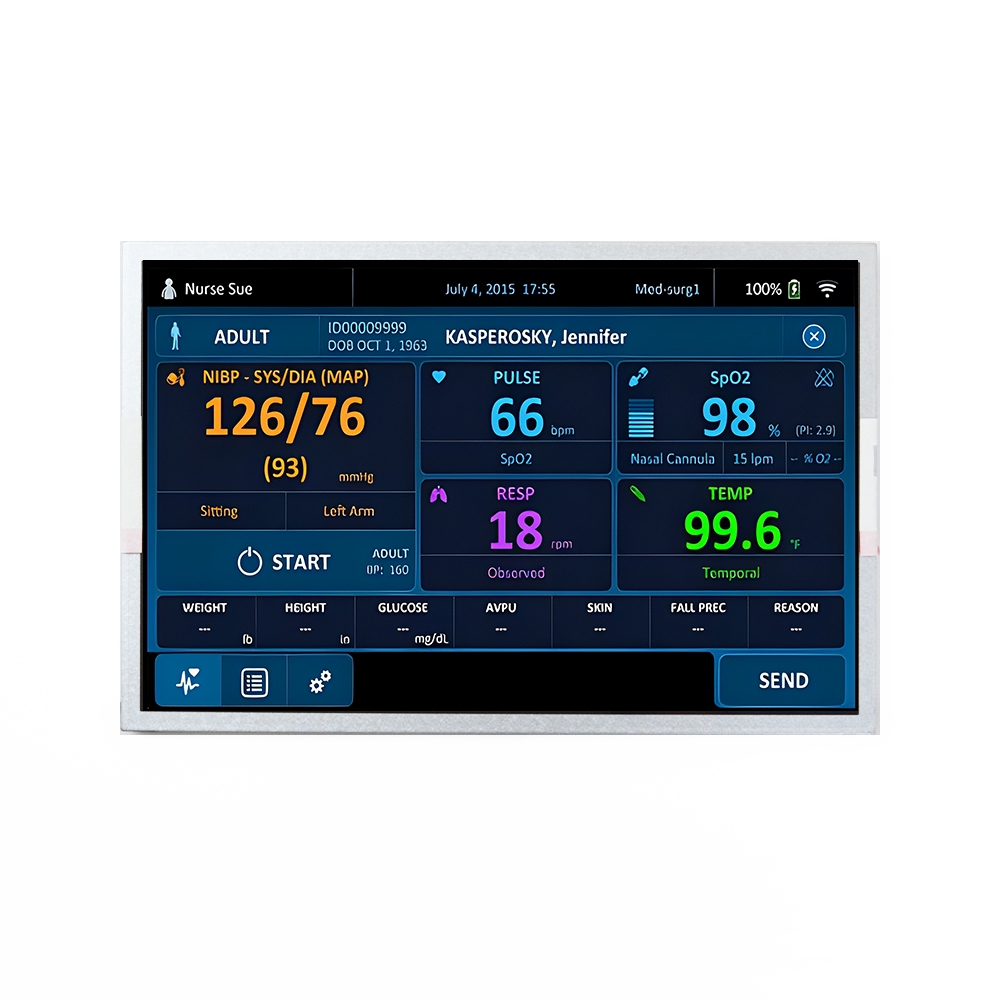

1000 Nits 12.1 inch LCD Module

Part NO: MX-B121FL20-IS81K
► Size: 12.1"
► Resolution: 1280*800 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: LVDS 20 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-B121FL20-IS81K is a 12.1 inch industrial-grade LCD module that stands out with its remarkable features. The 12.1 inch LCD module boasts a pixel resolution of 1280x800, utilizing IPS technology to ensure excellent viewing angles and color accuracy. One of its key highlights is the impressive 1000-nit high brightness, which sets it apart in the realm of industrial displays. Engineered with a robust LVDS 20-pin interface, this display is specifically crafted to deliver optimal performance across a wide range of industrial applications. Whether it‘s used in factory automation, medical equipment, vehicle information systems, or other demanding sectors, the 12.1 inch TFT LCD module is built to excel.

Product Structure
Drawing of 1000 nits 12.1 inch LCD Module

Drawing of 1000 nits 12.1 inch LCD panel

LCD PIN Function (LVDS 20 PIN)

PIN NO.	Symbol	Description
1	VCC	Power supply
2	VCC	Power supply
3	NC	Not connect
4	GND	Ground
5	D0-	Pixel data
6	D0+	Pixel data
7	GND	Ground
8	D1-	Pixel data
9	D1+	Pixel data
10	GND	Ground
11	D2-	Pixel data
12	D2+	Pixel data
13	GND	Ground
14	CLK-	Pixel data
15	CLK+	Pixel data
16	GND	Ground
17	SDA	Not connect
18	SCL	Not connect
19	D3-	Pixel data
20	D3+	Pixel data

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
LCD Operating Voltage	V_OP	-	5	V
Operating Temperature (Humidity)	T_OP	-20	70	℃
Storage Temperature (Humidity)	T_ST	-30	80	℃

Electrical specifications

Parameter	Symbol	Value	Range	Unit
TFT Gate ON Voltage	VGH	23	-	V
TFT Gate OFF Voltage	VGL	-8	-	V
TFT Common Electrode Voltage	Vcom	3.5	2~5	V
TFT Kick-Back Voltage Max.	ΔVp Max	-	-	V
TFT Kick-Back Voltage Min.	ΔVp Min	-	-	V
LCD Panel Signal Processing Board	VDD	3.3	3.0~3.6	V
LCD Panel Signal Current	-	0.6	0.5~0.8	A
LCD Panel Display Power	-	6.5	6~7	W

Backlight Specifications

Parameter	Symbol	Value	Range	Unit
Backlight Input Voltage	-	12	11~13	V
Backlight Input Current	-	0.4	0.3~0.5	A
Backlight Power	-	4.5	4~5	W
Luminance	Lum	1000	800~1000	nits
LED Life time	-	50,000	-	Hrs
White luminance uniformity	△Y	80	70~80	%
