1000 Nits 8 inch LCD Screen

Part NO: MX-080FM31BFH-N11
► Size: 8"
► Resolution: 800*1280 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: MIPI 31 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-080FM31BFH-N11 is an outstanding 8 inch LCD display featuring 1000 nits of brightness for optimal visibility, even in well-lit environments. The 8 inch LCD panel offers high-definition visuals with an 800x1280 pixel resolution, alongside an In-Plane Switching (IPS) technology that ensures consistent, accurate colors from all viewing angles. The 8 inch screen also incorporates a 4 Lanes MIPI Interface for rapid data transfer, supporting its high-resolution and high-brightness attributes, guaranteeing smooth, lag-free visuals for all applications. This 8 inch LCD screen is suitable for a variety of applications, including digital signage and other outdoor settings.

Product Structure

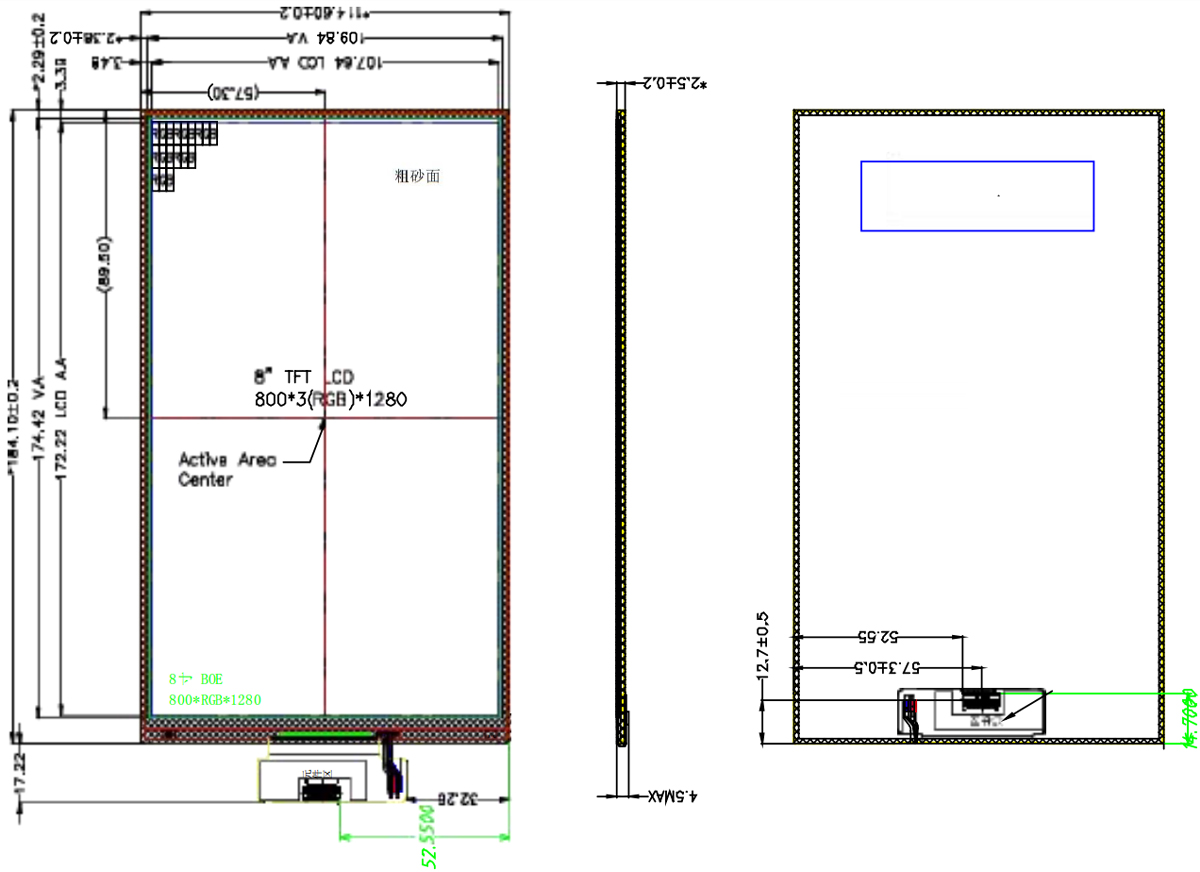

Drawing of 1000 Nits 8 inch LCD Screen

LCD PIN Function (MIPI 31 PIN)

PIN NO.	SYMBOL	DESCRIPTION
1~3	LEDA	Anode for light bar
4	NC	No connect
5~8	LEDK	Cathode for light bar
9~10	GND	Ground
11	MIPI_D2+	MIPI differential data2 input (Positive)
12	MIPI_D2-	MIPI differential data2 input (Negative)
13	GND	Ground
14	MIPI_D1+	MIPI differential data1 input (Positive)
15	MIPI_D1-	MIPI differential data1 input (Negative)
16	GND	Ground
17	MIPI_CLK+	MIPI differential clock input (Positive)
18	MIPI_CLK-	MIPI differential clock input (Negative)
19	GND	Ground
20	MIPI_D0+	MIPI differential data0 input (Positive)
21	MIPI_D0-	MIPI differential data0 input (Negative)
22	GND	Ground
23	MIPI_D3+	MIPI differential data3 input (Positive)
24	MIPI_D3-	MIPI differential data3 input (Negative)
25	GND	Ground
26	TE	Tearing Effect Pin
27	RESET	Device reset signal 1.8V
28	NC	No connection
29	VDDIO 1.8V	1.8V Input
30	VDD 3.3V	3.3V Input
31	VDD 3.3V	3.3V Input

Absolute Maximum Ratings

Item	Symbol	Rating	Unit
Digital Supply Voltage	VDD/VDDIO	-0.3 to +4.0	V
Operating Temperature range	T_OP	-10 to +50	℃
Storage Temperature range	T_ST	-20 to +60	℃

Electrical Characteristics

Item	Symbol	Min.	Type.	Max.	Unit
Digital Power Supply Voltage	VDD	3	3.3	3.6	V
Digital Power Supply Voltage	VDDIO	1.7	1.8	1.9	V

Backlight Characteristics (White LEDx3 in series) x7 in Parallel

Item	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	V_F	I_F=140mA	17	18	19	V
Uniformity	△Bp	-	70	80	-	%
LCM Luminance	Lv	I_F=140mA	800	1000	-	cd/m²
