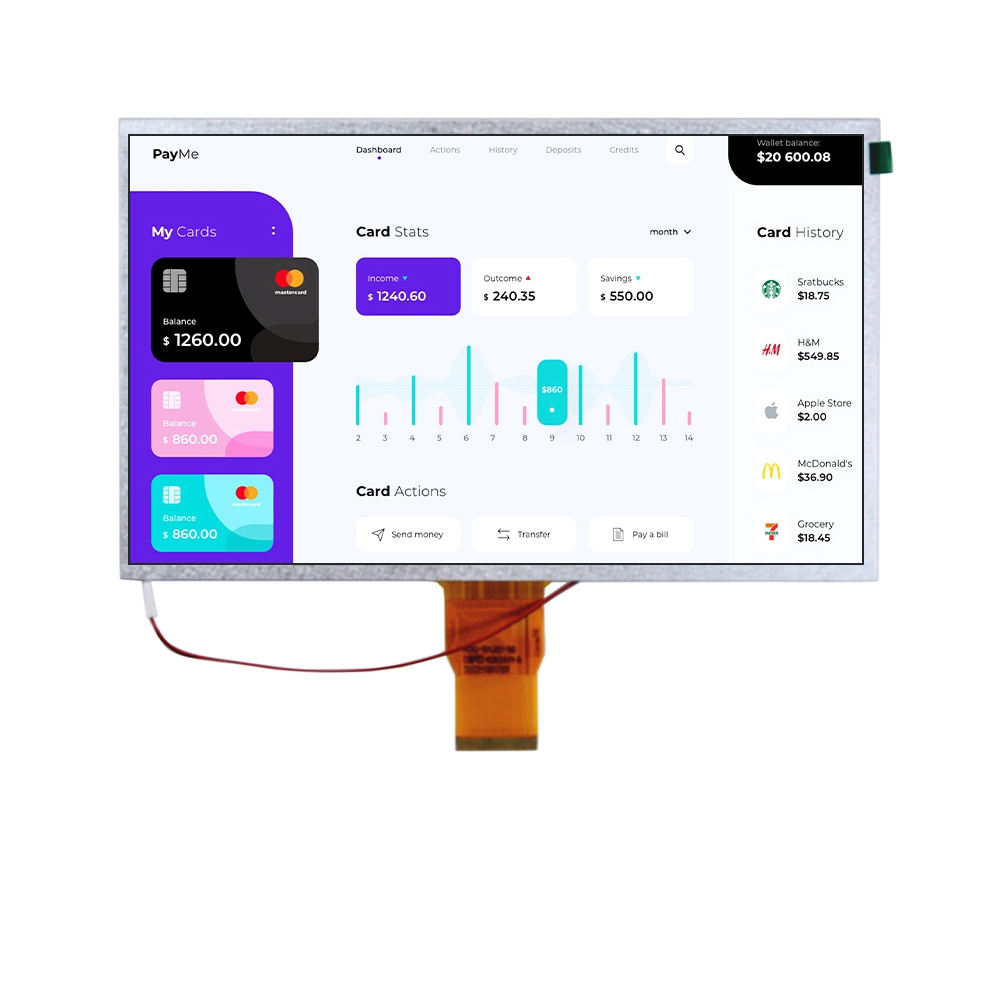

1000 Nits 10.1 inch LCD Display

Part NO: MX-B101HR50-IS411K-DB
► Size: 10.1"
► Resolution: 1024*600 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: RGB 50 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-B101HR50-IS411K-DB is a prominent 10.1 inch high brightness LCD display with a luminance of 1000 nits. Composed of a TFT-LCD panel, driver IC, Flexible Printed Circuit, and a backlight unit, this 10.1 inch display offers a sharp resolution of 1024x600 pixels and employs IPS (In-Plane Switching) mode for full viewing angle visibility. The 10.1 inch LCD screen uses a standard RGB 50-pin interface, includes a backlight cable, and is powered by HX8282-A11+HX8696 driver IC, ensuring seamless operation and high-quality display output. The 10.1 inch TFT LCD operates efficiently across a wide temperature range from -20℃ to 70℃ and can be securely stored within a temperature range of -30℃ to 80℃. The 10.1 inch LCD panel is an excellent choice for diverse applications and environments.

Product Structure
Drawing of 1000 Nits 10.1 inch LCD Display

LCD PIN Function (RGB 50 PIN)

Pin NO.	SYMBOL	I/O	DESCRIPTION
1~2	VLED+	-	Power for LED backlight (Anode)
3~4	VLED-	-	Power for LED backlight (Cathode)
5	GND	P	Power ground
6	VCOM	I	Common Voltage
7	DVDD	P	Digital Power
8	MODE	I	DE/SYNC mode select
9	DE	I	Data Enable signal
10	VSYNC	I	Vertical sync input
11	HSYNC	I	Horizontal sync input
12	B7	I	Blue data (MSB)
13~18	B6~B1	I	Blue data
19	B0	I	Blue data (LSB)
20	G7	I	Green data (MSB)
21~26	G6~G1	I	Green data
27	G0	I	Green data (LSB)
28	R7	I	Red data (MSB)
29~34	R6~R1	I	Red data
35	R0	I	Red data(LSB)
36	GND	P	Power ground
37	DCLK	I	Clock input
38	GND	P	Power ground
39	SHLR	I	Left/Right Selection
40	UPDN	I	Up/Down Selection
41	VGH	P	Gate ON Voltage
42	VGL	P	Gate OFF Voltage
43	AVDD	P	Power for Analog Circuit
44	RESET	I	Global reset pin
45	NC	-	Not
46	VCOM	I	Common Voltage
47	DITH	I	Dithering function enable control
48	GND	P	Power ground
49~50	NC	-	Not

I: input, O: output, P: Power

Electrical Absolute Maximum Ratings (Vss=0V, Ta=25℃)

Item	Symbol	Min.	Max.	Unit
Digital Supply Voltage	DVDD	-0.3	3.6	V
Analog Supply Voltage	AVDD	0	13.5	V
TFT Gate ON Voltage	VGH	-0.3	20	V
TFT Gate OFF Voltage	VGL	-20	0.3	V
Operating Temperature	T_OP	-20	70	°C
Storage Temperature	T_ST	-30	80	°C

Electrical characteristics (Vss=0V, Ta=25℃)

Item	Symbol	Min.	Typ	Max.	Unit
Digital Supply Voltage	DVDD	3	3.3	3.6	V
Analog Supply Voltage	AVDD	9.5	9.6	9.7	V
TFT Gate ON Voltage	VGH	17.6	18	18.4	V
TFT Gate OFF Voltage	VGL	-6.4	-6	-5.6	V
TFT Common Electrode Voltage	VCOM	4	4.2	4.4	V

LED backlight specification (Vss=0V, Ta=25℃)

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply voltage	-	-	-	-	18.6	V
Supply current	If	-	-	280	-	mA
Brightness	Bp	θ=0° F=0°	-	1000	-	Cd/m²
Uniformity	⊿Bp	θ=0° F=0°	75	80	-	%
