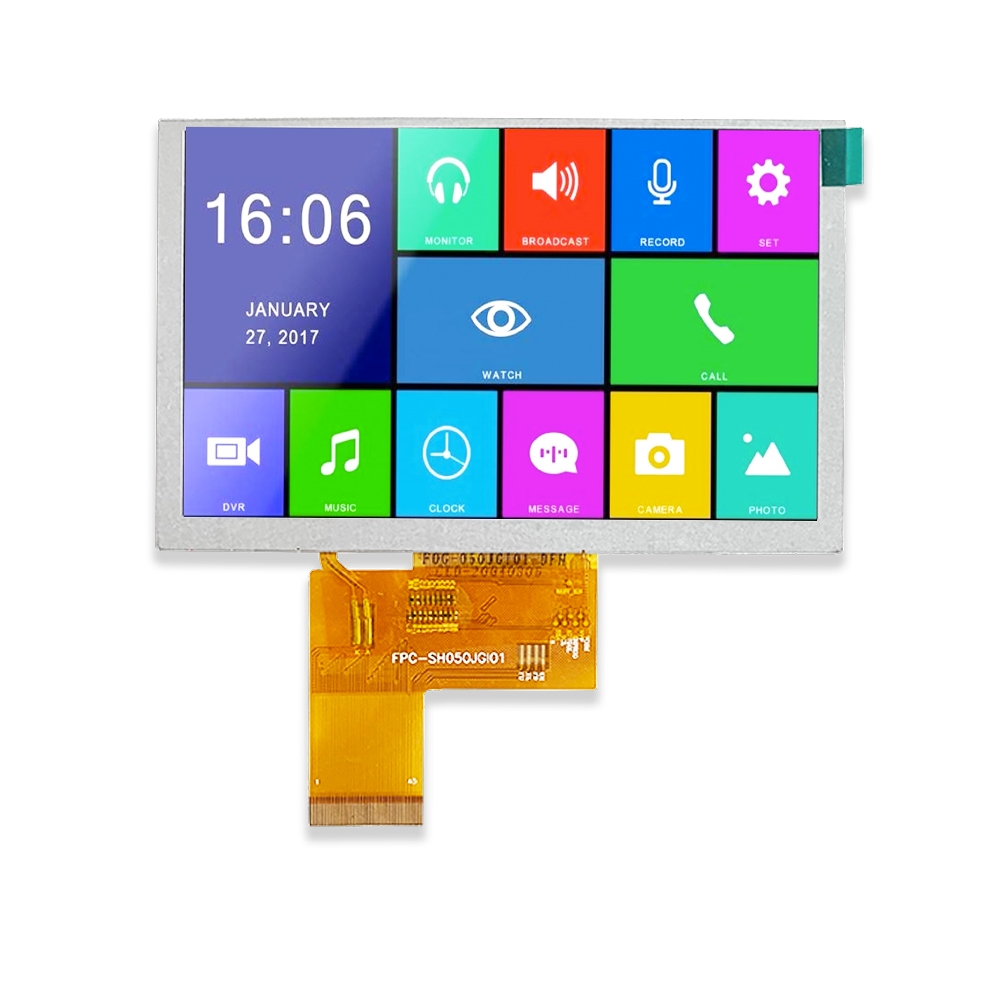

MX-B50HR40-TIS09 is a 5 inch LCD Panel, integrated with IPS technology, delivering vibrant colors, high brightness for superior sunlight readability, and a broad viewing angle for an exceptional viewing experience. This 5 inch LCD Panel is characterized by an impressive resolution of 800x480 pixels and a luminosity of 1000cd/m2, ensuring the projection of brilliantly clear images. Equipped with an RGB interface, the 5 inch LCD display stands out for its interactive capabilities, featuring a Projected Capacitive (PCAP) touch panel along with a GT911 controller for 5-finger operation. Operating at a single supply voltage of 3.3V and a temperature range of -20℃ to 70℃, this 5 inch LCD screen offers robust performance and adaptability across diverse environmental conditions.

Product Structure

LCD PIN Function (RGB 40 PIN)

Pin	Symbol	Description
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Stand by mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin
