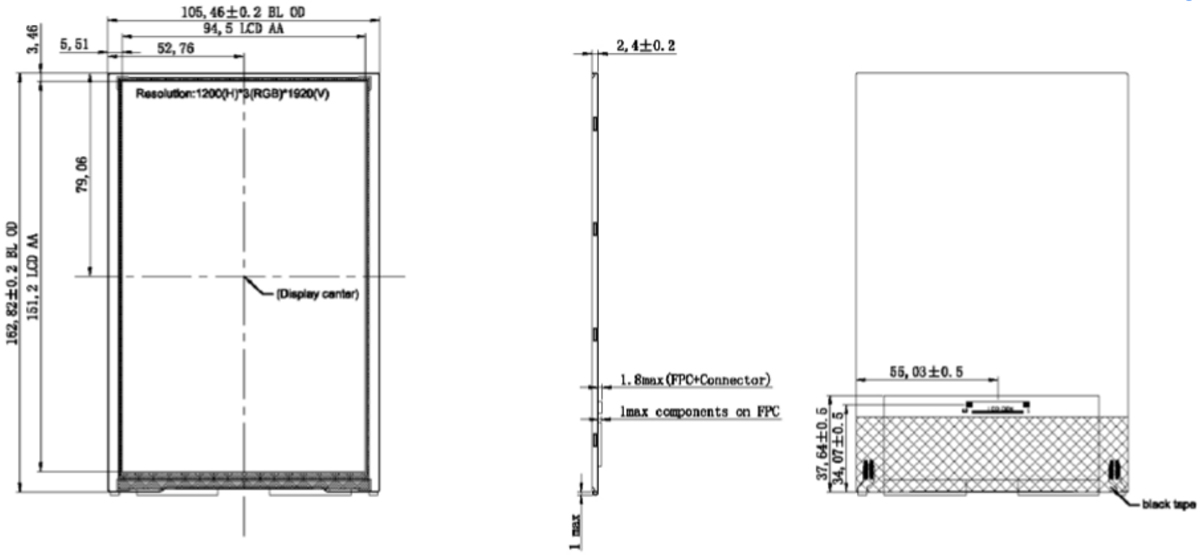

PIN NO.

PIN NAME

I/O

Description

1

NC

P

No connection

2

IOVCC

P

Power supply for system, IOVCC=1.8V

3

IOVCC

P

4

GND

P

Ground

5

RST

I

Device reset signal

6

NC

-

No connection

7

GND

P

Ground

8

MIPI_0N

I

MIPI Negative data inputs

9

MIPI_0P

I

MIPI Positive data inputs

10

GND

P

Power ground

11

MIPI_1N

I

MIPI Negative data inputs

12

MIPI_1P

I

MIPI Positive data inputs

13

GND

P

Power ground

14

MIPI_CKN

I

MIPI Negative clock inputs

15

MIPI_CKP

I

MIPI Positive clock inputs

16

GND

P

Power ground

17

MIPI_2N

I

MIPI Negative data inputs

18

MIPI_2P

I

MIPI Positive data inputs

19

GND

P

Power ground

20

MIPI_3N

I

MIPI Negative data inputs

21

MIPI_3P

I

MIPI Positive data inputs

22

GND

P

Power ground

23

TP_SCL

I

Touch panel serial clock

24

TP_SDA

IO

Touch panel serial data

25

GND

P

Power ground

26

TE

O

Tearing effect output

27

PWMO

O

PWM control signal for LED driver (CABC)

28

TP_INT

O

Touch panel interrupt

29

TP_RST

I

Touch panel reset

30

GND

P

Power ground

31

LED-

P

LED Cathode

32

LED-

P

33

NC

-

No connection

34

VSN

P

Analog supply negative voltage (-5~-6V)

35

VSN

P

36

NC

-

No connection

37

VSP

P

Analog supply positive voltage (5~6V)

38

VSP

P

39

LED+

P

LED Anode

40

LED+

P
