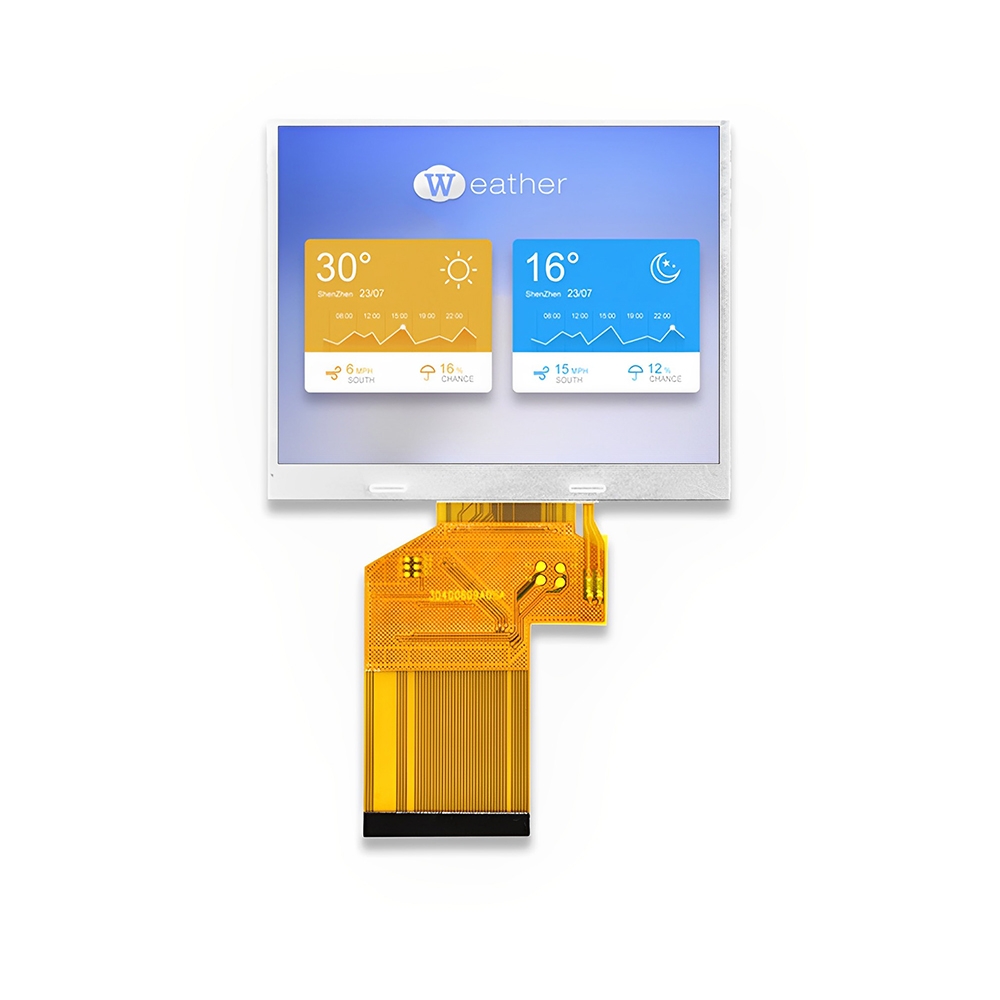

Wide Temperature 3.5 inch LCD Display

Part NO: MX-I035T54-32006L02T
► Size: 3.5"
► Resolution: 320*240 Pixels
► Display Mode: IPS
► Brightness: 550 Nits
► Interface: RGB 54 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

HCT-I035T54-32006L02T is 3.5 inch IPS LCD Display with Wide Temperature. This 3.5” IPS LCD supports display 320(RGB)x240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08*52.56 mm, outline size of 76.90*63.90*3.2 mm. As an IPS, Normally Black, Transmissive LCM product, HCT-I035T54-32006L02T can provides 550 cd/m²(Typ.) display brightness and 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.) (CR≥10) full viewing angle. This 3.5 inch LCD Display utilizes Digital RGB interface, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.). It‘s typical vertical frame rate (Fv) is 60Hz. It can be operated at temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +85℃.

Product Structure

Drawing of 3.5 inch LCD Display With Wide Temperature

LCD PIN Function (RGB 54 PIN)

Pin No.	Symbol	Description
1	LEDK	Cathode of LED backlight
2	LEDK	Cathode of LED backlight
3	LEDA	Anode of LED backlight
4	LEDA	Anode of LED backlight
5~7	NC	No connect
8	RESET	RESET PIN
9	SPENA	Chip select of serial interface
10	SPCLK	Clock pin of serial interface
11	SPDAT	Data input pin of serial interface
12~19	B0~B7	Blue data bus
20~27	G0~G7	Green data bus
28~35	R0~R7	Red data bus
36	HSYNC	Horizontal sync signal; negative polarity
37	VSYNC	Vertical sync signal; negative polarity
38	DCLK	Clock signal; latching data at the falling edge
39~40	NC	No connect
41~42	VDD	Power supply
43~51	NC	No connect
52	DEN	Display enable pin from controller
53~54	GND	Power ground

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Supply voltage for analog	VDD	-0.3	4.5	V
Supply voltage for logic	VDD	-0.3	4.5	V
Supply current (One LED)	I_LED	-	30	mA
Operating temperature	T_OP	-30	85	℃
Storage temperature	T_ST	-30	85	℃

Electrical Characteristics

Item	Symbol	Min	Typ.	Max.	Unit
Supply Voltage for Analog	VDD	3	3.3	3.6	V
Supply Voltage for Logic	VDD	3	3.3	3.6	V
Input Voltage	V_IL	GND	-	0.3VDD	V
Input Voltage	V_IH	0.7VDD	-	VDD	V
Input leakage Current	I_LKG	-1	-	1	μA

Backlight Characteristics

Item	Symbol	Value			Unit	Remark
Item	Symbol	Min.	Typ.	Max.	Unit	Remark
Voltage for LED Backlight	V_F	16.8	18.6	20.4	V	I_L=20mA
Current for LED Backlight	I_L	-	20	-	mA	-
Power Consumption	P	-	0.372	-	W	-
LED Life Time	-	30,000	50,000	-	Hr	Note
